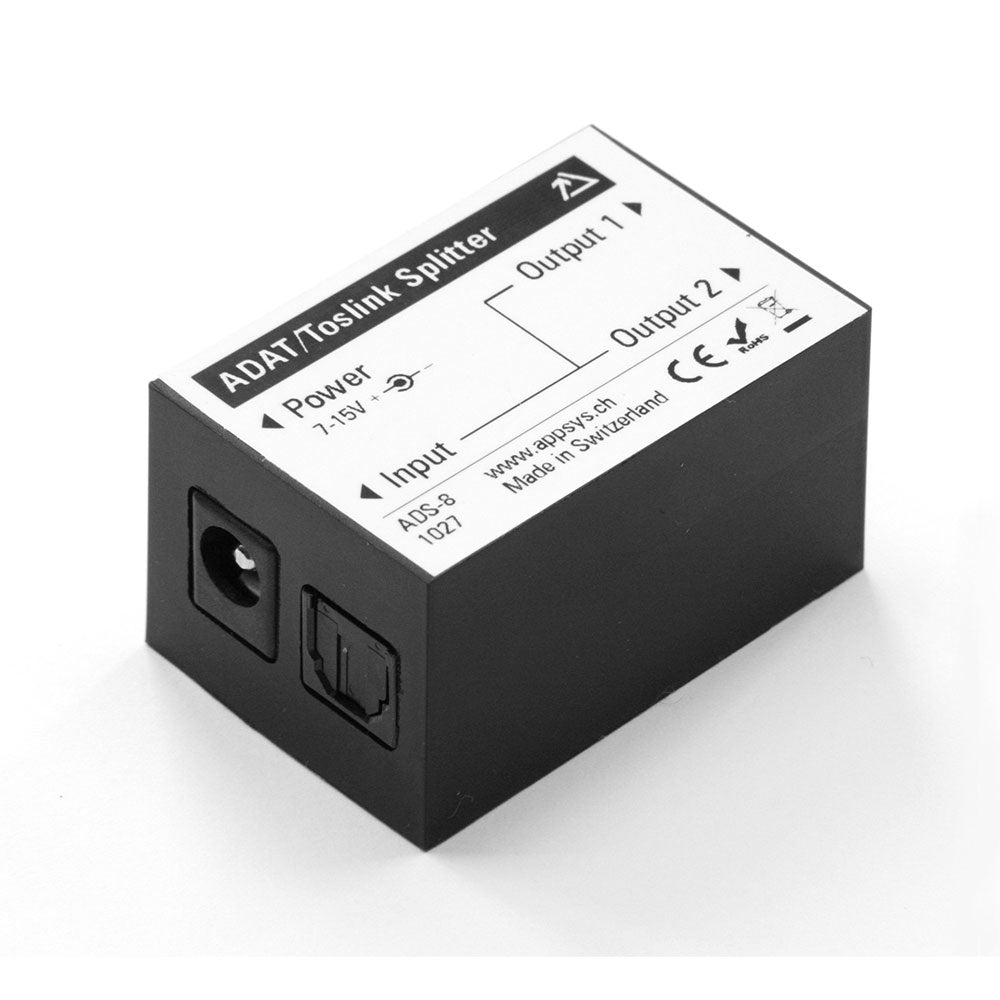

Appsys Pro Audio ADS-8 - Active ADAT / TOSLink Splitter
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The ADS-8 ADAT/Toslink Splitter allows you to connect any signal source to two sinks. The active design overcomes the limitations of traditional passive splitters: They essentially half the amount of light on each output, causing problems because the attenuated signal is too weak for proper transmission of high-speed data. In contrast, the ADS-8 receives the optical signal, converts it to an electrical signal which can be split without loss to the out put transmitters which operate on each port with full power. As a side effect, it acts as signal repeater which doubles the reach of each connection.
Features:
- Reliable, lossless, true bit-transparent splitting of any signal
- Doubles maximum transmission distance of an optical connection from normally 5-10m to 10-20m, depending on the equipment used
- Near-zero latency (under 1µs)
- All channels present on the input are available on both outputs
- Compatible with all audio formats which can be sent over TOSLINK
- Quality product "Made in Switzerland"
Includes:
- Splitter (1 input to 2 outputs)
- AC adapter in "green" switching technology
- Printed manual
| Input/Output | Optical connector, F05 Type TOSLINK¨compatible |
| Transmitted audio formats | ADAT, SPDIF, Dolby Digital ¨ 5.1 and other TOSLINK compatible formats (up to 96 kHz sample rate/15 Mbit data rate) |
| Power supply | 9..12VDC 50mA Plug:ID=2.5mm OD=5mm Length=9mm Polarity: Center Positive |
The ADS-8 ADAT/Toslink Splitter allows you to connect any signal source to two sinks. The active design overcomes the limitations of traditional passive splitters: They essentially half the amount of light on each output, causing problems because the attenuated signal is too weak for proper transmission of high-speed data. In contrast, the ADS-8 receives the optical signal, converts it to an electrical signal which can be split without loss to the out put transmitters which operate on each port with full power. As a side effect, it acts as signal repeater which doubles the reach of each connection.
Features:
- Reliable, lossless, true bit-transparent splitting of any signal
- Doubles maximum transmission distance of an optical connection from normally 5-10m to 10-20m, depending on the equipment used
- Near-zero latency (under 1µs)
- All channels present on the input are available on both outputs
- Compatible with all audio formats which can be sent over TOSLINK
- Quality product "Made in Switzerland"
Includes:
- Splitter (1 input to 2 outputs)
- AC adapter in "green" switching technology
- Printed manual
| Input/Output | Optical connector, F05 Type TOSLINK¨compatible |
| Transmitted audio formats | ADAT, SPDIF, Dolby Digital ¨ 5.1 and other TOSLINK compatible formats (up to 96 kHz sample rate/15 Mbit data rate) |
| Power supply | 9..12VDC 50mA Plug:ID=2.5mm OD=5mm Length=9mm Polarity: Center Positive |
