Appsys Pro Audio ADX-8 - 8-Channel ADAT / TOSLink Extender


  • Dale #:

    APPS-ADX8
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

Without any kind of compression or other potentially sound-degrading conversions, the input signal is 100% bitwise transmitted in real time to the output. Ideally suited for connecting your PC to your HiFi equipment, for upgrading your network cabling to a true HiFi-capable sound bridge, or to li... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

Without any kind of compression or other potentially sound-degrading conversions, the input signal is 100% bitwise transmitted in real time to the output. Ideally suited for connecting your PC to your HiFi equipment, for upgrading your network cabling to a true HiFi-capable sound bridge, or to listen to music in uncompromising quality anywhere you can reach with standard network cabling. Or use the extender in your recording studio to overcome the 5 meter length limit of ADAT connections!

Features:

  • Lossless, uncompressed 1:1 transmission
  • Standard TOSLINK optical jacks at input and output
  • Eliminates hum, buzz and noise thanks to galvanic isolation (ground loop removal)
  • Near-zero latency (under 1µs)
  • Compatible with all digital audio formats (ADAT Lightpipe, SPDIF, AC-3 (Dolby Digital ®), DTS® etc.)
    up to 96 kHz sample rate / 12.5 MBit signalling rate
  • Cost-effective installation using standard Cat5 network cabling
  • Quality product "Made in Switzerland"

Includes:

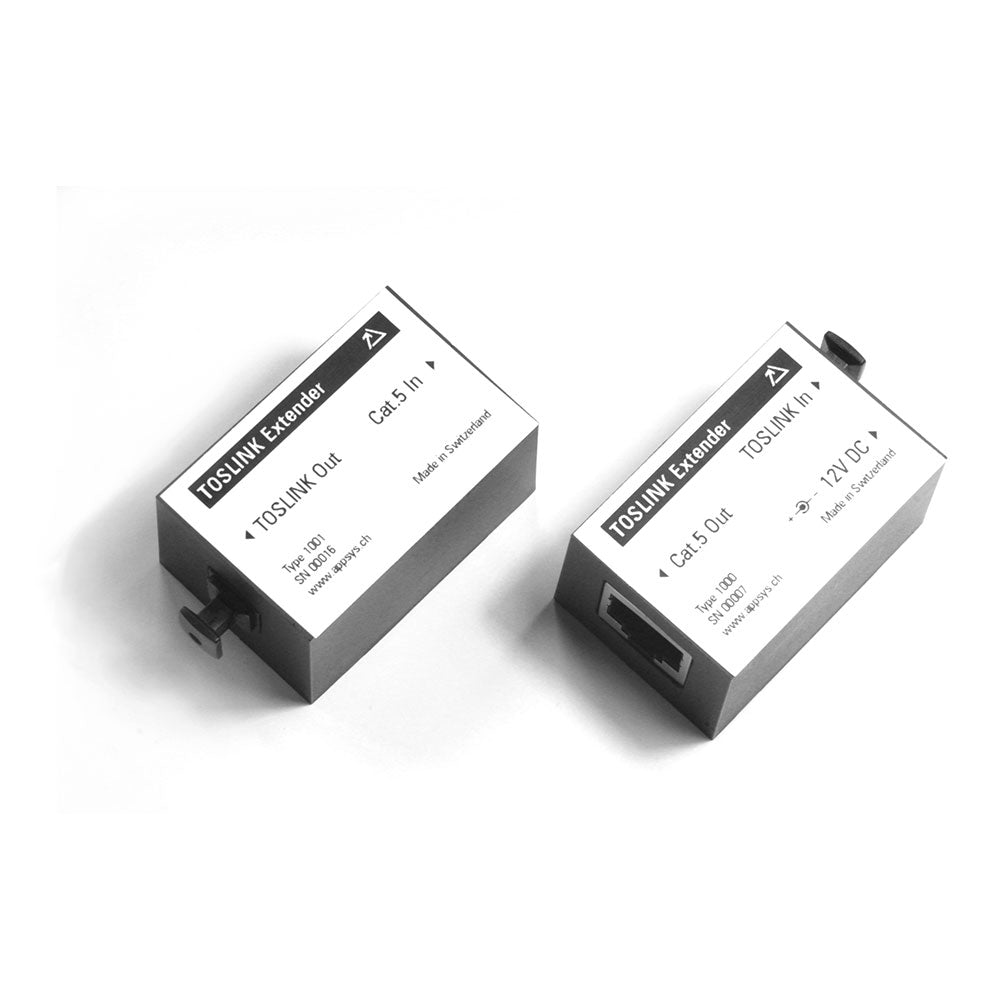

  • Transmitter (TOSLINK to Cat5 Cable adapter)
  • Receiver (Cat5 cable to TOSLINK adapter)
  • AC adapter in "green" switching technology
  • Printed manual

More +

Product Specs

Input/Output Optical connector, F05 Type TOSLINK®compatible
Maximum distance between sender and receiver 100m (328 ft.)
Transmitted audio formats ADAT, SPDIF, Dolby Digital ® 5.1 and other TOSLINK compatible formats (up to 96 kHz sample rate/15 Mbit data rate)
Power supply 9..12VDC 100mA
Plug:ID=2.5mm OD=5mm Length=9mm Polarity: Center Positive
