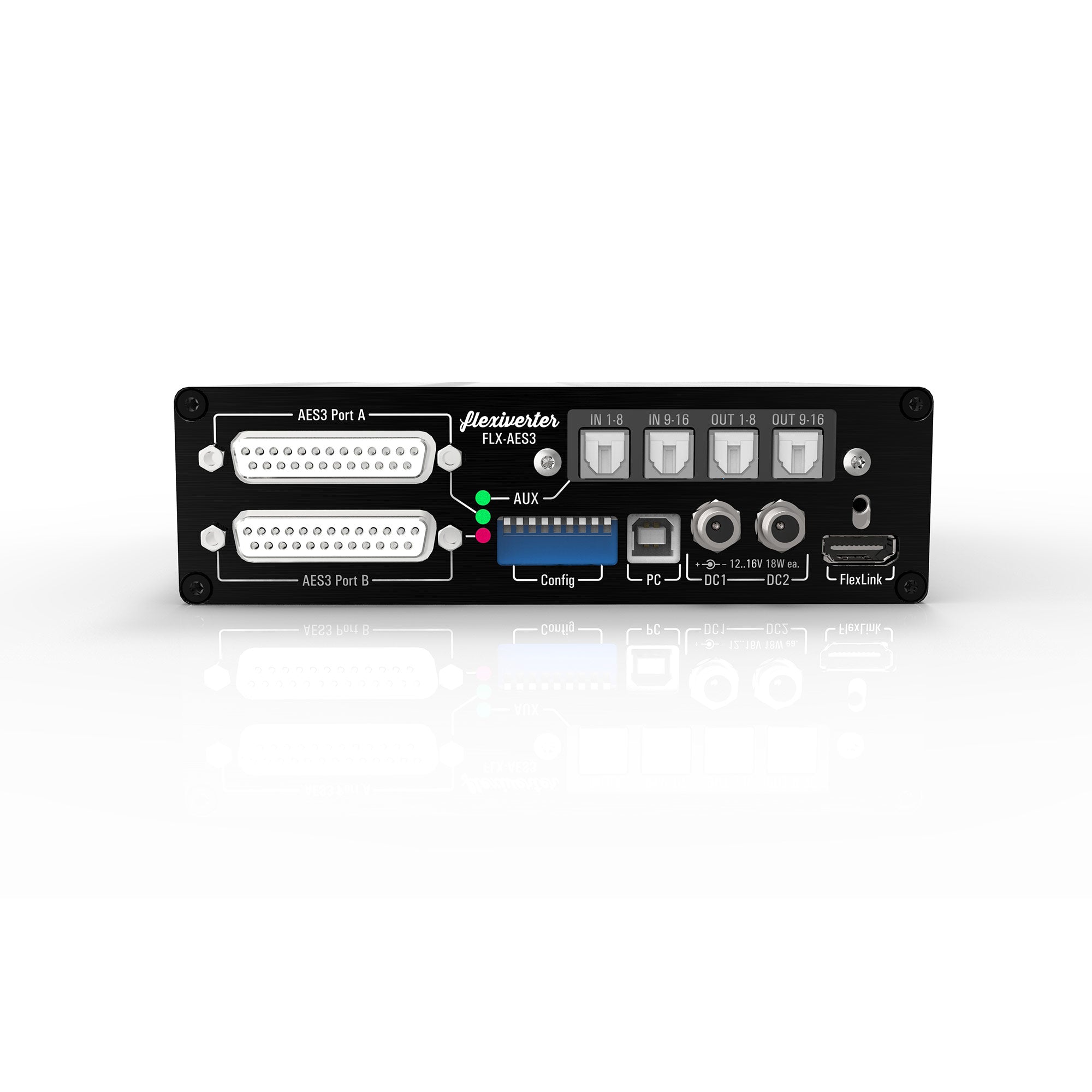

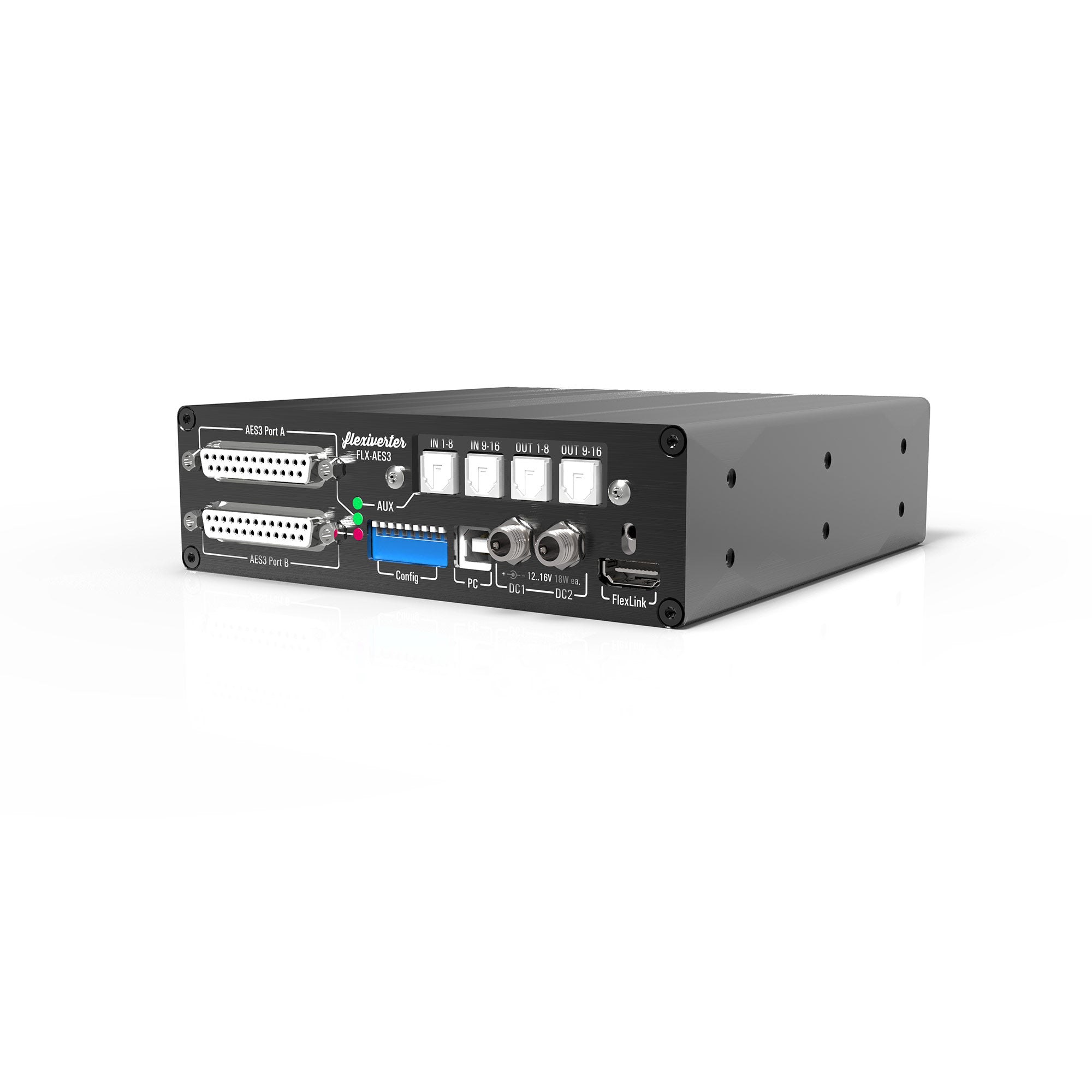

Appsys Pro Audio FLX-AES3 Flexiverter - 16-Channel AES3 Digital Audio Converter
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The FLX-AES3 is a compact AES3-to-anything converter. It has 16x16 channels of AES3 built in, which can be converted to any protocol installed into the AUX slot. For larger systems, the built-in channels plus everything which the AUX card provides are also available on the FlexLink port, making it possible to use it as extension to the MVR-64 or another Flexiverter.
Features:
- 16x16 channels of AES/EBU, fully transformer isolated
- AUX port accepting any AUX card as conversion source/destination, or extension to 24x24ch AES3
- Supports arbitrary sample rates in the range from 44.1...192kHz
- DB25 connector pinout (Tascam or Yamaha) selectable individually for each connector via internal jumpers
- FlexLink port for lowest latency, bi-directional transfer of 192 channels audio, clock and power
- Triple-redundant power supply
Additional features when connected to the MVR-64
- True channel-wise routing of all available channels (built-in plus AUX card)
- Sample-rate conversion using the SRC-64
- Web- or telnet based remote control
| Dimensions | 152x44x153mm (WxHxD) excluding connectors/buttons 152x44x163mm (WxHxD) including device-side connectors/buttons |
| Weight | 590g |
| Operating temperature | 0..+55¡C, non-condensing |
| Storage temperature | -40..+85¡C, non-condensing |
| Power consumption | +15V DC, 9W max (18W to power two devices via FlexLink) Triple-redundant input (2x DC, 1x via FlexLink) |
| AES3 ports (A, B) | Input and output fully transformer-isolated according to AES/EBU requirements Maximum speed: 192kHz single-wire Pinout: Tascam(AES) or Yamaha, selectable for each port via internal jumper blocks |
| Cable lengths | FlexLink: 1m / 3ft. max. recommended AES3: 100m / 300 ft., depending on the peer device |
| Channel count | 16x16 @ 48/96/192 kHz (Single-wire) 8x8 @ 96kHz, 8x8 @ 192kHz (Dual wire), 4x4 @ 192 kHz (Quad wire) Additional AUX channels depending on AUX card |
| Sample rates | 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz 88.2/96kHz can operate in single-wire or double-wire mode 176.4/192kHz can operate in single-wire, double-wire or quad-wire mode |
| Latency | Conversion AES3 <> FlexLink: 2 samples Conversion AES3 <> AUX: 4 samples plus AUX card latency (depending on AUX card) |
| Internal clock precision | Jitter: Phase RMS: <1ps, Peak-peak: <50ps. Stability: ±25 ppm including all effects including aging, temperatur, supply, calibration, shock, vibration |
