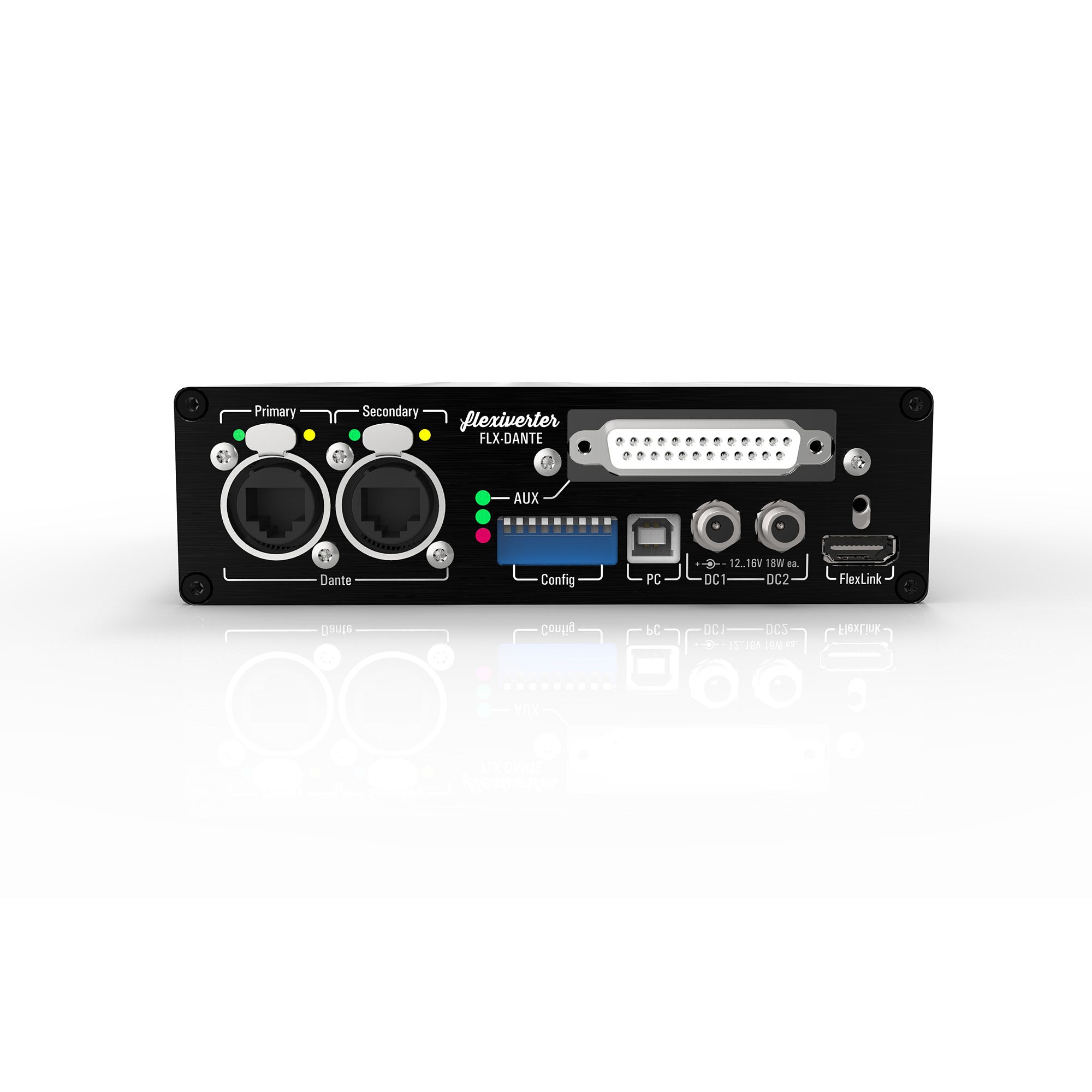

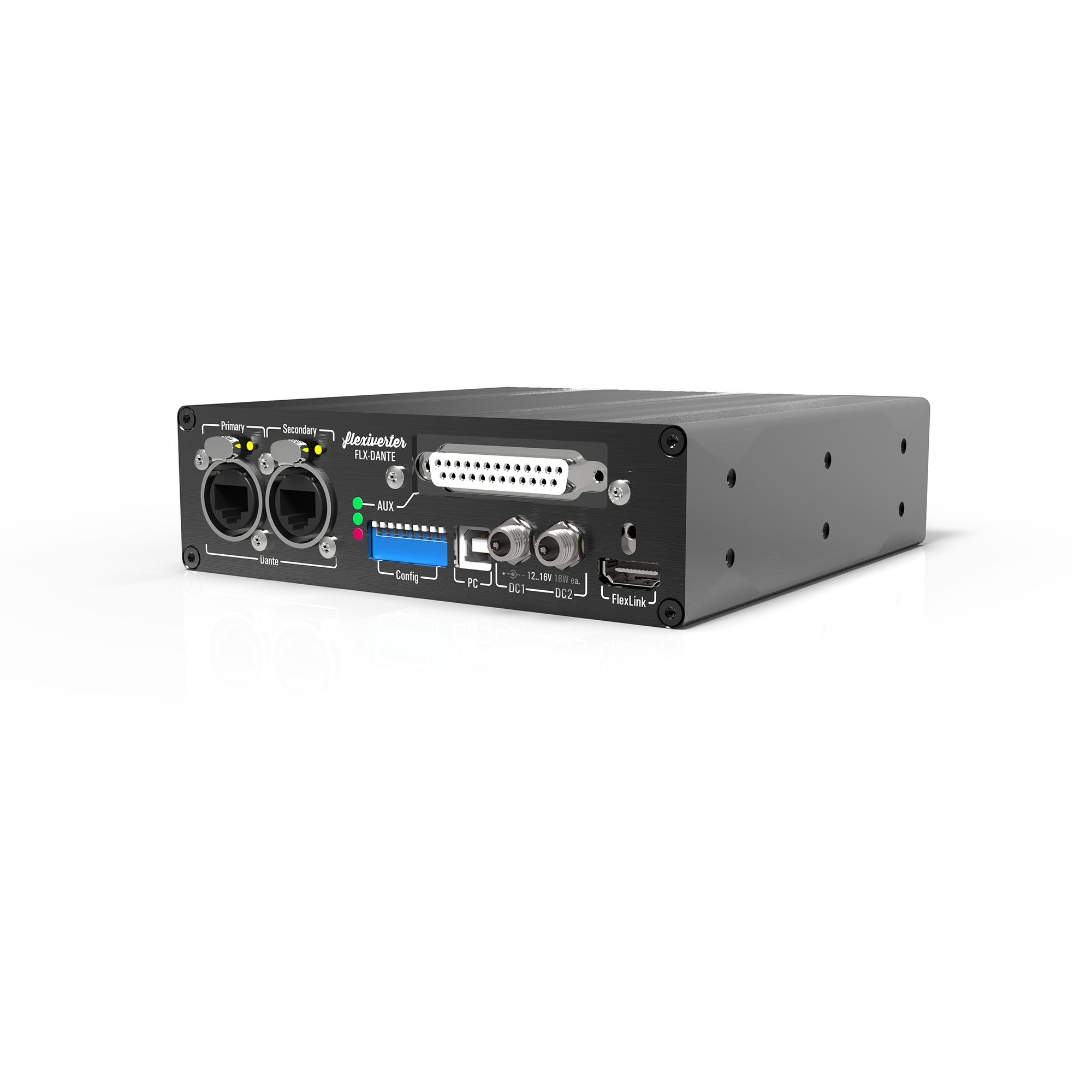

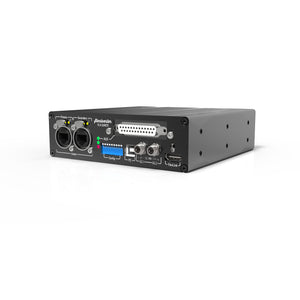

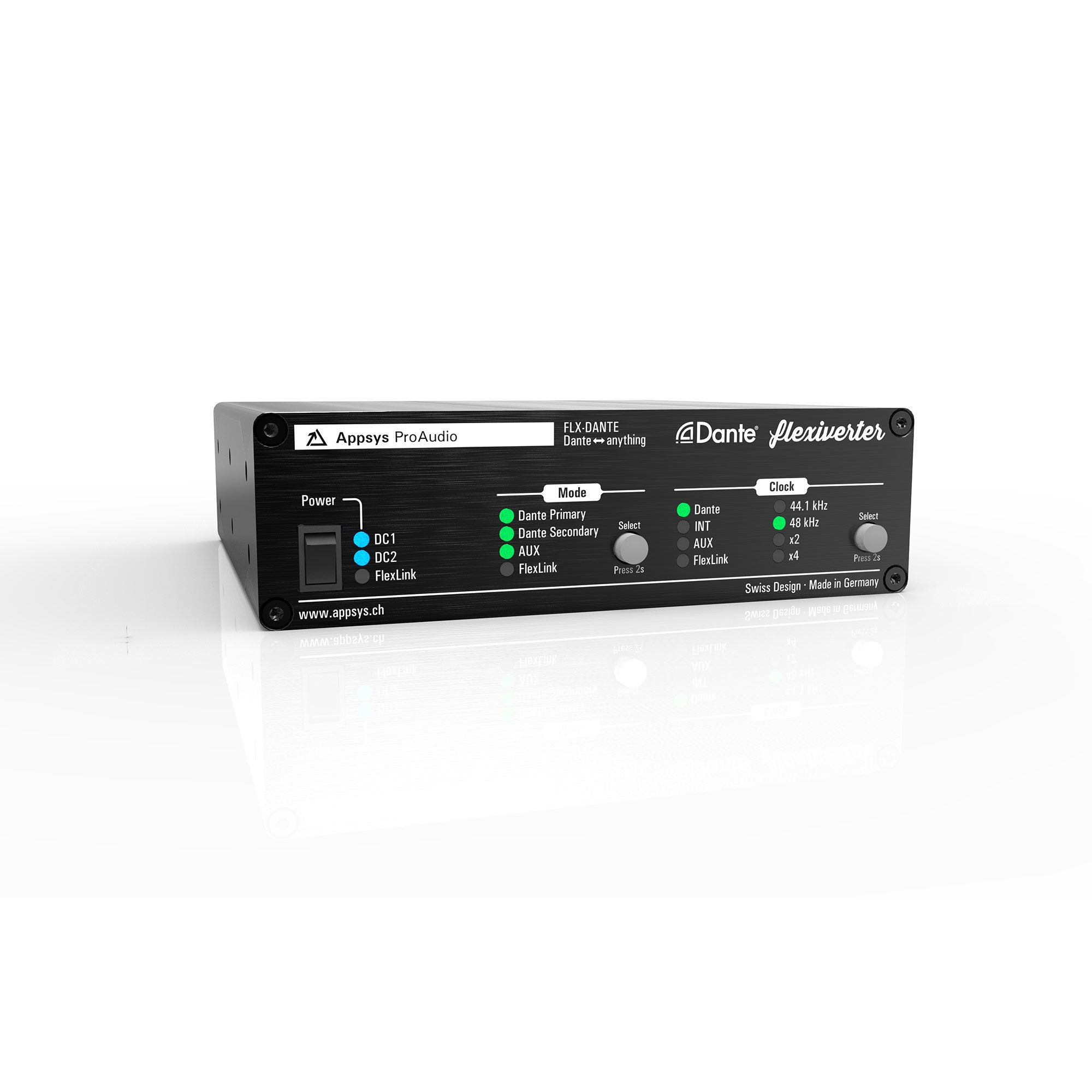

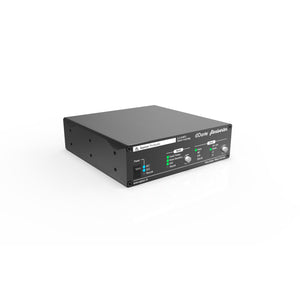

Appsys Pro Audio FLX-DANTE Flexiverter - 64-Channel Dante Digital Audio Converter
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The FLX-DANTE is a compact DANTE-to-anything converter. It features a 64x64ch built in Dante Port, which can be converted to any protocol installed into the AUX slot. For larger systems, the built-in channels plus everything which the AUX card provides are also available on the FlexLink port, making it possible to use it as extension to the MVR-64 or another Flexiverter.
Features:
- Two DANTE ports on Ethercon connectors
- AUX port accepting any AUX card as conversion source/destination
- Supports sample rates from 44.1 to 192kHz
- FlexLink port for lowest latency, bi-directional transfer of 192 channels audio, clock and power
- Triple-redundant power supply
Additional features when connected to the MVR-64
- True channel-wise routing of all available channels (built-in plus AUX card)
- Sample-rate conversion using the SRC-64
- Web- or telnet based remote control
| Dimensions | 152x44x153mm (WxHxD) excluding connectors/buttons 152x44x163mm (WxHxD) including device-side connectors/buttons |
| Weight | 580g |
| Operating temperature | 0..+55¡C, non-condensing |
| Storage temperature | -40..+85¡C, non-condensing |
| Power consumption | +15V DC, 9W max (18W to power two devices via FlexLink) Triple-redundant input (2x DC, 1x via FlexLink) |
| Dante Network Ports | 1000BASE-T (Gigabit), compatible to 100BASE-T Primary/Secondary ports configurable as "Switched" (default) or "Redundant" |
| Cable lengths | FlexLink: 1m/3ft. max. recommended Network: 100m/300 ft. Cat5 or better cable required for 1000BASE-T operation |
| Channel count | 64x64 @ 48kHz 32x32 @ 96kHz 16x16 @ 192kHz plus additional AUX channels depending on AUX card |
| Sample rates | 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz |
| Internal clock precision | Jitter: Phase RMS: <1ps, Peak-peak: <50ps. Stability: ±25 ppm including all effects including aging, temperature, supply, calibration, shock, vibration |
The FLX-DANTE is a compact DANTE-to-anything converter. It features a 64x64ch built in Dante Port, which can be converted to any protocol installed into the AUX slot. For larger systems, the built-in channels plus everything which the AUX card provides are also available on the FlexLink port, making it possible to use it as extension to the MVR-64 or another Flexiverter.
Features:
- Two DANTE ports on Ethercon connectors
- AUX port accepting any AUX card as conversion source/destination
- Supports sample rates from 44.1 to 192kHz
- FlexLink port for lowest latency, bi-directional transfer of 192 channels audio, clock and power
- Triple-redundant power supply
Additional features when connected to the MVR-64
- True channel-wise routing of all available channels (built-in plus AUX card)
- Sample-rate conversion using the SRC-64
- Web- or telnet based remote control
| Dimensions | 152x44x153mm (WxHxD) excluding connectors/buttons 152x44x163mm (WxHxD) including device-side connectors/buttons |
| Weight | 580g |
| Operating temperature | 0..+55¡C, non-condensing |
| Storage temperature | -40..+85¡C, non-condensing |
| Power consumption | +15V DC, 9W max (18W to power two devices via FlexLink) Triple-redundant input (2x DC, 1x via FlexLink) |
| Dante Network Ports | 1000BASE-T (Gigabit), compatible to 100BASE-T Primary/Secondary ports configurable as "Switched" (default) or "Redundant" |
| Cable lengths | FlexLink: 1m/3ft. max. recommended Network: 100m/300 ft. Cat5 or better cable required for 1000BASE-T operation |
| Channel count | 64x64 @ 48kHz 32x32 @ 96kHz 16x16 @ 192kHz plus additional AUX channels depending on AUX card |
| Sample rates | 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz |
| Internal clock precision | Jitter: Phase RMS: <1ps, Peak-peak: <50ps. Stability: ±25 ppm including all effects including aging, temperature, supply, calibration, shock, vibration |
