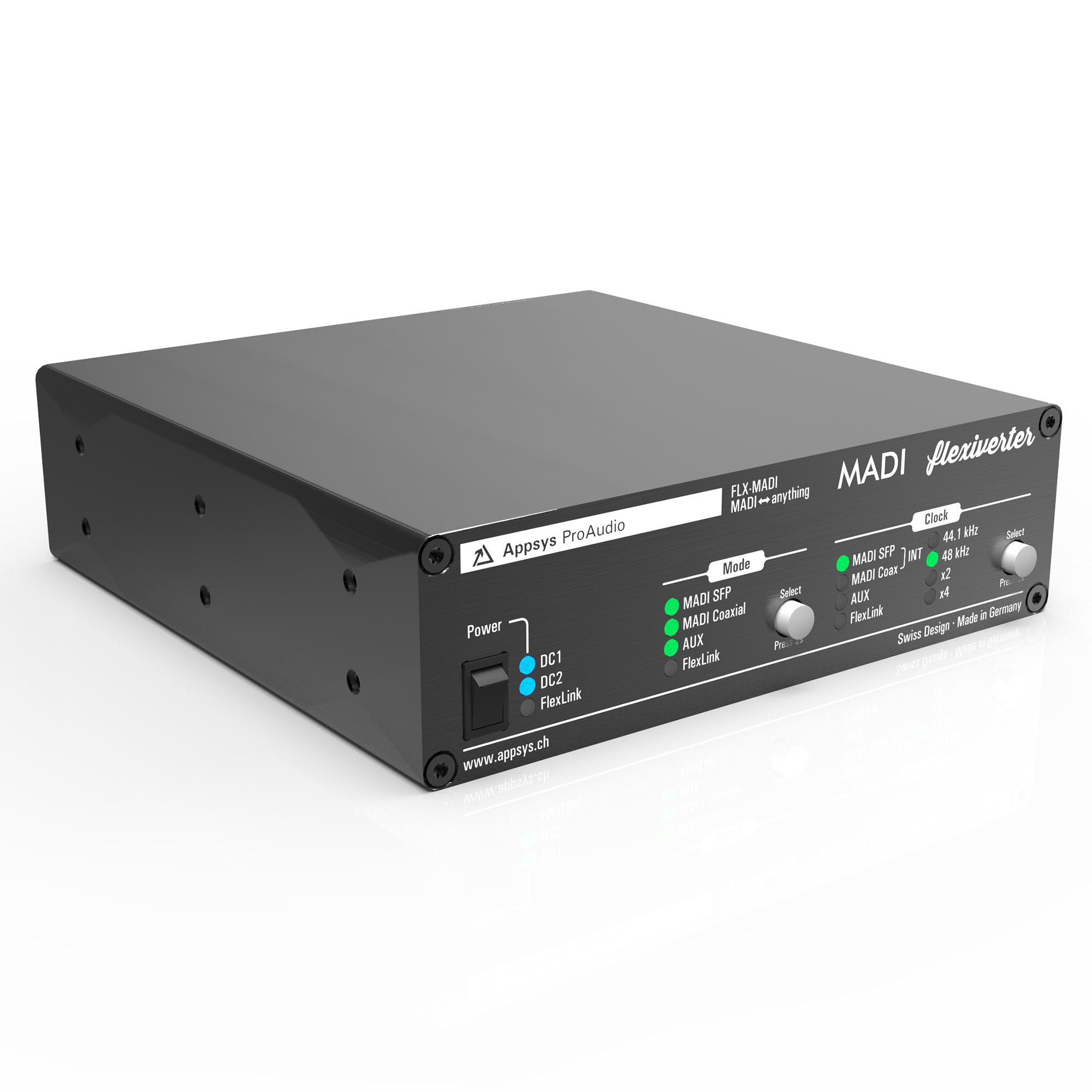

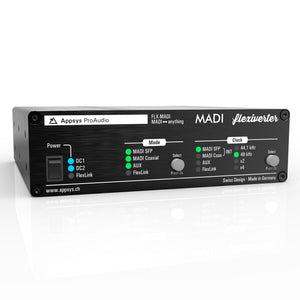

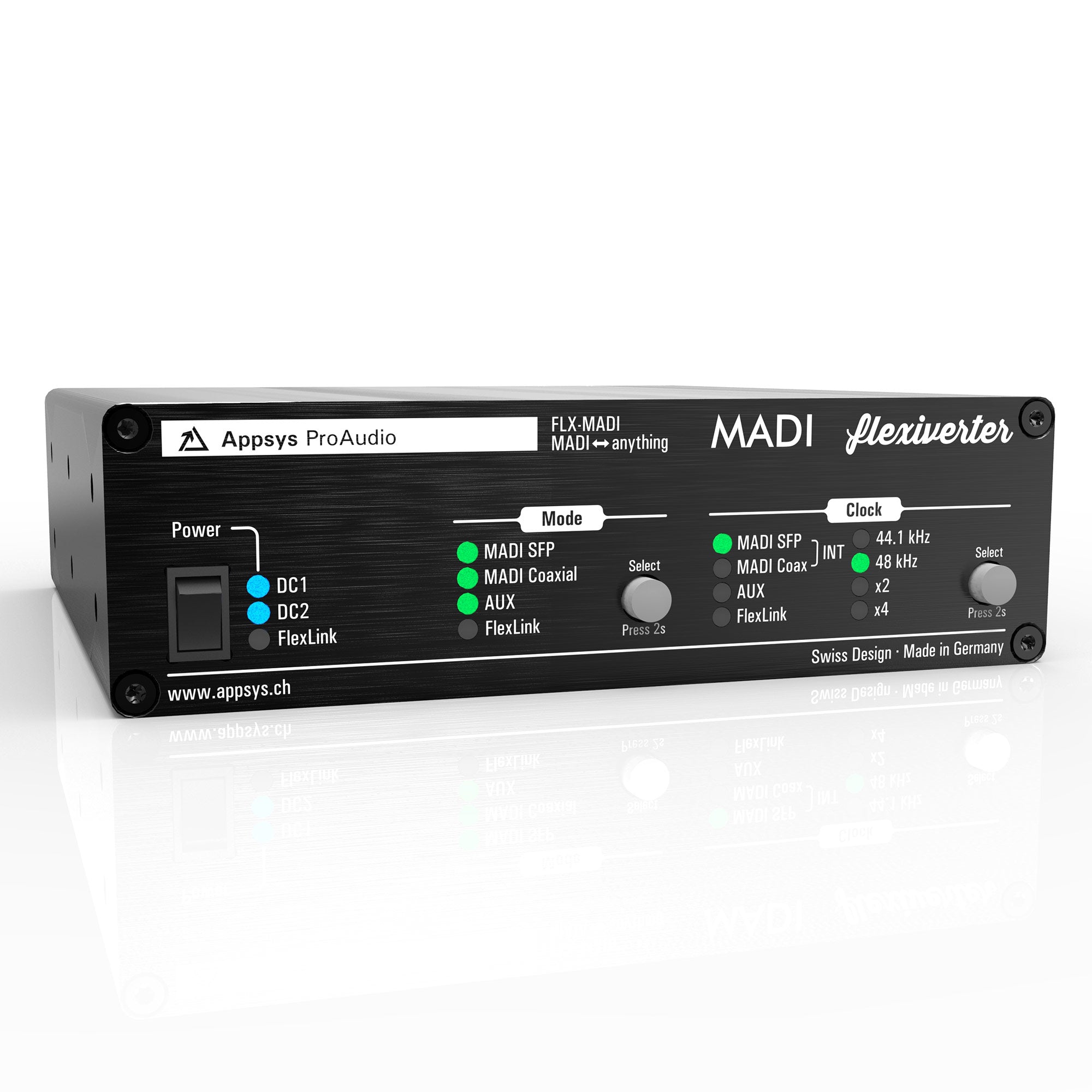

Appsys Pro Audio FLX-MADI Flexiverter - 128-Channel MADI Digital Audio Converter
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

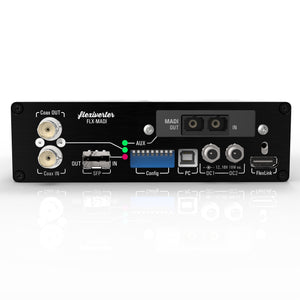

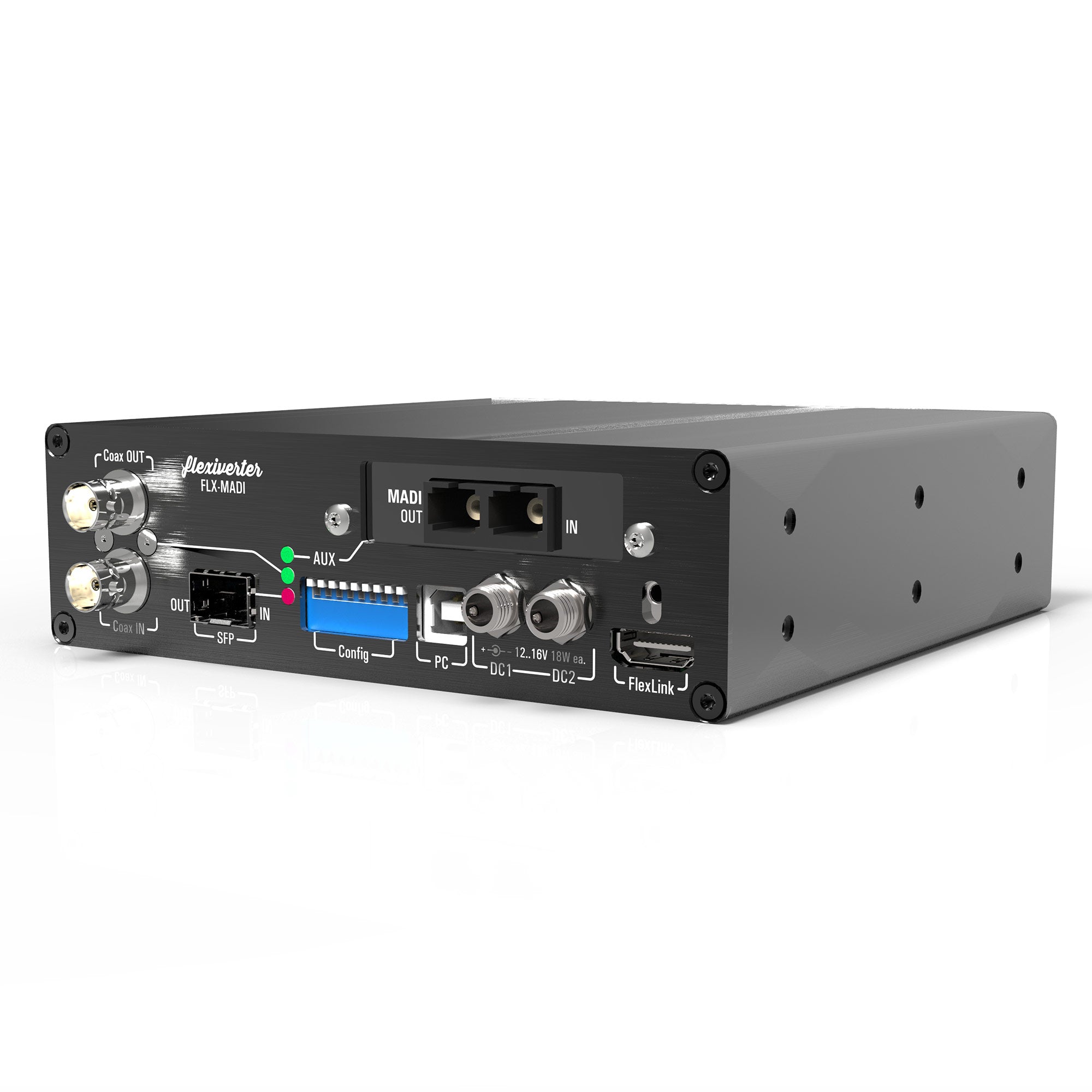

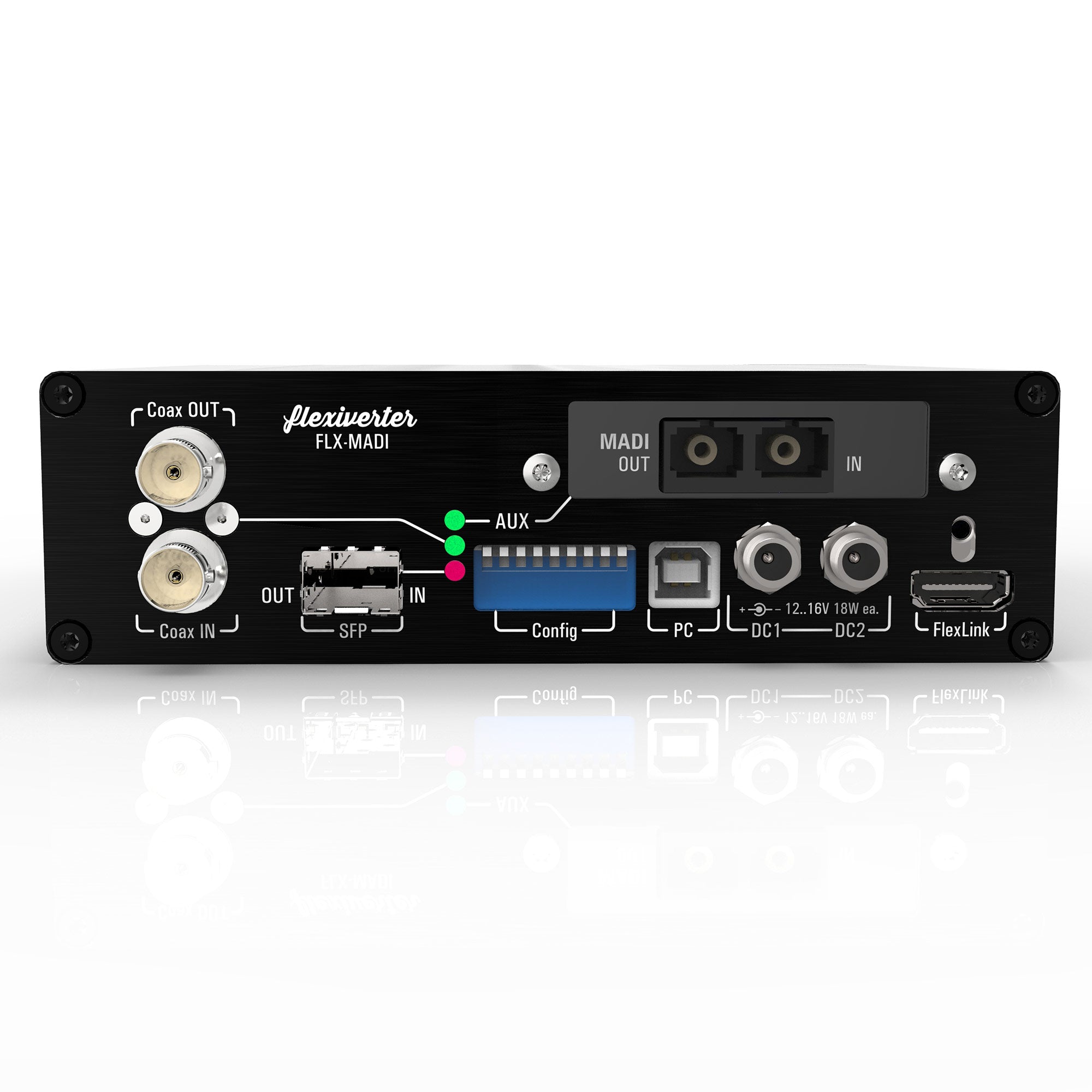

The FLX-MADI is a compact MADI-to-anything converter. It features one MADI SFP and one MADI coaxial port. The unit can be used to translate between the built-in ports, or can be used to convert to any protocol installed into the AUX slot. For larger systems, the built-in channels plus everything which the AUX card provides are also available on the FlexLink port, making it possible to use it as extension to the MVR-64 or another Flexiverter.
Features:
- One MADI-SFP port with pre-installed 1310nm multimode SFP. Not vendor-locked, accepts any SFP module.
- One MADI-coaxial port
- AUX port accepting any AUX card as conversion source/destination
- Supports sample rates from 44.1 to 192kHz
- FlexLink port for lowest latency, bi-directional transfer of 192 channels audio, clock and power
- Triple-redundant power supply
Additional features when connected to the MVR-64
- True channel-wise routing of all available channels (built-in plus AUX card)
- Sample-rate conversion using the SRC-64
- Web- or telnet based remote control
| Dimensions | 152x44x153mm (WxHxD) excluding connectors/buttons 152x44x169mm (WxHxD) including device-side connectors/buttons |
| Weight | 560g |
| Operating temperature | 0..+55¡C, non-condensing |
| Storage temperature | -40..+85¡C, non-condensing |
| Power consumption | +15V DC, 9W max (18W to power two devices via FlexLink) Triple-redundant input (2x DC, 1x via FlexLink) |
| Supported SFPs | Ships with 1310nm, 125MBit Multimode SFP Accepts any SFP (not SFP+) modules. No vendor lock. |
| Cable lengths | FlexLink: 1m/3ft. max. recommended MADI SFP: Depending on SFP type: Multimode 500m/1600ft (up to 2km/1.2mi with Extended Range SFP), Singlemode 10km/6mi (up to 80km/50mi with Extended Range SFP) MADI Coaxial: 70m/230ft. |
| Channel count | 128x128 @ 48kHz 64x64 @ 96kHz 32x32 @ 192kHz plus additional AUX channels depending on AUX card |
| Sample rates | 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz |
| Latency | Conversion MADI <> FlexLink: 2 samples Conversion MADI <> AUX: 4 samples plus AUX card latency (depending on AUX card) |
| Internal clock precision | Jitter: Phase RMS: <1ps, Peak-peak: <50ps. Stability: ±25 ppm including all effects including aging, temperatur, supply, calibration, shock, vibration |
The FLX-MADI is a compact MADI-to-anything converter. It features one MADI SFP and one MADI coaxial port. The unit can be used to translate between the built-in ports, or can be used to convert to any protocol installed into the AUX slot. For larger systems, the built-in channels plus everything which the AUX card provides are also available on the FlexLink port, making it possible to use it as extension to the MVR-64 or another Flexiverter.
Features:
- One MADI-SFP port with pre-installed 1310nm multimode SFP. Not vendor-locked, accepts any SFP module.
- One MADI-coaxial port
- AUX port accepting any AUX card as conversion source/destination
- Supports sample rates from 44.1 to 192kHz
- FlexLink port for lowest latency, bi-directional transfer of 192 channels audio, clock and power
- Triple-redundant power supply
Additional features when connected to the MVR-64
- True channel-wise routing of all available channels (built-in plus AUX card)
- Sample-rate conversion using the SRC-64
- Web- or telnet based remote control
| Dimensions | 152x44x153mm (WxHxD) excluding connectors/buttons 152x44x169mm (WxHxD) including device-side connectors/buttons |
| Weight | 560g |
| Operating temperature | 0..+55¡C, non-condensing |
| Storage temperature | -40..+85¡C, non-condensing |
| Power consumption | +15V DC, 9W max (18W to power two devices via FlexLink) Triple-redundant input (2x DC, 1x via FlexLink) |
| Supported SFPs | Ships with 1310nm, 125MBit Multimode SFP Accepts any SFP (not SFP+) modules. No vendor lock. |
| Cable lengths | FlexLink: 1m/3ft. max. recommended MADI SFP: Depending on SFP type: Multimode 500m/1600ft (up to 2km/1.2mi with Extended Range SFP), Singlemode 10km/6mi (up to 80km/50mi with Extended Range SFP) MADI Coaxial: 70m/230ft. |
| Channel count | 128x128 @ 48kHz 64x64 @ 96kHz 32x32 @ 192kHz plus additional AUX channels depending on AUX card |
| Sample rates | 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz |
| Latency | Conversion MADI <> FlexLink: 2 samples Conversion MADI <> AUX: 4 samples plus AUX card latency (depending on AUX card) |
| Internal clock precision | Jitter: Phase RMS: <1ps, Peak-peak: <50ps. Stability: ±25 ppm including all effects including aging, temperatur, supply, calibration, shock, vibration |
