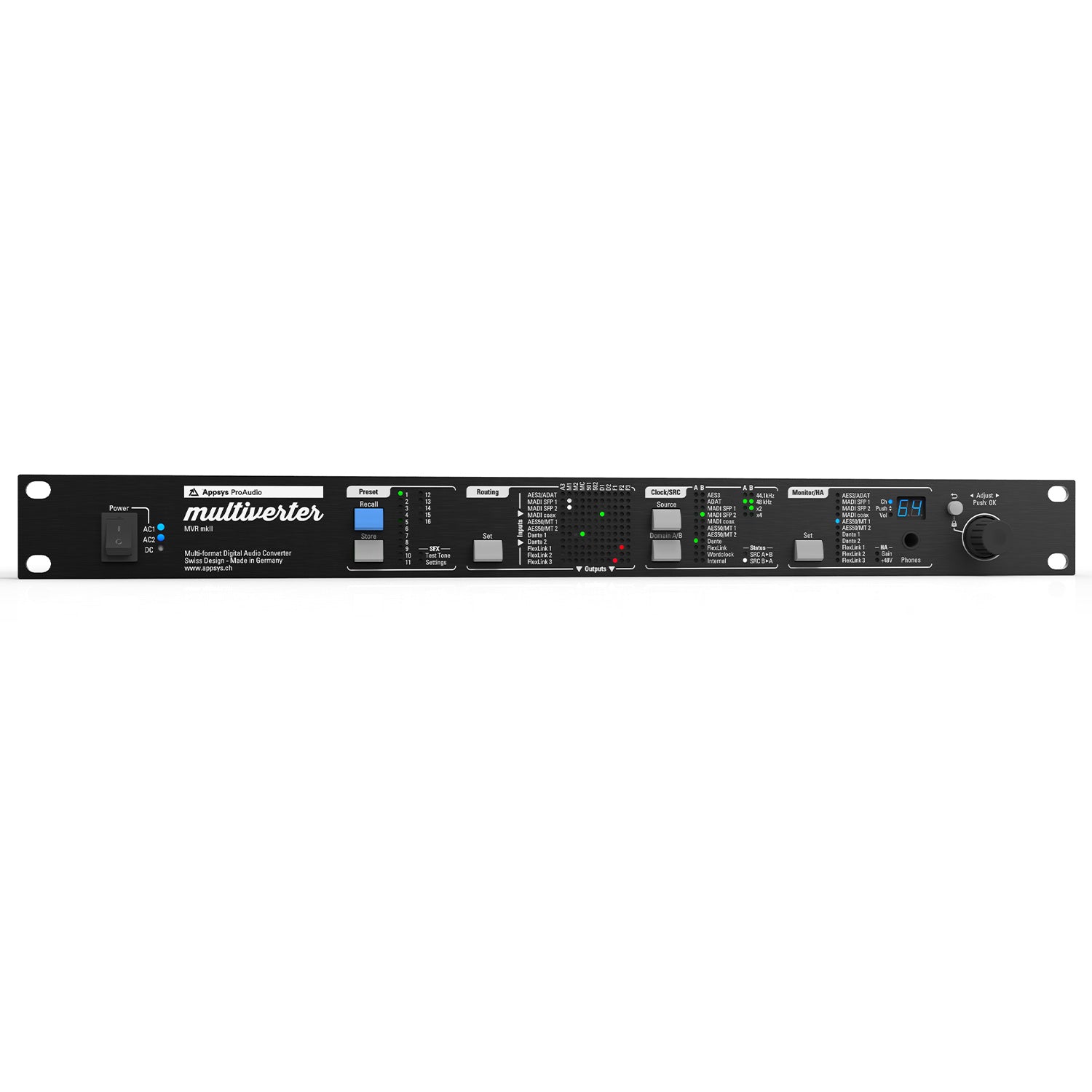

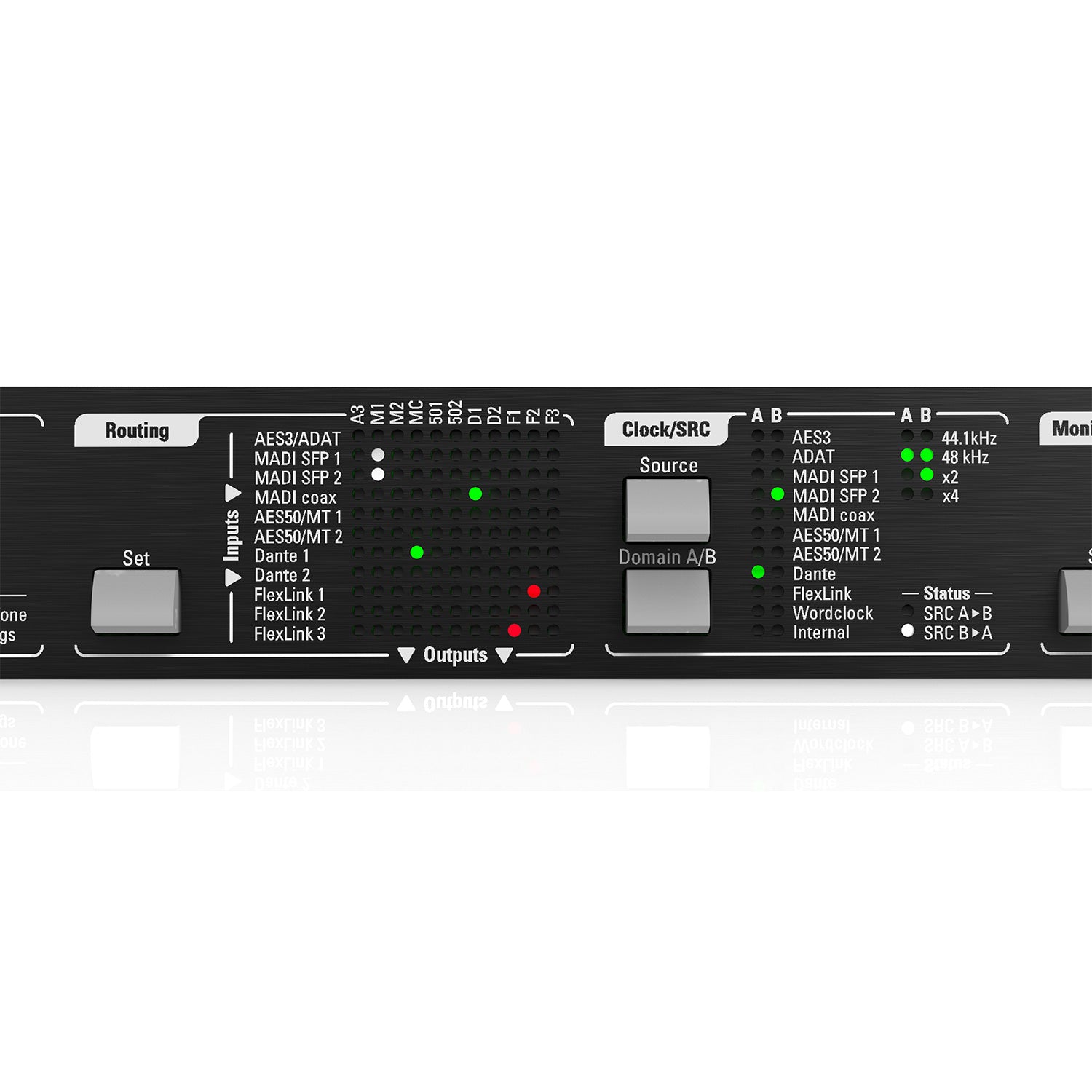

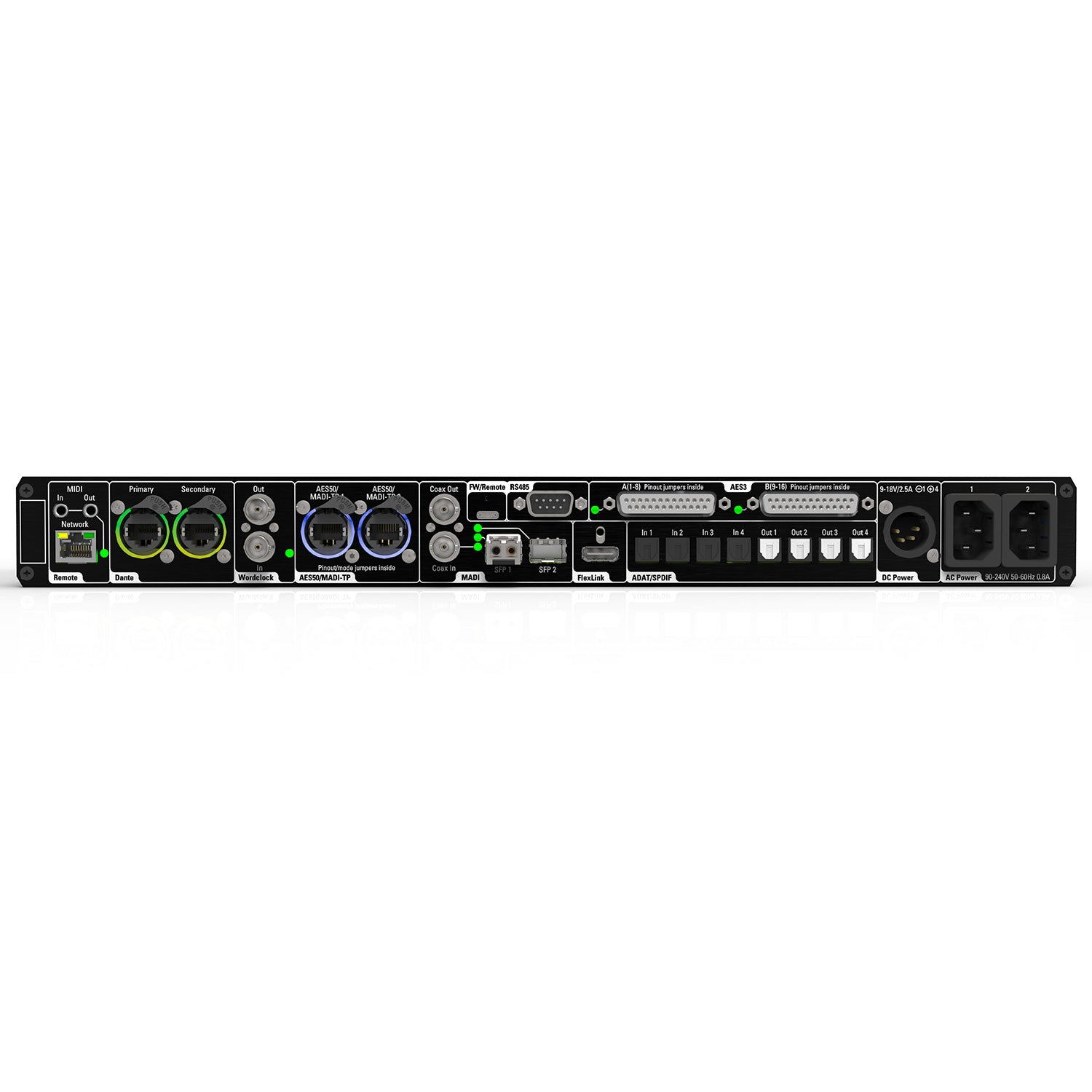

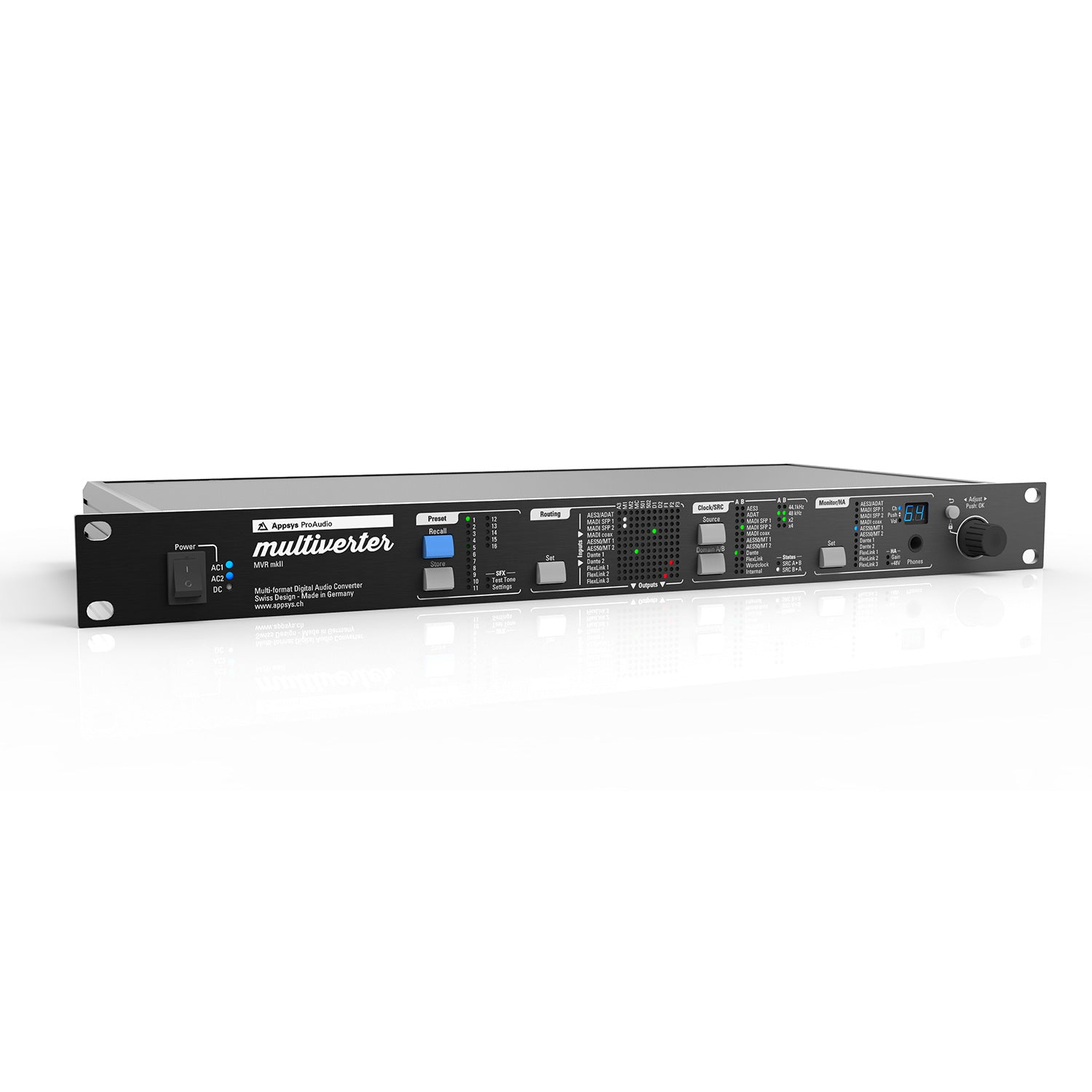

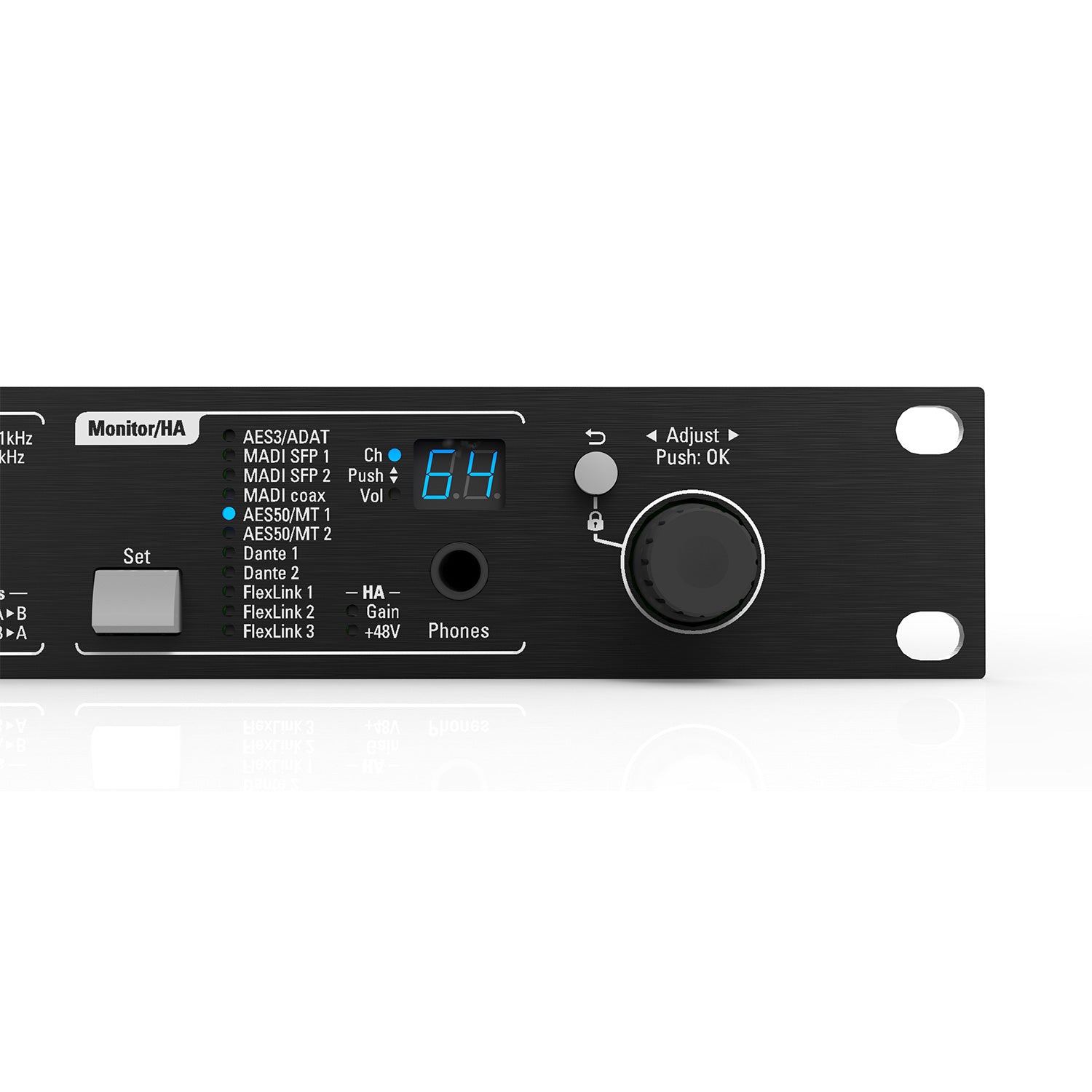

Don't think about connections. Accept everything! The MVR-mkII Multiverter is a 704x704 channel anything-to-anything solution. This unique piece of hardware is able to convert between many different digital audio interfaces - any to any, all at once. It's fully packed with features like channel-wise-routing, web interface, sample rate conversion, headamp remote control and much more.
Features:
- 704x704 channels routing matrix with channel-wise routing/splitting between interfaces
- Bi-directional sample rate conversion up to 128 channels using the SRC-64 plug-in module
- Fully remote-controllable via Web, Web-over-USB and command line (telnet/UAR)
- Headamp remote control for MIDAS®/Behringer® stageboxes
- Integrated headphone amp to monitor any incoming signal

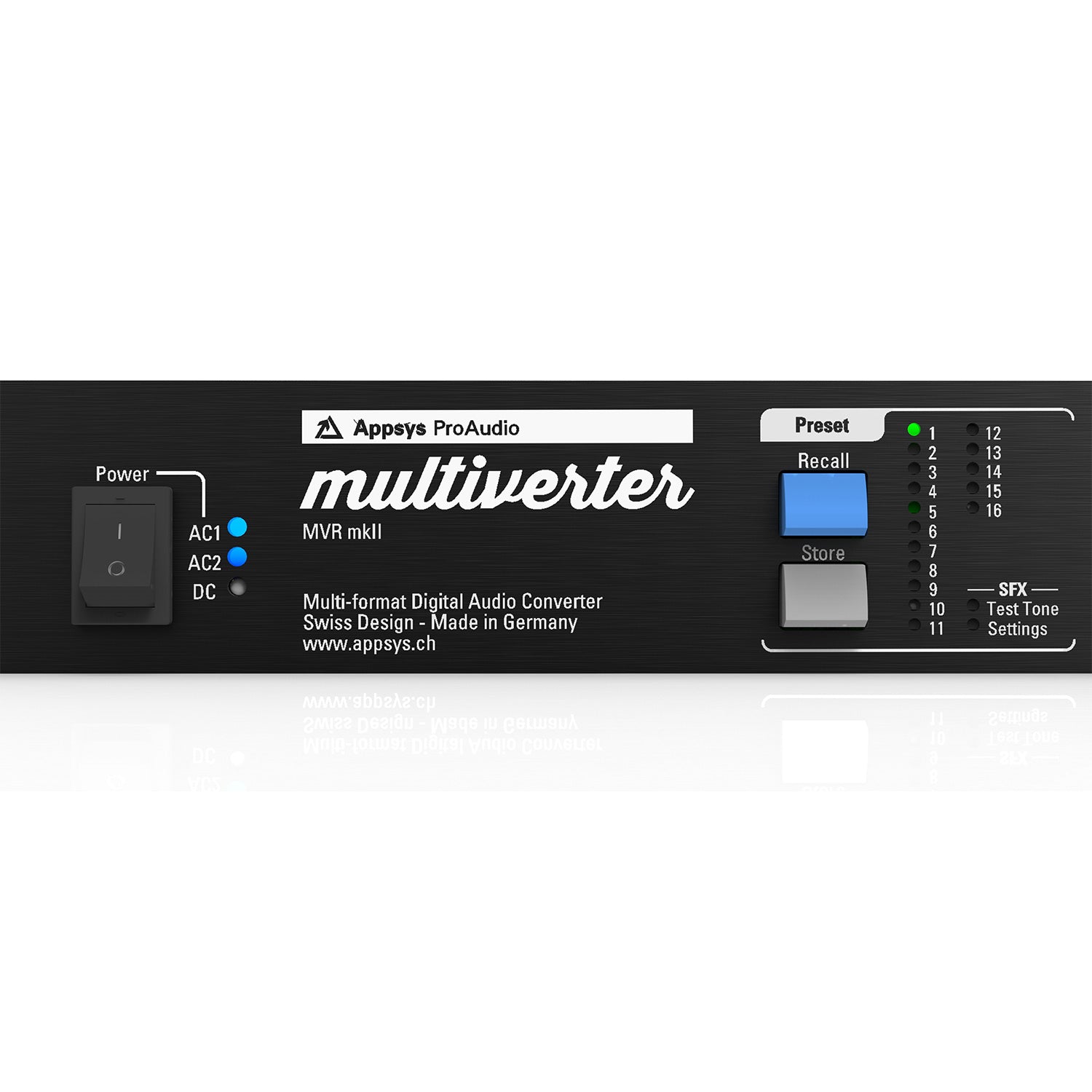

- Preset store/recall (16 different setups)
- Jumperable pinout for AES3 (Tascam/Yamaha) and AES50/MADI-TP ports
- Test tone generator simplifies troubleshooting of complex setups
- Triple-redundant power supply (2x 90-240VAC, 1x 9-18VDC)
- Can be powered alone from industry standard 4-pin XLR plug battery packs
- Separate network control port
- MIDI and RS485 embedding/de-embedding from MIDI/RS485 jacks into MADI streams (RME™/DirectOut™-compatible)
- Transparent forwarding of MADI control data (i.e. headamp control, MIDI over MADI)
Audio Interfaces
- AES3 (16x16ch)
- ADAT (4x), SPDIF/AES3 optical
- MADI SFP (2x), supports Ferrofish SFP Coax
- MADI coaxial
- AES50 (up to 2 ports)
- MADI-TP (up to 2 ports)
- Dante
- up to 192 extra channels via Flexiverter breakout boxes connected to the FlexLink port
Clocking Options
- Supports 44.1...192 kHz operation
- ClockShield™ technology allows clickless operation during up to 1s clock dropouts
- Optional Sample Rate Conversion
| Dimensions | 482x45x230mm (BxHxD) | ||||||||||||||||||||||||||||||||||||||
| Weight | 2.25 kg | ||||||||||||||||||||||||||||||||||||||
| Operating temperature | 0..+70¡C, non-condensing | ||||||||||||||||||||||||||||||||||||||
| Storage temperature | -40..+85¡C, non-condensing | ||||||||||||||||||||||||||||||||||||||

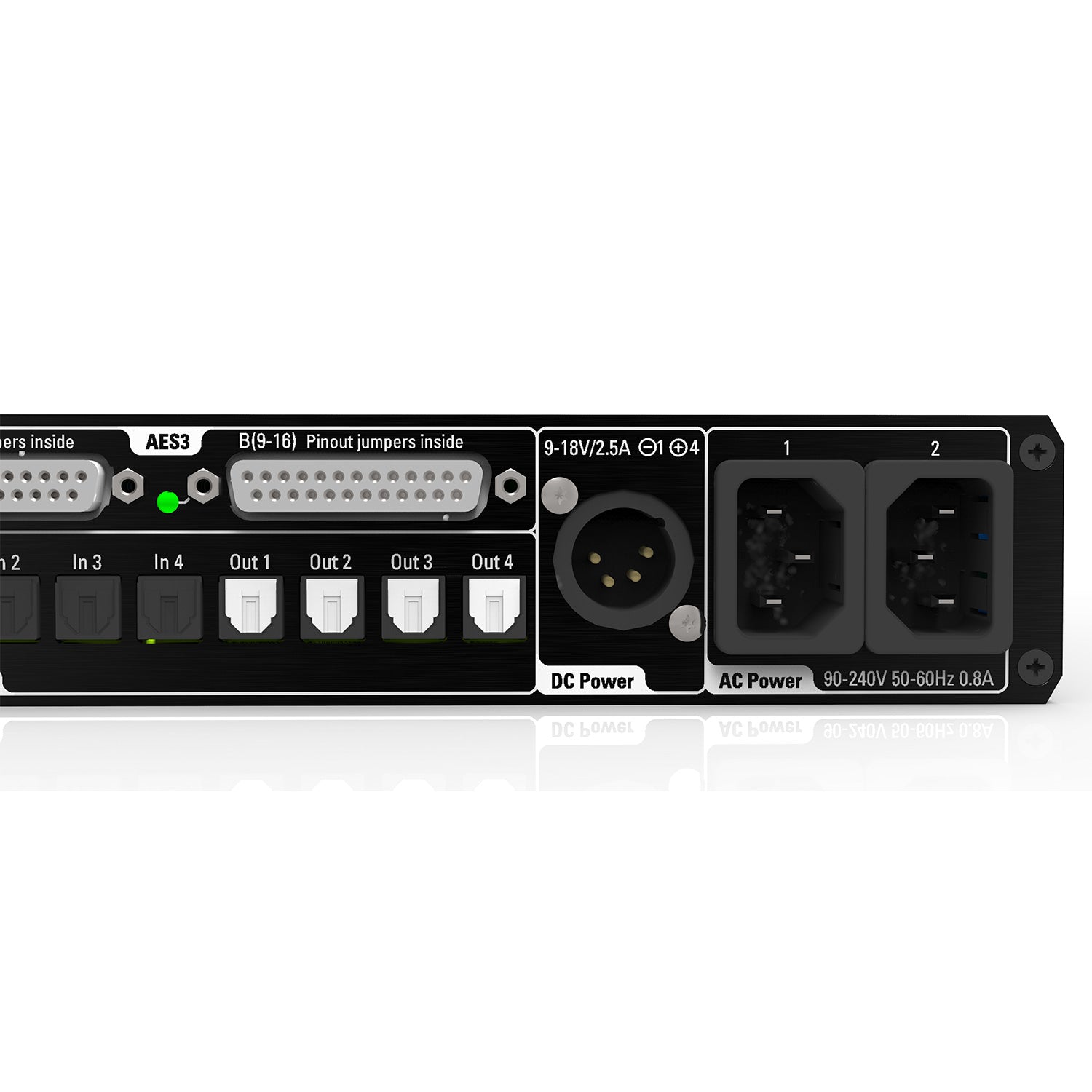

| Power consumption | 8W typ., 30W max. Each AC input: 85..264VAC, 50-60Hz, 0.75A@115VAC / 0.5A@230VAC DC input: 9-18VDC (up to 30V tolerant), 2.5A peak |
||||||||||||||||||||||||||||||||||||||
| Channel count | 704x704 total (up to 64x64 per interface) in x1 modes 352x352 (up to 32x32 per interface) in x2 modes 176x176 (up to 16x16 per interface) in x4 modes Multiple conversions (i.e. Dante _ MADI and ADAT _ AES50) with each using the full channel count can run simultaneously. |
||||||||||||||||||||||||||||||||||||||
| Sample rates | 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz +/-100ppm Varispeed operation is not supported |
||||||||||||||||||||||||||||||||||||||
| Latency | The table below shows the overall latency (receive+convert+transmit) between the various interfaces in number of samples. For x1 modes (32/44.1/48kHz), n is 1. For x2 modes (64/88.2/96kHz), n is 2. For x4 modes (128/176.4/192kHz), n is 4. The Dante latencyÊdÊdepends on the setting in the Dante controller which should be chosen according to the network topology, and can range from 150µs to 5ms.
|
||||||||||||||||||||||||||||||||||||||
| ADAT ports | 4 input+4 output ports with 8ch@44.1/48kHz, 4ch@88.2/96kHz each Each port may be alternatively used as SPDIF or AES3 optical port with 2 channels @44.1/48kHz |
||||||||||||||||||||||||||||||||||||||
| USB port | USB 2.0 (FTDI 2232). Remote control and firmware update, no audio connection | ||||||||||||||||||||||||||||||||||||||
| RS485 port | Male D-Sub 9pin, Yamaha AD8HR compatible Pinout: 2=RX-, 3=TX-, 4=TX+, 5=GND, 6=RX+ |
||||||||||||||||||||||||||||||||||||||
| FlexLink port | HDMI connector type (Note: *NOT* HDMI compatible). 192ch@48kHz, 96ch@96kHz, 48ch@192kHz | ||||||||||||||||||||||||||||||||||||||

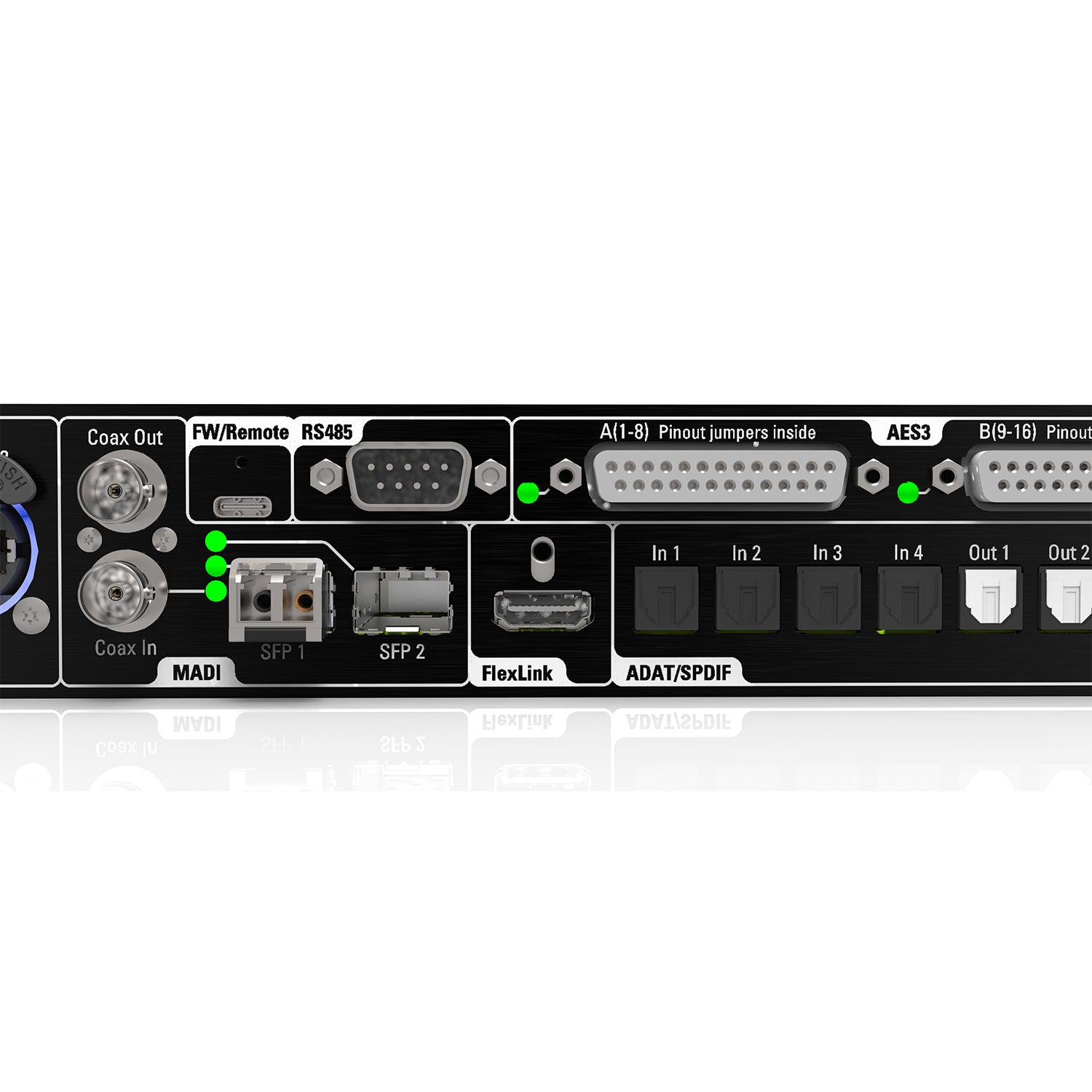

| MADI SFP ports | Standard SFP slot. SFP1 equipped with standard multi-mode fibre (MM fibre), 1310nm, LC connector, up to 2km total length. No vendor lock (Appsys policy). Supports Ferrofish SFP Coax 64ch@44.1/48kHz 32ch@88.2/96kHz 16ch@176.4/192kHz MIDI-over-MADI, RS485 embedding Transparent user bit forwarding |
||||||||||||||||||||||||||||||||||||||
| MADI BNC port | Standard AES10 coaxial port. Use with up to 100meters of 75 ohm coaxial cable 64ch@44.1/48kHz, 32ch@88.2/96kHz, 16ch@176.4/192kHz MIDI-over-MADI, RS485-over-MADI Transparent user bit forwarding |
||||||||||||||||||||||||||||||||||||||
| MADI TP ports (shared with AES50) | AES-X 213 compatible. 64ch@44.1kHz, 56ch@48kHz, 32ch@88.2, 28ch@96kHz,Ê16ch@176.4kHz, 14ch@192kHz Pinout: MADI-TP on 4/5, 7/8 MIDI-over-MADI, RS485-over-MADI Transparent user bit forwarding Compatible to DiGiCo¨/Soundcraft¨/Studer¨MADI-TP using the MTA-64 Adapter |
||||||||||||||||||||||||||||||||||||||
| AES50 ports (shared with MADI-TP) | AES50 3.1 compatible 48ch@44.1/48kHz, 24ch@88.2/96kHz Pinout: Data on 1/2, 3/6; Sync on 4/5, 7/8 |
||||||||||||||||||||||||||||||||||||||

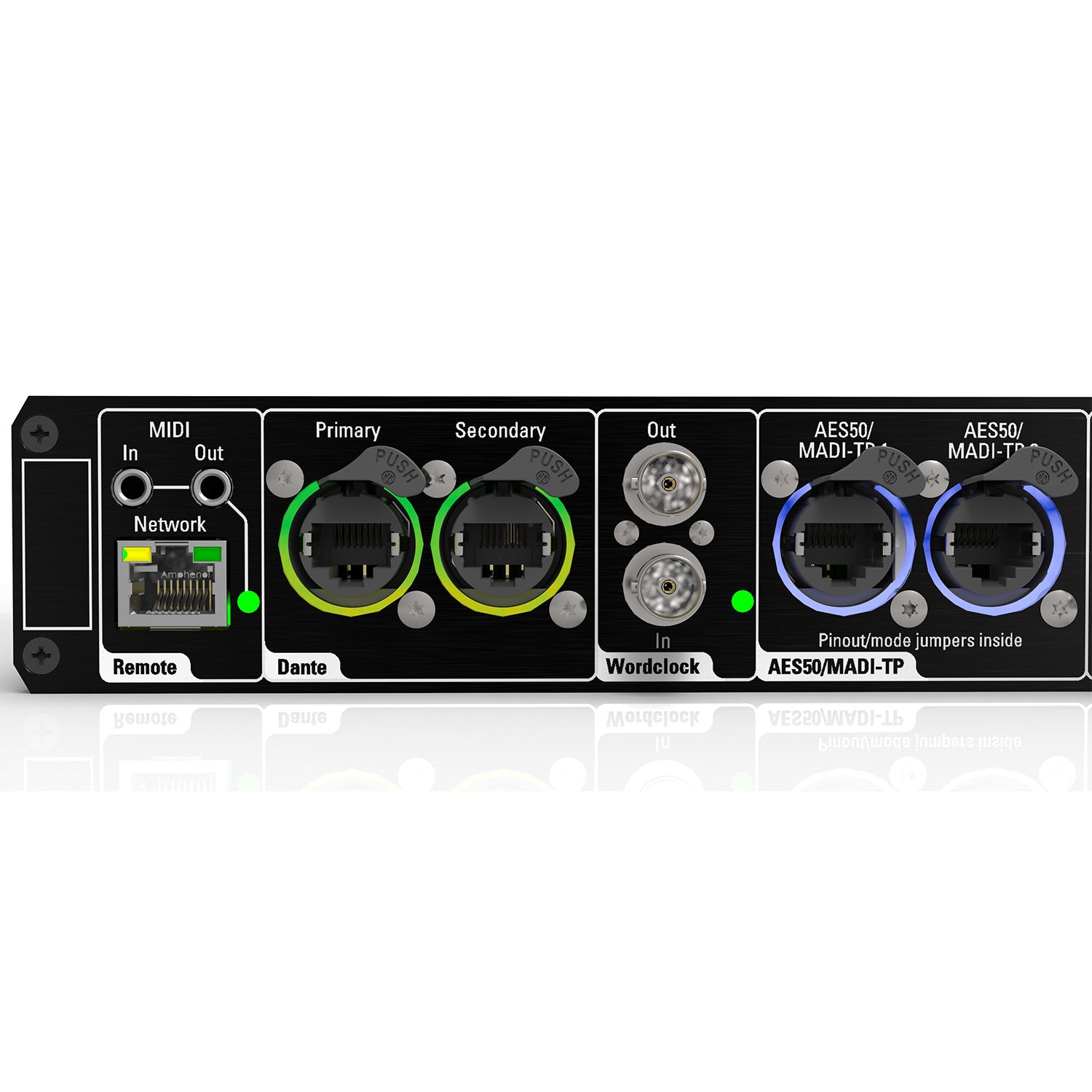

| Dante/AES67 port | 2x Gigabit Ethernet, configurable either as Switch or as Redundant connection in the Dante controller. Device prefix: MVR64 64ch@32/44.1/48kHz, 32ch@64/88.2/96kHz, 16ch@128/176.4/192kHz |
||||||||||||||||||||||||||||||||||||||
| Wordclock port | Output: 5.0Vpp nominal, able to drive two parallel 75 Ohm terminations Input: 0.5Vpp...5.0Vpp |
||||||||||||||||||||||||||||||||||||||
| MIDI port | Isolated input on 3.5mm TRS jack MIDI output on 3.5mm TRS jack MIDI THRU is activated by default Pinout according to MIDI-TRS specification |
||||||||||||||||||||||||||||||||||||||
| Headphones | 2x125mW into 32Ohm (@0.01% THD+N) Bandwidth: 22Hz to 22kHz |
||||||||||||||||||||||||||||||||||||||
| ESD protection | all ports: +/- 15kV (Human Body Model) | ||||||||||||||||||||||||||||||||||||||
