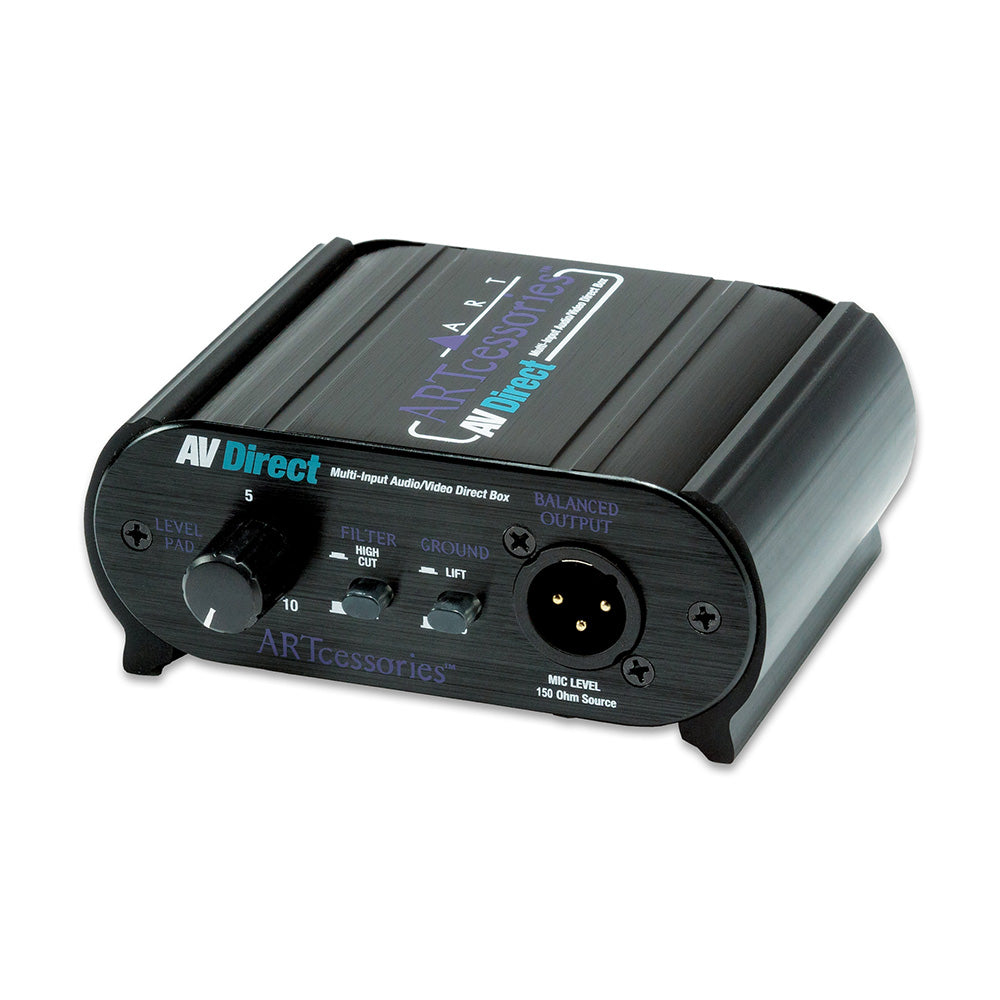

ART AV Direct - Audio/Video Direct Box


  • Dale #:

    ART-AVDIBOX
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock, but we can usually ship it within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Description

The AV Direct is the ideal input solution for any application where stereo iPods, Laptop computers, consumer DVD players, Consumer HiFi equipment or video machines have to be connected to a single XLR microphone level input. Unlike standard gender bender cables or DI boxes, the AV Direct can acce... Read More

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The AV Direct is the ideal input solution for any application where stereo iPods, Laptop computers, consumer DVD players, Consumer HiFi equipment or video machines have to be connected to a single XLR microphone level input. Unlike standard gender bender cables or DI boxes, the AV Direct can accept virtually any input connection and output level (including amplified speaker outputs) and offers remote level control, ideal for setting the volume of your component at the source, rather than in and AV room, audio closet or installation rack.

The AV Direct has stereo RCA, 1/8th inch and 1/4-inch TRS line level inputs, as well as a 1/4-inch and bare wire pressure clip speaker level inputs. A switchable 4.8kHz high cut filter, ground lift and variable level control allow the AV Direct to effectively filter out any extraneous unwanted noise while offering variable volume control at source. The speaker level inputs are heavily padded and transformer isolated from the XLR output, allowing amplified speaker level (up to 100 watts @ 8 ohms) to be tapped off, and sent to a microphone level input. A 20Hz to 20kHz frequency response ensures the AV Direct will function seamlessly with any high quality audio source.

Features:

  • Transformer isolated XLR microphone level output
  • 20 to 20,000Hz Frequency Response
  • Stereo RCA, 1/8th-inch and 1/4-inch TRS line level inputs
  • 1/4-inch and Pressure Clip Speaker level inputs
  • Variable Level Control
  • Switchable 4.8kHz high cut filter
  • Ground Lift
  • Balanced 150 ohm output

More +

Product Specs

Frequency Response 20Hz to 20kHz +/-1dB
Line Level Inputs 1/8 – inch TRS 1/4 – inch TRS, Stereo RCA
Other Inputs 1/4 – inch and Pressure post Speaker Level Inputs
Max Speaker Input 100 W rated @ 8 Ω
Output XLR balanced
Controls Gain Control, Ground Lift, High – Cut Filter
Active or Passive Passive
Output Impedance 150 Ω nominal @ 1kHz
Dimensions 1.85″H x 4.6″W x 4.4″D (47mm x 117mm x 112mm)
Weight 1.0 lb (4.6 kg)
