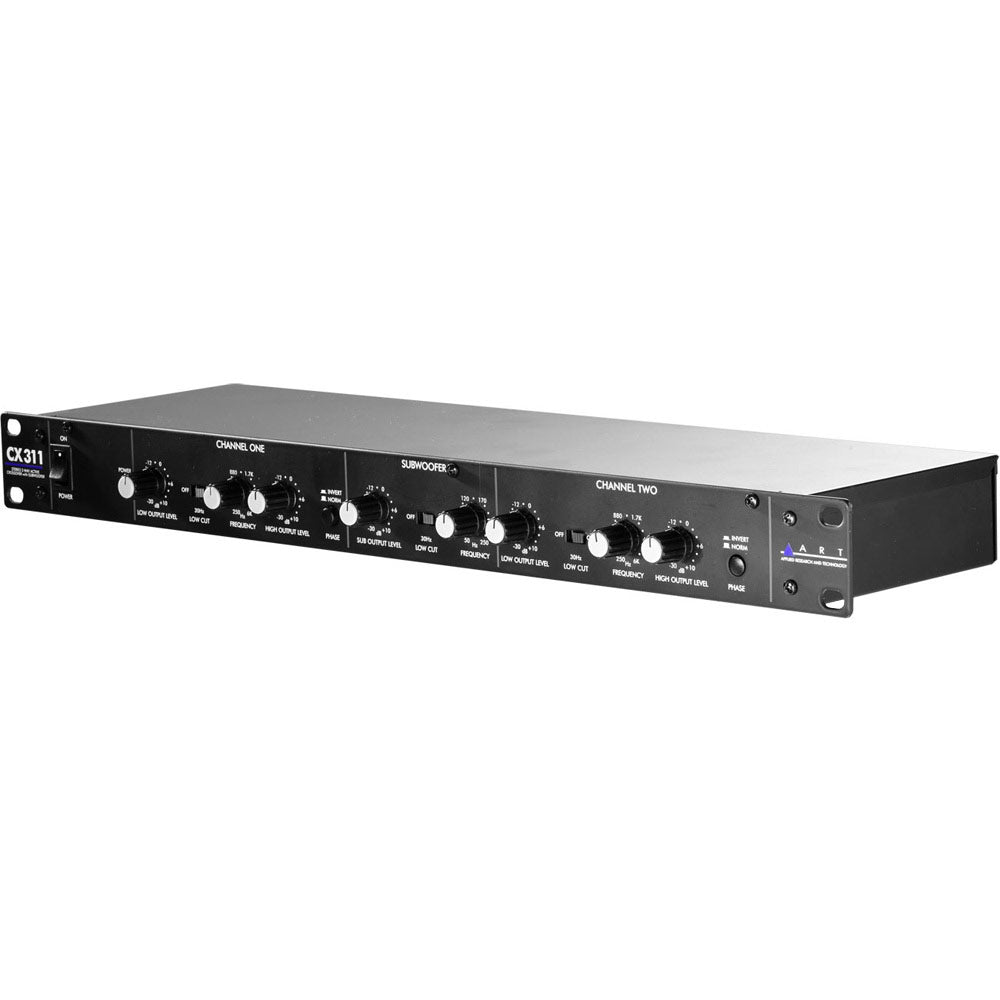

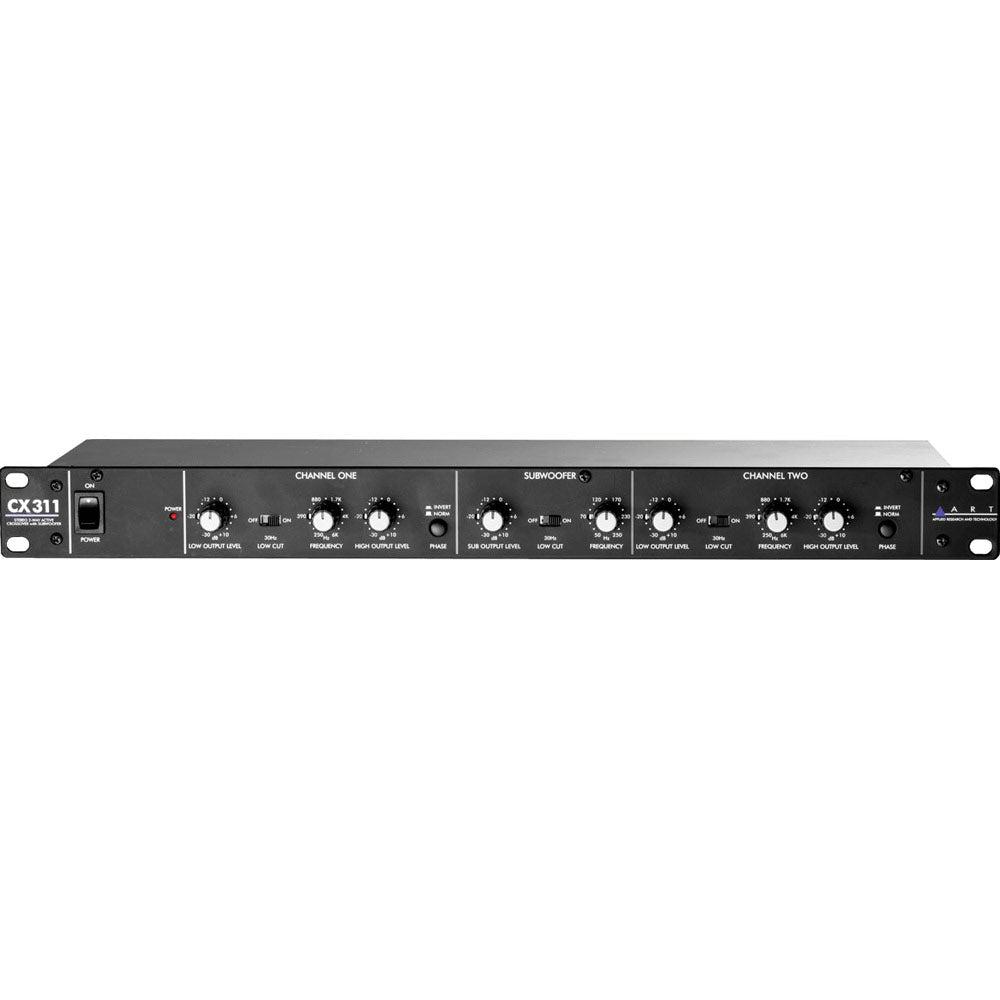

ART CX311 2 Way Stereo Crossover (with Extra Subwoofer Out)


  • Dale #:

    ART-CX311
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The CX311 two-way stereo crossover network has an additional subwoofer output for low-end frequency reinforcement. It employs 24dB/octave state-variable, Fourth-order Linkwitz-Riley filters that guarantee properly phased outputs at all frequencies which is optimal for the proper acoustic summing ... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The CX311 two-way stereo crossover network has an additional subwoofer output for low-end frequency reinforcement. It employs 24dB/octave state-variable, Fourth-order Linkwitz-Riley filters that guarantee properly phased outputs at all frequencies which is optimal for the proper acoustic summing of common signals from adjacent drivers in the crossover region. Each channel features independent high and low output level controls and a crossover frequency rotary control which covers a wide range (250hz to 6khz). All three outputs have a 30 cycle low cut switch to eliminate low-end rumble. The subwoofer features an independent output level and rotary control for frequencies in the 50hz to 250hz range.

Features

  • Stereo two-way crossover
  • Subwoofer output
  • Fourth-order Linkwitz-Riley filters (24dB / octave state-variable)
  • Independent high and low output level controls
  • Crossover frequency rotary control (250hz to 6khz)
  • 30 cycle low cut switch
  • Independent output level and rotary control (50hz to 250hz)

More +

Product Specs

Input ConnectionsXLR, 1/4” TRS, balanced
Output Connections1/4” TS, unbalanced
Frequency Response10Hz to 40kHz, +0/-0.5dB
Crossover Frequency Range250Hz to 6kHz
Subwoofer Frequency Range50Hz to 250Hz
Crossover Filter TypeFourth-order Linkwitz-Riley, 24dB/octave
Subwoofer Filter TypeTwo-pole Butterworth, 12dB/octave
Dynamic Range>114dB
Signal to Noise Ratio>95dB, Ref: 0dBu, 20Hz-20kHz, unweighted
Input Impedance100k Ohms
Output Impedance220 Ohms
Maximum Input Level+21dBu
Maximum Output Level+21dBu
Total Harmonic Distortion (THD)<0.01% (20Hz-20kHz, 0dBu)
Maximum Gain+4dB
Power Requirements110-125V AC, 50-60hz, 15W (USA)
Export units configured for country of destination
Dimensions (HWD)1.75” x 19” x 5”
44mm x 483mm x 127mm
Weight6.2 lbs. (2.8 kg)
