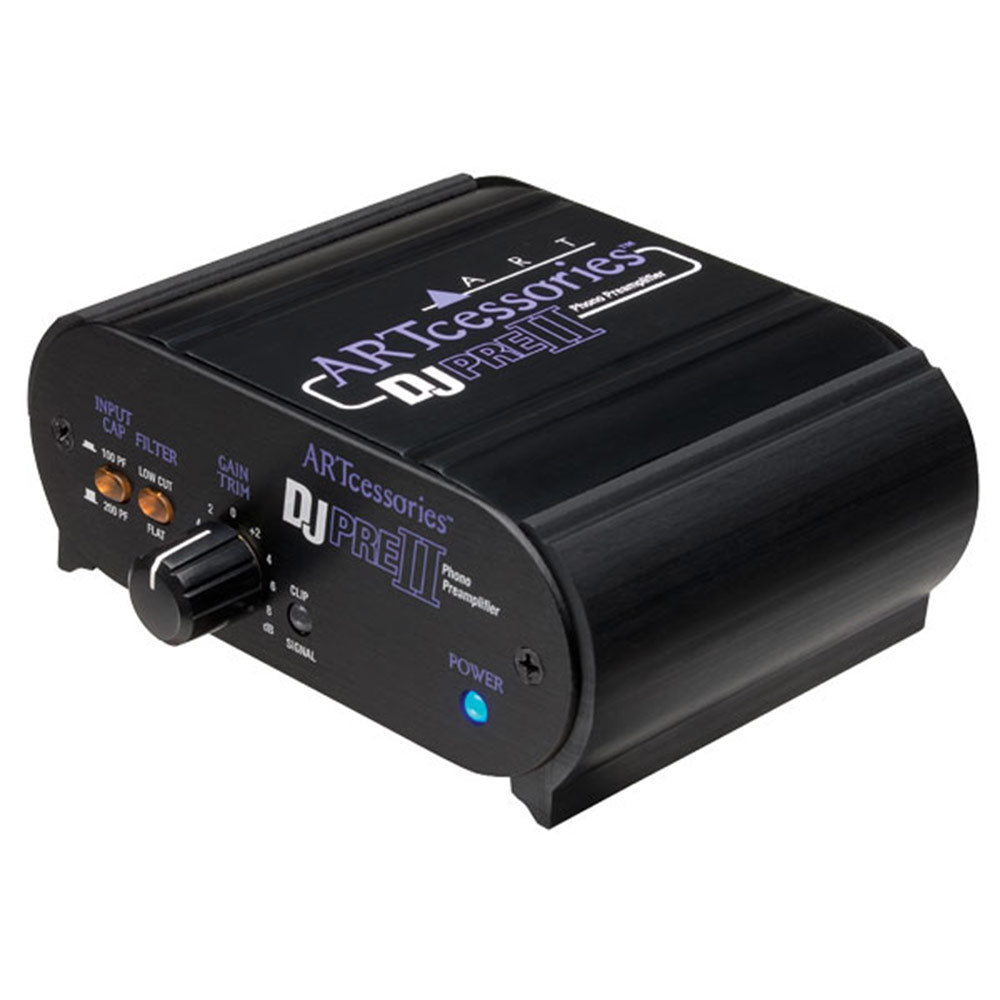

ART DJPRE II 2 Phono / Line Preamplifier with RIAA EQ Curve
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The DJ PRE II is a high quality phono preamp designed for your home and studio. It acts as an interface between your turntable and your audio recording system. The analog input capacitance can be switched between 100pf and 200pf to optimize your phono cartridge response. A switchable low cut filter removes rumble while leaving the audio pristine. The front gain trim control and signal/clip LED allow you to optimize the preamps gain for a wide range of input sources. The built-in low noise phono preamp circuitry is highly accurate and precisely conforms to the RIAA standard. The Line Output jacks are low impedance and can work with any sound card. Housed in an all aluminum black anodized case, the DJ PRE II can be powered by a wide variety of external supplies. If you need to amplify and EQ your vinyl records to interface with your audio workstation, sound card, or main monitor system, the DJ PRE II gives you flawless audio reproduction in a rugged and reliable package. Includes power adapter.
| Frequency Response | 10Hz -50KHz, +/-.5dB |
| Phono EQ Standard | Conforms to RIAA Curve |
| Total Harmonic Distortion | .01% Typical @ 1kHz |
| Hum and Noise | > 90dB below clipping |
| Input Impedance | 47k ½ in Parallel with Either 100pF or 200pF |
| Maximum Input Level | 40mVrms @1kHz |
| Maximum Gain | 45dB @1KHz |
| In / Out Connections | RCA |
| Maximum Output Level | +6dBu (1.4Vrms) |
| Filter Type/Response | Switchable, Low Cut, -3dB @ 22Hz |
| Power Requirements | 7-12V DC or 9-12V AC @150mA |
| Dimensions | 1.85_H x 4.6_W x 4.5_D (47mm x 117mm x 114mm) |
| Weight | 1.25 lbs (0.57kg) |
The DJ PRE II is a high quality phono preamp designed for your home and studio. It acts as an interface between your turntable and your audio recording system. The analog input capacitance can be switched between 100pf and 200pf to optimize your phono cartridge response. A switchable low cut filter removes rumble while leaving the audio pristine. The front gain trim control and signal/clip LED allow you to optimize the preamps gain for a wide range of input sources. The built-in low noise phono preamp circuitry is highly accurate and precisely conforms to the RIAA standard. The Line Output jacks are low impedance and can work with any sound card. Housed in an all aluminum black anodized case, the DJ PRE II can be powered by a wide variety of external supplies. If you need to amplify and EQ your vinyl records to interface with your audio workstation, sound card, or main monitor system, the DJ PRE II gives you flawless audio reproduction in a rugged and reliable package. Includes power adapter.
| Frequency Response | 10Hz -50KHz, +/-.5dB |
| Phono EQ Standard | Conforms to RIAA Curve |
| Total Harmonic Distortion | .01% Typical @ 1kHz |
| Hum and Noise | > 90dB below clipping |
| Input Impedance | 47k ½ in Parallel with Either 100pF or 200pF |
| Maximum Input Level | 40mVrms @1kHz |
| Maximum Gain | 45dB @1KHz |
| In / Out Connections | RCA |
| Maximum Output Level | +6dBu (1.4Vrms) |
| Filter Type/Response | Switchable, Low Cut, -3dB @ 22Hz |
| Power Requirements | 7-12V DC or 9-12V AC @150mA |
| Dimensions | 1.85_H x 4.6_W x 4.5_D (47mm x 117mm x 114mm) |
| Weight | 1.25 lbs (0.57kg) |
