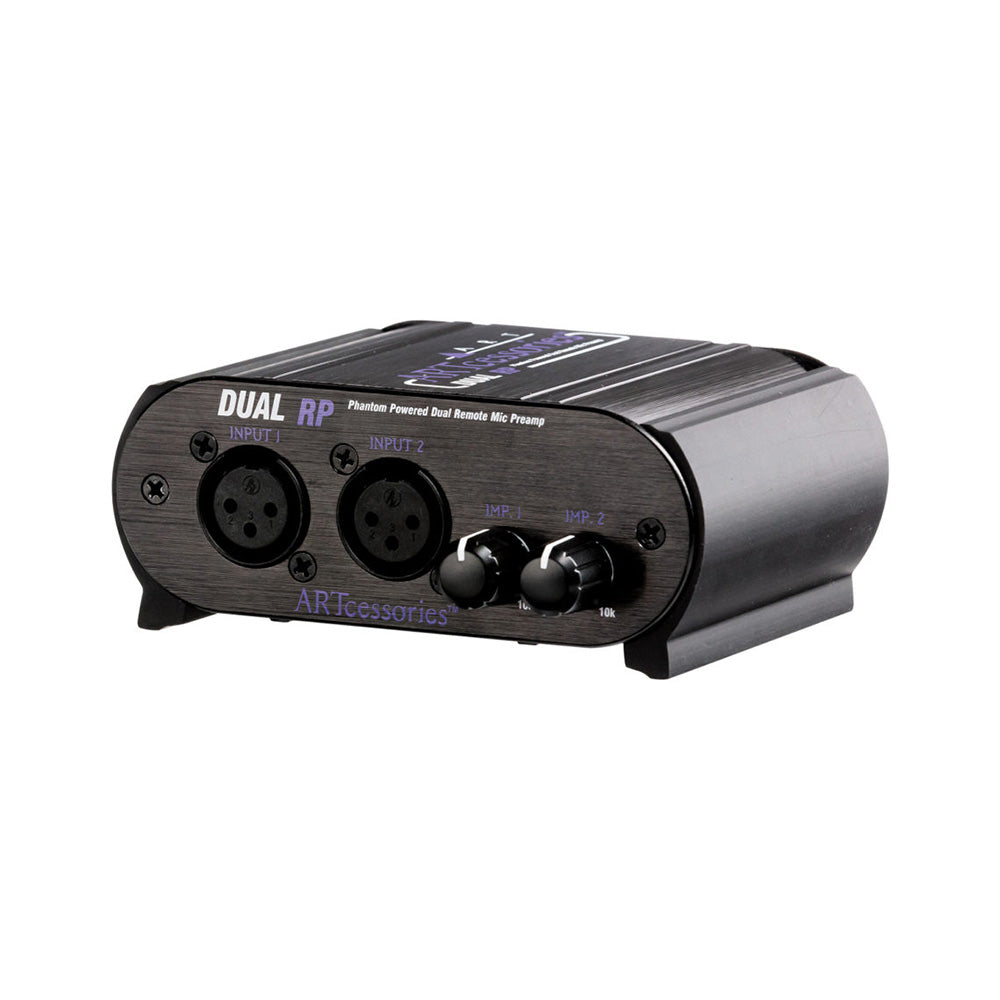

ART DRP - Dual Channel Preamplifier for Dynamic or Ribbon Microphones
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The ART Dual RP Mic Preamp is the ideal solution for increasing the performance of your ribbon and dynamic microphones. This two-channel preamp brings out all of the nuances of your mic before running into your recording interface or mixer via long cable runs.
With the Dual RP you can tailor the loading on the mic through the variable impedance controls. The discrete preamp circuitry inside is designed for low noise and transparent operation. The balanced output drives long cable runs with ease allowing you to place the preamp as close as possible to the mic before picking up any noise or interference.
Features:
- Switchable low cut filter 100 Hz low cut filter
- Variable impedance control (150 ohms – 10k ohms)
- Adds low-noise, clean gain (28dB @ 10k ohms, 20dB @ 600 ohms)
- Runs off +48V Phantom power supply
- Low THD discrete circuitry (<0.002% @ 1kHz typ.)

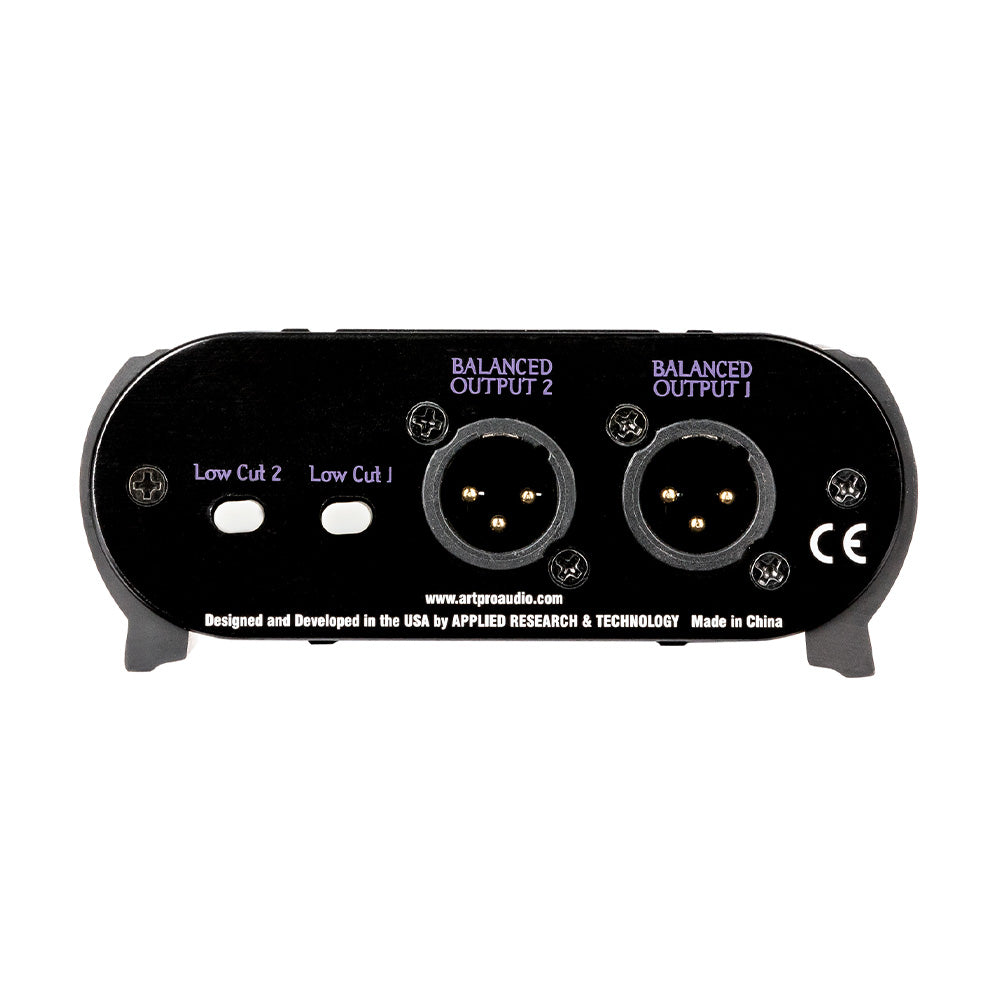

- Balanced outputs
| Input Connections | 2 - XLR |
| Input Impedance | 150 Ohms to 10k Ohms, variable |
| Max Input level | -18dBu |
| Output Connections | 2 Ð XLR |
| Low Cut Filter | Single pole, 100Hz |
| Max. Output Level | +1dBm (600 Ohm Load)/+9dBu (10k load) |
| Gain | 20dB @600 Ohms load, +27dB @ 10k load |
| THD | < .002% @1kHz typ. |
| E.I.N. | -129dBu ÒCÓ wtd. |
| C.M.R.R. | >60dB 20-20kHz |
| Power Requirements | Standard 48V Phantom power supply |
| Dimensions (HxWxD) | 1.85-inch x 4.6-inch x 3.9-inch (47mm x 117mm x 99mm) |
| Weight | 0.71 lbs / 0.32 kg |
The ART Dual RP Mic Preamp is the ideal solution for increasing the performance of your ribbon and dynamic microphones. This two-channel preamp brings out all of the nuances of your mic before running into your recording interface or mixer via long cable runs.
With the Dual RP you can tailor the loading on the mic through the variable impedance controls. The discrete preamp circuitry inside is designed for low noise and transparent operation. The balanced output drives long cable runs with ease allowing you to place the preamp as close as possible to the mic before picking up any noise or interference.
Features:
- Switchable low cut filter 100 Hz low cut filter
- Variable impedance control (150 ohms – 10k ohms)
- Adds low-noise, clean gain (28dB @ 10k ohms, 20dB @ 600 ohms)
- Runs off +48V Phantom power supply
- Low THD discrete circuitry (<0.002% @ 1kHz typ.)
- Balanced outputs
| Input Connections | 2 - XLR |
| Input Impedance | 150 Ohms to 10k Ohms, variable |
| Max Input level | -18dBu |
| Output Connections | 2 Ð XLR |
| Low Cut Filter | Single pole, 100Hz |
| Max. Output Level | +1dBm (600 Ohm Load)/+9dBu (10k load) |
| Gain | 20dB @600 Ohms load, +27dB @ 10k load |
| THD | < .002% @1kHz typ. |
| E.I.N. | -129dBu ÒCÓ wtd. |
| C.M.R.R. | >60dB 20-20kHz |
| Power Requirements | Standard 48V Phantom power supply |
| Dimensions (HxWxD) | 1.85-inch x 4.6-inch x 3.9-inch (47mm x 117mm x 99mm) |
| Weight | 0.71 lbs / 0.32 kg |
