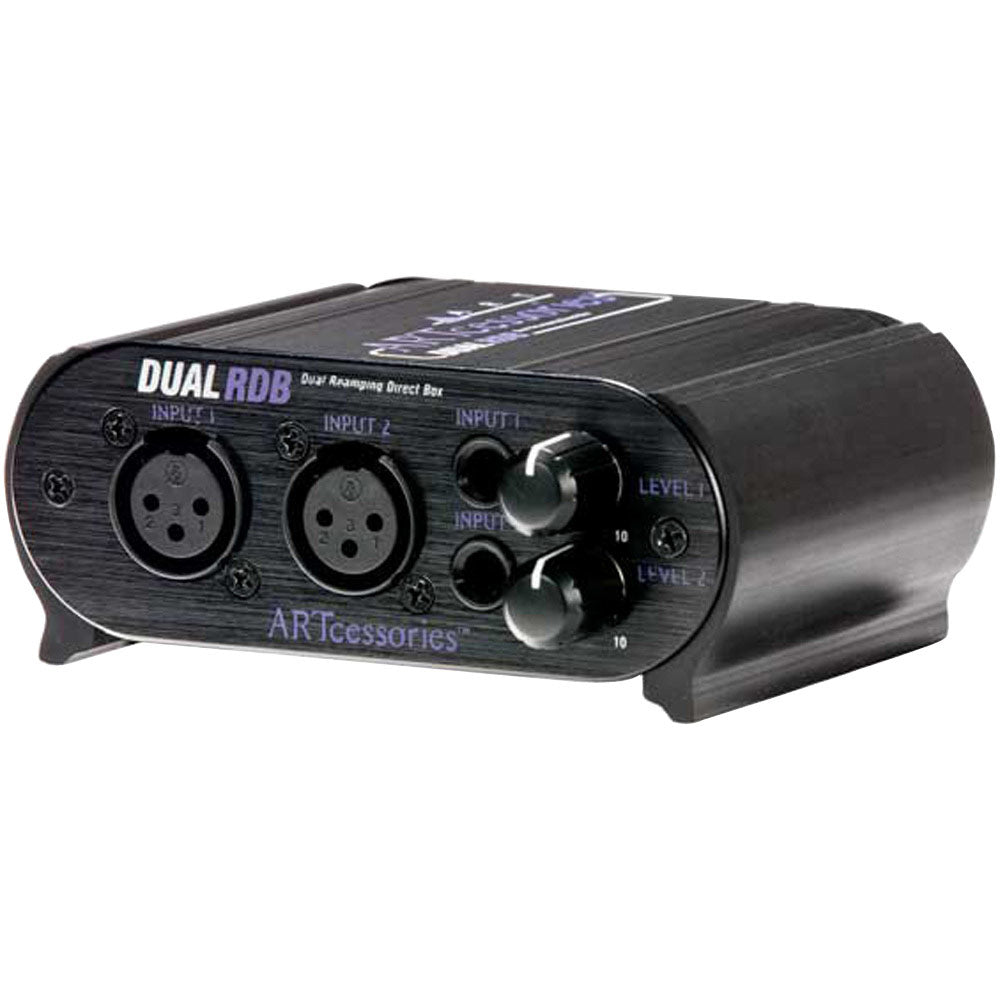

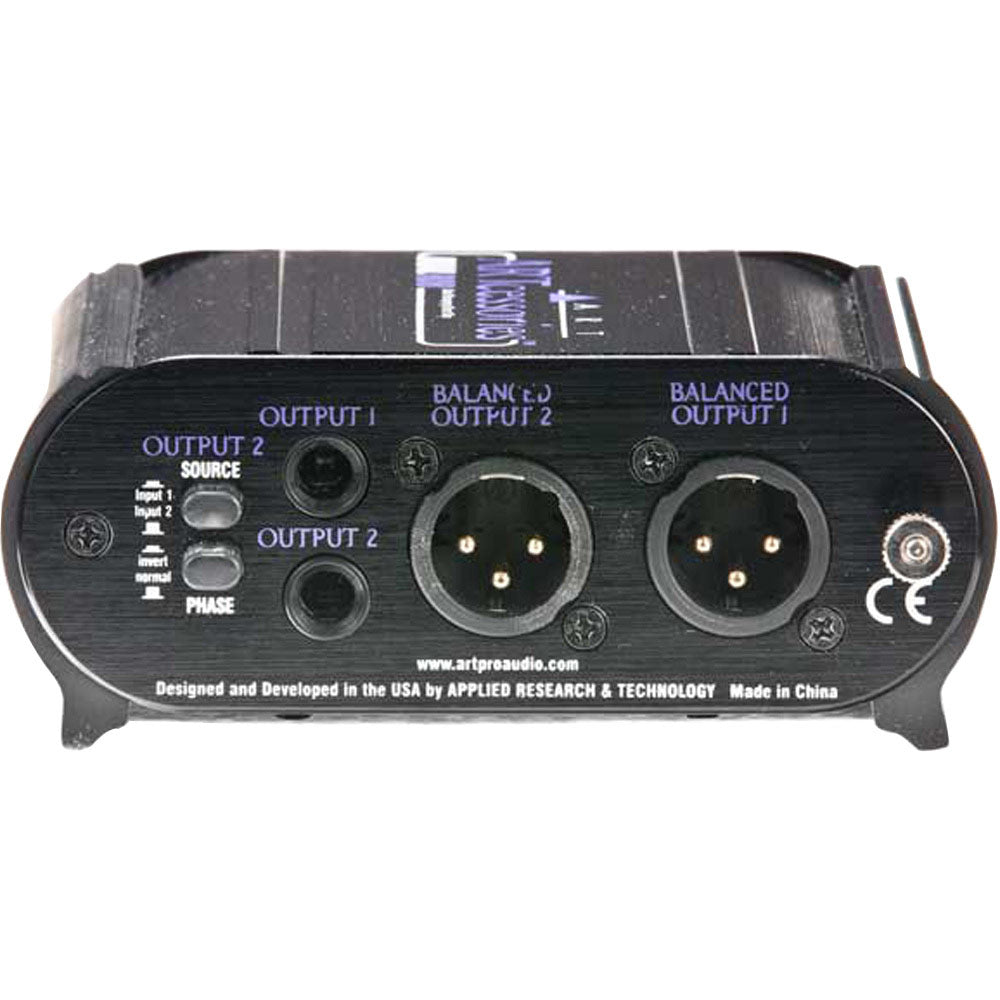

ART Dual RDB Dual Reamping Direct Box

  • Dale #:

    ART-DUALRDB
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The Dual RDB is the ideal interface solution for any application where stereo or dual line level signals from recording interfaces, computers, mixers, iPods, consumer audio or video machines need to be connected to XLR microphone or ¼-inch instrument level inputs. The unit has two high quality is... Read More

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The Dual RDB is the ideal interface solution for any application where stereo or dual line level signals from recording interfaces, computers, mixers, iPods, consumer audio or video machines need to be connected to XLR microphone or ¼-inch instrument level inputs. The unit has two high quality isolation transformers that prevent ground loops when connecting various systems together. The Dual RDB accepts 1/4" TRS and XLR line level inputs and outputs mic or instrument levels. The Dual RDB's variable level controls allow volume control to be set at the source rather than in the studio, AV room, audio closet or installation rack. A 20Hz to 20kHz frequency response ensures the Dual RDB will function transparently with any high quality audio source.

Features

  • Dual ¼-inch TRS and XLR balanced line level inputs
  • Transformer isolated XLR balanced microphone level outputs
  • Transformer isolated ¼-inch TRS balanced instrument level outputs
  • 20Hz to 20kHz Frequency Response
  • Variable Level Controls with Mute
  • Channel Two source selectable between Channel One or Channel Two Input
  • Channel Two output phase switch

More +

Product Specs

Frequency Response20 Hz - 20 kHz, ± 0.5dB @ +4 dBu
THD.01% typical @ 1 kHz, +18dBu
<.05% @ 100 Hz, +18dBu
Channel Separation> 80dB (typical)
Input Connections1/4" TRS balanced, XLR balanced female
Output Connections1/4" TRS balanced, XLR balanced female
Insertion loss-20dB @100K load, -25dB @600 Ohm load
Dimensions1.85 H x 4.6 W x 3.9 D (in)
47 H x 117 W x 99 D (mm)
Weight0.88 lbs / 0.40 kg
