ART EQ-355 Dual 31 Band Stereo Graphic Equalizer



Have a Question? Call Toll Free: 888-462-7828

Live Chat Email Us
Dale #:ART-EQ355

Availability: Usually ships in 5 - 10 Days

This item usually ships within 5-10 days after your order is placed. Your payment will be charged after completing checkout.
Free Shipping (Continental US)

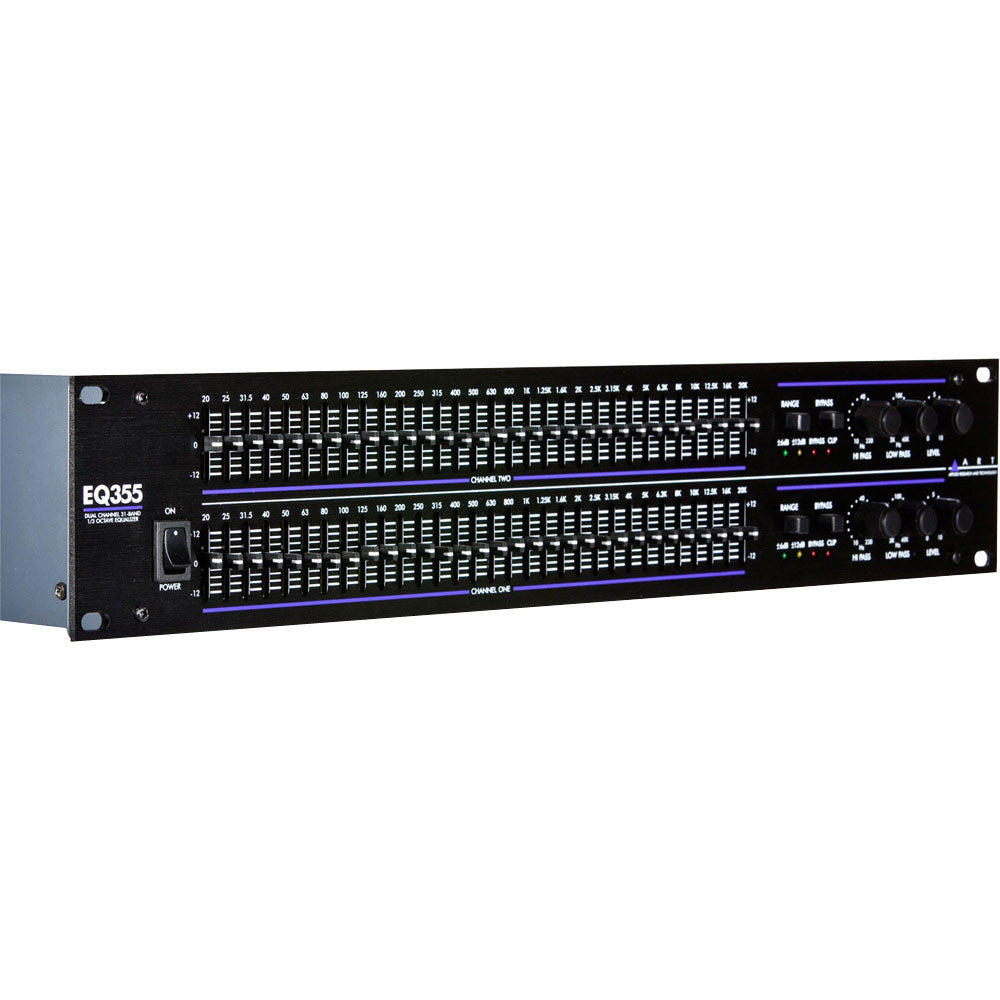

  • The Model 355 Dual 31-Band 1/3 Octave Graphic Equalizer may be used in a variety of applications such as live sound, recording studios, instrument racks, DJ sound systems and fixed equipment installations. Designed to interface into any audio system, the Model 355 is a powerful tool for solving audio problems and creating interesting sound textures.

    Features

    • Dual Channel 31-Band Graphic Equalizer
    • Constant-Q Filtering
    • Balanced XLR, Active Balanced 1/4", and Unbalanced RCA Input and Output Connectors
    • Variable High-Pass and Low-Pass Filters
    • +/- 6dB or +/-12dB Level Adjustments
    • 20mm Center Detented Frequency Band Sliders
    • Independent Level and Bypass Controls Per Channel
    • Designed for Years of continuous, reliable performance
    • Rugged All Steel Construction
    • One Year Warranty

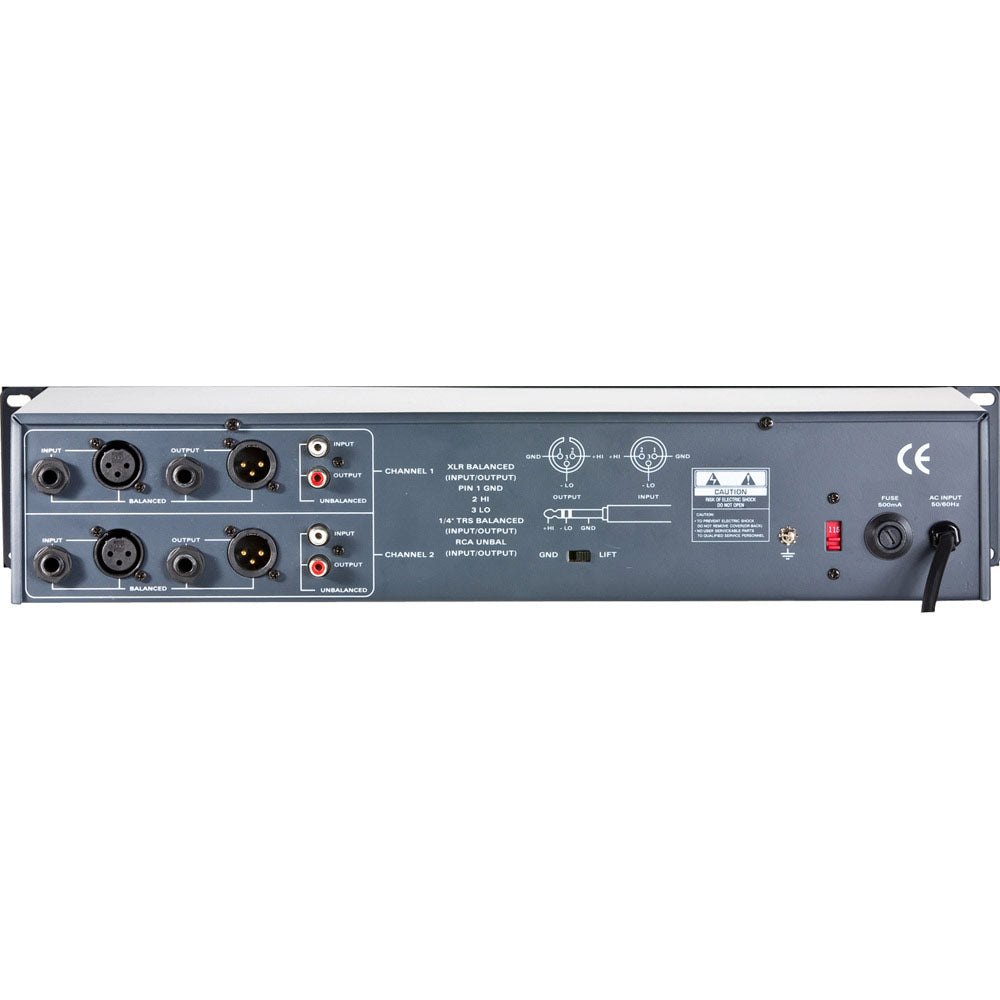

    The Model 355 possesses a long list of impressive features including: constant Q circuitry, 20mm center detent sliders (with a selectable boost/cut range of 6dB or 12dB), balanced XLR and 1/4" and unbalanced RCA input and output connections, adjustable high pass and low pass filters, variable input level controls, signal clip level indicators, ground lift switch, internal power supply and selectable line voltage switch. The rugged, all-steel constructed chassis occupies 2U rack spaces and is intended for installation into standard 19" equipment racks.

    The 355 Dual Channel 31 Band EQ has the features and performance you need for any of your audio applications requiring precise equalization. For the latest in equalizer technology today, check out the 355 at your favorite A R T dealer.

  • Filter TypeConstant Q - 3% center accuracy
    Frequency Bands31, 1/3 octave, ISO spacing
    Frequency Response20Hz to 20kHz, +0.5dB
    High Pass Filter10Hz to 250Hz, 12dB/oct
    Input Impedance20k ohms (bal), 15k ohms (unbal)
    Input/Output ConnectionsActive balanced XLR and 1/4" TRS {XLR pin 2, 1/4" tip = Hot (+)} Unbalanced RCA
    Low Pass Filter3kHz to 40kHz, 12dB/oct
    Maximum Input Level+22dBm
    Maximum Output Level+18dBm (bal), +22dBm (unbal)
    Power(Switchable) 95-130VAC, 50/60Hz, 22 watts (USA)
    Range+/-6dB or +/-12dB selectable
    Signal to Noise Ratio-94dB
    Slider Travel20mm w/ positive center detent
    Total Harmonic Distortion0.0001
    WarrantyOne Year
    Dimensions3.5"H x 19" W x 8.5" D
    Weight9.0lbs (4.1kg)
