Description

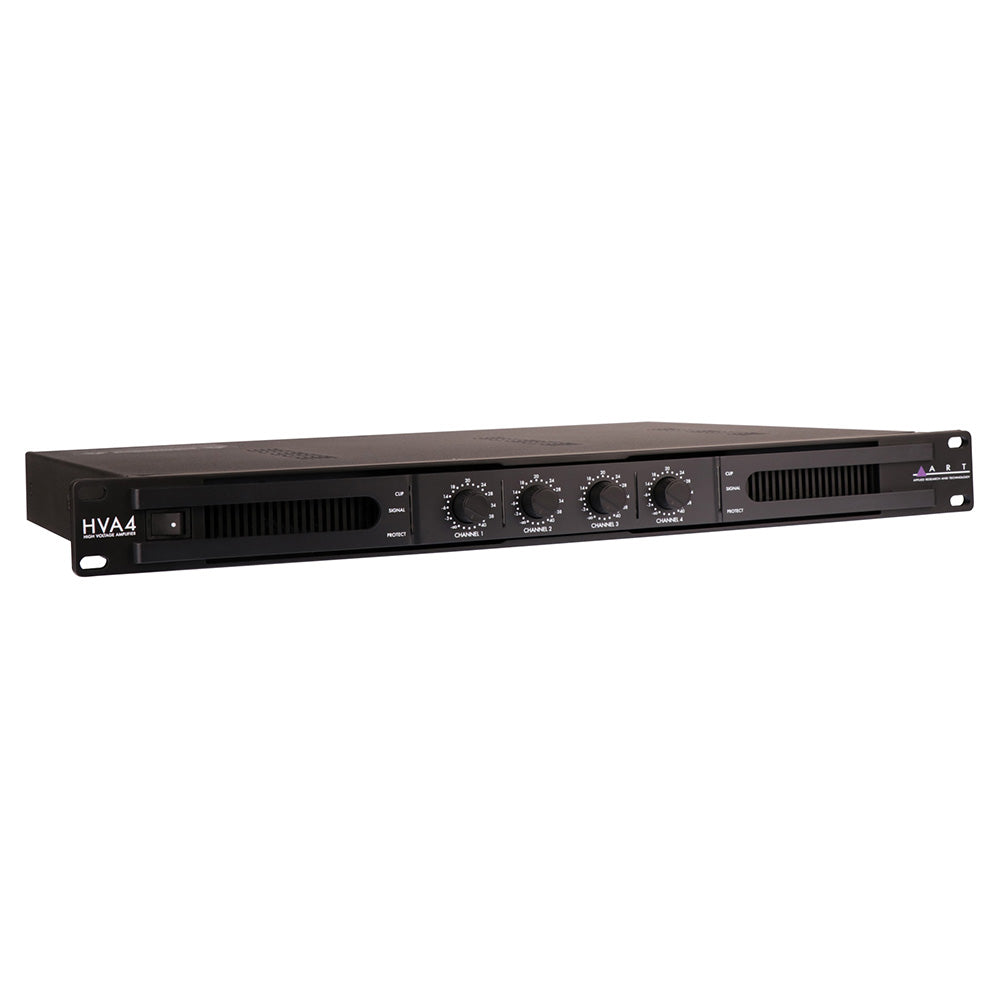

The ART HVA Series 1 and 4 are class-D installation amplifiers. They are suitable for both 70/100V line installations (selectable through dip-switches). Each channel has its own gain control and LED indicators (signal, clip and protection). The input and output connections are made through Euroblock connectors. The amplifiers are a 1U rack 19-inch size is very appropriate for many types of installations, taking advantage of its multichannel design.
Features:
- High current switching power allowing high power output with low noise and low distortion
- Short circuit, thermal and power on/off muting protection
- Built-in limiter
- Euroblock input and output
- Front mounted gain controls for easy access
- Signal, Clip protect, and Power LED indicators to monitor performance.
- Disable Amplifier Outputs remotely
- Priority, remote test trigger
- Remote Failure Status indicator
- 2-channel or 4-channel installation amplifier.
- 70/100V line operation.
- Power output (70/100V): 2X150W/4X300W
- 1 U rack 19-inch size.
- Switching power, class-D amplifier.
Input Sensitivity | 0.9-1.1V ( 0+/-1dBV ) |
Input Impedance | 20k (balanced) 10k (unbalanced) |
Frequency response | 120 Hz - 17 kHz (-3dB) |
Voltage gain (100V) | 40 dB |
THD+N | <0.1% |
S/N rate | >95 dB |
Crosstalk | >70dB |
Damping factor | >200 |
Power output circuitry | Switching power, Class-D |
Power supply | AC 110-240V, 50/60 Hz |
Protections | Short circuit, open circuit, thermal, ultrasonic and RF |

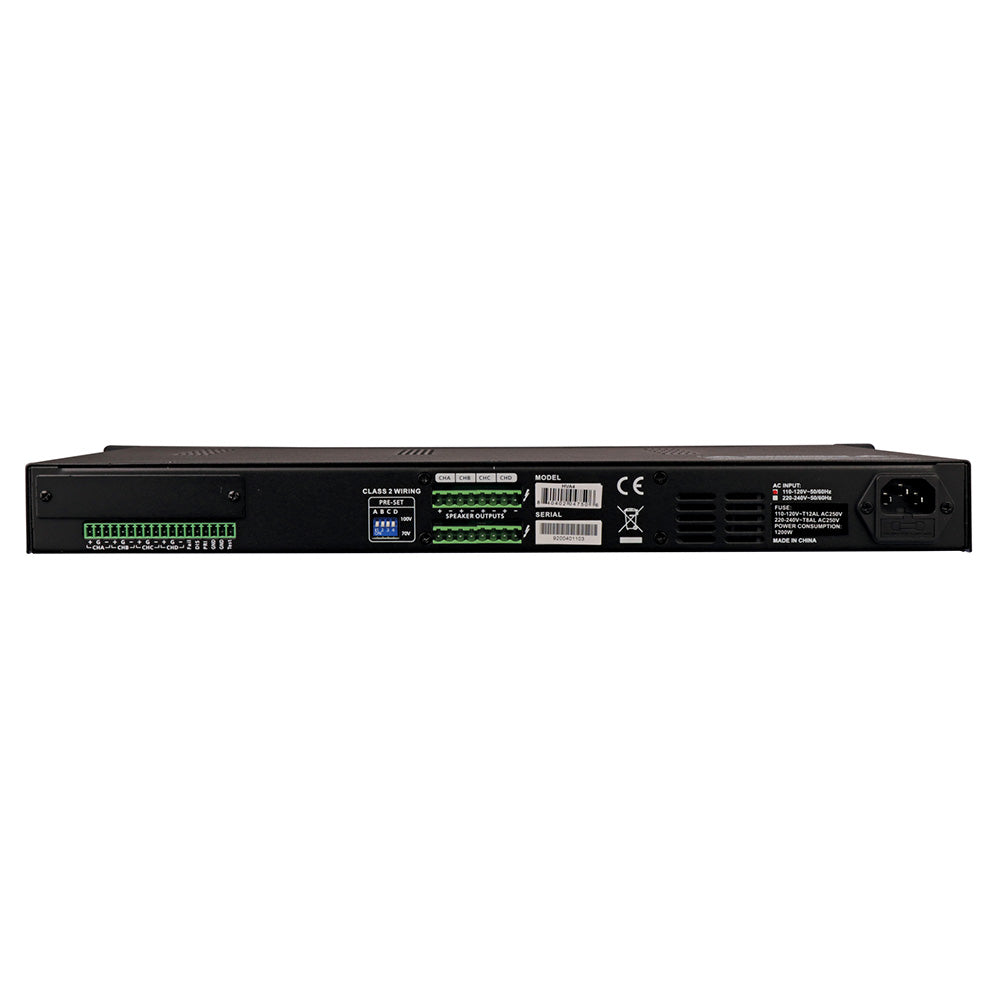

Connectors | INPUT / OUTPUT: Euroblock |
Controls | Front: AC switch, Input level control for each channel Rear: 70V/100V selector |
Indicators | SIGNAL: green LED CLIP: red LED POWER: green LED PROTECTION: red LED PRIOR:green/red LED |
Dimensions (WxHxD) | 19.02x1.73x14.17(inch) 483x44x360 (mm) |
Weight | 13.67 lb, 6.2 kg |
