DALE SKU # ART-MX524

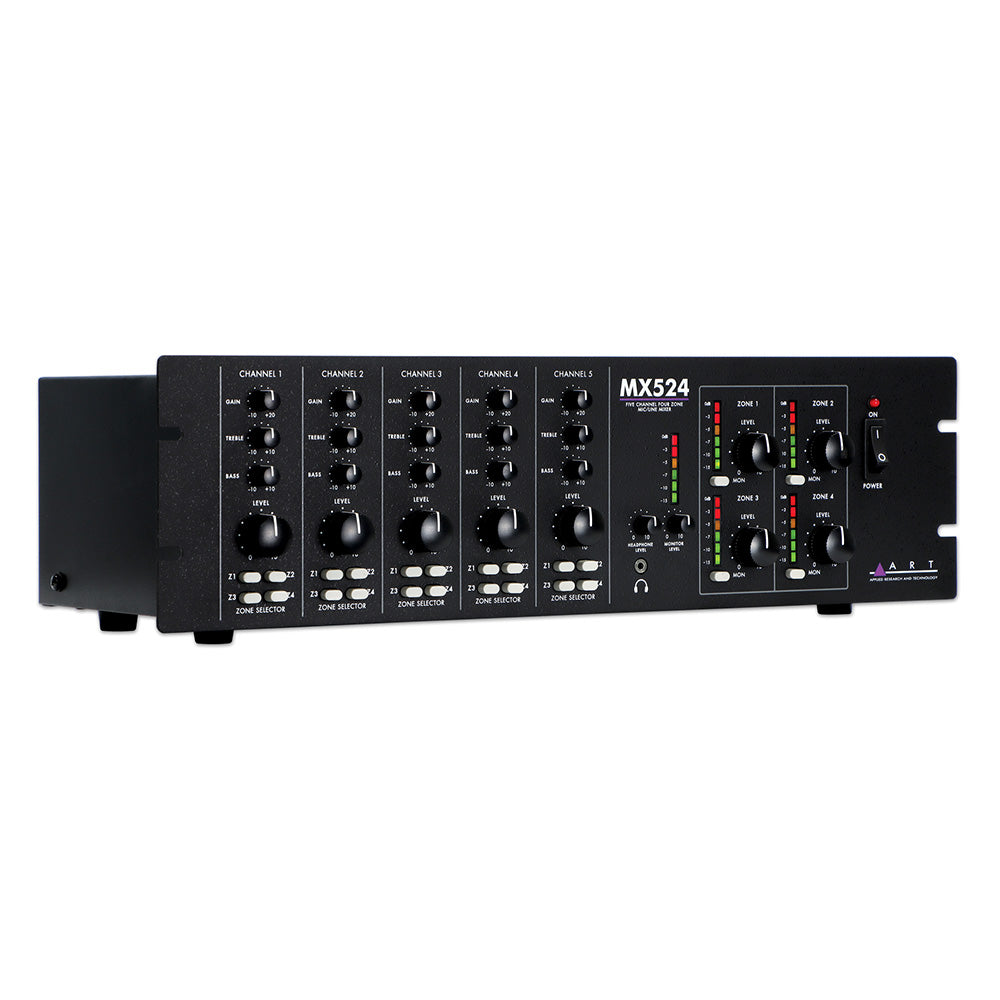

ART MX524 - Five-Channel Four-Zone Mic / Line Mixer

Sale price$449.99 Regular price$642.99
Save $193.00
  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

    The ART MX524 Five Channel Four Zone Mic/Line Mixer is a versatile rack mount mixer that combines Five independent input channels and routes them to four zone outputs. Channels one thru four accept a balanced Line or Mic signal thru the Combo jack connector. CH5 accepts a line level signal through RCA jacks. The unit has an independent selectable +48 Volt phantom power function for channels one thru four. Channels one thru four can also accept unbalanced line-level signals. Each channel has a level control and can be routed to any zone output. Separate level, bass and treble controls adjust the sound of each input channel.

    The ART MX524 may be used on stage, in the studio, or for permanent install applications including conference rooms, corporate boardrooms, churches, restaurants, small clubs, health clubs and more. A built-in power supply and triple high 19-inch rack mount format allows for easy installation and reliable long-term operation.

    Features:

    • Five input channels with individual level controls using XLR/Phono jacks with master level, bass and treble controls
    • Balanced Mic/Line XLR inputs for channels one thru four
    • Full +48V low-noise phantom power for channels one thru four mic inputs
    • Front panel 1/8-inch stereo (TRS) mini-phone plug for Headphone monitoring
    • Four sets of Euro Bloc connectors for the Zone outputs
    • Priority function (defeatable) on channel 1 ducks other channels when signal is present
    • Telephone paging function
    • Dc power back up
    • Separate monitor outputs
    • LED VU meter on all outputs
    • Rear mount RCA Line inputs for additional audio inputs
    • Rugged 3U rack-mount steel chassis with built-in power supply
    • Perfect for stage, studio and permanent installations
    Frequency Response 20 Hz Ð 22kHz ± 2 dB
    Max. Input Gain 60dB CH MIC. Input Main out (XLR, balanced)
    50dB CH MIC. Input and REC. out (unbalanced)
    60dB CH MIC. Input Mic. out (unbalanced)
    60dB CH MIC. Input Mono out (unbalanced)
    THD+N 0.03% @1kHz
    Impedance Microphone input: 1.4k½
    All other inputs 10k½ or greater
    Zone outputs 120½
    Monitor Speaker output 8½
    Monitor Line output 120½
    Phantom power 48VDC
    EQ Low: ± 10 dB Ð 100 Hz
    High: ± 10 dB Ð 10 kHz
    Zone Outputs +26dB (Balanced)
    Monitor Line Output +15dB (Unbalanced)
    Monitor speaker output 1 W rms / 8 ½
    Headphone output 0.5 W rms / 47 ½

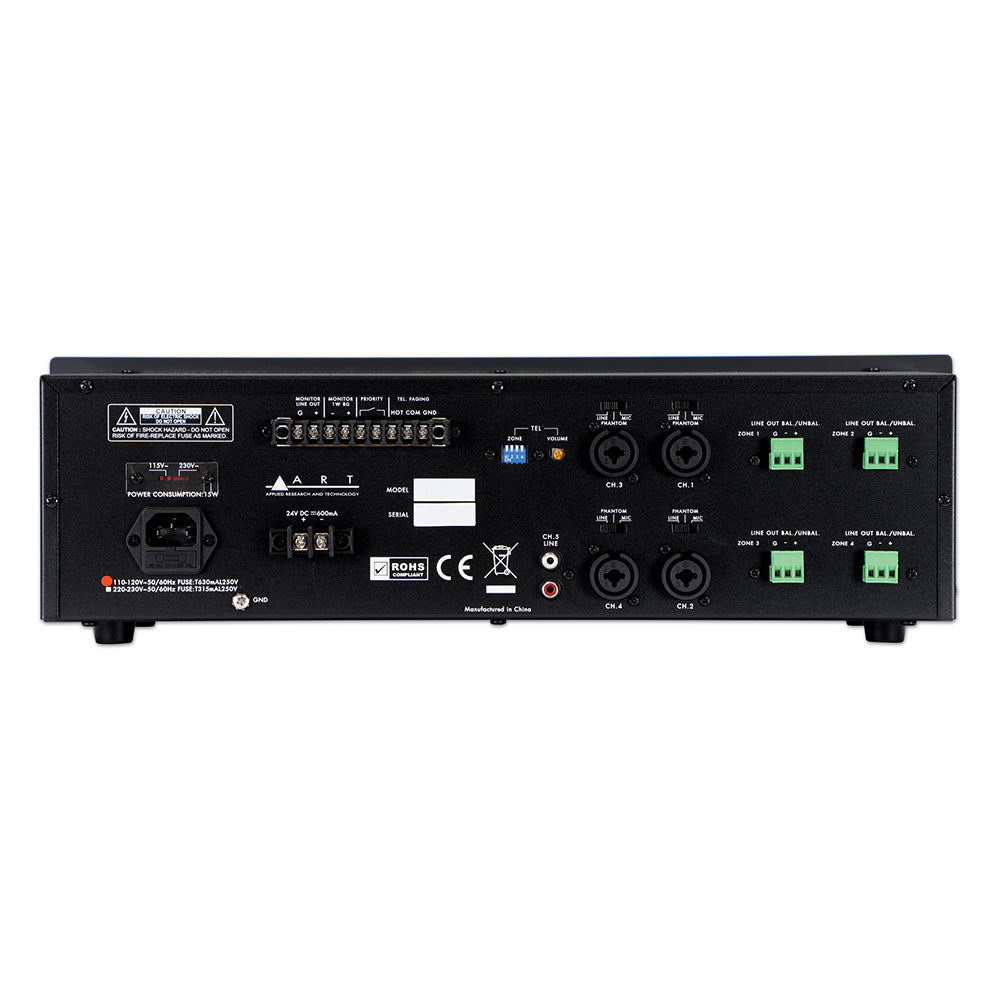

    Connectors Inputs: Combo XLR/_ Jacks, RCA
    Outputs: Euroblock, Screw terminals
    Power Requirements USA 110~120VAC 50/60Hz or 24VDC
    Dimensions (HWD) 5.1-inch x 19-inch x 7.5-inch
    130mm x 483mm x 191mm
    Weight 6.63 lbs. (3.0 kg)

    The ART MX524 Five Channel Four Zone Mic/Line Mixer is a versatile rack mount mixer that combines Five independent input channels and routes them to four zone outputs. Channels one thru four accept a balanced Line or Mic signal thru the Combo jack connector. CH5 accepts a line level signal through RCA jacks. The unit has an independent selectable +48 Volt phantom power function for channels one thru four. Channels one thru four can also accept unbalanced line-level signals. Each channel has a level control and can be routed to any zone output. Separate level, bass and treble controls adjust the sound of each input channel.

    The ART MX524 may be used on stage, in the studio, or for permanent install applications including conference rooms, corporate boardrooms, churches, restaurants, small clubs, health clubs and more. A built-in power supply and triple high 19-inch rack mount format allows for easy installation and reliable long-term operation.

    Features:

    • Five input channels with individual level controls using XLR/Phono jacks with master level, bass and treble controls
    • Balanced Mic/Line XLR inputs for channels one thru four
    • Full +48V low-noise phantom power for channels one thru four mic inputs
    • Front panel 1/8-inch stereo (TRS) mini-phone plug for Headphone monitoring
    • Four sets of Euro Bloc connectors for the Zone outputs
    • Priority function (defeatable) on channel 1 ducks other channels when signal is present
    • Telephone paging function
    • Dc power back up
    • Separate monitor outputs
    • LED VU meter on all outputs
    • Rear mount RCA Line inputs for additional audio inputs
    • Rugged 3U rack-mount steel chassis with built-in power supply
    • Perfect for stage, studio and permanent installations
    Frequency Response 20 Hz Ð 22kHz ± 2 dB
    Max. Input Gain 60dB CH MIC. Input Main out (XLR, balanced)
    50dB CH MIC. Input and REC. out (unbalanced)
    60dB CH MIC. Input Mic. out (unbalanced)
    60dB CH MIC. Input Mono out (unbalanced)
    THD+N 0.03% @1kHz
    Impedance Microphone input: 1.4k½
    All other inputs 10k½ or greater
    Zone outputs 120½
    Monitor Speaker output 8½
    Monitor Line output 120½
    Phantom power 48VDC
    EQ Low: ± 10 dB Ð 100 Hz
    High: ± 10 dB Ð 10 kHz
    Zone Outputs +26dB (Balanced)
    Monitor Line Output +15dB (Unbalanced)
    Monitor speaker output 1 W rms / 8 ½
    Headphone output 0.5 W rms / 47 ½
    Connectors Inputs: Combo XLR/_ Jacks, RCA
    Outputs: Euroblock, Screw terminals
    Power Requirements USA 110~120VAC 50/60Hz or 24VDC
    Dimensions (HWD) 5.1-inch x 19-inch x 7.5-inch
    130mm x 483mm x 191mm
    Weight 6.63 lbs. (3.0 kg)
