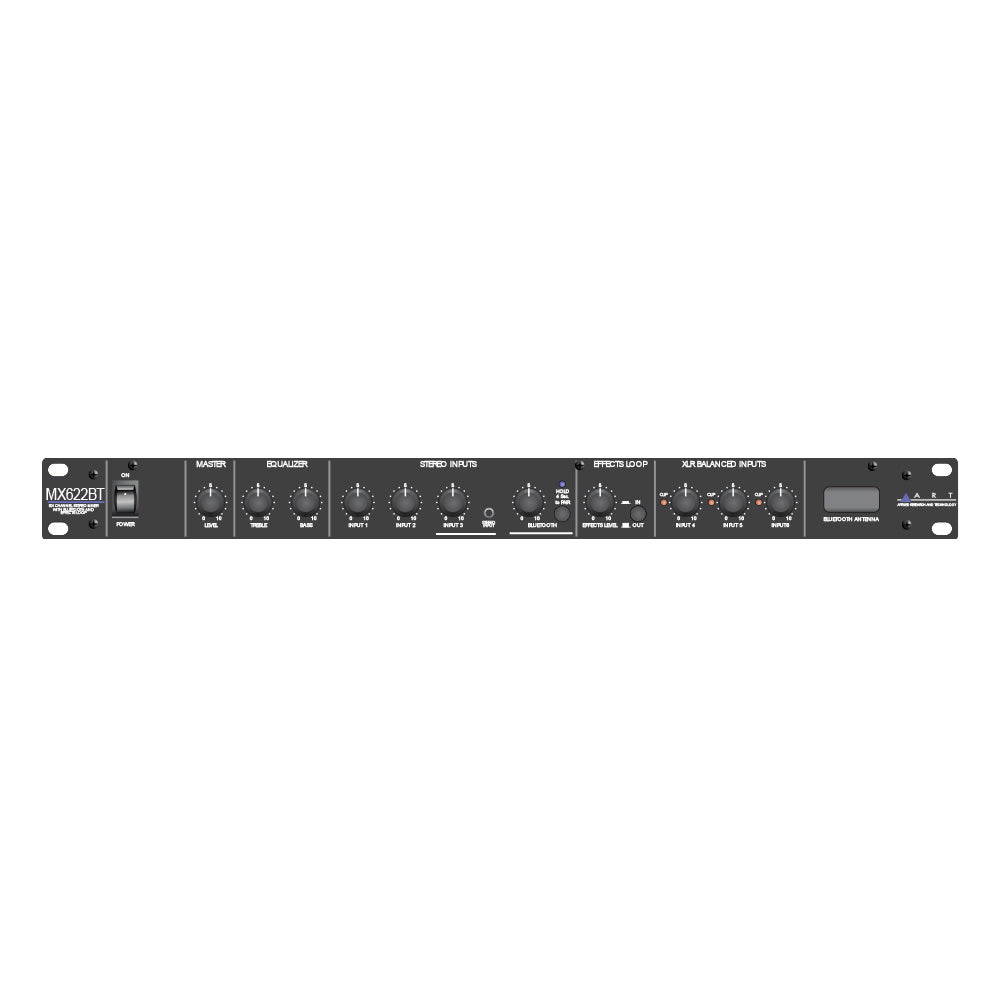

ART MX622BT - Six-Channel Stereo Mixer with Effects Loop and Bluetooth
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The MX622BT is a versatile single high rack mixer combining three balanced microphone or line level inputs with three stereo line inputs plus a stereo Bluetooth input into a single stereo line level mix. Each mono balanced XLR input includes fully variable Input gain, Mic/Line switch, Clip indicator, and selectable 15 Volt Phantom power. Three stereo line level inputs are also provided via RCA type jacks with separate Level controls for each stereo pair. The front panel also has a 1/8" input for portable audio device input.
The Bluetooth input supports Bluetooth 5.0 and has it's own level control and Pairing/ON/OFF switch.
An external effects loop section provides a mono Send from the three Mic/Line channels to external equipment and stereo Returns with Effects Level and In/Out switch. Stereo Record output RCA jacks provide full-level signal of the entire mix at all times. Main outputs are stereo balanced 1/4" TRS with Master Level and full range Bass/Treble equalization. The built in power supply and single high 19" rack mount format allows for easy installation and reliable operation.
Features:
- Bluetooth 5.0 receiver
- Three XLR Inputs
- Mic/Line selectable
- Selectable 15V
- Phantom Power
- Three Stereo
- Line Inputs
- Front TRS stereo
- 1/8" Input Jack
- Stereo return
- Effects Loop with Level and Switch
- Versitile Bass and Treble
- EQ on Main output
- Balanced Outputs
- Internal power supply
- Solid Metal case
| Input Connections | XLR-F balanced (3), _Ó unbalanced (2), RCA (6), 1/8Ó TRS (1) |
| Output Connections | _Ó TRS balanced (2), _Ó unbalanced (1), RCA (2) |
| Input Impedance | 600/22K Ohms Mic/Line XLR inputs, 10K Ohms RCA inputs, 22K Ohms _Ó Efx Returns |
| Output Impedance | 50 Ohms _Ó Main outputs, 1K Ohms RCA Record outputs, 100 Ohms Efx output |
| Maximum Input Level | -10dBu/+20dBu Mic/Line XLR inputs, +20dBu RCA line inputs, +20dBu Efx inputs |
| Maximum Output Level | +24dBu balanced Main outputs, +20dBu RCA Record outputs, +20dBu Efx output |
| Phantom Power | +15 Volts DC, regulated low noise |
| Maximum Gain | 56dB/26dB Mic/Line, 26dB RCA inputs |
| Signal to Noise Ratio | >90dB typical |
| THD | < 0.01% typical |
| Equalizer Range | +/-12dB @ 100Hz / 10KHz |
| Bluetooth | v5.0, up to 50M range, Class 2 device. |
| Power Requirements | USA: 105 to 125 VAC / 50-60Hz, 15 Watts typical |
| Dimensions: (HxWxD in) | 1.75 x 19.0 x 6.0 |
| Dimensions: (HxWxD mm) | (44.5 x 483 x 152) |
| Weight | 6.2 lbs. (2.8kg) |
