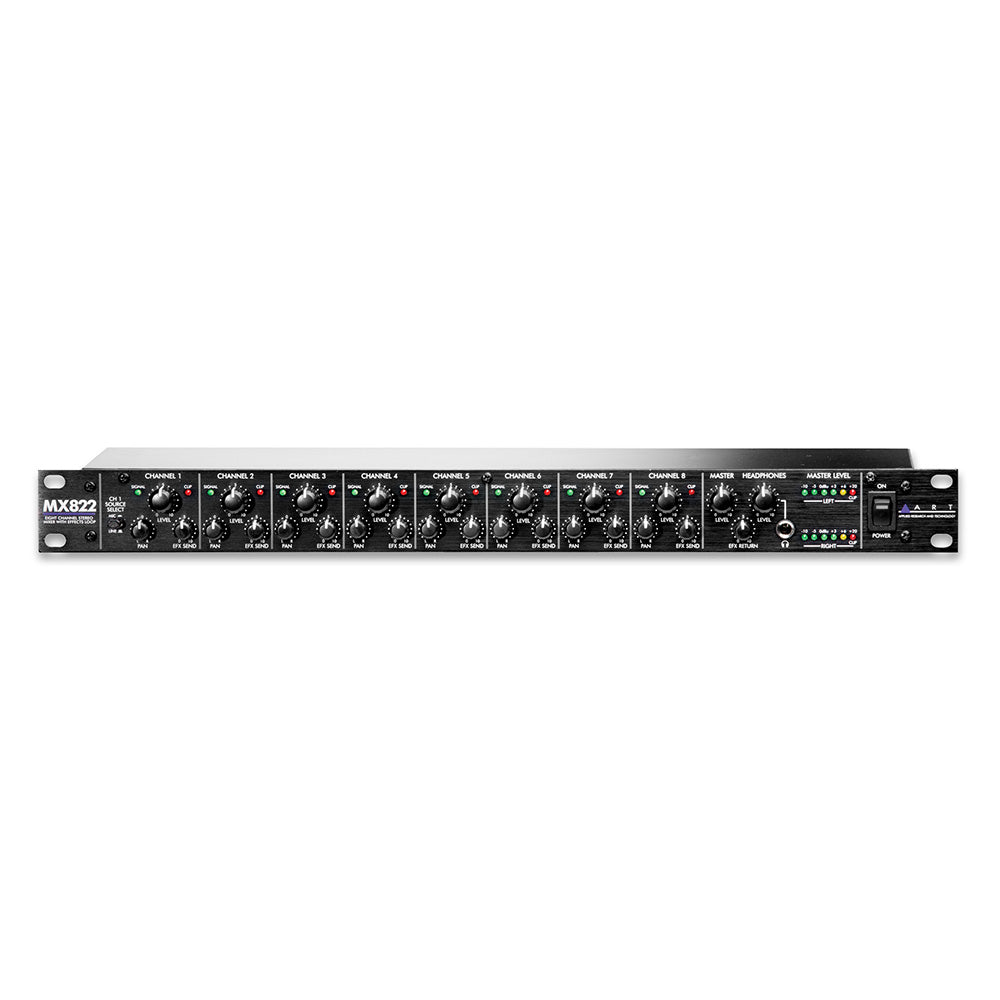

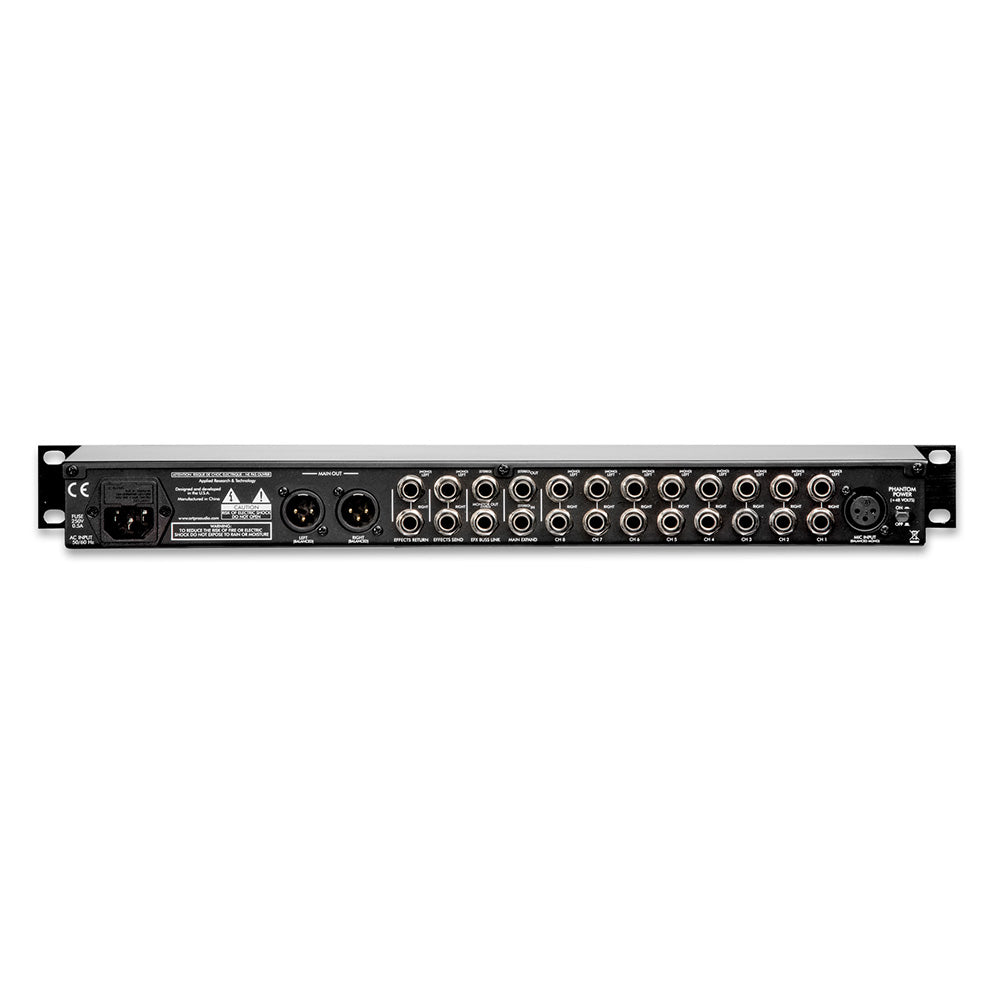

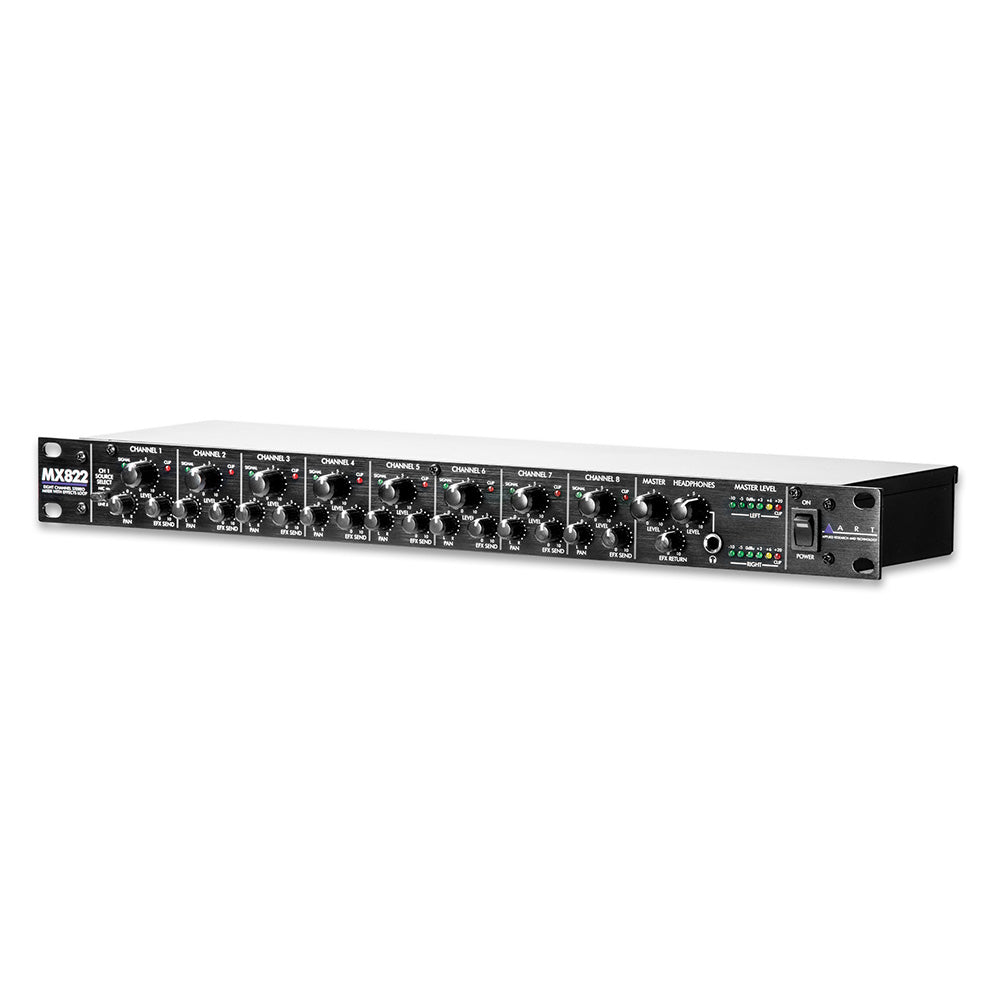

ART MX822 - 8-Channel Stereo Mixer with Effects Loop
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The ART MX822 Eight Channel Stereo Rackmount Mixer is a versatile eight input mixer for studio, live sound or installation applications. Each input accepts a mono or stereo signal and provides independent level, pan and effects send controls. Channel One includes a switchable mic/line source select and the XLR mic connector provides switchable phantom power.
Multiple MX822s may be chained for additional inputs using common 1/4-inch TRS cables. External effects processors can be linked in and mixed with independent level controls. A front panel headphone jack with separate level control allows independent monitoring.
Features:
- Eight stereo/mono input channels with individual level, pan and effects send controls
- External effects loop with independent send and return controls
- Front panel 1/4-inch stereo (TRS) headphone jack with amplifier and independent level control for
- output monitoring
- Switchable balanced microphone XLR or 1/4-inch inputs on Channel One
- Switchable low noise +48V phantom power for microphone input
- Separate green and red LED signal and clip indicators for each input channel
- Six level left and right main output metering including clip indicators
- Balanced left and right XLR main outputs
- Multiple units may be chained together for additional inputs
- Rugged 1U rack mount steel case
| Input Connections | XLR-F balanced (MIC) 1/4_ TRS unbalanced (Ch1-Ch8, Effects Return) 1/4_ TRS stereo unbalanced (EFX Buss, Main Expand) |
| Output Connections | XLR-M balanced (Main) 1/4_ TRS unbalanced (Effectss Send) 1/4_ TRS stereo unbalanced (Monitor, Main Expand, Headphone) |
| Input Impedance | 1k ½ (MIC), 5k ½ (Ch1-Ch8) |
| Output Impedance | <1k ½ (Main, balanced), <25 ½ (Headphone) |
| Total Harmonic Distortion | <0.01% @ 1kHz |
| Signal to Noise Ratio | > 90dB typical (Ref 0dBu) |
| Maximum Input Level | -19dBu (MIC), +24dBu (Ch1-8) |
| Maximum Output Level | +24dBu (Main), +18dBu (Monitor, Effects Send) |
| Maximum Gain | +60dB (MIC), +14dB (Ch1-8) |
| Phantom Power | Switch Selectable, +48V DC, filtered, current limited |
| Power Requirements | USA Ð 95 to 125 VAC, 50-60 Hz Export units configured for country of destination |
| Dimensions | 1.75_H x 19_W x 6_D (44.5mm x 483mm x 152mm) |
| Weight | 6.5 lbs (2.95 kg) |
The ART MX822 Eight Channel Stereo Rackmount Mixer is a versatile eight input mixer for studio, live sound or installation applications. Each input accepts a mono or stereo signal and provides independent level, pan and effects send controls. Channel One includes a switchable mic/line source select and the XLR mic connector provides switchable phantom power.
Multiple MX822s may be chained for additional inputs using common 1/4-inch TRS cables. External effects processors can be linked in and mixed with independent level controls. A front panel headphone jack with separate level control allows independent monitoring.
Features:
- Eight stereo/mono input channels with individual level, pan and effects send controls
- External effects loop with independent send and return controls
- Front panel 1/4-inch stereo (TRS) headphone jack with amplifier and independent level control for
- output monitoring
- Switchable balanced microphone XLR or 1/4-inch inputs on Channel One
- Switchable low noise +48V phantom power for microphone input
- Separate green and red LED signal and clip indicators for each input channel
- Six level left and right main output metering including clip indicators
- Balanced left and right XLR main outputs
- Multiple units may be chained together for additional inputs
- Rugged 1U rack mount steel case
| Input Connections | XLR-F balanced (MIC) 1/4_ TRS unbalanced (Ch1-Ch8, Effects Return) 1/4_ TRS stereo unbalanced (EFX Buss, Main Expand) |
| Output Connections | XLR-M balanced (Main) 1/4_ TRS unbalanced (Effectss Send) 1/4_ TRS stereo unbalanced (Monitor, Main Expand, Headphone) |
| Input Impedance | 1k ½ (MIC), 5k ½ (Ch1-Ch8) |
| Output Impedance | <1k ½ (Main, balanced), <25 ½ (Headphone) |
| Total Harmonic Distortion | <0.01% @ 1kHz |
| Signal to Noise Ratio | > 90dB typical (Ref 0dBu) |
| Maximum Input Level | -19dBu (MIC), +24dBu (Ch1-8) |
| Maximum Output Level | +24dBu (Main), +18dBu (Monitor, Effects Send) |
| Maximum Gain | +60dB (MIC), +14dB (Ch1-8) |
| Phantom Power | Switch Selectable, +48V DC, filtered, current limited |
| Power Requirements | USA Ð 95 to 125 VAC, 50-60 Hz Export units configured for country of destination |
| Dimensions | 1.75_H x 19_W x 6_D (44.5mm x 483mm x 152mm) |
| Weight | 6.5 lbs (2.95 kg) |
