Description
The ART PS8-II provides controlled power sequencing to eight rear AC outlets. Each output’s power up / power down is delayed by a fixed amount determined by the front panel user definable Sequence Delay control. This allows you to control the power up and down sequence in a system to smooth out inrush currents and minimize turn-on transients that may damage sensitive equipment.
Features:
- Adjustable Sequence Delay Range from 0.5 to 2.0 Seconds per Output

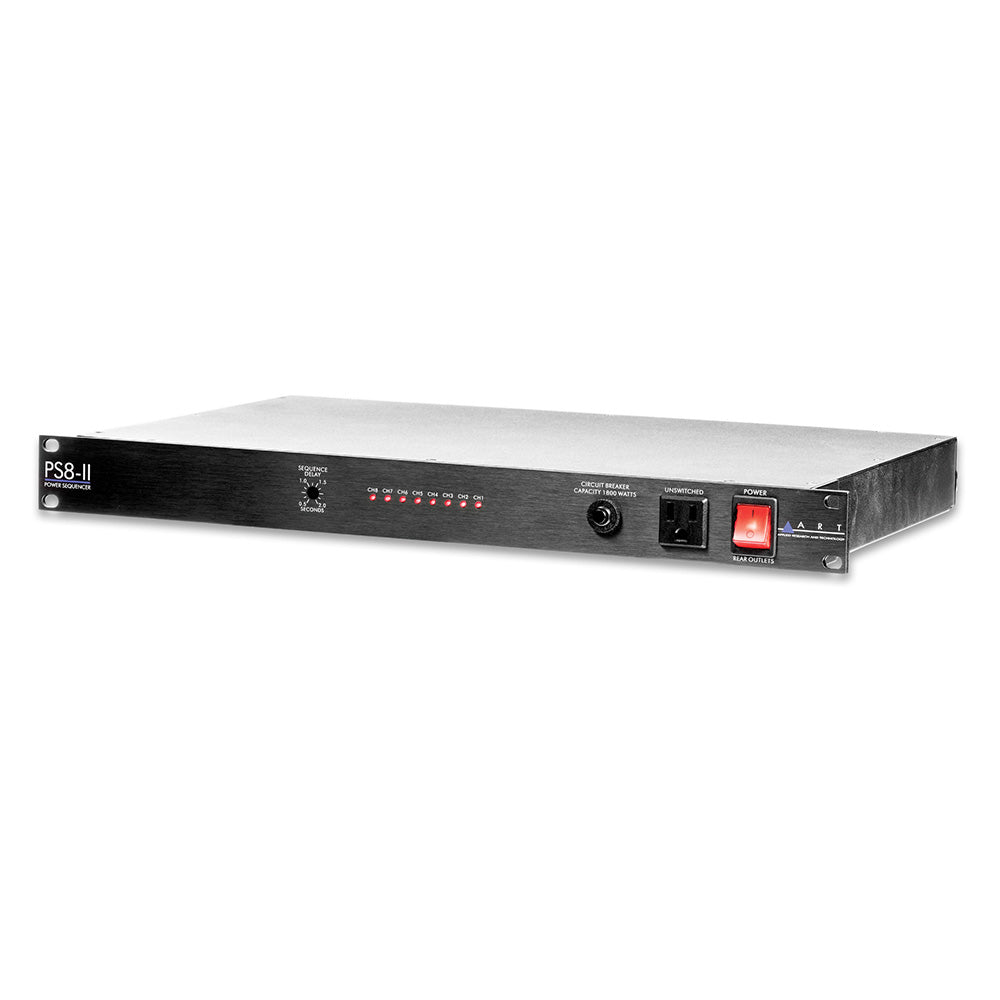

- Eight Individually Sequenced Outputs with Front Panel LED Indicators for Each
- Rear Mount Remote Control Terminal Block for Remote Sequence Control
- Front Panel Unswitched and Unregulated Output
- 1800 Watt Total Power Capacity
- Front Panel Master Breaker and Power Switch
- EMI and RFI Filtering
- Surge and Spike Protection
Power Capacity | 1800 W |
Maximum Load | 15 Amps / 1800 W (@ 120 VAC) |

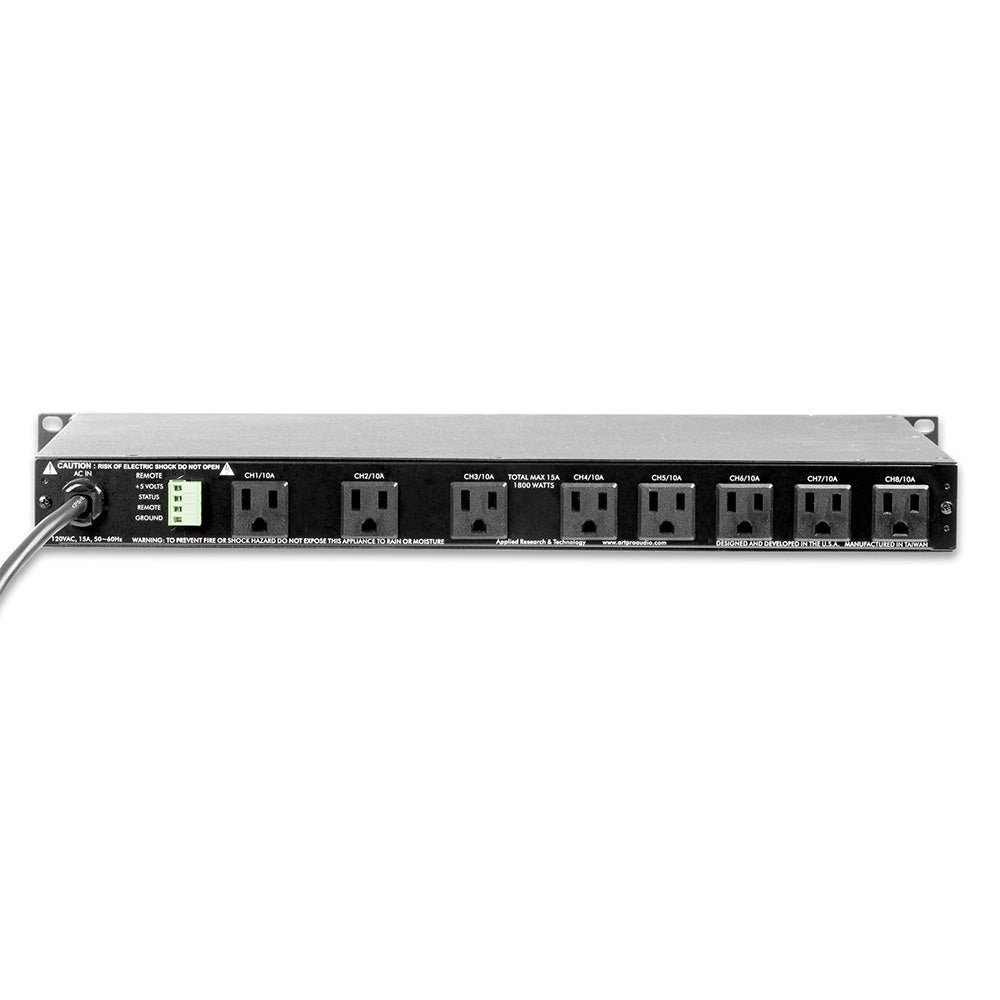

Outlets | 8 x Rear Mounted Individually Sequenced Outlets, 1 x Front Mounted Unswitched |
Delay Time | 0.5 to 2.0 Second Variable Pot |
Remote Switch | On/Off Function |
Remote Terminal | Rear Mounted 4-pin Euro Block Connector |
Line Filtering | RFI / EMI |
Power Requirements | USA Ð 105 to 125 VAC / 60 Hz (Export units configured for country of destination) |
Dimensions | 1.75_H x 19.0_W x 11.5_D (165mm x 482mm x 292mm) |
Weight | 9.2 lbs (4.2 kg) |
The ART PS8-II provides controlled power sequencing to eight rear AC outlets. Each output’s power up / power down is delayed by a fixed amount determined by the front panel user definable Sequence Delay control. This allows you to control the power up and down sequence in a system to smooth out inrush currents and minimize turn-on transients that may damage sensitive equipment.
Features:
- Adjustable Sequence Delay Range from 0.5 to 2.0 Seconds per Output
- Eight Individually Sequenced Outputs with Front Panel LED Indicators for Each
- Rear Mount Remote Control Terminal Block for Remote Sequence Control
- Front Panel Unswitched and Unregulated Output
- 1800 Watt Total Power Capacity
- Front Panel Master Breaker and Power Switch
- EMI and RFI Filtering
- Surge and Spike Protection
Power Capacity | 1800 W |
Maximum Load | 15 Amps / 1800 W (@ 120 VAC) |
Outlets | 8 x Rear Mounted Individually Sequenced Outlets, 1 x Front Mounted Unswitched |
Delay Time | 0.5 to 2.0 Second Variable Pot |
Remote Switch | On/Off Function |
Remote Terminal | Rear Mounted 4-pin Euro Block Connector |
Line Filtering | RFI / EMI |
Power Requirements | USA Ð 105 to 125 VAC / 60 Hz (Export units configured for country of destination) |
Dimensions | 1.75_H x 19.0_W x 11.5_D (165mm x 482mm x 292mm) |
Weight | 9.2 lbs (4.2 kg) |
