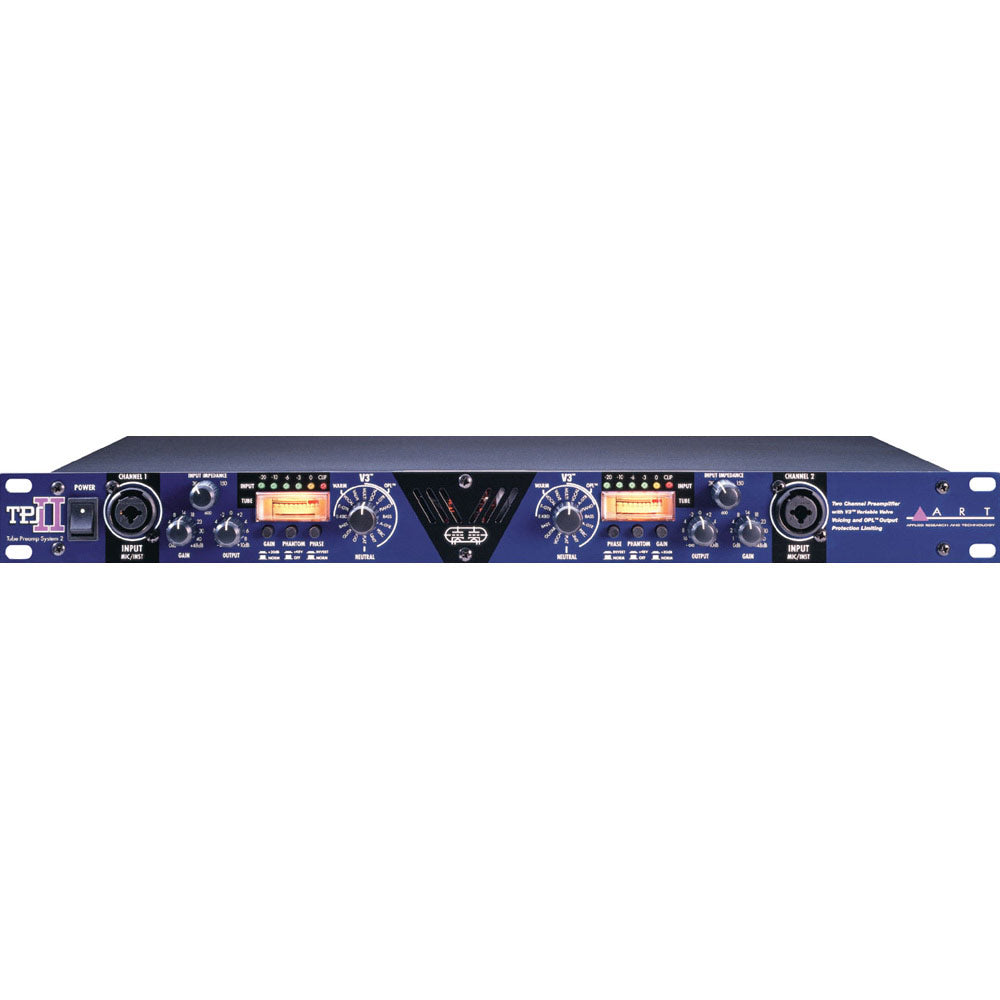

ART TPS II Dual Channel Microphone/Instrument Preamp (with V3 Voicing)


  • Dale #:

    ART-TPSII
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

Designed as the ideal preamp for any application, the tube driven TPS II and DPS II add warmth and texture to any audio source. These two-channel high performance preamps use a hand selected 12AX7A tube in the low noise input circuitry. This, coupled with ART's proprietary V3™ (Variable Valve Voi... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

Designed as the ideal preamp for any application, the tube driven TPS II and DPS II add warmth and texture to any audio source. These two-channel high performance preamps use a hand selected 12AX7A tube in the low noise input circuitry. This, coupled with ART's proprietary V3™ (Variable Valve Voicing) and variable input impedance allow the TPS II and DPS II to deliver incredible performance from cost effective single space rackmount solutions.

Features

  • Variable Input Impedance
  • Improved V3™ Variable Valve Voicing Presets
  • LED Input Meter with Analog Output Meter
  • Enhanced ART Tube Technology Adds Warmth
  • Automatically switches between instrument and microphone preamp
  • Wide Frequency Response (5hz/50kHz)
  • Enhanced OPL™ Output Protection Limiter

More +

Product Specs

Dimensions6.5”d x 19.0” w x 1.75” h
Weight5.5 lbs.
Dynamic Range>100dB
Frequency Response5Hz to 50kHz (+0 to –1dB)
THD<.01% clean, (<0.1% warm)
CMRR>75dB (typ. @1KHz)
Equivalent Input Noise-129dBu (“A” weighted, xlr to xlr)
Max Gain80dB (xlr to xlr)
74dB (Inst. input to xlr)
Max Input Level+19dBu (xlr),
+22dBu ( Inst. input)
Max Output Level+28dBu (xlr)
+22dBu (1/4”)
Power Requirements110-125 VAC, 16W
