ART Tube MP USB - Single Channel Tube Microphone or Instrument Preamplifier with USB

  • Dale #:

    ART-TUBEMPUSB
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The Tube MP Project Series is a professional quality audio interface that lets you connect microphone, instrument, and line level signals to audio inputs to digital audio workstations as well as standard analog devices. We took our legendary Tube MP series and updated every aspect of the design, ... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The Tube MP Project Series is a professional quality audio interface that lets you connect microphone, instrument, and line level signals to audio inputs to digital audio workstations as well as standard analog devices. We took our legendary Tube MP series and updated every aspect of the design, inside and out, while still maintaining a compact, reliable, cost effective product, and added a USB output.

From the new all-aluminum stackable chassis to the precision LED level metering circuitry, we have improved virtually every aspect of our already successful Tube MP series and added USB connectivity.

USB (Universal Serial Bus) is a common hardware interface used for quick and easy connection of peripherals like the ART USB TUBE MP.

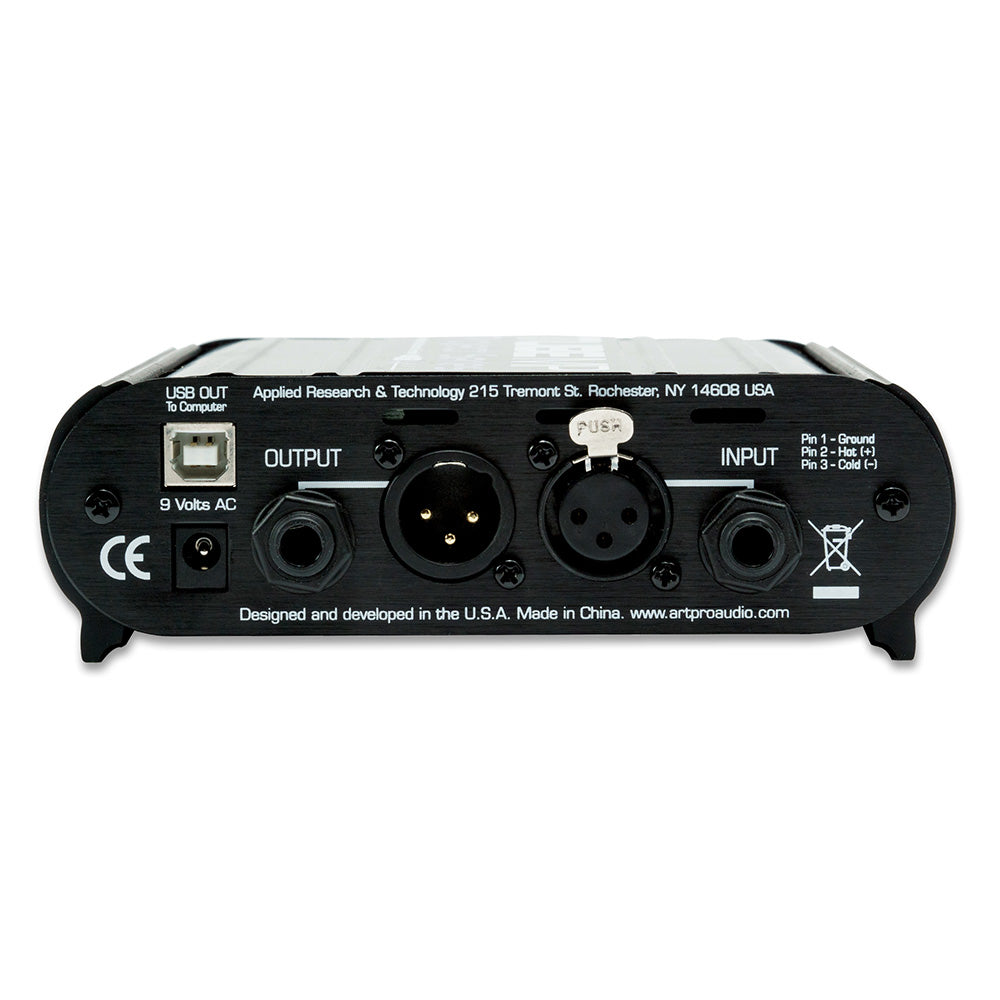

The TUBE MP features a single Type B USB peripheral connector on the rear panel for outputting audio over USB to your computer. One of the nice features of USB is its Hot Swapping capability, allowing the Tube MP to be connected and disconnected without turning your computer off. The ART USB TUBE MP is fully USB 1.1 compliant, operating under Windows 98SE/ME/2000/XP/Vista, as well as Mac OS 9.1 or newer.

The new ultra low noise discrete microphone preamp front end has an extremely flat and wide frequency response and handles a wide range of input signal levels with a minimum of coloration.

Features:

  • USB Interface Output
  • Extremely Low Noise Discrete Front End
  • Up to 70dB of Clean, 'Musical' Gain
  • High Output Signal Drive Capability
  • Fast FET Limiter to Prevent Overload
  • Switch Selectable Input Impedance
  • Precision LED Metering
  • Built-in Low Noise Phantom Power Supply
  • Compact, Stackable all Aluminum Chassis
  • XLR and 1/4″ Inputs and Outputs
  • Phase Invert Switch
  • High Cut Filter Switch
  • Variable Input and Output Controls
  • Windows 98SE/ME/2000/XP/Vista Compatible
  • Compatible with Mac OS 9.1 and newer

More +

Product Specs

Frequency Response 10Hz – 40KHz, +/-1 dB (typical)
Dynamic Range >100dB (20Hz to 20KHz)
THD <0.05% (typical)
CMRR >60dB (typical)
EIN <-130dB (XLR to XLR A-weighted)
Max. Input Level +17dBu (1/4”), +16dBu (XLR)
Max. Output Level +20dBu (1/4”), +26dBu (XLR)
Input Connections 1/4” TRS unbalanced (1meg Ohm), XLR female balanced
Output Connection 1/4” TRS unbalanced (600 Ohm), XLR male balanced, (<300 Ohm)
Max. Gain 0dB (XLR - XLR), +50dB (1/4”- XLR)
Input Gain Pad Switchable, 20dB
XLR Input Impedance Switchable, 4.7k Ohms / 600 Ohms
Low Cut Filter Switchable, -3dB @ 40Hz
Output Phase Switchable, Normal/Invert
Output Limiter Type Switchable, Fast / Musical FET limiter, >20dB limit range
Phantom Power Switchable, +48V DC, filtered, current limited
Signal Metering Precise LED array with a fast attack and moderate release
Tube Type 12AX7A hand selected
Chassis Type Aluminum Anodized with integral/ stackable rubber sides
Power Requirements 10Volts AC @ 700mA (typical)
Dimensions 1.75”H x 5.9”W x 6.5”D
(44.5mm x 150mm x 165mm)
Weight 2.5 lbs. (1.14 kg)
