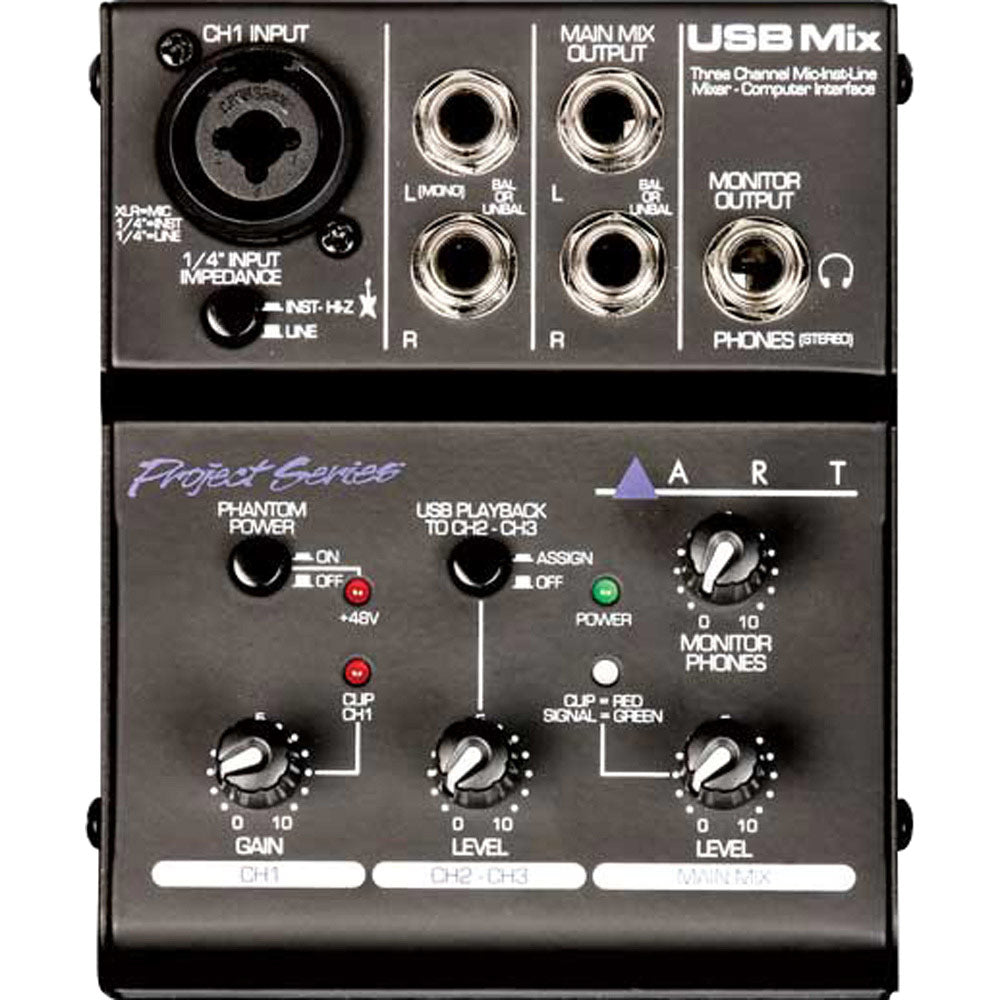

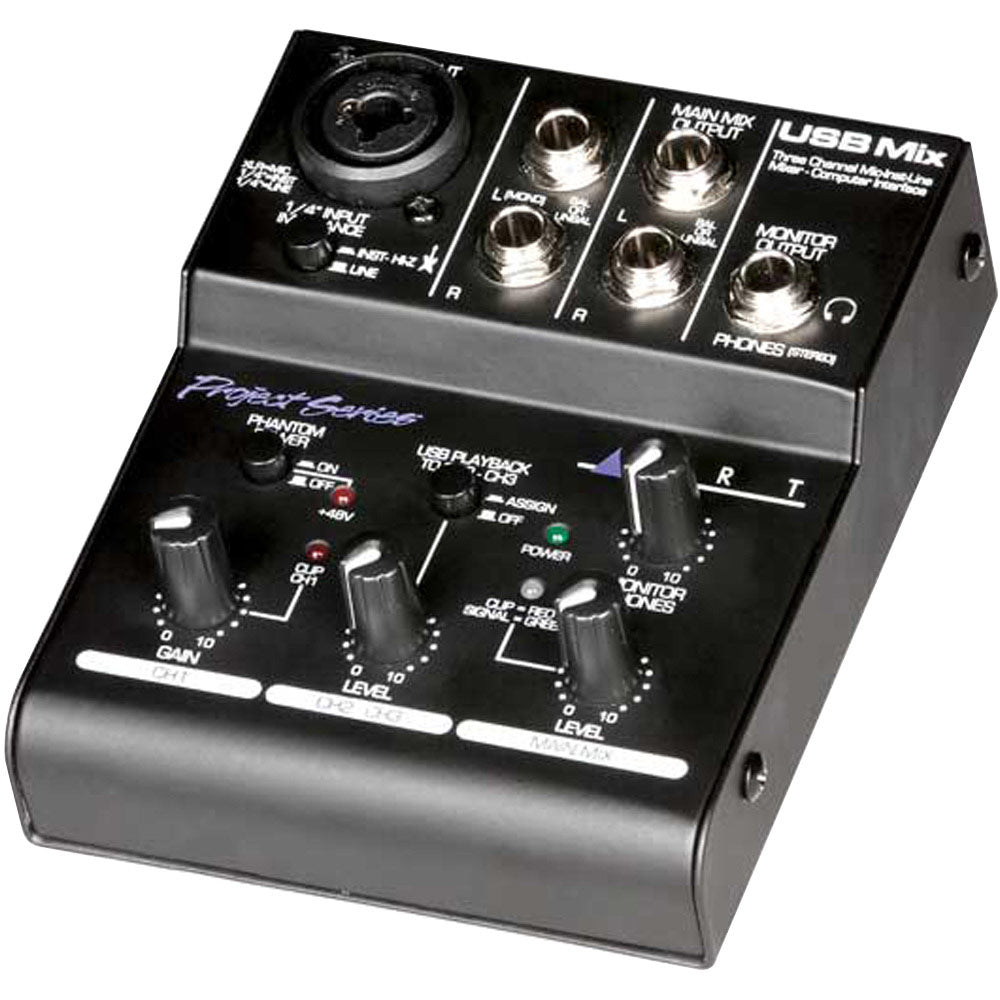

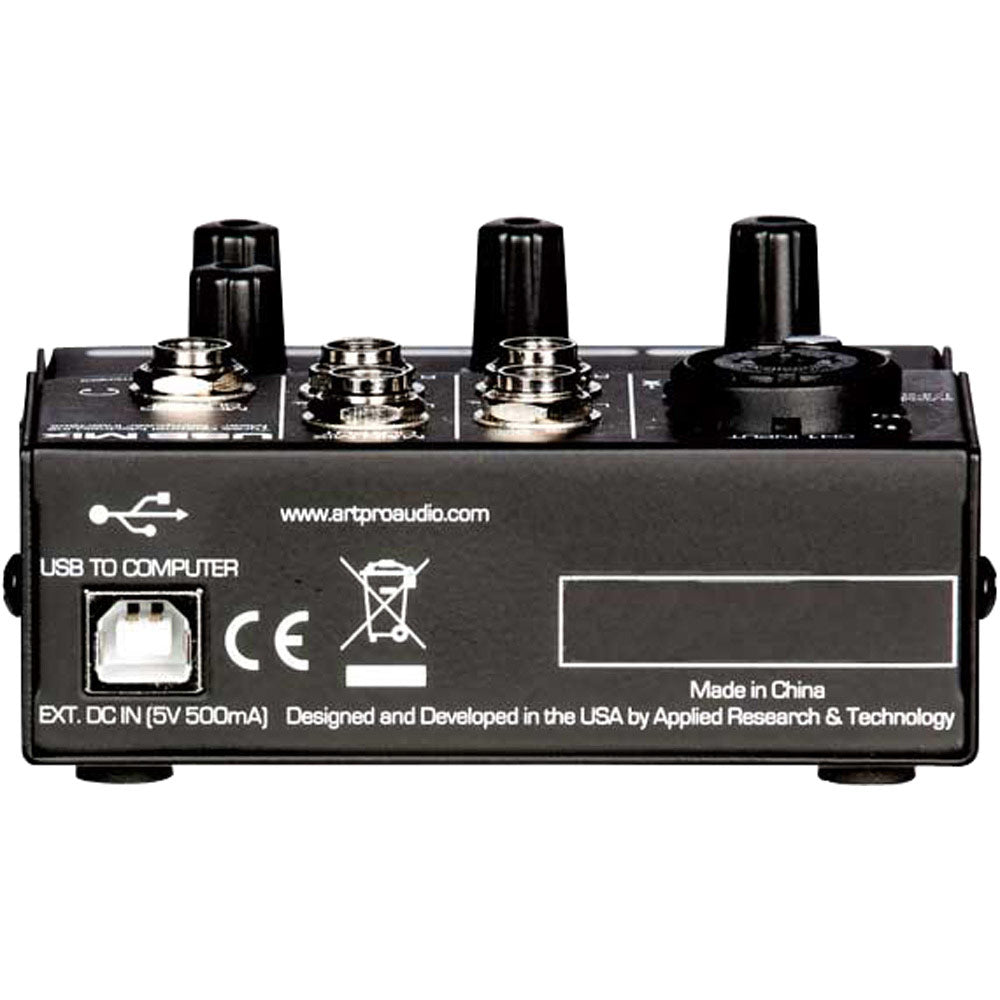

ART USBMix Project Series 3 Channel Mic/Line USB Mixer

  • Dale #:

    ART-USBMIX
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The ART USB Mix Three Channel Microphone, Instrument, and Line Mixer / Computer Interface is a compact versatile audio interface for your computer that converts analog signals from a variety of audio sources to USB Audio. The USB Mix provides a great starting point for personal home studio record... Read More

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The ART USB Mix Three Channel Microphone, Instrument, and Line Mixer / Computer Interface is a compact versatile audio interface for your computer that converts analog signals from a variety of audio sources to USB Audio. The USB Mix provides a great starting point for personal home studio recording or for anyone wanting to do mobile location recording.

Features

  • USB powered, no external power supply needed when used with a computer
  • Balanced XLR or unbalanced ¼-inch Instrument inputs with switchable impedance
  • Switchable low noise +48V phantom power
  • Balanced ¼-inch TRS inputs for stereo or mono line-level sources
  • ¼-inch TRS output jacks work with balanced or unbalanced lines
  • Stereo ¼-inch TRS headphone jack with independent level control for output monitoring
  • Independent controls for both sets of inputs, main output, and headphone monitor
  • Green/Red LED signal/clip indicator
  • Switchable assignment of USB playback to channels 2 and 3
  • USB 2.0 compliant
  • USB cable, AC adapter, and Audacity recording software included

More +

Product Specs

Input ConnectionsXLR balanced / 1/4" unbalanced "Combo" jack (ch1 input)
1/4" balanced or unbalanced (Ch2-Ch3 inputs)
Output Cannections1/4" TRS balanced (Main Mix outputs)
1/4" TRS stereo (Monitor output)
Input Impedance240k Ohms (Inst-HiZ), 20k Ohms (Line) (Ch 1, Ch2-Ch3 1/4" inputs)
> 4k Ohms (Ch1 XLR input)
Output Impedance<1k Ohms (balanced 1/4"), <500 Ohms (unbalanced 1/4")
100 Ohms (Monitor output)
Frequency Response20 Hz - 20 kHz (+0, -1 dB)
THD<0.01% @ 1 kHz
CMRR> 54 dB typical
Signal to Noise Ratio> 90 dB typical (Ref 0 dBu)
Equivalent Input Noise-120 dBu typical (XLR balanced, max gain), -100 dBu typical (1/4")
Maximum Input Level+4dBu (XLR input), +14dBu (1/4" input)
Maximum Output Level+14dBu (Main Mix Outputs), +13dBu (Monitor output)
Maximum Gain (In to Main Out)+53dB (XLR), +32dB (1/4") Ch1 input
+10dB (1/4") (Ch2-Ch3 inputs)
Maximum Gain (In to USB)+44dB (XLR), +23dB (1/4") (Ch1 input)
+1dB (1/4") (Ch2-Ch3 inputs)
Maximum Gain (USB to Out)+14dB (Main Mix outputs), +13dB (Monitor output)
Phantom PowerSwitch selectable, +48V DC, filtered, current limited
A/D-D/A16 Bit, 44.1 kHz or 48 kHz, USB selectable from computer
0.4 ms A/D latency @ 44.1 kHz
Computer InterfaceUSB 2.0 compliant, Windows 7, Vista, XP, 2000, ME, 98SE
Mac OS 9.1 / OS X computers with native USB support, Linux
Chassis TypeAll steel black finish
Power Requirements5.0V DC @ <500 mA (external) or USB bus powered @ 150 mA typical
Dimensions1.6" x 4.0" x 4.75" (41mm x 101mm x 121mm)
Weight1.1 lbs (0.5 kg)
