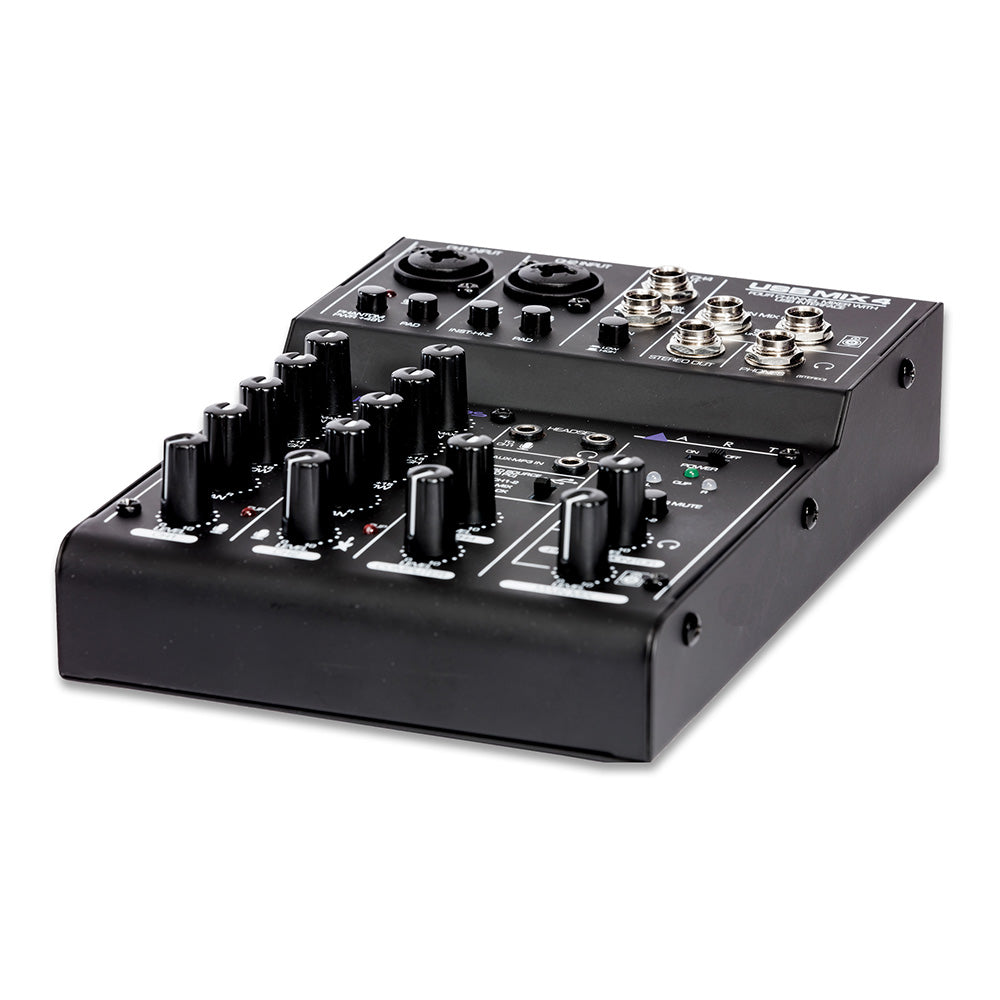

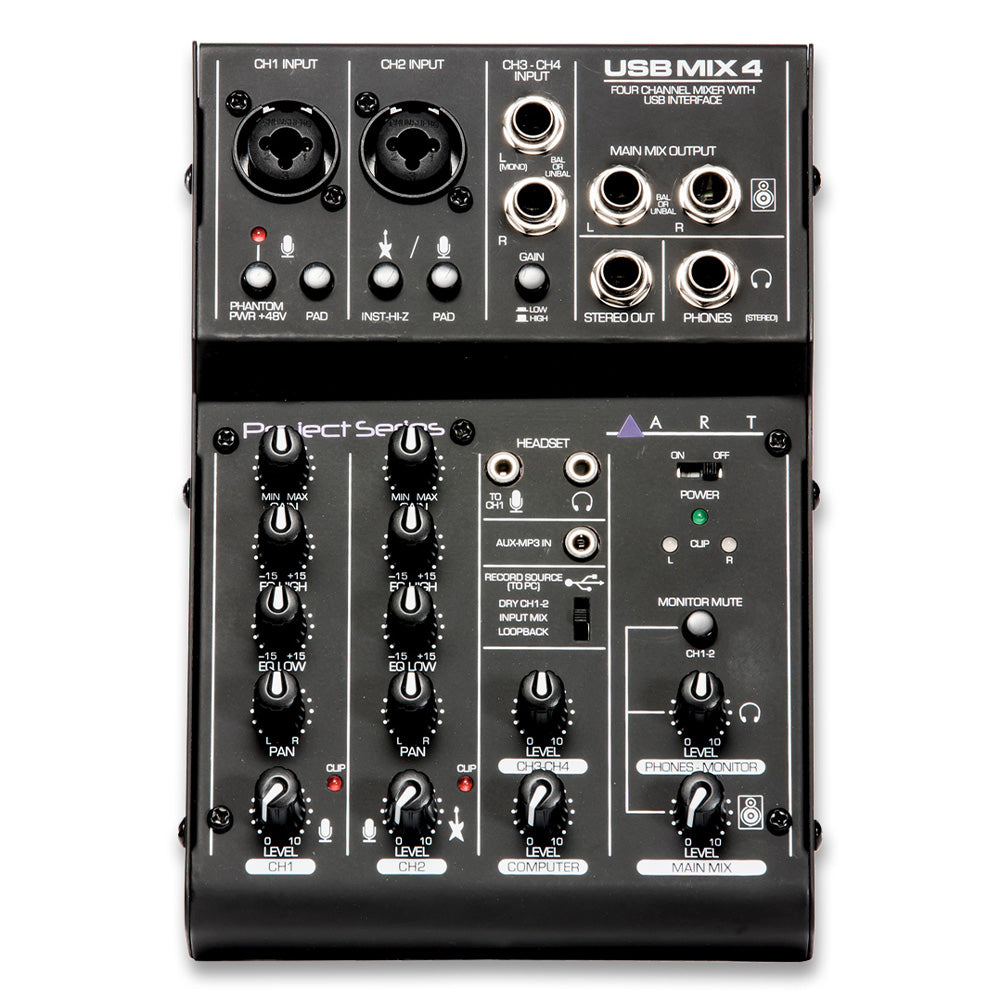

ART USBMix4 - Four-Channel Mixer with USB Interface
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

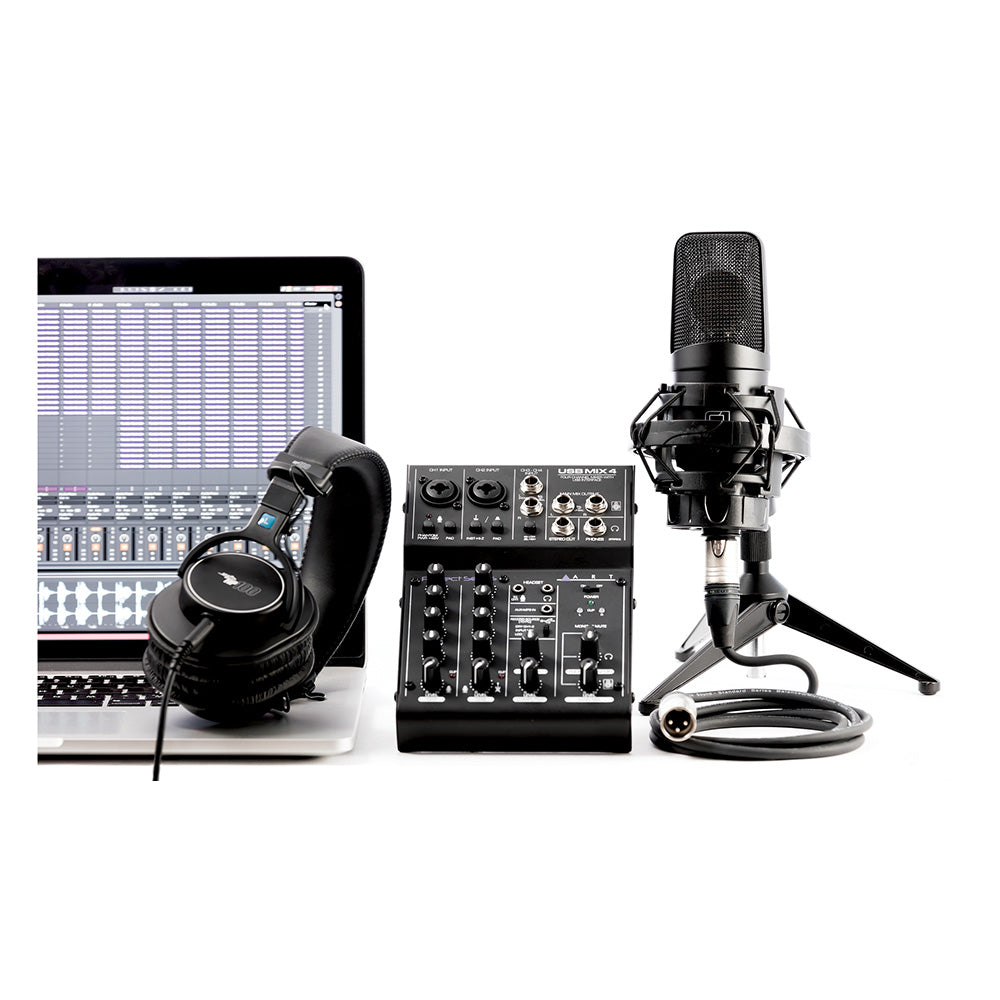

The ART USBMix4 is a great starting point for building a personal home studio. Perfect for podcasters, songwriters or at home movie makers looking for a simple solution for recording voiceovers, location recording or adding music to your projects using any Mac or PC.
Features:
- High Performance Low Noise Design
- Switchable +48v Phantom Power (CH1)
- Assignable USB Record Source
- Independent Level Controls for Main and Headphone/Monitor Outputs
- 1/8th-inch Headset Connectors (Mono Mic In and Stereo Headset Out)
- Integrated Class Compliant Plug-and-Play USB Audio for Mac or PC
- Operates on USB Power or 5VDC External Power Supply (Included)
| Input Connections | XLR and _-inch Balanced Combi-jack (CH 1 and CH2) _-inch TRS Balanced (CH3 and CH4) 1/8-inch TRS Aux/MP3, 1/8-inch Headset Mic |
| Output Connections | _-inch TRS Balanced Main Mix Outputs _-inch TRS Stereo Output and Monitor Outputs 1/8th-inch Headset Output |
| Signal to Noise Ratio | >90dB Typical (Ref 0dBu) |
| Maximum Input Level | +8dBu (Mic), +16dBu (1/4-inch Input) |
| Maximum Output Level | +15dBu Main Mix Outputs |
| Maximum Gain | >55dB (Mic),>37dB (Instrument), 5dB (CH3 and CH4) |
| USB Computer Interface | USB Class Compliant plug-and-play Mac / PC Interface |

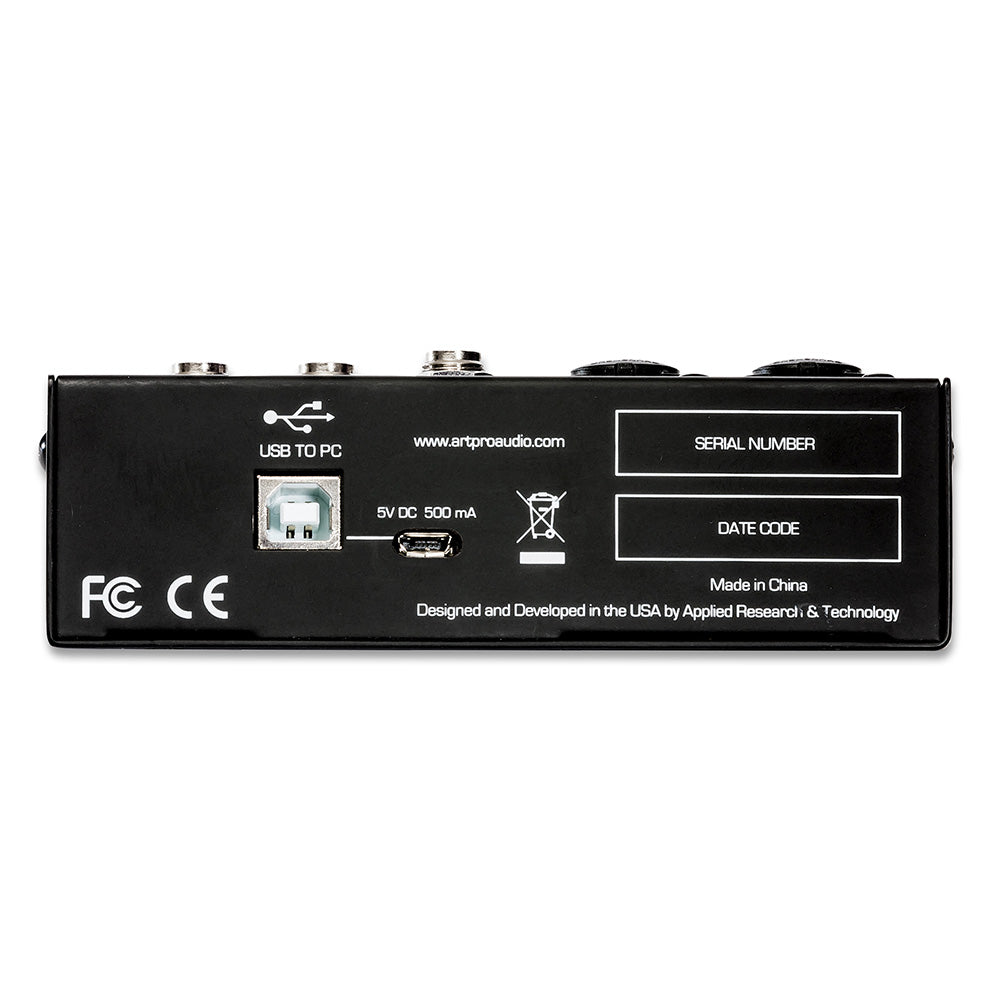

| Power | Via USB or 5VDC @ 500mA |
| Dimensions | 1.75_H x 5.1_W x 7.5_D (45mm x 130mm x 191mm) |
The ART USBMix4 is a great starting point for building a personal home studio. Perfect for podcasters, songwriters or at home movie makers looking for a simple solution for recording voiceovers, location recording or adding music to your projects using any Mac or PC.
Features:
- High Performance Low Noise Design
- Switchable +48v Phantom Power (CH1)
- Assignable USB Record Source
- Independent Level Controls for Main and Headphone/Monitor Outputs
- 1/8th-inch Headset Connectors (Mono Mic In and Stereo Headset Out)
- Integrated Class Compliant Plug-and-Play USB Audio for Mac or PC
- Operates on USB Power or 5VDC External Power Supply (Included)
| Input Connections | XLR and _-inch Balanced Combi-jack (CH 1 and CH2) _-inch TRS Balanced (CH3 and CH4) 1/8-inch TRS Aux/MP3, 1/8-inch Headset Mic |
| Output Connections | _-inch TRS Balanced Main Mix Outputs _-inch TRS Stereo Output and Monitor Outputs 1/8th-inch Headset Output |
| Signal to Noise Ratio | >90dB Typical (Ref 0dBu) |
| Maximum Input Level | +8dBu (Mic), +16dBu (1/4-inch Input) |
| Maximum Output Level | +15dBu Main Mix Outputs |
| Maximum Gain | >55dB (Mic),>37dB (Instrument), 5dB (CH3 and CH4) |
| USB Computer Interface | USB Class Compliant plug-and-play Mac / PC Interface |
| Power | Via USB or 5VDC @ 500mA |
| Dimensions | 1.75_H x 5.1_W x 7.5_D (45mm x 130mm x 191mm) |
