ART VoiceChannel Tube Channel Strip (with A/D Converter)

  • Dale #:

    ART-VOICECHANNEL
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock, but we can usually ship it within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Description

The ART VoiceChannel is the perfect complete channel input strip for recording, broadcast or high profile live applications where maximum performance and detail is required. Designed to deliver in critical applications where full control of the audio source is required, the VoiceChannel combines ... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

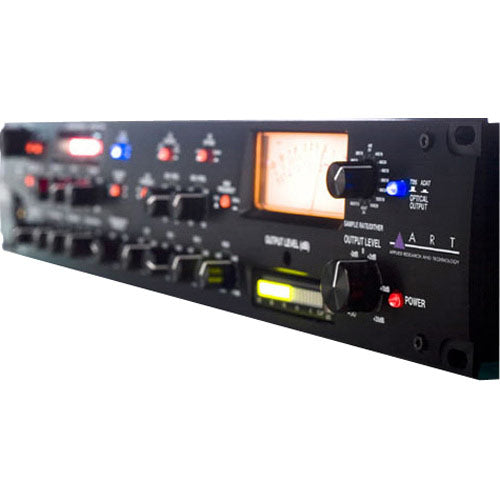

The ART VoiceChannel is the perfect complete channel input strip for recording, broadcast or high profile live applications where maximum performance and detail is required. Designed to deliver in critical applications where full control of the audio source is required, the VoiceChannel combines a single Class-A tube mic preamp, full-featured dynamics control, De-esser, expander and semi-parametric EQ into one unit with analog and digital output as well as the ability to direct connect to any computer or laptop via integrated USB port. Designed to be a powerful channel strip and the ideal all in one input solution for analog or digital recording, each stage of the VoiceChannel's signal path provides full control and a full feature set for each component, making it the perfect choice for tracking critical vocals and solo instruments.

Features

  • Ideal input solution for any recording application
  • Fully Featured Tube Microphone Preamplifier with Selectable plate Voltage and Variable Input Impedance
  • Exceptional warmth and definition from proven ART Tube Preamp design
  • Smooth musical sounding dynamics control including Compressor / Expander / De-Esser / Gate
  • Powerful Parametric EQ selectable Pre or Post Compressor in signal path

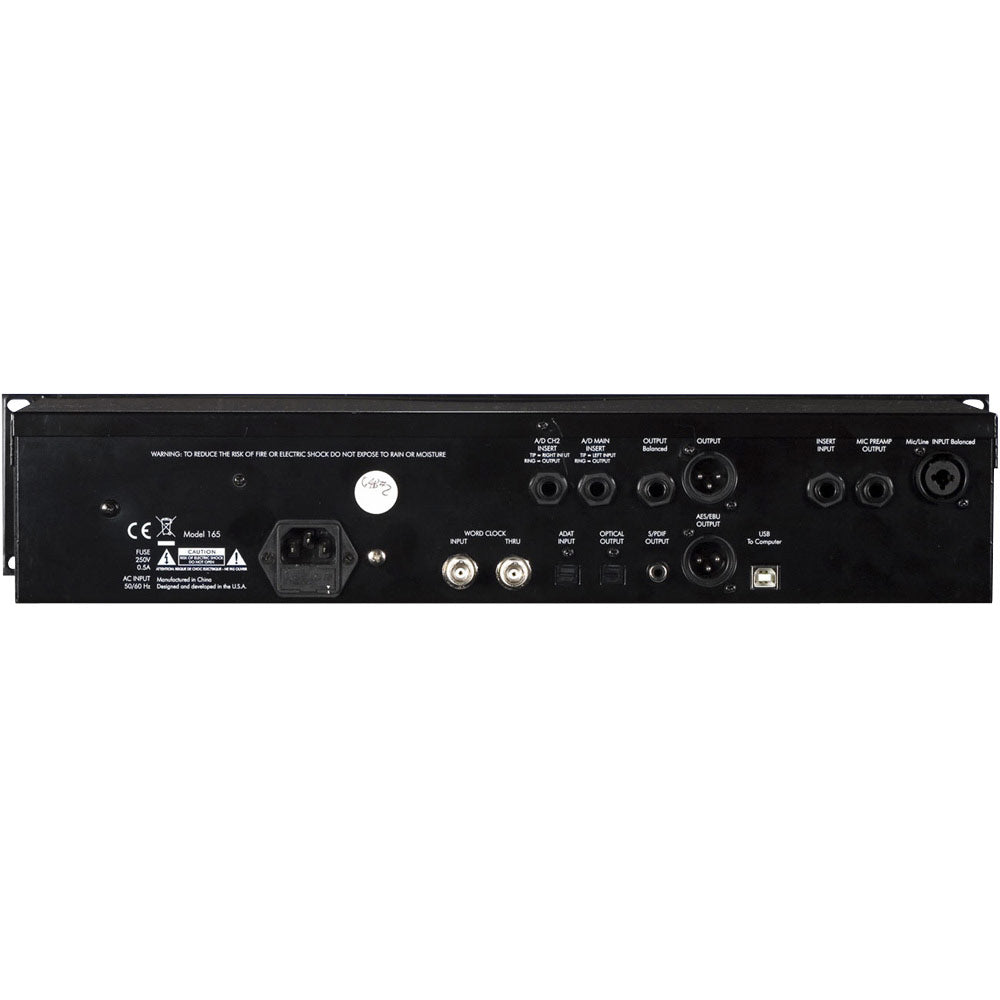

  • Flexible digital connectivity including ADAT Lite-pipe / AES/EBU / S/PDIF / TOSLink Digital Output supports 44.1 to 192 KHz Sample Rates
  • USB direct-connect to computer or laptop

More +

Product Specs

Attack Time250 uSec. to 100 mSec
Boost and Cut/Frequency Band+12 dB on each band
Compression Ratio1:1 to 20:1
EQ Frequency BandsLow Freq. Tuning: 50/150 Hz Selectable
Mid 1 Freq. Tuning: 100 Hz to 3 KHz continuously variable
Mid 2 Freq. Tuning: 500 Hz to 15 KHz continuously variable
High Freq. Tuning: 5K/15 KHz Selectable
Equivalent Input Noise-130 dBu, t shorted, Max gain, A weighted
Frequency Response12 Hz to 100 KHz +0, -1 dB
Maximum Gain0 dB to +60 dB
Total Harmonic Distortion<.033% typical
