DALE SKU # ASHL-AQM408

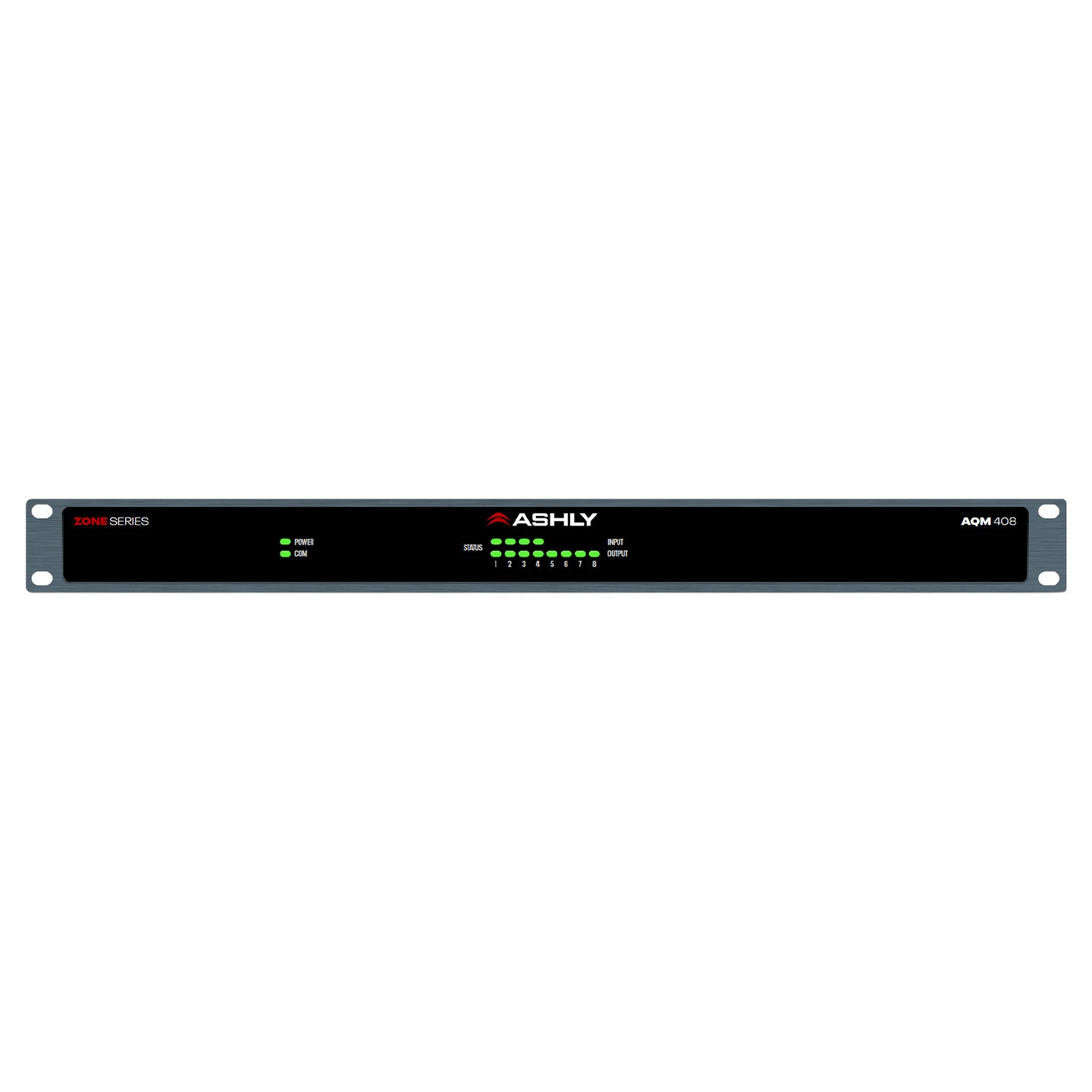

Ashly AQM408 - AquaControl DSP Speaker Processor and Zone Mixer

Sale price$999.00 Regular price$1,249.00
Save $250.00
  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

    The AQM408 is designed as an advanced, stand-alone speaker processor/zone mixer to be used with external amplification, offering the power and flexibility needed to handle just about any situation.

    Based on the AquaControl DSP engine first introduced in the mXa1502, the AQM408 includes a comprehensive library of DSP functions presented in a versatile, yet intuitive UI that doesn’t require a college level course to learn. The AQM408 connects to any browser-enabled device via LAN and Internet from virtually anywhere in the world, allowing convenient remote access for configuration and troubleshooting.

    The AQM408’s 4 Input by 8 Output configuration meets the requirements for a host of applications – anywhere from a small zone setup, to a stadium PA system!

    Features:

    • New, advanced Ashly AquaControl™ software allows easy and convenient access from many browser-based devices. No app to install!
    • Remote Ethernet Access from anywhere in the world via any browser-enabled device
    • Scheduler and RTC (Real-Time Clock) allow user-defined automatic, timed activation of various operations
    • Compact 1U design reduces rack space requirements
    • Gain, Remote Gain and DVCA Gain
    • Dynamics: Compressor, Leveler, Limiter and Gate
    • Multi-priority Ducking Matrix
    • 31-Band Graphic EQ, Feedback Suppression
    • EQ:10-band Parametric, HPF/LPF
    • Universal 2, 3 or 4-way X-Over
    • FIR Filters
    • Delay, Speaker Delay
    • Auto-Mixing
    • Ambient Noise Control
    • Tools: Meter, Signal Generator
    • Comprehensive Event Scheduler

    Intuitive AquaControl™ Software
    The AQM408 is based on Ashly’s next generation AquaControl™ web-server based interface, which means it functions with virtually any networked PC or mobile device, any OS. Nothing to install. Plus, it incorporates most of the familiar features found in the legacy Protea DSP software.

    The good news is you won’t have to relearn another software suite. Even if you’re new to DSP software, Ashly designed the AquaControl UI to navigate like most popular websites, so it will have a familiar look and feel for the first-time user as well. In addition, the AquaControl interface is optimized for touch-panels, so you won’t need to worry about “right-clicking” if not using a Windows device. Every touch control allows full access to functionality. Nothing is hidden or buried deep in menus.

    The new AquaControl™ Portal application is a free download which installs on your Windows™ PC for “off-line” access. All the same great features, functionality and easy user experience in a portable version that can work anywhere you are. No DSP device or network needed. The two versions work together to create a seamless workflow between offline and connected environments.

    Remote Access Anywhere In The World
    The AQM408s remote web access allows integrators to better perform service when customers experience issues. Logging into the AquaControl environment from their office rather than sending a truck out to the install site is more convenient and cost-effective and less labor-intensive.

    Using the Ethernet connection is where things get really amazing. AquaControl provides full remote access to any function via network but can also serve up dedicated remote pages for live mixing or zone control. These can be accessed using any web-enabled device, but the new AquaTouch7 7” touch panel provides a more elegant on-wall solution for users demanding convenient remote access.

    Next Generation DSP
    Combining the historic 4.8SP and 3.6SP processors with powerful DSP toolbox from the AQM1208 creates the best speaker processor Ashly has ever made – adding features to your system not previously available with the SP series, such as feedback suppression, 31-band Graphic EQ, and FIR Filters.

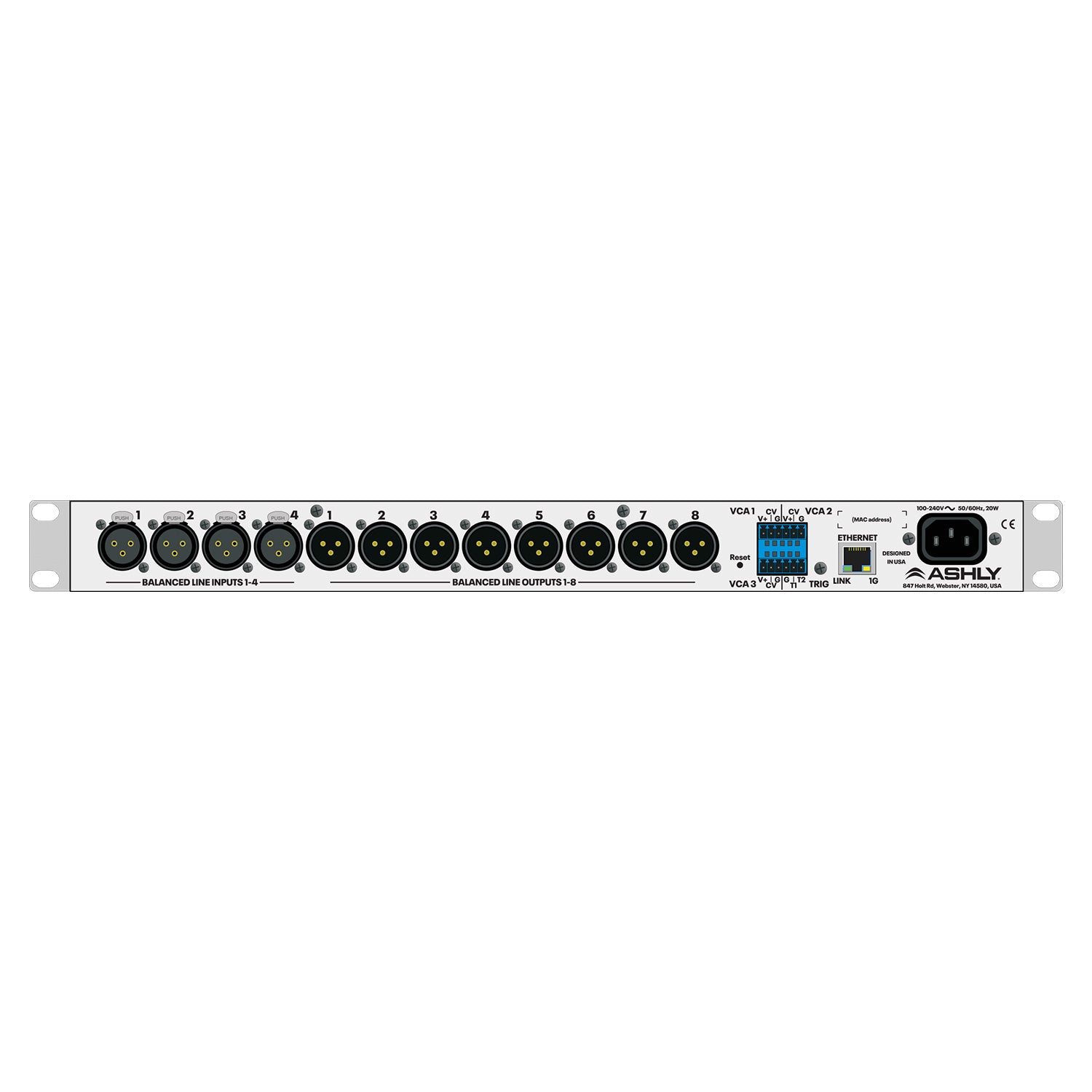

    Number of Input Channels 4 Balanced Line
    Number of Output Channels 8 Balanced Line
    Distortion (THD-N, typical) <0.01% @ 1kHz, 0dBu
    Signal-to-Noise >110dB (20Hz-20kHz) unweighted
    Frequency Response 20Hz-20kHz, ±0.25dB
    Balanced Input Connector XLR
    Input Impedance 10k Ohms
    Propagation Delay 1.08 ms
    ADC/DSP/DAC Resolution 32-Bit
    Sample Rate 48kHz
    Environmental 40¼-120¼F (4¼-49¼C), 150¼F (65.5¼C) max Ð not for long term use
    AC Mains Nominal Voltage Input 90 Ð 240VAC, 50/60Hz
    AC Mains Operating Range 70 Ð 270VAC
    AC Mains Line Cord Connector Detachable Nema 5-15 for USA
    Control Network RJ-45 connector, 1GB Ethernet
    Line Output Connector Balanced XLR
    Line Output Maximum Level +20.5 dBu
    Remote DC Level Control Euroblock 3.5mm Ð Gnd, CV, V+ per each of the 3 VCA inputs
    Unit Dimensions 19”W x 1.75”H x 8.5”D (483mm x 45mm x 216mm)
    Shipping Dimensions 23”W x 4.5”H x 12.5”D / 584mm x 114mm x 318mm
    Unit Weight 6.2 lbs (2.8 kg)
    Shipping Weight 9 lbs (4.1 kg)

    The AQM408 is designed as an advanced, stand-alone speaker processor/zone mixer to be used with external amplification, offering the power and flexibility needed to handle just about any situation.

    Based on the AquaControl DSP engine first introduced in the mXa1502, the AQM408 includes a comprehensive library of DSP functions presented in a versatile, yet intuitive UI that doesn’t require a college level course to learn. The AQM408 connects to any browser-enabled device via LAN and Internet from virtually anywhere in the world, allowing convenient remote access for configuration and troubleshooting.

    The AQM408’s 4 Input by 8 Output configuration meets the requirements for a host of applications – anywhere from a small zone setup, to a stadium PA system!

    Features:

    • New, advanced Ashly AquaControl™ software allows easy and convenient access from many browser-based devices. No app to install!
    • Remote Ethernet Access from anywhere in the world via any browser-enabled device
    • Scheduler and RTC (Real-Time Clock) allow user-defined automatic, timed activation of various operations
    • Compact 1U design reduces rack space requirements
    • Gain, Remote Gain and DVCA Gain
    • Dynamics: Compressor, Leveler, Limiter and Gate
    • Multi-priority Ducking Matrix
    • 31-Band Graphic EQ, Feedback Suppression
    • EQ:10-band Parametric, HPF/LPF
    • Universal 2, 3 or 4-way X-Over
    • FIR Filters
    • Delay, Speaker Delay
    • Auto-Mixing
    • Ambient Noise Control
    • Tools: Meter, Signal Generator
    • Comprehensive Event Scheduler

    Intuitive AquaControl™ Software
    The AQM408 is based on Ashly’s next generation AquaControl™ web-server based interface, which means it functions with virtually any networked PC or mobile device, any OS. Nothing to install. Plus, it incorporates most of the familiar features found in the legacy Protea DSP software.

    The good news is you won’t have to relearn another software suite. Even if you’re new to DSP software, Ashly designed the AquaControl UI to navigate like most popular websites, so it will have a familiar look and feel for the first-time user as well. In addition, the AquaControl interface is optimized for touch-panels, so you won’t need to worry about “right-clicking” if not using a Windows device. Every touch control allows full access to functionality. Nothing is hidden or buried deep in menus.

    The new AquaControl™ Portal application is a free download which installs on your Windows™ PC for “off-line” access. All the same great features, functionality and easy user experience in a portable version that can work anywhere you are. No DSP device or network needed. The two versions work together to create a seamless workflow between offline and connected environments.

    Remote Access Anywhere In The World
    The AQM408s remote web access allows integrators to better perform service when customers experience issues. Logging into the AquaControl environment from their office rather than sending a truck out to the install site is more convenient and cost-effective and less labor-intensive.

    Using the Ethernet connection is where things get really amazing. AquaControl provides full remote access to any function via network but can also serve up dedicated remote pages for live mixing or zone control. These can be accessed using any web-enabled device, but the new AquaTouch7 7” touch panel provides a more elegant on-wall solution for users demanding convenient remote access.

    Next Generation DSP
    Combining the historic 4.8SP and 3.6SP processors with powerful DSP toolbox from the AQM1208 creates the best speaker processor Ashly has ever made – adding features to your system not previously available with the SP series, such as feedback suppression, 31-band Graphic EQ, and FIR Filters.

    Number of Input Channels 4 Balanced Line
    Number of Output Channels 8 Balanced Line
    Distortion (THD-N, typical) <0.01% @ 1kHz, 0dBu
    Signal-to-Noise >110dB (20Hz-20kHz) unweighted
    Frequency Response 20Hz-20kHz, ±0.25dB
    Balanced Input Connector XLR
    Input Impedance 10k Ohms
    Propagation Delay 1.08 ms
    ADC/DSP/DAC Resolution 32-Bit
    Sample Rate 48kHz
    Environmental 40¼-120¼F (4¼-49¼C), 150¼F (65.5¼C) max Ð not for long term use
    AC Mains Nominal Voltage Input 90 Ð 240VAC, 50/60Hz
    AC Mains Operating Range 70 Ð 270VAC
    AC Mains Line Cord Connector Detachable Nema 5-15 for USA
    Control Network RJ-45 connector, 1GB Ethernet
    Line Output Connector Balanced XLR
    Line Output Maximum Level +20.5 dBu
    Remote DC Level Control Euroblock 3.5mm Ð Gnd, CV, V+ per each of the 3 VCA inputs
    Unit Dimensions 19”W x 1.75”H x 8.5”D (483mm x 45mm x 216mm)
    Shipping Dimensions 23”W x 4.5”H x 12.5”D / 584mm x 114mm x 318mm
    Unit Weight 6.2 lbs (2.8 kg)
    Shipping Weight 9 lbs (4.1 kg)
