DALE SKU # ASHL-AQUATOUCH7

Ashly AquaTouch7 - 7-Inch Touch Control Panel for AquaControl Systems

Sale price$699.00 Regular price$874.00
Save $175.00
  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

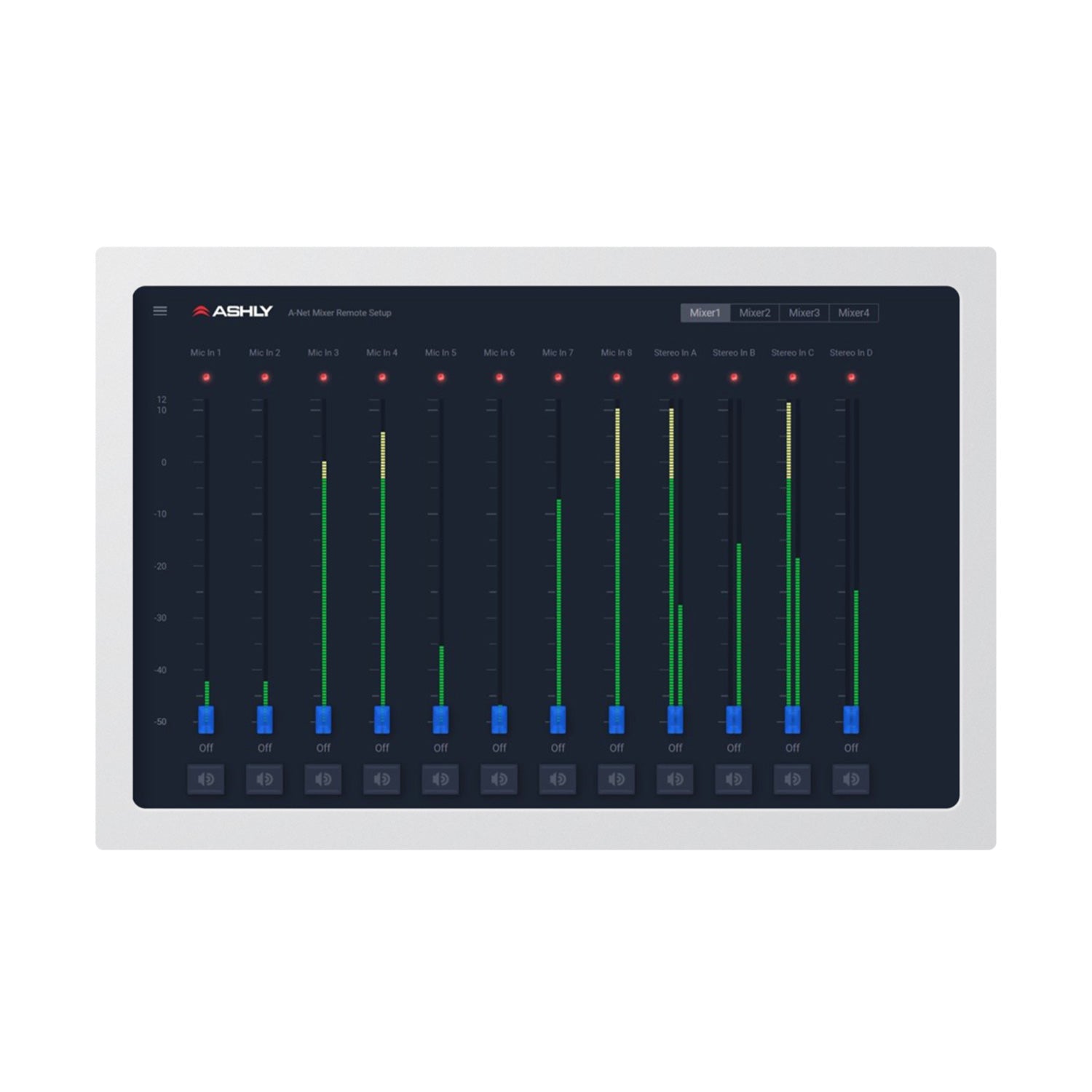

    A new addition to the AquaControl family is the AquaTouch7 Remote. This 7” color touch-panel provides secure remote-control access via Ethernet with wall-mount installation. The AquaTouch7 Remote is the perfect complement to AquaControl products like the AQM1208 or mXa1502. Offering convenient and intuitive touch-control of all remote functions, the AquaTouch7 uses a wired Ethernet connection to its host device, providing reliable and secure access. The AquaTouch7 is designed to be flush wall-mounted. PoE compatibility makes installation fast and simple.

    Features:

    • AquaControl™ Compatible
    • Secure Touchscreen Control
    • Wall-Mountable
    • Easy Setup Menu
    • Multi-stage Secure Access
    • Installs in 1 gang, 2 gang or 60mm Euro electrical boxes
    • Wired Ethernet connectivity
    • PoE or DC Powered (DC power supply not included)


    AquaControl™ Compatible
    The AquaTouch7 is designed to be compatible with all AquaControl-based devices, like the mXa1502 Mixer-amplifier and the AQM1208 Digital Zone Mixer, as well as other AquaControl models yet to come. All remote page functions served by the AquaControl web-server interface may be viewed and accessed by the AquaTouch7. These include Mixers, DCA Faders and Virtual WR-5 Zone Controller pages and others that may be developed in the future. One or more of these pages may be assigned to the AquaTouch7 for access by any user and multiple AquaTouch7 remotes may be connected to a single AquaControl device if needed.

    Secure Touchscreen Control
    Offering secure wired Ethernet connectivity is just the start. The AquaTouch7 touchscreen allows access to only those remote pages that are assigned to particular user role upon logging in. If a user is only given permission to view a V. WR-5 Zone Controller, then that is all they will see. No worries about unauthorized access. In addition, a programmable screen time-out in the AquaTouch7 may be password protected to prevent access by any unauthorized user if they accidently touch the screen. Safe, secure access.

    Wall-Mountable

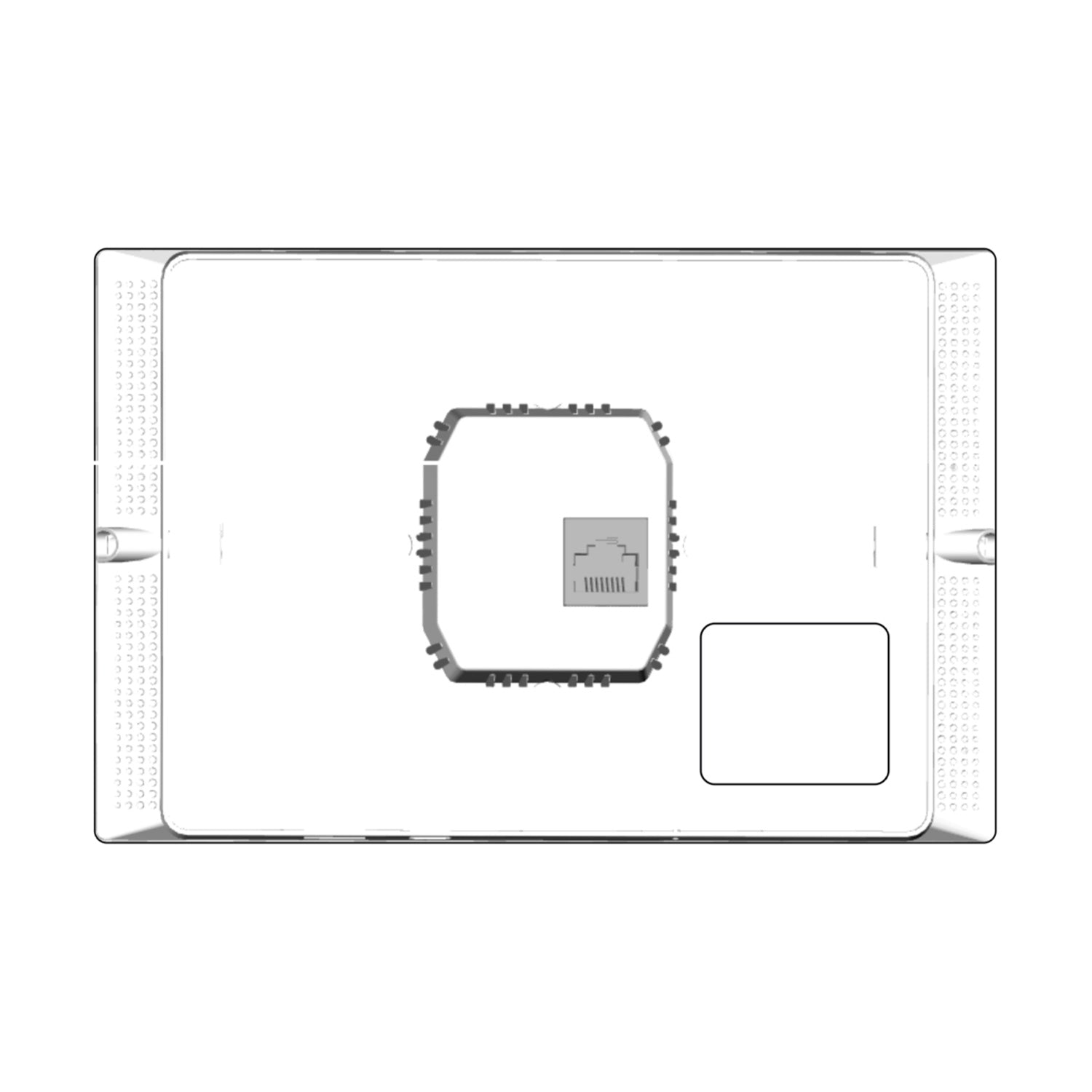

    Using the supplied wall-mount bracket, the AquaTouch7 may be mounted on-wall with a sleek, flush appearance. It provides an elegant in-wall design for clean-looking Installation. It is compatible with any standard single, dual-gang or 60mm Euro-style electrical boxes. And with wired CAT5 Ethernet, your connection is always secure.

    Whether it’s on a wall in your conference room, classroom, retail store or hotel ballroom, the AquaTouch7 always looks simple and elegant. Thee AquaTouch7 may installed with or without an electrical back box as needed.

    Out of the box, the AquaTouch7 easily connects to any standard network shared by the AquaControl device. A PoE router or switch is recommended, though a sperate PoE injector may also be used. Once the AquaTouch powers up, it launches the quick setup page when it quickly identifies the AquaControl “host” device. Then the user simply logs in to view the remote page(s) for which they have been given permissions and BAM! Ready to go!

    Touchscreen Display 7” TFT
    Display Resolution 800 x 1280 (16.7M colors)
    Display Brightness 400 NITS
    Network Connectivity RJ45 Ethernet
    Power Requirements: PoE (802.3af)
    Color: White (frame)
    Materials: Front: Clear E-glass, Rear- ABS
    Mounted Dimensions: 6.91” W x 4.53” H x .65” D (17.6cm x 11.5cm x 1.65cm)
    Depth Behind Wall: .75” (1.9cm)
    Weight: 1.2lbs (.55kg)
    Supplied accessories: Wall-mount bracket

    A new addition to the AquaControl family is the AquaTouch7 Remote. This 7” color touch-panel provides secure remote-control access via Ethernet with wall-mount installation. The AquaTouch7 Remote is the perfect complement to AquaControl products like the AQM1208 or mXa1502. Offering convenient and intuitive touch-control of all remote functions, the AquaTouch7 uses a wired Ethernet connection to its host device, providing reliable and secure access. The AquaTouch7 is designed to be flush wall-mounted. PoE compatibility makes installation fast and simple.

    Features:

    • AquaControl™ Compatible
    • Secure Touchscreen Control
    • Wall-Mountable
    • Easy Setup Menu
    • Multi-stage Secure Access
    • Installs in 1 gang, 2 gang or 60mm Euro electrical boxes
    • Wired Ethernet connectivity
    • PoE or DC Powered (DC power supply not included)


    AquaControl™ Compatible
    The AquaTouch7 is designed to be compatible with all AquaControl-based devices, like the mXa1502 Mixer-amplifier and the AQM1208 Digital Zone Mixer, as well as other AquaControl models yet to come. All remote page functions served by the AquaControl web-server interface may be viewed and accessed by the AquaTouch7. These include Mixers, DCA Faders and Virtual WR-5 Zone Controller pages and others that may be developed in the future. One or more of these pages may be assigned to the AquaTouch7 for access by any user and multiple AquaTouch7 remotes may be connected to a single AquaControl device if needed.

    Secure Touchscreen Control
    Offering secure wired Ethernet connectivity is just the start. The AquaTouch7 touchscreen allows access to only those remote pages that are assigned to particular user role upon logging in. If a user is only given permission to view a V. WR-5 Zone Controller, then that is all they will see. No worries about unauthorized access. In addition, a programmable screen time-out in the AquaTouch7 may be password protected to prevent access by any unauthorized user if they accidently touch the screen. Safe, secure access.

    Wall-Mountable
    Using the supplied wall-mount bracket, the AquaTouch7 may be mounted on-wall with a sleek, flush appearance. It provides an elegant in-wall design for clean-looking Installation. It is compatible with any standard single, dual-gang or 60mm Euro-style electrical boxes. And with wired CAT5 Ethernet, your connection is always secure.

    Whether it’s on a wall in your conference room, classroom, retail store or hotel ballroom, the AquaTouch7 always looks simple and elegant. Thee AquaTouch7 may installed with or without an electrical back box as needed.

    Out of the box, the AquaTouch7 easily connects to any standard network shared by the AquaControl device. A PoE router or switch is recommended, though a sperate PoE injector may also be used. Once the AquaTouch powers up, it launches the quick setup page when it quickly identifies the AquaControl “host” device. Then the user simply logs in to view the remote page(s) for which they have been given permissions and BAM! Ready to go!

    Touchscreen Display 7” TFT
    Display Resolution 800 x 1280 (16.7M colors)
    Display Brightness 400 NITS
    Network Connectivity RJ45 Ethernet
    Power Requirements: PoE (802.3af)
    Color: White (frame)
    Materials: Front: Clear E-glass, Rear- ABS
    Mounted Dimensions: 6.91” W x 4.53” H x .65” D (17.6cm x 11.5cm x 1.65cm)
    Depth Behind Wall: .75” (1.9cm)
    Weight: 1.2lbs (.55kg)
    Supplied accessories: Wall-mount bracket
