Description

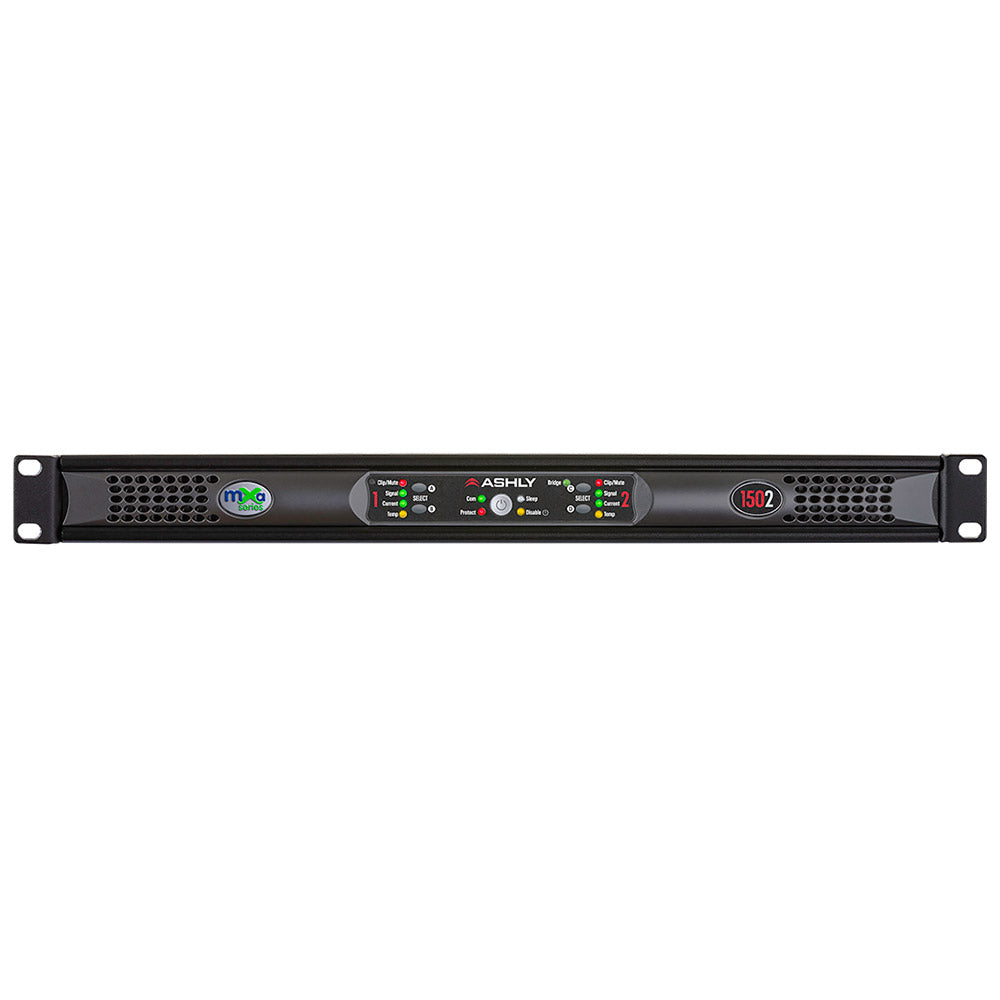

The mXa-1502 with Ashly AquaControl software™ gives you multi-zone music distribution, paging, sound-masking and automatic mixing for a wide-range of environments. Process 12 audio inputs into four different areas with a single rack space device that includes two Ashly-reliable 150-watt amplifiers capable of driving 2,4 and 8-ohm as well as 25, 70 and 100V loads.
The mXa-1502 with AquaControl™ provides total control over four separate zones with a rich compliment of digital signal processing, including routing, automixing, ducking, amplifier monitoring, event scheduling/triggering and more. All through the easy-to-use AquaControl™ that doesn't require a week of tutorials to understand and configure. It lets you and your customers navigate using virtually any browser-enabled device. Trouble-shoot or re-configure it without having to travel to the client location. Or add the hard-wired WR-1.1 single-gang remote.
Features:
- 8-balanced Mic/Line Inputs
- Precision Class A mic preamp design
- 4 Stereo Line Inputs
- 4 Outputs
- 2 x 150W Class D Amplifiers with selectable Multi-mode operation (2/4/8 Ohm + 25/70/100V)
- Four convenient front-panel buttons for source/preset select
- Scheduler and RTC (Real-Time Clock) allows user-defined automatic, timed activation of various operations
- Generous integration I/O, including: Network, Serial, GPIO, VC, Standby & Fault (works with the WR-1, WR-1.1, WR-1.5, and WR-2 remotes)
- Compact 1U design reduces rack space requirements
- New, advanced Ashly AquaControl™ software allows easy and convenient access from many browser-based devices. No app to install!
Comprehensive DSP includes:
Inputs
- Programmable Analog Mic Preamps
- Phantom Power On/Off
- Gain with Link Group Assign and Polarity switch
- Remote Gain
- DVCA Gain
- Meter with Peak Hold Equalizers
- 31-band Graphic - Constant or Proportional Q
- 10-band Parametric EQ + HPF / LPF
- Signal Generator
- Delay
Dynamics
- Compressor
- Auto Leveler
- Clip (Brick Wall Limiter)
- Gate
- Anti-Feedback (AFC) Mixer 1-4
- Matrixing
- Automixers
- Ducker
Outputs
- 31-band Graphic - Constant or Proportional Q
- 10-Band Parametric
- FIR Filters
- 2/3/4-way Crossover
- Ambient Noise Control
- Delay
- Dynamics (same as Inputs)
- Signal Generator
- Meter with Peak Hold
Event Scheduler (Calendar)
Event Logs
Reports
Compatibility
- Windows® OS 10
- Mac® OS 10 and later
- Linux Web Browsers
- Chrome for Windows®, OS X, iOS, Android®
- Safari for OS X
- Edge for Windows®
Damping Factor | >250 (8 Ohm load <1kHz) |
Distortion (SMPTE, typical) | <0.5% |
Distortion (THD-N, typical) | <0.5% (8 Ohms, 10dB below rated power, 20HzÐ20kHz) |
Channel Separation | Ð75dB (dB from full output, 1kHz) |
Signal-to-Noise (unweighted) | 20Hz-20kHz, Gain@26dB |
Frequency Response | 20Hz-20kHz, ±0.05dB |
Balanced Input Connector | Euroblock 3.5mm |
Input Impedance | 10k Ohms |
Maximum Input Level | +21dBu |
Speaker Output Connector | Euroblock 7.62mm |
Nominal Voltage Input | 100 Ð 240VAC |
Operating Range | 70 Ð 270VAC |
Power Supply Type | SMPS with active PFC |
AC Mains Line Cord Connector | Detachable Nema 5-15 for USA |
Control Network | RJ-45 connector, 1GB Ethernet |
AUX Output Connector | Balanced Euroblock 3.5mm |
AUX Output Maximum Level | +21dBu |
Data Connection | Euroblock 3.5mm Ð Gnd, +18V, Data Out, Data In |
Fault Condition Logic Outputs | Euroblock 3.5mm Ð fault indicated by loss of 1Hz “heartbeat" pulse signal |
Remote DC Level Control | Euroblock 3.5mm Ð Gnd, CV, V+ per input |
Amplifier Protection | Shorted output power limiting, over-temperature, DC-output, power-supply fault, mains-fuses and inrush-current limiting |
Cooling | Continuously variable temperature controlled fan |
Unit Dimensions | 19"W x 1.75"H x 14.54"D (483mm x 5mm x 369mm) |
Dimensions | 25.2"W x 2.5"H x 19.5"D / 641mm x 64mm x 495mm |
WeightÊ | 13.0 lbs (5.4 kg) |
