DALE SKU # ASHL-CA504

Ashly CA 504 - Four-Channel Install Power Amplifier

Sale price$2,199.00 Regular price$2,749.00
Save $550.00
  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

    Available in 2 and 4-channel configurations with 500W, 1,000W or 1,500W per channel, there's a CA that's right for your project. CA amps are designed to excel in Performance Installations, such as theaters, school auditoriums and Houses of Worship. Power-hungry sub-woofers? No problem. CA does 2 Ohms lying down.

    However, with 70 and 100V direct-drive capability and more integration-friendly features than you'd typically find on many amplifiers, they are also right at home in commercial installations. Push them hard. They can take it. CA amps can drive longer and louder than amps twice their rated power and cost. Powerful. Clean. Reliable.

    Features:

    • 2 and 4-channel models
    • 500 to 1500W @ 4 Ohms
    • Stable down to 2 Ohms
    • 70/100V operation
    • Ultra efficient D-MAX Class D design
    • Selectable gain per channel
    • Adjustable front panel input Gain per channel with lock-out
    • Bi-lateral SailFlow cooling
    • Installer friendly Euroblock and XLR combo connectors
    • Switchable HPF and Clip Limiter per channel
    • CV remote ports per channel
    • Solid metal front panel


    "State-of-the art" is an overused term when it comes to amplifier technology. With the CA Series, Ashly achieved it by starting from scratch instead of just adding a few improvements to an existing model. They took advantage of components that didn't even exist a couple of years ago. They figured out how to boost efficiency, speed up switching, and stay extra cool without gale force fans. This created the most efficient high-wattage amplifier yet.

    New D-MAX™ design lets you run multiple CA's on one 20 A service.
    Showtime. You power up 12,000 watts of amplifiers. OOPS! Popped the breaker on the only 20-amp line in this side of the building. Traditionally, big amps have been gluttons for more juice than one 20A line can put out. Ashly's all-new, proprietary D-MAX technology brings together smart, cutting-edge amplifier design, a brand-new ultra-fast switching power supply with silicon dioxide semiconductors and diodes, and intelligent power management to deliver ultimate efficiency. You can operate two of CA 1.54s (6,000W total each) on a single 20-amp service! Along with increased efficiency, DPFC allows LEEDs qualification.

    CA amps run cool without needing heavy heat sinks and noisy fans.
    Power amplifiers need cooling. In most amps, heat-reducing air flow takes a convoluted path in and around internal components. Front to back, back-to-front-side-to-side...those nice perforated grilles look simple...until you look inside the amp and see the helter-skelter air flow. Ashly's unique SailFlow™ architecture directs internal airflow strictly over the areas that generate the most heat, rather than arbitrarily over the whole amp. This keeps the already highly efficient CA Series even cooler and assures reliable, stable operation, even under heavy loads.

    Stable operation at 0.2 ohms (0.2?) No, that's not a misprint.
    For performance spaces, the CA Series can push hard and keep on pushing. Play it loud? No problem. Big subs? Bring 'em on! CA can take it down to 2 Ohms without missing a beat (and without a drop- off in power). Run up to SIXTEEN 8-ohm loudspeakers from a single 4-channel CA amplifier. In commercial installations, CA can deliver 70V and 100V power with no reconfiguration required. And choice of both XLR and Euroblock connectivity make the CA at home just about anywhere.

    Low Z Output, per channel 2 ohm: 500W
    4 ohm: 500W
    8 ohm: 250W
    Low Z Output, per bridged channel pair 4 ohm: 1000W
    8 ohm: 500W
    70V/100V Output 70V: 1000W (bridged)
    100V: 1000W (bridged)
    Total Power Draw Standby: 17W
    Idle (no signal) 34W
    1/8 Max Power: 345W
    Total Current Draw Standby mode: 0.35 Amps
    Idle (no signal): 0.5 Amps
    1/8 max power: 3 Amps
    Total Thermal Dissipation Standby mode: 57 BTU/hr
    Idle (no signal): 115 BUT/hr
    1/8 max power 4 ohm: 266 BTU/hr
    1/8 max power 2 ohm: 304 BTU/hr
    Input Sensitivity @26dB Gain: 3.9V (+14 dBu)
    @32dB Gain: 1.9V (+7.8 dBu)
    @38dB Gain: 0.97V (+2 dBu)
    @1.4V Gain: 1.4V (+5.1 dBu)
    Distortion (SMPTE, typical) 0.5%
    Distortion (THD-N, typical, 8 Ohm, 10dB below rated power, 20Hz-20kHz 0.5%
    Signal to Noise, 26dB input sensitivity, 20Hz-20kHz, unweighted 98dB (50x models)
    101dB (1.0x models)
    103dB (1.5x models)
    Frequency Response 20Hz-20kHz, ±0.05dB
    Channel Separation (dB from full output, 1kHz) -75dB
    Damping Factor (8 Ohm load, 1kHz) 250

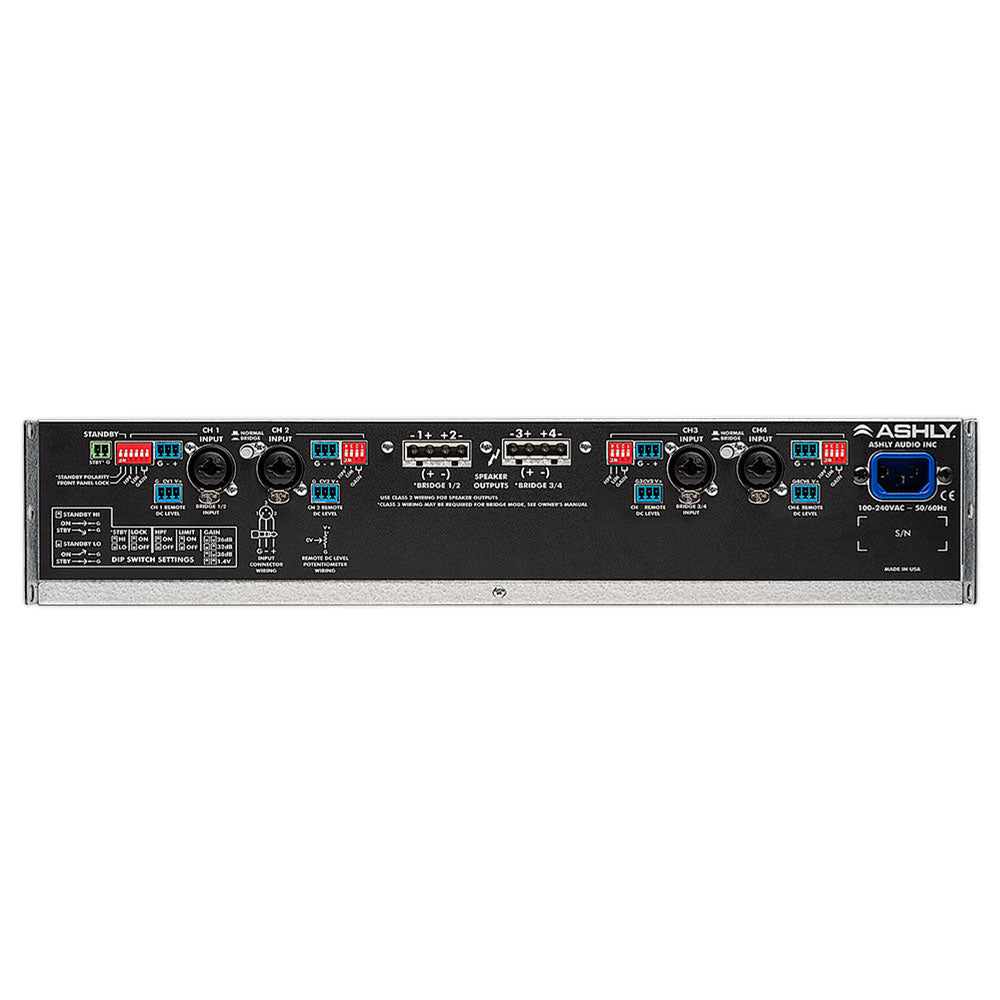

    Balanced Input Connector (per channel) Euroblock (3.5mm), _Ó TRS and XLR Combo jack
    Input Impedance 10k Ohm
    Maximum Input Level +21dBu
    Bridge Mode Switch (per channel pair) In for bridged mode, Out for stereo
    Remote DC Level Control (G, CV, V+ per channel) Euroblock (3.5mm), V+ is fully on, G is fully attenuated
    DIP Switch settings (per channel) Switches 1-2: Input Gain 26dB, 32dB, 38dB, 1.4V
    Switch 3: Output Clip Limiter On, Off
    Switch 4: Input High Pass
    Filter 80Hz 2nd order HPF, On, Off
    DIP Switch settings (global) Switch 5: Front Panel Disable On, Off
    Switch 6: Standby Polarity High (standby when open), Low (standby when closed)
    Standby Contact Closure Euroblock (3.5mm)
    Speaker Output Connector Euroblock (7.62mm)

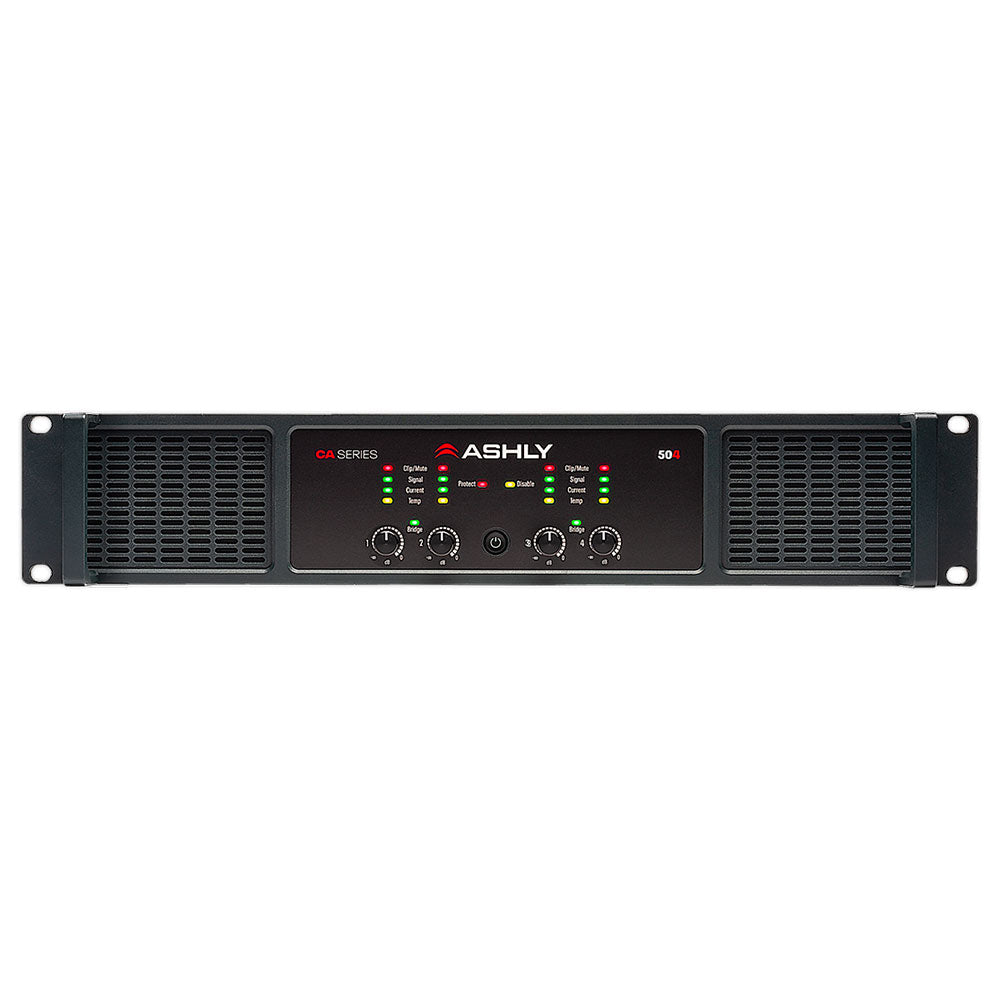

    Front Panel Indicators Power Switch LED (white) On, Off, Standby (flashing)
    Clip/Mute LED (red) On at 95% max output (0.5dB below max), Mute
    Signal LED (green) On at 25% max output (12dB below max)
    Current LED (green) On at>2 Amps to speaker load
    Temp LED (yellow) On when thermal countermeasures are being applied
    Bridge LED (green) Per Channel Pair - On, Off
    Protect LED (red) see troubleshooting section for protect LED error codes
    On for fault condition counter-measures or shutdown, Off
    Disable LED (yellow) On when front panel controls are disabled, Off
    Attenuators Per channel: front panel, Fully off = Mute
    Remote Control Options WR-1, WR-1.1 DC level control
    Amplifier Protection In-rush current, overtemperature, output DC, output over-power, AC mains voltage, mains fuses
    Cooling Continuously variable temperature controlled fan(s)
    Power Cable Connector 20A IEC
    Operating Voltage Range (50-60Hz, 85VAC or 170VAC min startup) 70-135VAC @110-120VAC
    Environmental 32¡F-120¡F, (0¡C-49¡C) non-condensing
    Unit Dimensions 19ÓW x 3.5ÓH x 16.1ÓD (483 x 89 x 409mm)
    Unit Weight 17.5lbs (7.95kg)
    Shipping Dimensions 21.9ÓW x 5.43ÓH x 19.3ÓD (556mm x 13.8mm x 489mm)
    Shipping Weight 21.5lbs (9.76kg)
    Safety/Compliance cTUVus, CE, FCC Class B, RoHS

    Available in 2 and 4-channel configurations with 500W, 1,000W or 1,500W per channel, there's a CA that's right for your project. CA amps are designed to excel in Performance Installations, such as theaters, school auditoriums and Houses of Worship. Power-hungry sub-woofers? No problem. CA does 2 Ohms lying down.

    However, with 70 and 100V direct-drive capability and more integration-friendly features than you'd typically find on many amplifiers, they are also right at home in commercial installations. Push them hard. They can take it. CA amps can drive longer and louder than amps twice their rated power and cost. Powerful. Clean. Reliable.

    Features:

    • 2 and 4-channel models
    • 500 to 1500W @ 4 Ohms
    • Stable down to 2 Ohms
    • 70/100V operation
    • Ultra efficient D-MAX Class D design
    • Selectable gain per channel
    • Adjustable front panel input Gain per channel with lock-out
    • Bi-lateral SailFlow cooling
    • Installer friendly Euroblock and XLR combo connectors
    • Switchable HPF and Clip Limiter per channel
    • CV remote ports per channel
    • Solid metal front panel


    "State-of-the art" is an overused term when it comes to amplifier technology. With the CA Series, Ashly achieved it by starting from scratch instead of just adding a few improvements to an existing model. They took advantage of components that didn't even exist a couple of years ago. They figured out how to boost efficiency, speed up switching, and stay extra cool without gale force fans. This created the most efficient high-wattage amplifier yet.

    New D-MAX™ design lets you run multiple CA's on one 20 A service.
    Showtime. You power up 12,000 watts of amplifiers. OOPS! Popped the breaker on the only 20-amp line in this side of the building. Traditionally, big amps have been gluttons for more juice than one 20A line can put out. Ashly's all-new, proprietary D-MAX technology brings together smart, cutting-edge amplifier design, a brand-new ultra-fast switching power supply with silicon dioxide semiconductors and diodes, and intelligent power management to deliver ultimate efficiency. You can operate two of CA 1.54s (6,000W total each) on a single 20-amp service! Along with increased efficiency, DPFC allows LEEDs qualification.

    CA amps run cool without needing heavy heat sinks and noisy fans.
    Power amplifiers need cooling. In most amps, heat-reducing air flow takes a convoluted path in and around internal components. Front to back, back-to-front-side-to-side...those nice perforated grilles look simple...until you look inside the amp and see the helter-skelter air flow. Ashly's unique SailFlow™ architecture directs internal airflow strictly over the areas that generate the most heat, rather than arbitrarily over the whole amp. This keeps the already highly efficient CA Series even cooler and assures reliable, stable operation, even under heavy loads.

    Stable operation at 0.2 ohms (0.2?) No, that's not a misprint.
    For performance spaces, the CA Series can push hard and keep on pushing. Play it loud? No problem. Big subs? Bring 'em on! CA can take it down to 2 Ohms without missing a beat (and without a drop- off in power). Run up to SIXTEEN 8-ohm loudspeakers from a single 4-channel CA amplifier. In commercial installations, CA can deliver 70V and 100V power with no reconfiguration required. And choice of both XLR and Euroblock connectivity make the CA at home just about anywhere.

    Low Z Output, per channel 2 ohm: 500W
    4 ohm: 500W
    8 ohm: 250W
    Low Z Output, per bridged channel pair 4 ohm: 1000W
    8 ohm: 500W
    70V/100V Output 70V: 1000W (bridged)
    100V: 1000W (bridged)
    Total Power Draw Standby: 17W
    Idle (no signal) 34W
    1/8 Max Power: 345W
    Total Current Draw Standby mode: 0.35 Amps
    Idle (no signal): 0.5 Amps
    1/8 max power: 3 Amps
    Total Thermal Dissipation Standby mode: 57 BTU/hr
    Idle (no signal): 115 BUT/hr
    1/8 max power 4 ohm: 266 BTU/hr
    1/8 max power 2 ohm: 304 BTU/hr
    Input Sensitivity @26dB Gain: 3.9V (+14 dBu)
    @32dB Gain: 1.9V (+7.8 dBu)
    @38dB Gain: 0.97V (+2 dBu)
    @1.4V Gain: 1.4V (+5.1 dBu)
    Distortion (SMPTE, typical) 0.5%
    Distortion (THD-N, typical, 8 Ohm, 10dB below rated power, 20Hz-20kHz 0.5%
    Signal to Noise, 26dB input sensitivity, 20Hz-20kHz, unweighted 98dB (50x models)
    101dB (1.0x models)
    103dB (1.5x models)
    Frequency Response 20Hz-20kHz, ±0.05dB
    Channel Separation (dB from full output, 1kHz) -75dB
    Damping Factor (8 Ohm load, 1kHz) 250
    Balanced Input Connector (per channel) Euroblock (3.5mm), _Ó TRS and XLR Combo jack
    Input Impedance 10k Ohm
    Maximum Input Level +21dBu
    Bridge Mode Switch (per channel pair) In for bridged mode, Out for stereo
    Remote DC Level Control (G, CV, V+ per channel) Euroblock (3.5mm), V+ is fully on, G is fully attenuated
    DIP Switch settings (per channel) Switches 1-2: Input Gain 26dB, 32dB, 38dB, 1.4V
    Switch 3: Output Clip Limiter On, Off
    Switch 4: Input High Pass
    Filter 80Hz 2nd order HPF, On, Off
    DIP Switch settings (global) Switch 5: Front Panel Disable On, Off
    Switch 6: Standby Polarity High (standby when open), Low (standby when closed)
    Standby Contact Closure Euroblock (3.5mm)
    Speaker Output Connector Euroblock (7.62mm)
    Front Panel Indicators Power Switch LED (white) On, Off, Standby (flashing)
    Clip/Mute LED (red) On at 95% max output (0.5dB below max), Mute
    Signal LED (green) On at 25% max output (12dB below max)
    Current LED (green) On at>2 Amps to speaker load
    Temp LED (yellow) On when thermal countermeasures are being applied
    Bridge LED (green) Per Channel Pair - On, Off
    Protect LED (red) see troubleshooting section for protect LED error codes
    On for fault condition counter-measures or shutdown, Off
    Disable LED (yellow) On when front panel controls are disabled, Off
    Attenuators Per channel: front panel, Fully off = Mute
    Remote Control Options WR-1, WR-1.1 DC level control
    Amplifier Protection In-rush current, overtemperature, output DC, output over-power, AC mains voltage, mains fuses
    Cooling Continuously variable temperature controlled fan(s)
    Power Cable Connector 20A IEC
    Operating Voltage Range (50-60Hz, 85VAC or 170VAC min startup) 70-135VAC @110-120VAC
    Environmental 32¡F-120¡F, (0¡C-49¡C) non-condensing
    Unit Dimensions 19ÓW x 3.5ÓH x 16.1ÓD (483 x 89 x 409mm)
    Unit Weight 17.5lbs (7.95kg)
    Shipping Dimensions 21.9ÓW x 5.43ÓH x 19.3ÓD (556mm x 13.8mm x 489mm)
    Shipping Weight 21.5lbs (9.76kg)
    Safety/Compliance cTUVus, CE, FCC Class B, RoHS
