Ashly MX-206 Install 6-Channel Analog Mixer
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Designed to be used by itself or as a supplement to larger mixing consoles, the MX-206 provides superior audio performance in a single rack-space package. Equally at home in either fixed or portable installations, the MX-206 may be used anywhere where additional microphone inputs are needed. Typical applications include live sound reinforcement, broadcast, recording, and film/video production.

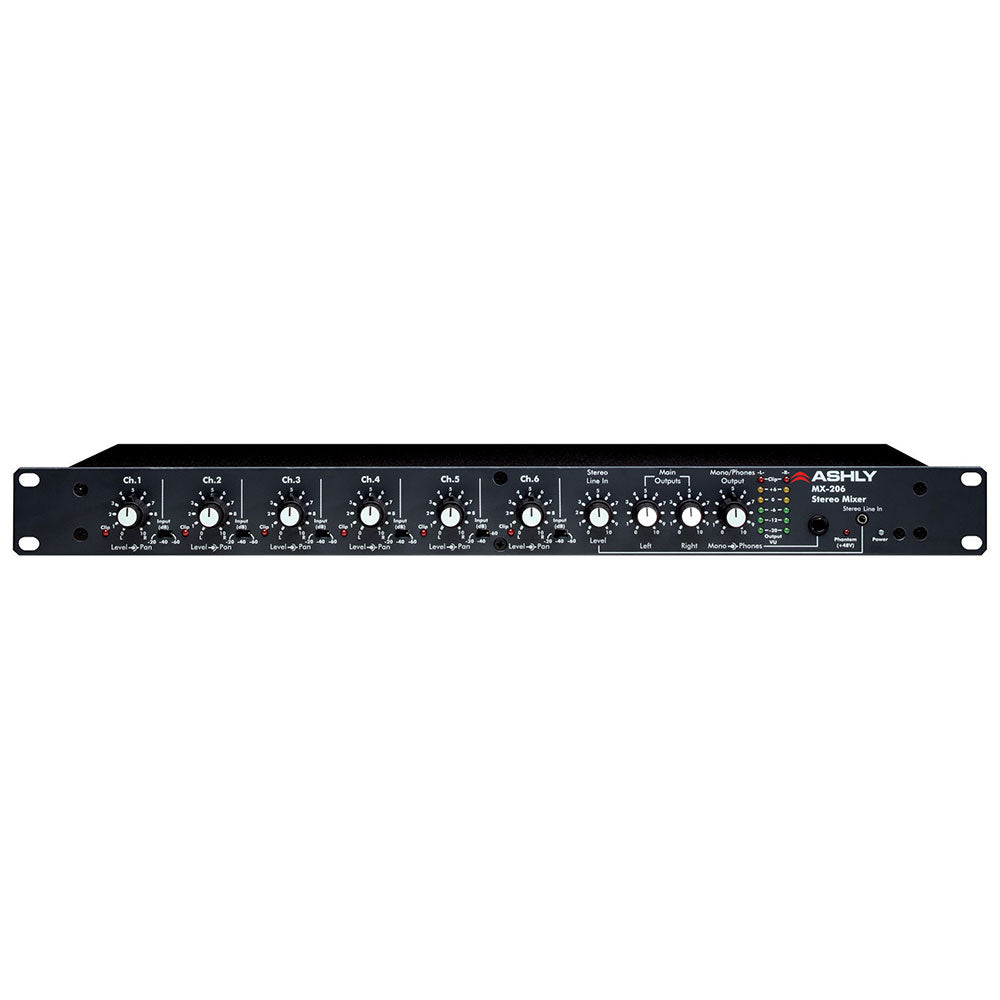

The MX-206 is a rack-mountable six input channel stereo microphone mixer offering up to 84dB of gain for distant mic placements or extremely low-level signals. Ultra low-noise, studio-grade discrete mic preamps are utilized. Each channel has a switchable 20dB pad, a 3-position mic gain switch input level and pan controls, and clip LED indicators, 48V phantom power may be switched in for use with condenser mics. A separate Stereo Line In volume control adjusts line level sources, such as a CD or MP3 player, connected to rear-panel RCA inputs or portable audio source connected to the 3.5mm jack located on the front panel. Since plenty of headroom has been designed into the MX-206, even the loudest signals can be handled without distortion.

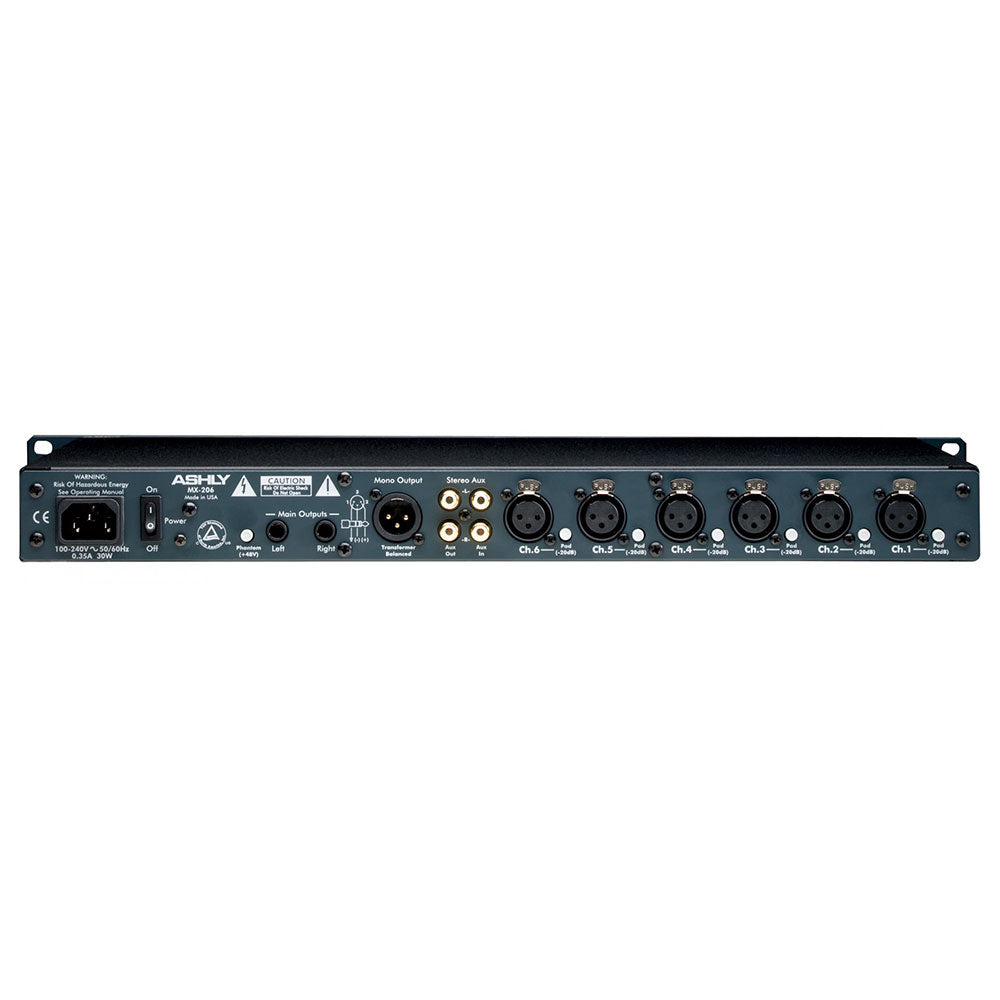

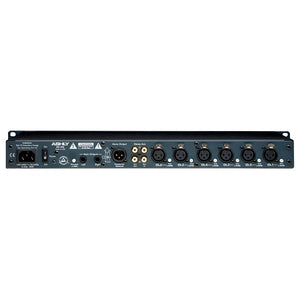

Output is monitored via two 5-segment, multi-colored LED meters, along with separate Peak Clip Indicators. The transformer-isolated XLR balanced mono output is capable of driving +24dBu into 600 Ohms, and separate stereo TRS 1/4" outputs may be used either balanced or unbalanced. A Stereo Line Out is available on RCA jacks.
The MX-206 provides superior audio performance in a rugged and durable package. Backed by Ashly's exclusive Five Year Worry-Free Warranty, the MX-206 is designed to provide many years of trouble-free operation.
Features:
- Convenient, 3.5mm stereo line in jack on front panel for MP3 players and smartphones
- High-gain mic preamps (60dB)
- Transformer isolated +24dBm 600 Ohm balanced XLR-mono output
- Stereo line in/out
- Pan control on each channel
- Stereo headphone jack with level control
- 20dB input pad switch
- +48V phantom power
- Universal power supply
- Safety/Compliance: cTUVus, CE, FCC, RoHS
| Distortion, Hum and Noise | |
| THD @ +20dBu, 20HzÐ20kHz, input switch at -40dB | <0.05% |
| IMD (SMPTE) @ +20dBu, input switch at -40dB | <0.02% |
| Equivalent Input Hum and Noise (input switch -60dB) | <-128dBu |
| Residual Output Noise, TRS Outputs (All Levels @ min) | <-100dBu |
| Residual Output Noise, XLR Outputs | <-90dBu |
| Master Level at nominal, (All Ch. Level controls @ min) | <-84dBu |
| Master Level and 1 Ch. Level at nominal | <-80dBu |
| Voltage Gain (±2dB) | |
| Mic Input to Master Output, 600 Ohm load | 84dB |
| Aux In to Master Output | 28dB |
| Frequency Response | |
| 20HzÐ20kHz | +0/-0.5dB |
| Crosstalk | |
| Between any inputs or outputs (20HzÐ20kHz) | <-60dB |
| Metering | |
| VU Meters Two 5-segment LED meters, 0VU | = +4dBu |
| Peak Indicators | Peak Clip indicator on each input channel and L/R outputs, illuminates 3dB below clipping |
| Weights, Dimensions / Power | |
| Dimensions | 19" W x 1.75" H x 9.4" D (483mm x 44mm x 239mm) |
| Unit Weight | 6.8lbs (3.9kg) |
| Shipping Weight | 11lbs (5kg) |
| Power Requirements | 100Ð240 VAC, 50Ð60Hz, 30W |
Designed to be used by itself or as a supplement to larger mixing consoles, the MX-206 provides superior audio performance in a single rack-space package. Equally at home in either fixed or portable installations, the MX-206 may be used anywhere where additional microphone inputs are needed. Typical applications include live sound reinforcement, broadcast, recording, and film/video production.
The MX-206 is a rack-mountable six input channel stereo microphone mixer offering up to 84dB of gain for distant mic placements or extremely low-level signals. Ultra low-noise, studio-grade discrete mic preamps are utilized. Each channel has a switchable 20dB pad, a 3-position mic gain switch input level and pan controls, and clip LED indicators, 48V phantom power may be switched in for use with condenser mics. A separate Stereo Line In volume control adjusts line level sources, such as a CD or MP3 player, connected to rear-panel RCA inputs or portable audio source connected to the 3.5mm jack located on the front panel. Since plenty of headroom has been designed into the MX-206, even the loudest signals can be handled without distortion.
Output is monitored via two 5-segment, multi-colored LED meters, along with separate Peak Clip Indicators. The transformer-isolated XLR balanced mono output is capable of driving +24dBu into 600 Ohms, and separate stereo TRS 1/4" outputs may be used either balanced or unbalanced. A Stereo Line Out is available on RCA jacks.
The MX-206 provides superior audio performance in a rugged and durable package. Backed by Ashly's exclusive Five Year Worry-Free Warranty, the MX-206 is designed to provide many years of trouble-free operation.
Features:
- Convenient, 3.5mm stereo line in jack on front panel for MP3 players and smartphones
- High-gain mic preamps (60dB)
- Transformer isolated +24dBm 600 Ohm balanced XLR-mono output
- Stereo line in/out
- Pan control on each channel
- Stereo headphone jack with level control
- 20dB input pad switch
- +48V phantom power
- Universal power supply
- Safety/Compliance: cTUVus, CE, FCC, RoHS
| Distortion, Hum and Noise | |
| THD @ +20dBu, 20HzÐ20kHz, input switch at -40dB | <0.05% |
| IMD (SMPTE) @ +20dBu, input switch at -40dB | <0.02% |
| Equivalent Input Hum and Noise (input switch -60dB) | <-128dBu |
| Residual Output Noise, TRS Outputs (All Levels @ min) | <-100dBu |
| Residual Output Noise, XLR Outputs | <-90dBu |
| Master Level at nominal, (All Ch. Level controls @ min) | <-84dBu |
| Master Level and 1 Ch. Level at nominal | <-80dBu |
| Voltage Gain (±2dB) | |
| Mic Input to Master Output, 600 Ohm load | 84dB |
| Aux In to Master Output | 28dB |
| Frequency Response | |
| 20HzÐ20kHz | +0/-0.5dB |
| Crosstalk | |
| Between any inputs or outputs (20HzÐ20kHz) | <-60dB |
| Metering | |
| VU Meters Two 5-segment LED meters, 0VU | = +4dBu |
| Peak Indicators | Peak Clip indicator on each input channel and L/R outputs, illuminates 3dB below clipping |
| Weights, Dimensions / Power | |
| Dimensions | 19" W x 1.75" H x 9.4" D (483mm x 44mm x 239mm) |
| Unit Weight | 6.8lbs (3.9kg) |
| Shipping Weight | 11lbs (5kg) |
| Power Requirements | 100Ð240 VAC, 50Ð60Hz, 30W |
