Description

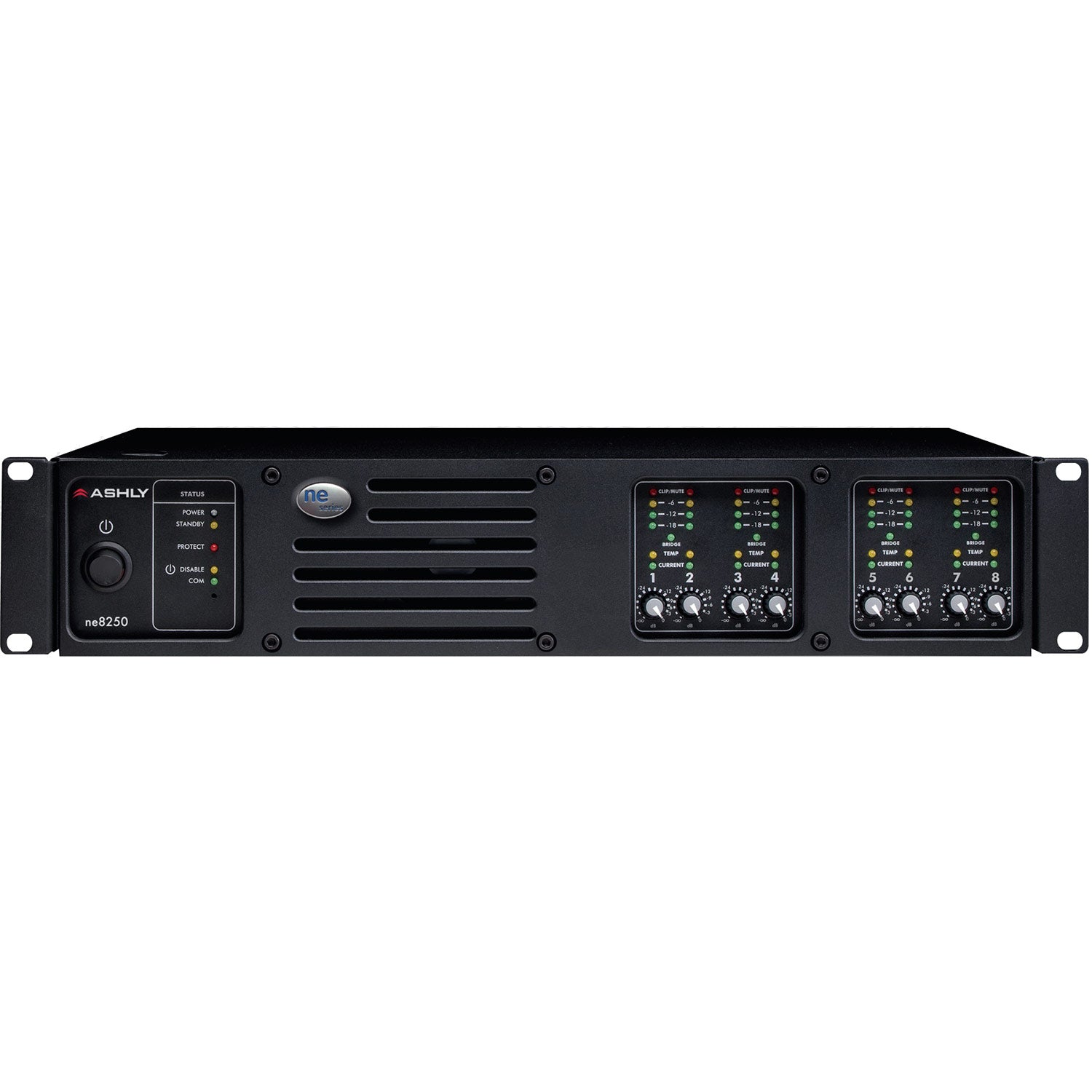

These NE Series Amplifiers are uniquely designed around an energy efficient Class-D platform with a switching power supply. Connecting and controlling an amplifier for networked systems has now been simplified with Network-Enabled Amplifiers. This line offers ease of use, setup and control using standard 10/100 Ethernet protocol and Protea™ ne Software. No special outboard control units are needed. Choose either 4-channel ne4250 or 8-channel ne8250 amplifiers are rated at 250W per channel with separate HI-Z and LO-Z models.
ne Series amplifiers are offered in two separate platforms—the standard network amplifier or a network amplifier with an on-board Protea™ DSP Processor. Each can be customized for any installation by adding your choice of AES3 inputs, mic pre inputs* or a Dante™ or CobraNet™ card.
Factory Installed Items:
- Protea™ DSP (pe model)
- Dante® Digital Interface (OPDante)
- CobraNet® Digital Interface (CNM-2)
- 8-Channel, AES3 Input (OPAES8)
- 4-Channel, Microphone Input (OPMIC4) *w/ Protea DSP
Channels | 8 |
Continuous Average Power Output: Per Channel, Low Z models, Stereo Mode, All Channels Driven | 8 Ohms 150W 4 Ohms 250W |
Low Z Output: Bridge Mode, All Channels Driven | 8 Ohms 500W |
25V, 70V, 100V Distributed Output Models: 20HzÐ20kHz 1% THD | 25V (per channel 250W 70V (per channel) 250W 100V (per channel) 250W |
Line Current Draw: 120VAC Mains (divide in half for 230V) | Standby Mode 290mA Idle (no signal) 565mA Typical (1/8 power pink noise) 5.00A Maximum (1/3 power pink noise) 11.0A |
Thermal Dissipation: BTU/hr, All Channels Driven | Standby mode 63.8 Idle (no signal) 187 Typical (1/8 power pink noise) 700 Maximum (1/3 power pink noise) 775 |
Signal to Noise 20Ð20k, Unweighted | >107dB>107dB |
Frequency Response | 20HzÐ20kHz, (unweighted) ±1dB |
Input Impedance | 20k Ohms, Balanced |
Voltage Gain | 26dB (Low-Z), 32dB (70V), 35dB (100V) |
Input Sensitivity | 6.2dBu (Low-Z), 4.2dBu (25V), 7.2dBu (70V), 7.2dBu (100V) |
Maximum Input Level | +21dBu |
Software Contolled Internal HPF (25V, 70V, 100V models) | 80Hz (12dB/oct), 400Hz (6dB oct), OFF |
Distortion (8 Ohm load) | (SMPTE) <0.5% typical (THD-N) <0.5% typical (20Hz-20kHz) |
Damping Factor (8 Ohms, 1kHz) | >250 |
Output Circuitry | Class D |
Amplifier/Load Protection | Output Overcurrent, Main Supply Rail Overvoltage, Chassis Temperature, Inrush Limiting, Mains Fuse |
Environmental | 40-120¡ F, (4-49¡ C) noncondensing |
Controls | Ethernet 10/100, Channel bridge switch (Low-Z only), Remote standby, Preset recall (4), Remote Level (8), Remote Data |

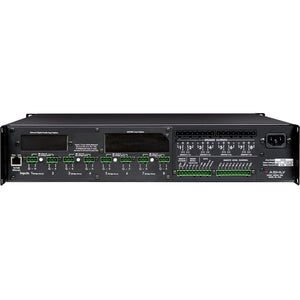

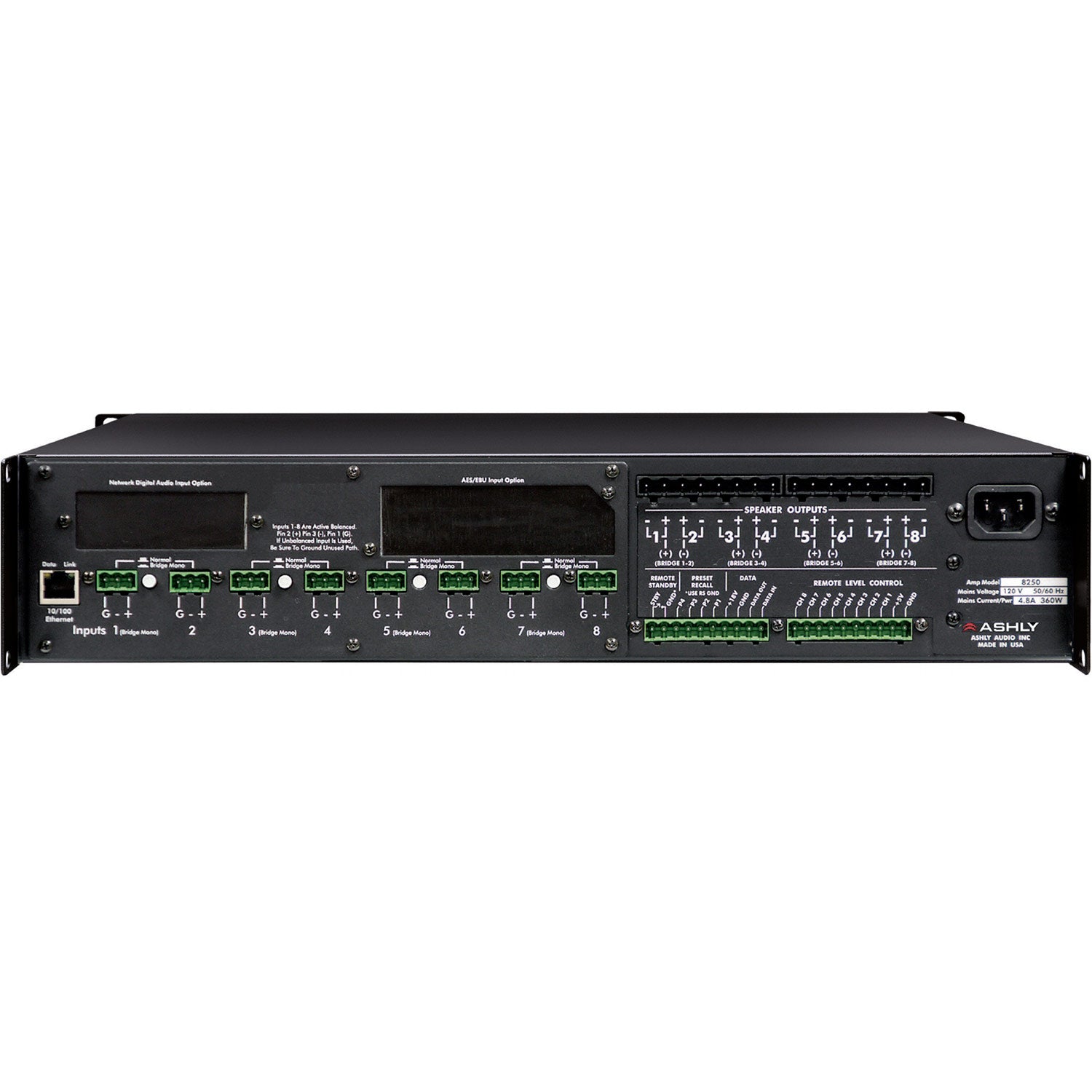

Connectors (each channel) | Input: Euroblock Output: Euroblock |
AC Main | 120VAC or 240VAC, ±10% 50Ð60Hz |
Power Cable Connector | 15A Edison, 3-Prong IEC |
Dimensions | 19Ó W x 3.50" H x 15.5Ó D (483mm x 88.9mm x 394mm) |
Unit Weight | 19.7lbs (8.95kg) |
Shipping Weight | 26lbs (12kg) |
