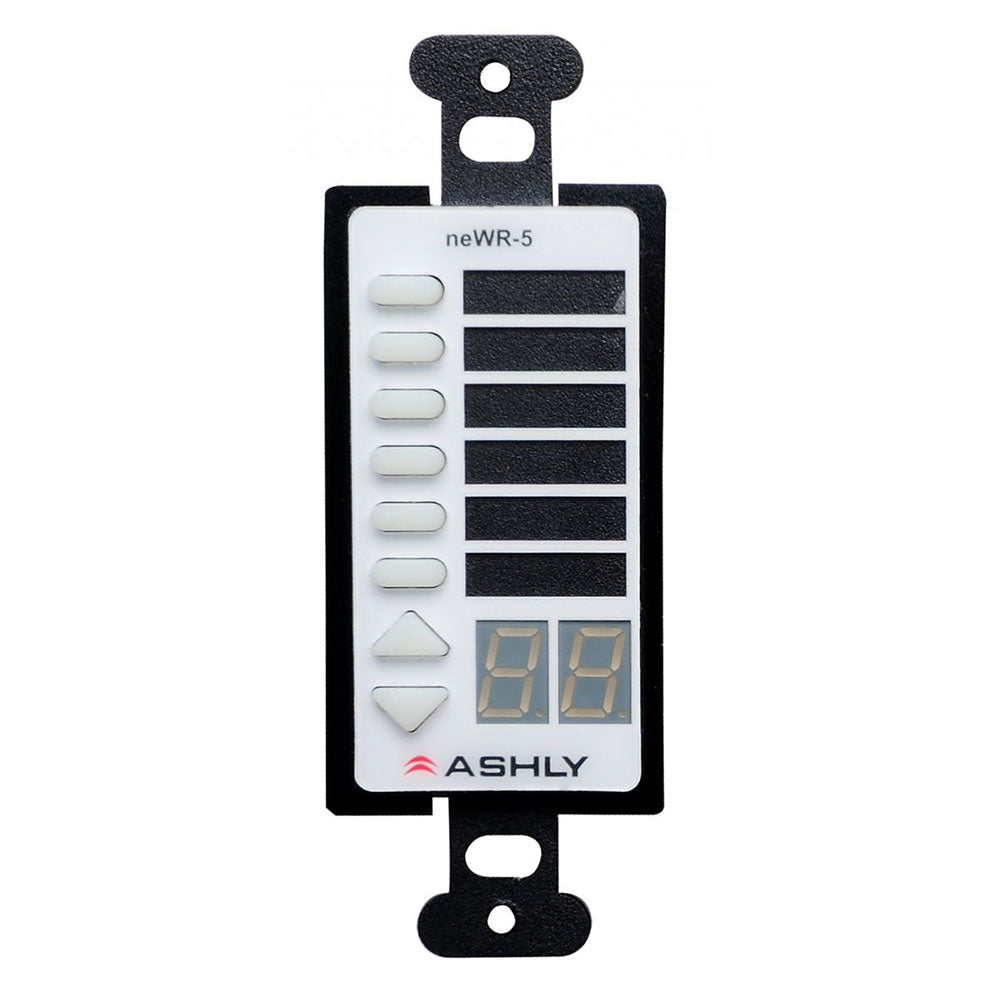

Ashly neWR-5 - Wall Mount Controller for DSP Systems
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Control your system from any location with our Network Enabled remote controls. This device fits in standard wall boxes and uses a wired Ethernet network connection for hook-up. The neWR-5 is a programmable remote button controller for Ashly Network Enabled amps and processors. One neWR-5 targets only one NE amp or processor, but within that unit can adjust preset recall/scroll, channel mute, zone source selection, individual channel level, matrix point level, and logic output if available.
All button programming is done across the network using Ashly Protea NE Software.
Features:
- Six programmable LED function buttons
- Two, Up/Down buttons w/ LED display adjust parameters
- Preset recall and preset scroll
- Input, output, zone, and matrix mix level control
- Zone source select
- Channel mute
- Logic high/low Output (ne24.24M w/ GPO option, ne4800/8800)
- Powered using IEEE 802.3af Power over Ethernet, or external supply

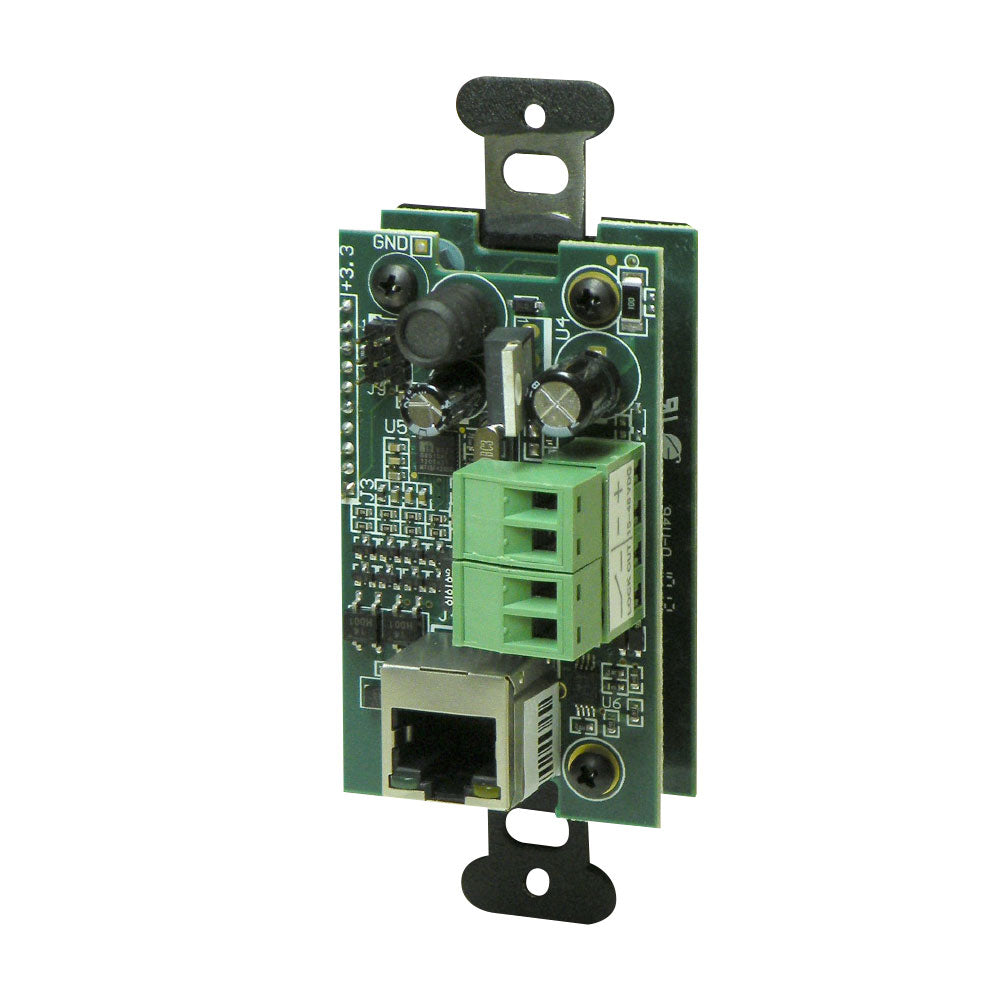

- RJ-45 Ethernet connector, 100M maximum cable distance
- Hard-wired Lock-out connector for security key switch
- Window for user-defined labels\
| Compatible Ashly Products | ¥ nXe*, nXp amplifiers ¥ Pema amplifiers ¥ NE multi-channel amplifiers* ¥ NE two-channel amplifiers* ¥ ne24.24M matrix processor ¥ NE8800/4800 network processors * Use on products without DSP is limited to preset recall/scroll, mute, and logic functions |
| External Power Requirements | POE Injector, or external 15-48VDC power supply capable of at least 2 watts per neWR-5 |
