Ashly NXP8004 4-Channel 800-Watt Power Amplifier with Protea Processing


  • Dale #:

    ASHL-NXP8004
  • Availability:

    Usually ships in 5 - 10 Days
  • This item usually ships within 5-10 days after your order is placed. Your payment will be charged after completing checkout.

Description

Ashly’s new line of nX Power Amplifiers feature lightweight, energy-efficient Class-D switching amplifier technology combined with a switch mode power supply. nX amplifiers are available in three product families (nX, nXe, nXp) and are designed to meet the most demanding live sound and fixed inst... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Description

Ashly’s new line of nX Power Amplifiers feature lightweight, energy-efficient Class-D switching amplifier technology combined with a switch mode power supply. nX amplifiers are available in three product families (nX, nXe, nXp) and are designed to meet the most demanding live sound and fixed installation sound systems in stadiums, arenas, performance venues, worship spaces and convention centers. nXp Series features Protea™ DSP and is available in either 2 or 4-channel models. Use rear panel DIP switches to program each channel output for either High-Z (70V or 100V Constant Voltage) or Low-Z (stable down to 2 Ohms) operation. When in sleep mode, the nX amplifiers draw less than 1 Watt.

nXp is networkable with Ethernet control. It also has serial data control, aux preamp outputs, instant standby mode, preset recall, fault condition logic outputs, and optional network audio and digital audio capability all controlled using Protea™ Software Suite. nXp amplifiers add 32-bit SHARC DSP processing (with 48kHz & 96kHz sampling) as standard equipment for comprehensive audio processing, with built-in signal generator for test tone and noise-masking. Swept load impedance monitoring is available on each amplifier channel output.

Features:

  • 2 and 4-channel high-output, lightweight amplifiers with programmable output on each channel (High-Z or Low-Z, selected via rear panel DIP switches)
  • FIR Filter Ready
  • Power-saving, Energy Management System‡ (Ashly EMS™) automatic <1W sleep-mode (defeatable)

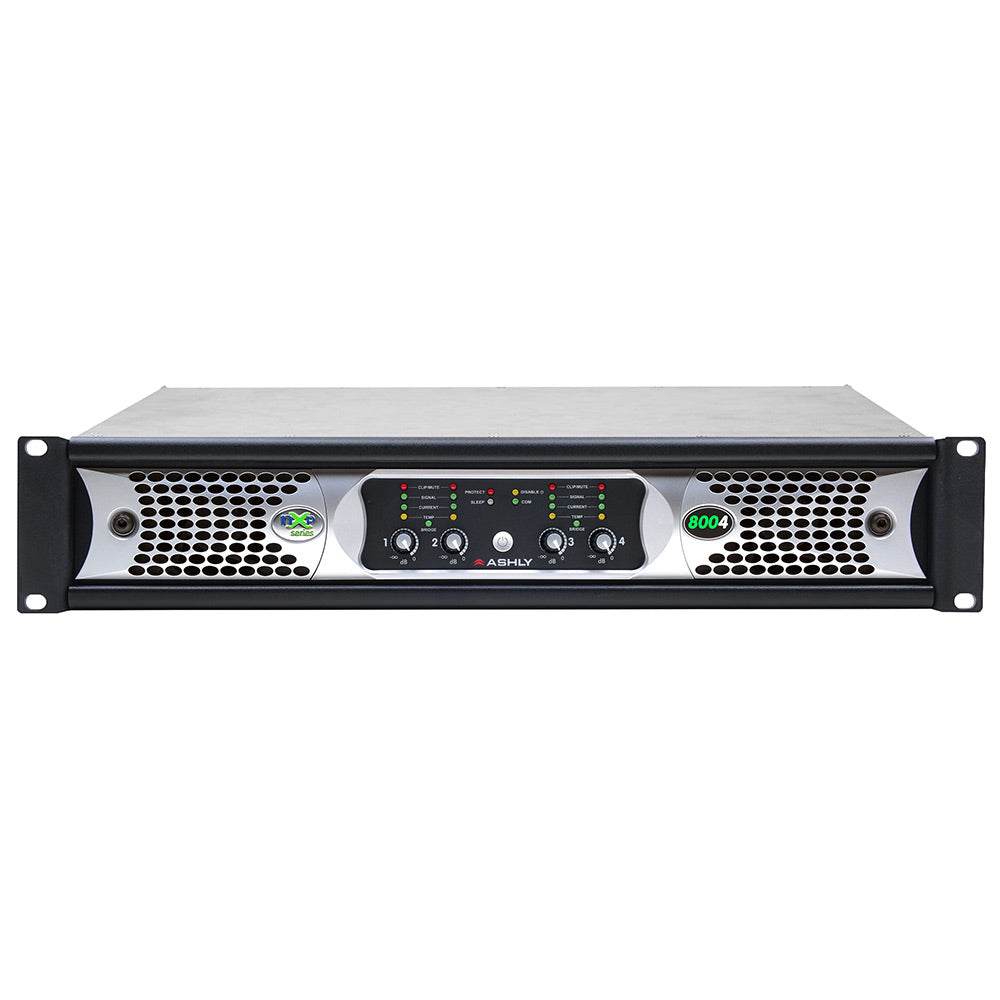

  • Front panel power switch and level controls (can be disabled for security)

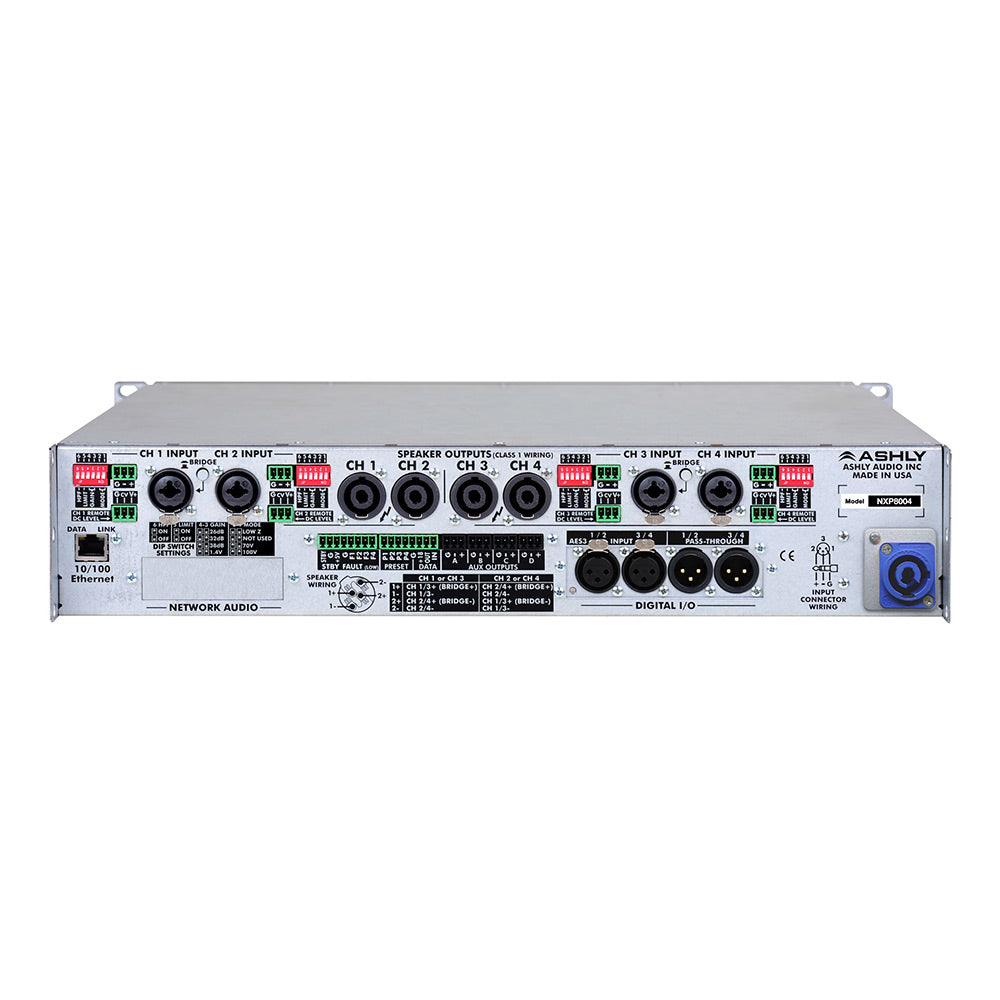

  • Rear panel DIP switches per channel for selection of high pass filter, limiter, input gain, and High-Z or Low-Z speaker output configuration
  • Remote DC level control on each input channel
  • Switch mode power supply automatically detects 120V or 240V AC operation
  • Extensive protection circuitry, continuously variable cooling fans
  • Multiple independent internal power supplies provide increased channel separation and reliability
  • Ethernet port for use with control and monitoring of amplifier functions, with front panel COM activity LED
  • Serial data port for use with Ashly remote control devices, or optional RS-232 con- verter for third party controllers (INA-1)
  • Use Protea™ Software to remotely disable all front panel controls, including the on/off switch, for a tamper-proof installation

More +

Product Specs

Power Rating (per channel)

2 ohms: 800W
4 ohms: 800W
8 ohms: 800W
4 ohms bridged: 1600W
8 ohms bridged: 1600W
70V: 800W
100V: 800W

Voltage Gain Selectable at 26dB, 32dB, 38dB, or 1.4V
Damping Factor >250 (8 Ohms load <1kHz)
Input High Pass Filter 80Hz 2nd order
Distortion (SMPTE, typical) <0.5%
Distortion (THD-N, typical) <0.5% (8 Ohms, 10dB below rated power, 20Hz–20kHz)
Channel Separation -75dB (dB from full output, 1kHz)
Signal-to-Noise (20Hz–20kHz, unweighted) >108dB
Frequency Response 20Hz-20kHz, +/-0.05dB
Balanced Input Connector Euroblock 3.5mm, 1/4” TRS & XLR Combo jack
Input Impedance 10k Ohms
Maximum Input Level +21dBu
Speaker Output Connector Neutrik® speakON®
Control Network Compatible w/ standard 100MB Ethernet
AUX Output Connector Balanced Euroblock 3.5mm
AUX Output Maximum Level +21dBu
Remote Standby Contact Closure Euroblock 3.5mm, close contact to GND for standby mode
Preset Recall Contact Closure Euroblock 3.5mm, close contact to GND for preset 1-4 recall
Data Connection Euroblock 3.5mm - Gnd, +18V, In, Out
Fault Condition Logic Outputs Euroblock 3.5mm - 4 available
Remote DC Level Control Euroblock 3.5mm - Gnd, CV, V+ per input
Attenuators (per channel) Front panel, software, offset link group, and remote. Fully off = Mute
Amplifier Protection Inrush current limitation, temperature monitoring, output over-power protection, mains fuses
Cooling Continuously variable temperature controlled axial fan(s)
Environmental 32–113 deg F, (0–45 deg, C) (noncondensing)
Unit Weight 25.9lbs (11.7kg)
Shipping Weight 32.4lbs (14.8kg)
Unit Dimensions 19”W x 3.5”H x 16.84”D (483mm x 89mm x 428mm)
Shipping Dimensions 24.5"W x 22"H x 5.25"D (622mm x 559mm x 133mm)
