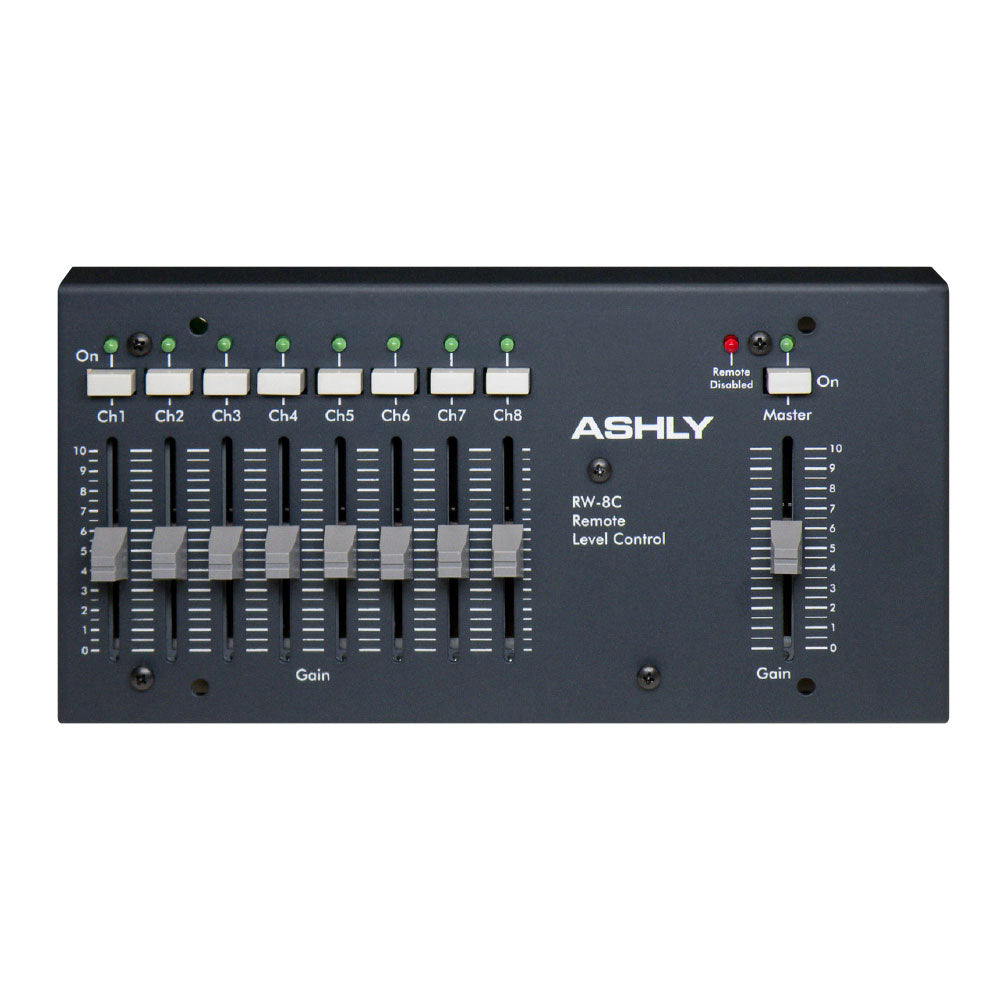

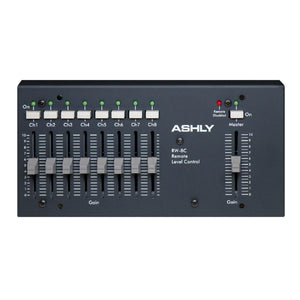

Ashly RW-8C - Wall Mount Fader Remote Controller for Ashly DSP Systems
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Control your system from any location with Ashly's remote controls. RW-8C is a hard-wired wall-mount programmable remote fader controller for Ashly amps and processors that have DSP and a serial data connector. Using Protea NE Software, each fader is assigned to adjust the level of one or more input or output channels or control the DSP matrix mixer. A master fader controls the overall level of all faders.
Features:
- Eight assignable faders and one master fader
- On/Off switch with LED for each fader
- Adjusts levels on single or combined input or output channels
- Wire directly to host unit, no network required*
- Control output at matrix mixer
- Shipping weight: 2lbs (1kg)
- Safety/compliance: CE, FCC, RoHS
Compatible Ashly Products:
- nXe amplifiers**
- nXp amplifiers
- Pema amplifiers
- NE multi-channel amplifiers**
- ne24.24M matrix processor
- NE8800/4800/4400 network processors
*Only one RD/RW-8C can be used per host unit. No other serial communications devices, including the WR-5, can be used when an RD-8C is connected to the data port.
**With DSP installed
| Max Data Cable Length | Up to 1000 ft using #24 gauge twisted pair |
| Fader Range | +10dB to -75dB |
| Environmental | 40-120 deg. F (4-49 deg, C) |
| Power Requirements | Phantom Power from host unit |
| Dimensions | 7.3"W x 3.4"H x 1.6"D (185mm x 87mm x 41mm) |
| Connections | XLR male |
| Unit Weight | 1.4lbs (.63kg) |
| Shipping Weight | 2lbs (1kg) |
