DALE SKU # ATLA-CP400

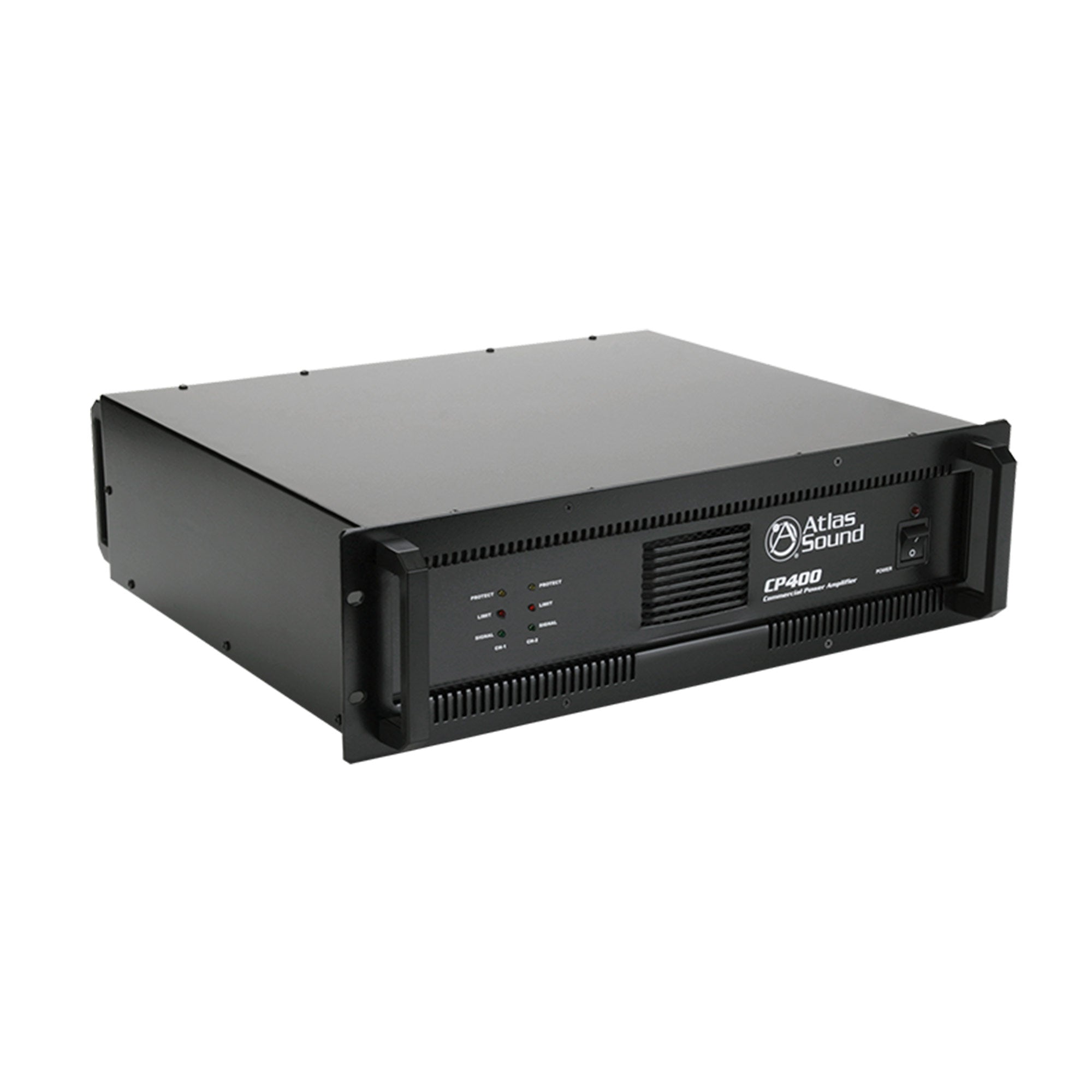

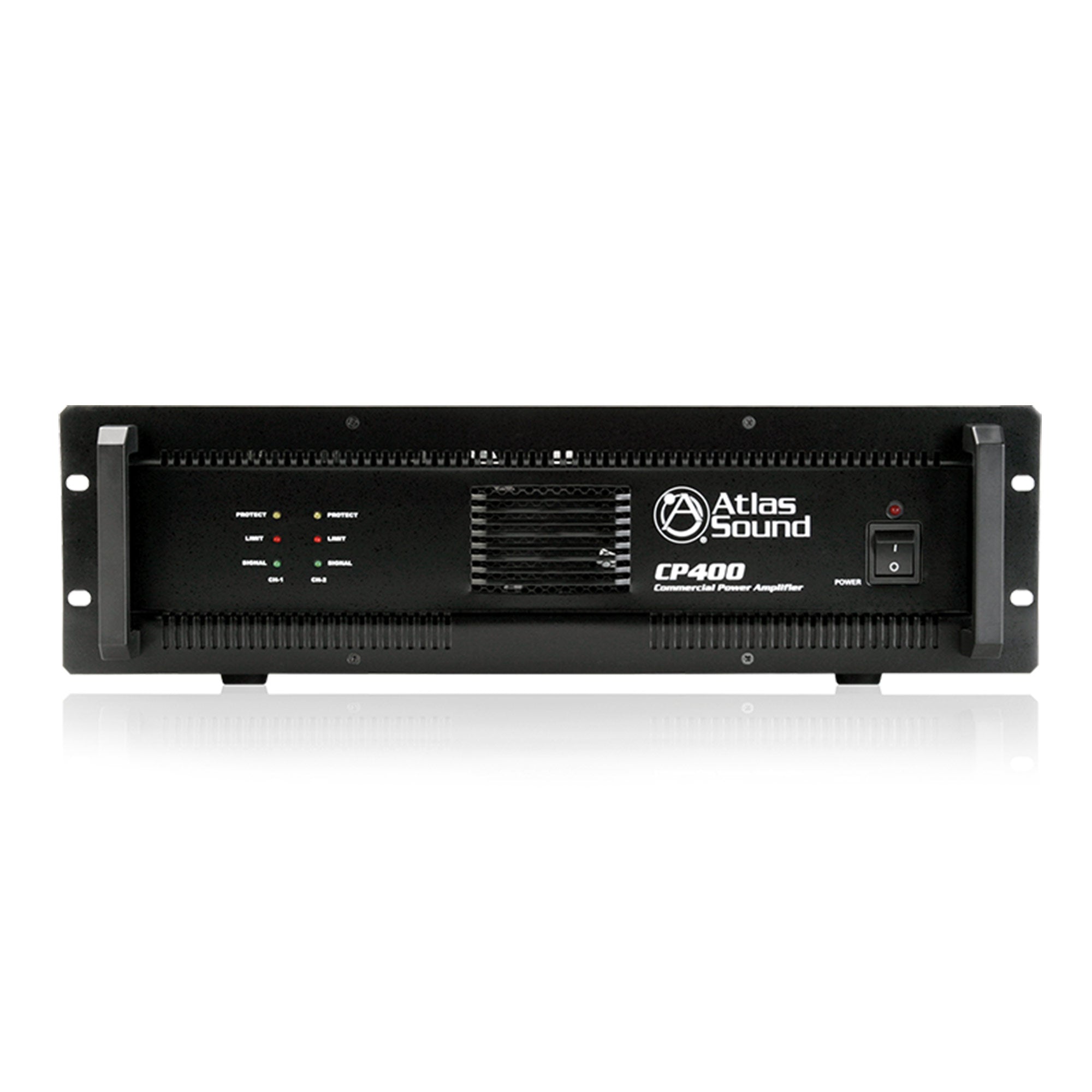

Atlas IED CP400 - 2-Channel 400-Watt Multi-Load Commercial Power Amplifier

Sale price$1,156.99 Regular price$1,439.99
Save $283.00
  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

    A professional grade audio power amplifier specifically designed for demanding contractor applications, the CP400 features esoteric grade toroidal power supply and output transformers. These transformers were chosen for their outstanding reliability as well as extended frequency response (-3dB @ 30Hz - 16kHz via transformer output) Now you can have the peace of mind that systems specified with the CP400 will have true transformer output isolation, a feature that previously may have not been affordable due to the cost of quality external transformers.

    CP400's two independent channels ensure maximum channel separation and ultra low distortion figures while providing years of faithful service.

    Whether your application is a large distributed constant voltage sound system or a high SPL sound reinforcement system, the AtlasIED CP400 is the perfect answer for high power/low cost amplification needs.

    Features:

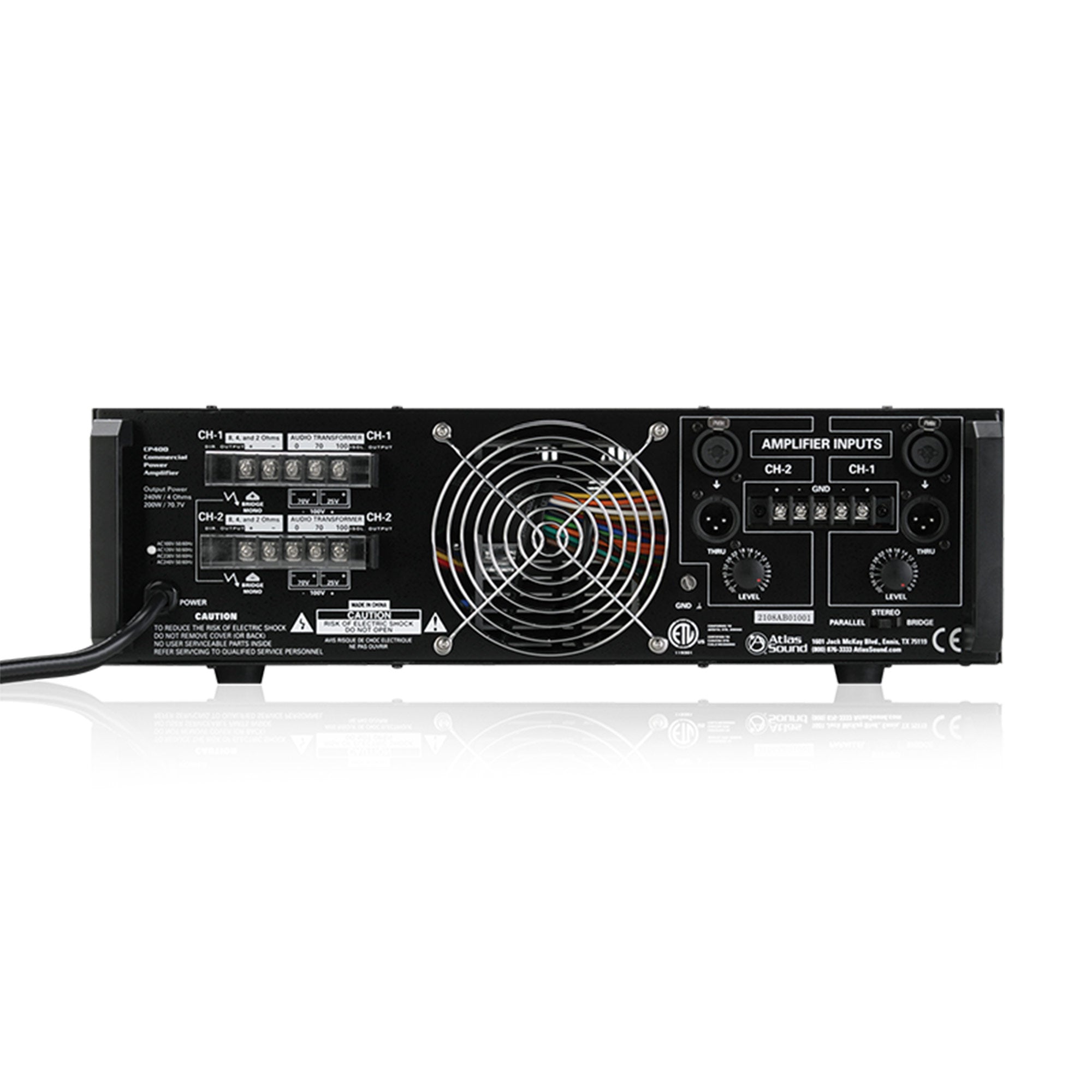

    • 25V, 70.7V, 100V, and Direct Coupled (2,4, and 8 Ohm) Outputs Mounted on Barrier Strips with Covers for Safety
    • Balanced Inputs on Barrier Strip and XLR Connectors
    • Dual-Speed, High Efficiency Fan Cooling
    • Loop Through Feature on Male XLRs, One per Channel Input
    • Power-Up Muting
    • Stepped Attenuators Mounted on the Rear for Security
    • Toroidal Output Transformers Provide Full Electrical Isolation and Meet Worldwide Safety Agency Approval
    • UL Listed - UL60065
    8½ STEREO 160 Watts x2
    4½ STEREO 240 Watts x2
    2½ STEREO 270 Watts x2
    8½ BRIDGED MONO 500 Watts
    4½ BRIDGED MONO 600 Watts
    70.7V STEREO 200 Watts x2
    25V STEREO 175 Watts x2
    140V/200V BRIDGED MONO 400 Watts
    CHANNELS Two
    FREQUENCY RESPONSE 30Hz - 50kHz (±3dB)
    CONNECTOR TYPE Terminal Block / XLR
    FINISH Black
    NUMBER OF FANS 1 - Variable Speed
    HEIGHT 5 3/16" (13 cm)
    VOLTAGE COMPATIBILITY 110V - 120V

    A professional grade audio power amplifier specifically designed for demanding contractor applications, the CP400 features esoteric grade toroidal power supply and output transformers. These transformers were chosen for their outstanding reliability as well as extended frequency response (-3dB @ 30Hz - 16kHz via transformer output) Now you can have the peace of mind that systems specified with the CP400 will have true transformer output isolation, a feature that previously may have not been affordable due to the cost of quality external transformers.

    CP400's two independent channels ensure maximum channel separation and ultra low distortion figures while providing years of faithful service.

    Whether your application is a large distributed constant voltage sound system or a high SPL sound reinforcement system, the AtlasIED CP400 is the perfect answer for high power/low cost amplification needs.

    Features:

    • 25V, 70.7V, 100V, and Direct Coupled (2,4, and 8 Ohm) Outputs Mounted on Barrier Strips with Covers for Safety
    • Balanced Inputs on Barrier Strip and XLR Connectors
    • Dual-Speed, High Efficiency Fan Cooling
    • Loop Through Feature on Male XLRs, One per Channel Input
    • Power-Up Muting
    • Stepped Attenuators Mounted on the Rear for Security
    • Toroidal Output Transformers Provide Full Electrical Isolation and Meet Worldwide Safety Agency Approval
    • UL Listed - UL60065
    8½ STEREO 160 Watts x2
    4½ STEREO 240 Watts x2
    2½ STEREO 270 Watts x2
    8½ BRIDGED MONO 500 Watts
    4½ BRIDGED MONO 600 Watts
    70.7V STEREO 200 Watts x2
    25V STEREO 175 Watts x2
    140V/200V BRIDGED MONO 400 Watts
    CHANNELS Two
    FREQUENCY RESPONSE 30Hz - 50kHz (±3dB)
    CONNECTOR TYPE Terminal Block / XLR
    FINISH Black
    NUMBER OF FANS 1 - Variable Speed
    HEIGHT 5 3/16" (13 cm)
    VOLTAGE COMPATIBILITY 110V - 120V
