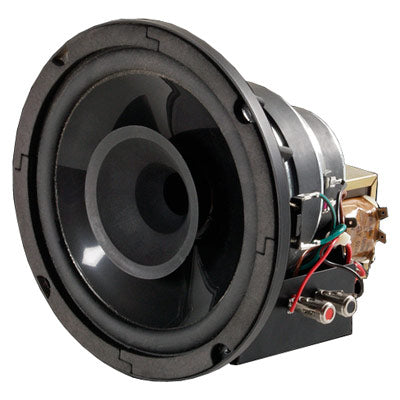

8 2-Way True Compression Driver Coaxial Speaker with 60 Watt 70.7V/100V Transformer.Model 8CXT60 is a 150 watt loudspeaker that combines an 8 diameter, low frequency transducer and a 1 exit, true compression driver.Features:
- 1 Exit compression high frequency driver coupled to a specially designed conical wave-guide horn provides exceptional output & accurate high frequency reproduction.
- High efficiency cone woofer is optimally matched with a specially designed crossover to insure even transition between components
- 90 Degree conical dispersion (@ 2000 Hz)
- Includes factory installed, 60W, 70.7/100V transformer
- Perfectly suited for use with Atlas Sound Q Series enclosures
Model 8CXT60 is a 150 watt loudspeaker that combines an 8" diameter, low frequency transducer and a 1" exit, true compression driver. The unit features a curvilinear,polypropylene cone for lower harmonic distortion, and a built-in crossover network for proper frequency transition between the two reproducers. Both the low frequency reproducer and the HF driver feature permanently aligned voice coils to assure distortion free performance. The copper voice coils have aluminum formers. Model 8CXT60 operates within a frequency response range of 48 Hz to 18 kHz (Î+/-10dB) with a sensitivity of 92dB and a dispersion angle of 90 deg..
Atlas Sound compression coaxial loudspeakers are optimized for high-ceiling applications such as arenas, convention centers, gymnasiums and auditoriums. The extreme high efficiency and higher "Q" provide the increased available SPL and tighter diretivity often required in these high ceiling applications.In 70.7V/100V systems this high efficiency can also result in lower tap settings, which can conserve amplifier power.
Save time and touch labor with the 8CXT60 & 12CXT60. Many products of this type require the installation of an external transformer. The Atlas Sound 8CXT60 & 12CXT60 include a high efficiency built-in 60 watt 70.7/100V transformer (Taps @ 7.5W, 15W, 30W & 60W). (12", 8 ohm version also available-Atlas Sound Model 12CX.) Both models are designed to work optimally in any Atlas Sound "Q" series high volume enclosure allowing for a complete high output solution.
APPLICATIONS:The 8CXT60 is optimized for high-ceiling applications such as arenas, convention centers, gymnasiums and auditoriums. The extreme high efficiency and higher "Q" of the 8CXT60, with its powerful 8" speaker and 1" exit compression driver, provides the increased available SPL often required in these high ceiling applications. In 70.7V/100V systems, this high efficiency can also result in lower tap settings, which can conserve amplifier power.
