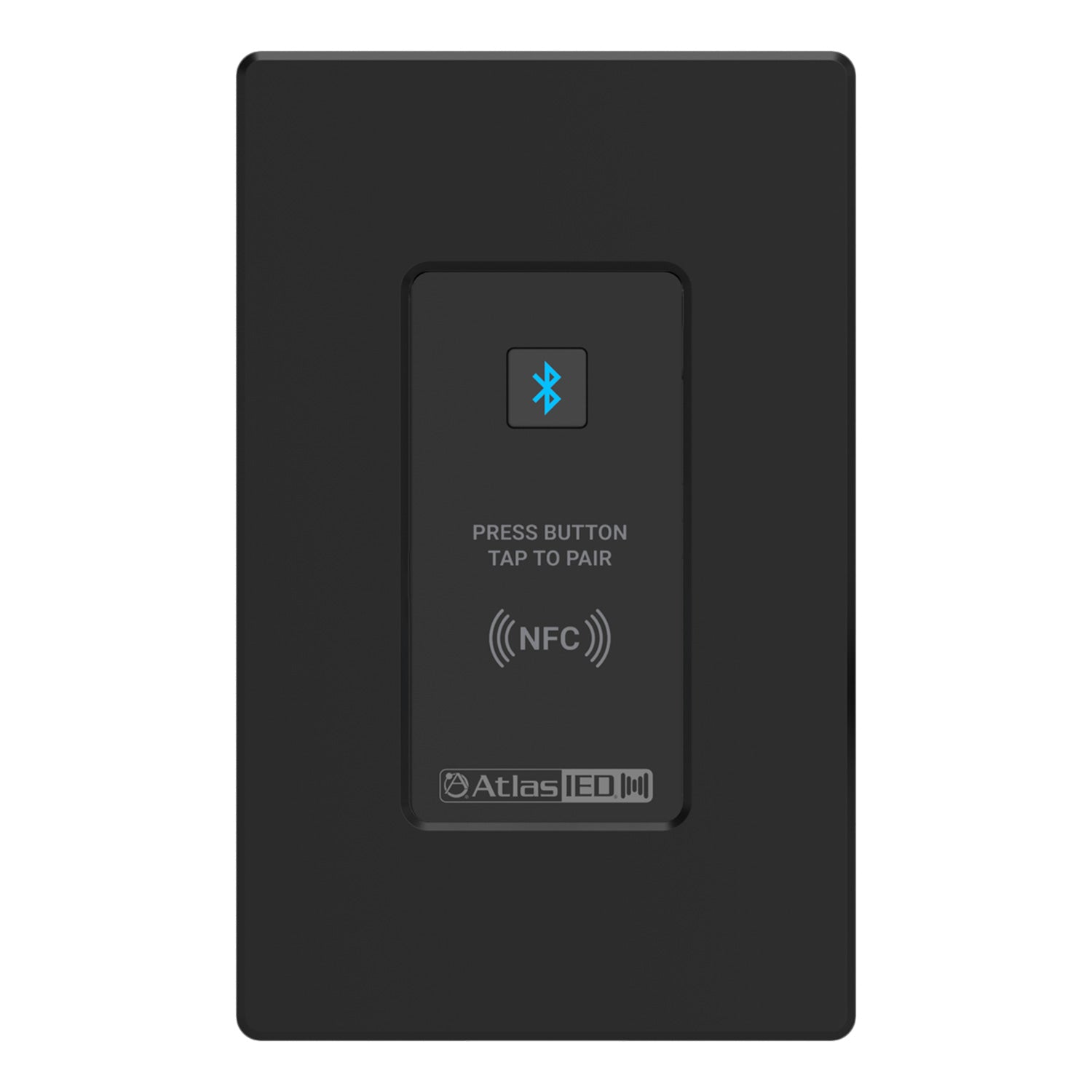

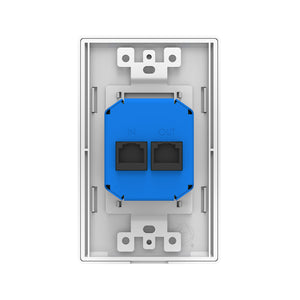

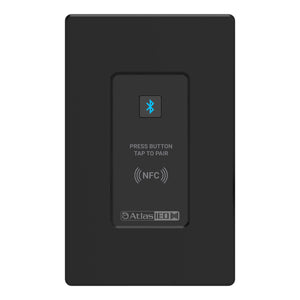

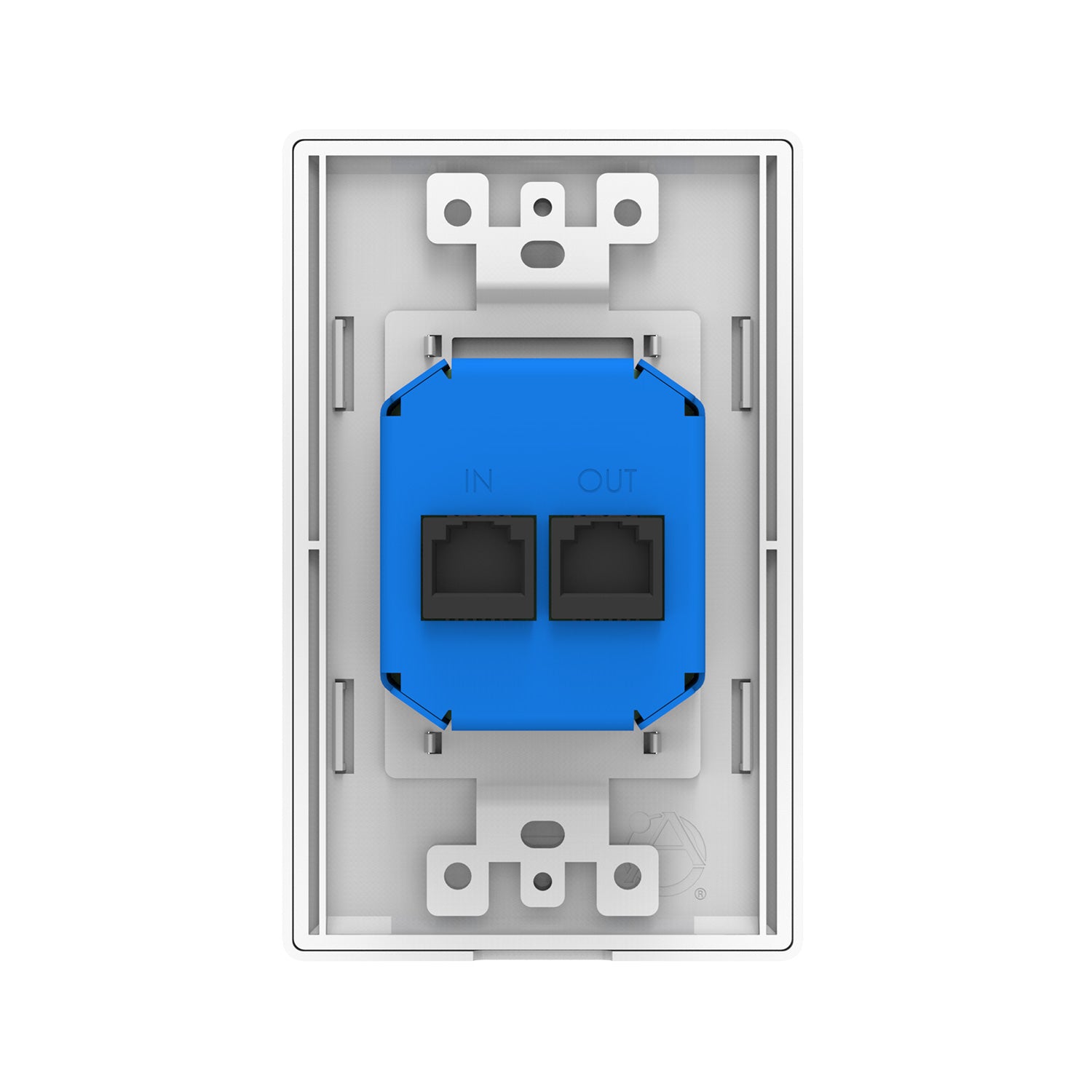

AtlasIED A-BT-B - Bluetooth Remote Audio Input Module for Atmosphere System (Black)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The Atmosphere A-BT is a remote Bluetooth™ audio input (mono) to an Atmosphere AZM audio processor. This expansion allows the Bluetooth™ receiver to be optimally placed for wireless coverage. The AZM will automatically detect the A-BT and dynamically assign appropriate audio settings, such as makeup gain, EQ, and auto gain control, to that input. The stereo source audio is summed to a mono signal before being sent to the AZM.
Each Atmosphere accessory is a plug-and-play, intelligent device, specifically designed to be approachable and intuitive. The Atmosphere accessory bus allows for up to 8 devices to be connected to a single accessory port, reliably sending audio and data over 1000ft per port. Up to 1x audio input accessory can be added to each accessory port.
Features:
- Local pair/unpair button
- User defined broadcast name (SSID)
- Mono summed audio within the accessory
- Pairing indication on the front panel
- NFC pairing
- Digital audio return to host processor
| BT Standard | V4.2 |
| Audio Profile | A2DP |
| Open Air Range | 60ft |
| NFC | Tap-to-Pair |
| Indicator | Green = Paired, Red = Error, Blue = Pairing Mode |
| Button | Pairs and Unpairs Devices |
| Dimensions | 1.78" x 4.2" x 1.4" |
| Minimum Box Depth | 2.25" |
The Atmosphere A-BT is a remote Bluetooth™ audio input (mono) to an Atmosphere AZM audio processor. This expansion allows the Bluetooth™ receiver to be optimally placed for wireless coverage. The AZM will automatically detect the A-BT and dynamically assign appropriate audio settings, such as makeup gain, EQ, and auto gain control, to that input. The stereo source audio is summed to a mono signal before being sent to the AZM.
Each Atmosphere accessory is a plug-and-play, intelligent device, specifically designed to be approachable and intuitive. The Atmosphere accessory bus allows for up to 8 devices to be connected to a single accessory port, reliably sending audio and data over 1000ft per port. Up to 1x audio input accessory can be added to each accessory port.
Features:
- Local pair/unpair button
- User defined broadcast name (SSID)
- Mono summed audio within the accessory
- Pairing indication on the front panel
- NFC pairing
- Digital audio return to host processor
| BT Standard | V4.2 |
| Audio Profile | A2DP |
| Open Air Range | 60ft |
| NFC | Tap-to-Pair |
| Indicator | Green = Paired, Red = Error, Blue = Pairing Mode |
| Button | Pairs and Unpairs Devices |
| Dimensions | 1.78" x 4.2" x 1.4" |
| Minimum Box Depth | 2.25" |
