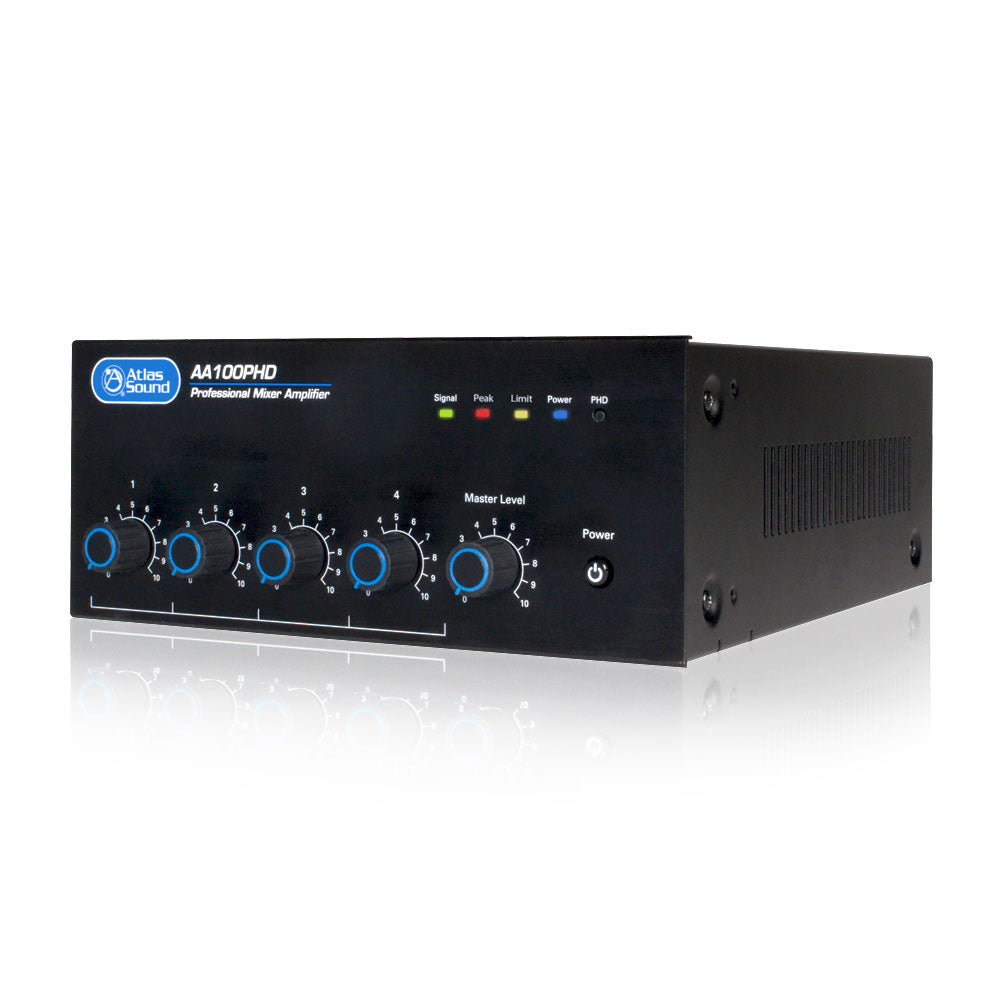

AtlasIED AA100PHD - 4-Input 100-Watt 25V Mixer Amplifier

  • Dale #:

    ATLA-AA100PHD
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The AA100PHD is a four input channel mixer amplifier designed for distributed business paging and background music (BGM) systems, small to medium speech privacy systems, and in applications where music on hold (MOH) plus paging is required. With one microphone/line input and two stereo line i... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The AA100PHD is a four input channel mixer amplifier designed for distributed business paging and background music (BGM) systems, small to medium speech privacy systems, and in applications where music on hold (MOH) plus paging is required.

With one microphone/line input and two stereo line inputs, the AA100PHD will accommodate a variety of input sources including paging microphones, media players, and digital music receivers. The AA100PHD includes a patent pending automatic system test, the Push Here Diagnostic (PHD). The PHD button is designed to check the connected speaker lines for wiring and impedance errors. This test can be activated once all speakers are connected and the circuit automatically verifies that the attached speakers' tap settings do not exceed the amplifier's rated power, no speakers are mistakenly tapped at 8Ω, and the speaker wire is free from shorts. The unit also incorporates a Remote Input Selection and Remote Level Control feature that allows the integrator to use a remote wall plate (Atlas Sound model WPD-RISRL) and allow the user to select the input and adjust the volume from that wall plate up to 200 feet from the amplifier.

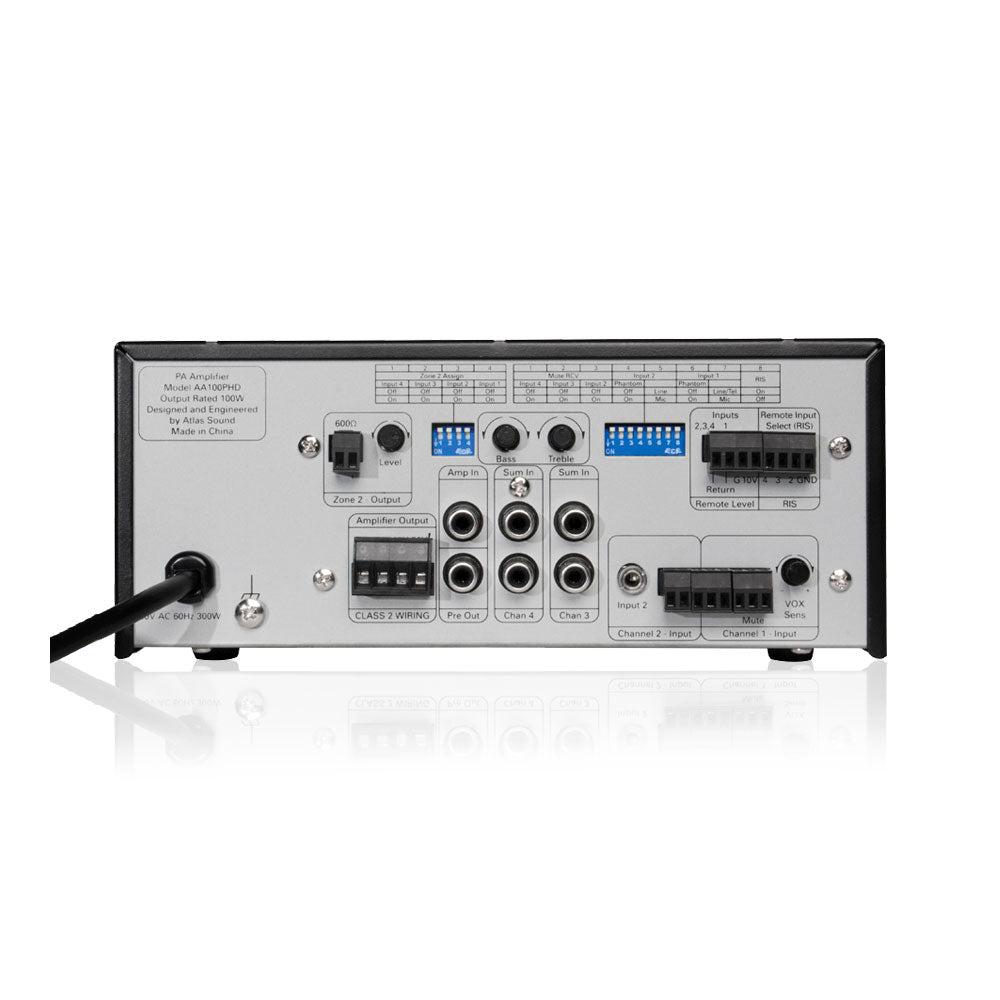

The AA100PHD provides 100-watts output power into 25V, 70.7V, or 4Ω speaker systems. Rear panel DIP switch allows for creation of Zone 2 output/output mix using any or all of the four inputs. Unit can also be set-up to mute Inputs 2, 3, and 4 based on signal from Input 1 for paging applications where other input sources need to be muted during a page. Input 1 and Input 2 are either Mic or Line input selectable and Phantom Power is an option when using either as a mic.

The Atlas Sound AA100PHD is the perfect choice for distributed business paging and background music (BGM) systems, small to medium speech privacy systems, and in applications where music on hold (MOH) plus paging is required.

Features:

  • Rear Mounted DIP Switch Allows Mute Receive for Inputs 2 and 3
  • Contact Closure Mute Terminals
  • Variable Mute Sensitivity Control for Input 1
  • Preamp In for External Processors
  • Line Output
  • Remote Input Select (RIS)
  • Remote Level Control
  • Input Assignable Zone 2 Output
  • Two Unbalanced, Summing Line Level Inputs
  • Two Balanced Mic/Line/Tel Inputs w/ Phantom Power
  • Automated Diagnostic System Test (Push Here Diagnostic®)
  • 100W into 25V/70.7V and 4Ω Loads
  • Optional Rack Mount Kit Available, Model AARMK2-5

More +

Product Specs

FREQUENCY RESPONSE 50Hz - 15kHz
CONNECTOR TYPE 4 Position Phoenix 3.5mm Pitch
POWER OUTPUT Max. Average Power @ 50Hz-15kHz with .5% THD, 4Ω 100W RMS
HEIGHT 3.66" (93mm)
WIDTH 8.27" (210mm)
DEPTH 10.87" (276mm)
WEIGHT 13lb
SHIPPING WEIGHT 15.2lb
VOLTAGE COMPATIBILITY 110V - 120V

More +
