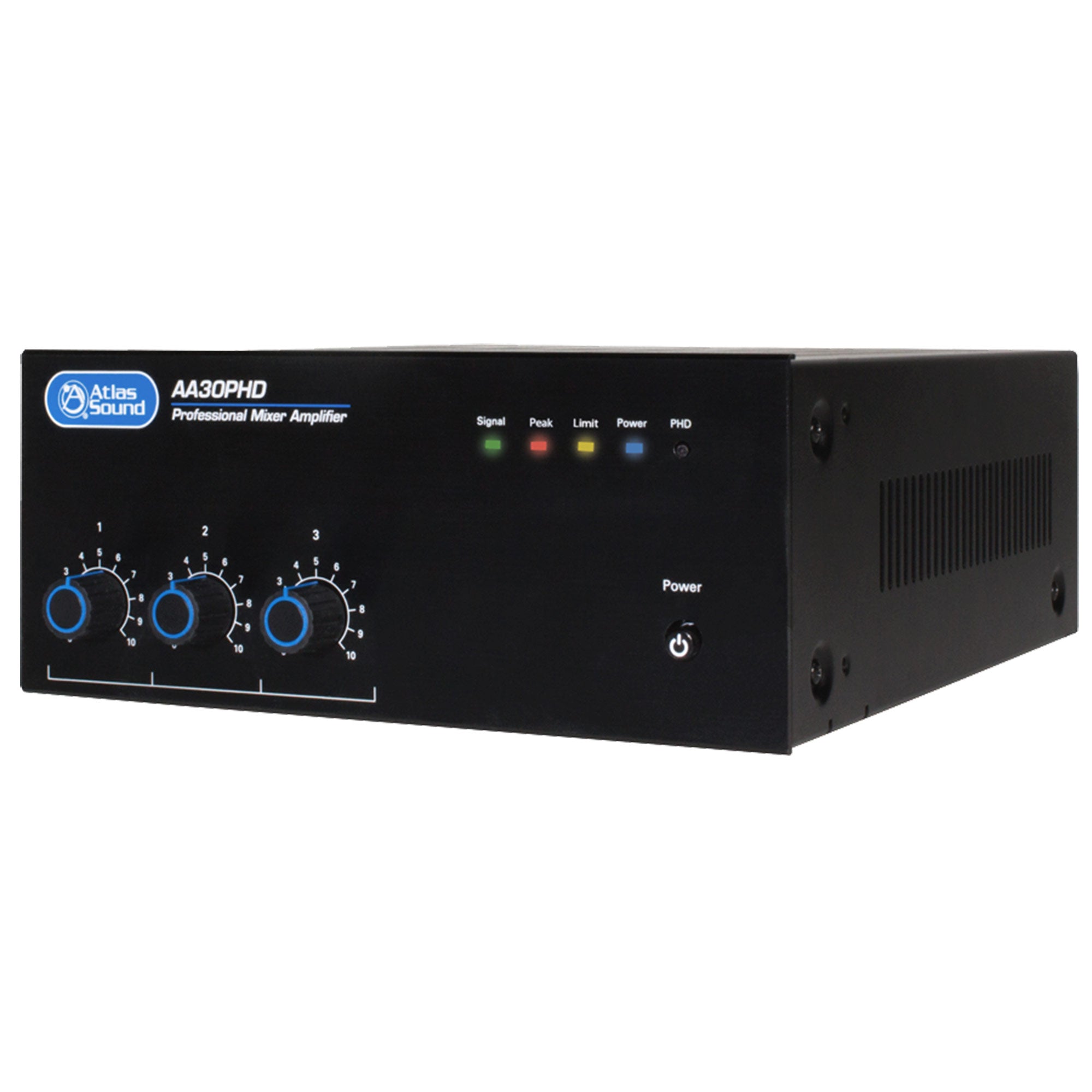

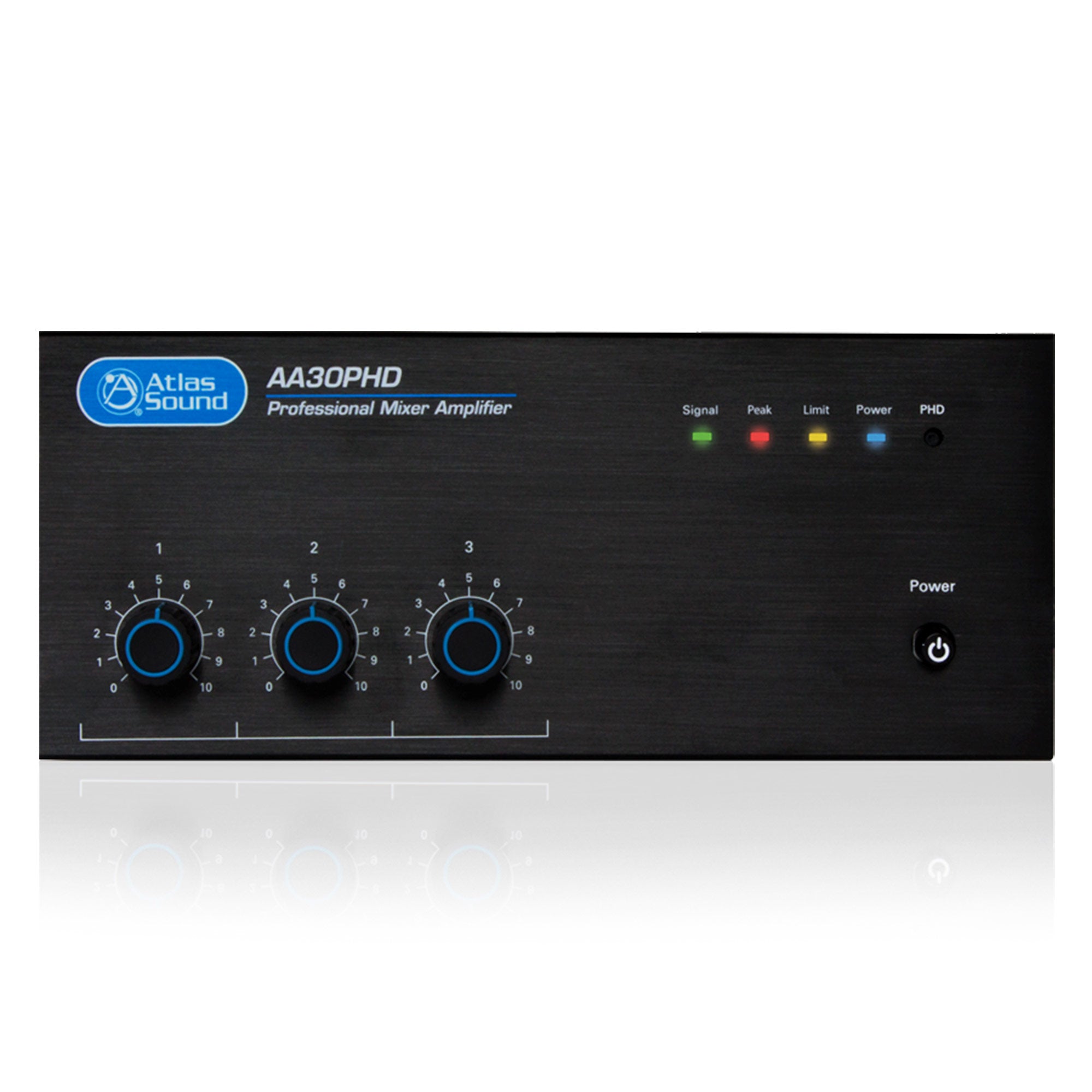

AtlasIED AA30PHD - 3-Input 30-Watt Multi-Load Mixer Amplifier

The AA30PHD is a three input channel mixer amplifier designed for distributed business paging and background music (BGM) systems, medium to large sound masking systems, and in applications where music on hold (MOH) plus paging is required. The AA30PHD will accommodate a variety of input sources including paging microphones, media players, and digital music receivers.

What Sets the AAPHD Series Apart?
The AA30PHD includes a patent pending automatic system test, the Push Here Diagnostic® (PHD). The PHD button is designed to check the connected speaker lines for wiring and impedance errors. This test can be activated once all speakers are connected and the circuit automatically verifies that the attached speakers' tap settings do not exceed the amplifier's rated power, no speakers are mistakenly tapped at 8Ω, and the speaker wire is free from shorts.

Features:

• 30W into 25V/70.7V and 4Ω Loads
• Rear Mounted DIP Switch Allows Mute Receive for Inputs 2 and 3
• Contact Closure Mute Terminals
• Variable Mute Sensitivity Control for Input 1
• Two Unbalanced, Summing Line Level Inputs
• Balanced Mic/Line/Tel Input w/ Phantom Power
• Automated Diagnostic System Test (Push Here Diagnostic)
