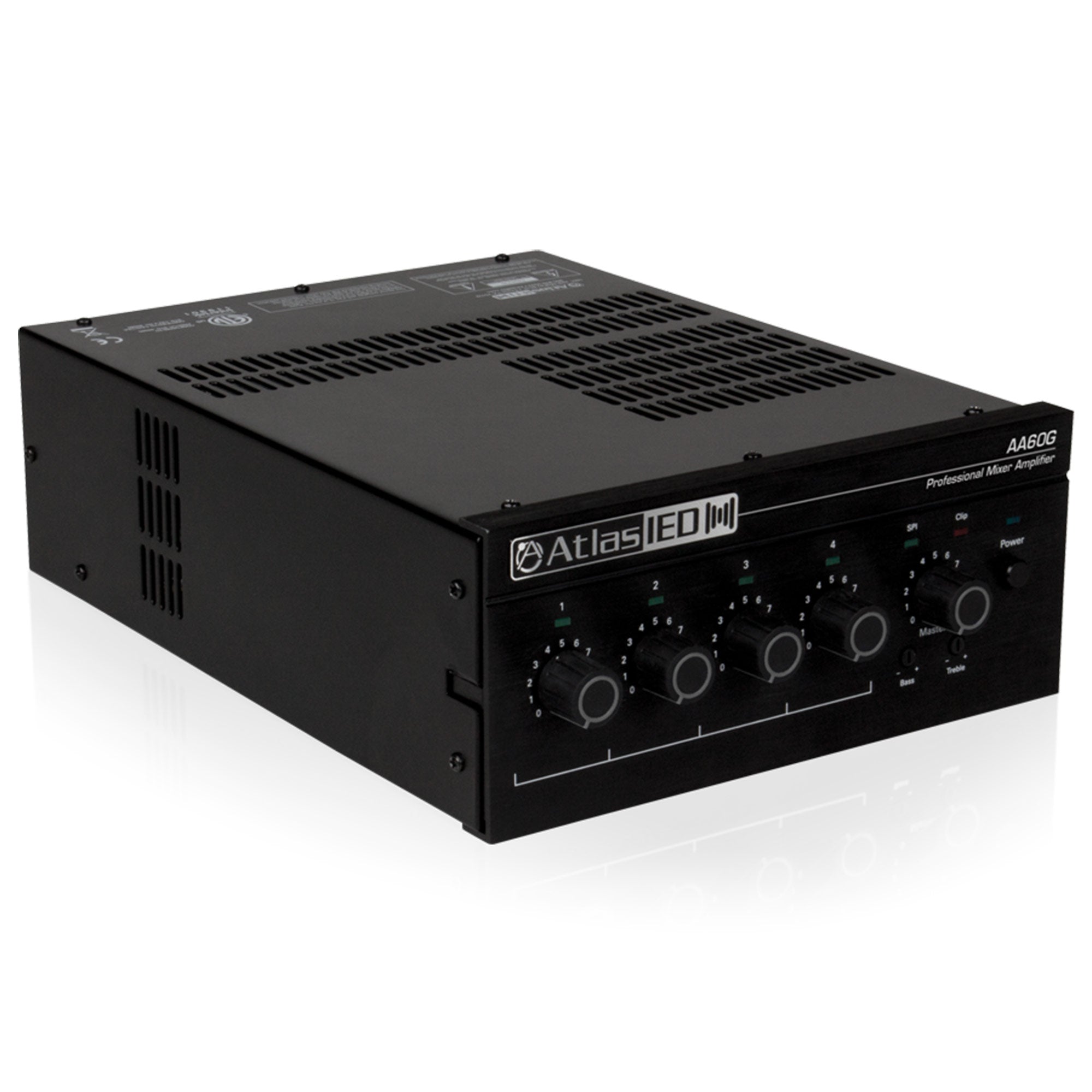

AtlasIED AA60G - 4-Input 60-Watt Multi-Load Mixer Amplifier

  • Dale #:

    ATLA-AA60G
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The AtlasIED AA60G is a 4 input channel mixer amplifier designed for distributed business paging and background music (BGM) systems, small to medium sound masking systems, and in applications where music on hold (MOH) plus paging is required. With (1) mic/line input and (2) stereo line inputs, th... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The AtlasIED AA60G is a 4 input channel mixer amplifier designed for distributed business paging and background music (BGM) systems, small to medium sound masking systems, and in applications where music on hold (MOH) plus paging is required. With (1) mic/line input and (2) stereo line inputs, the AA60G will accommodate a variety of input sources including paging microphones, CD players, and digital music receivers. A dip switch selectable matrix allows the creation of a Zone 2 mix from any or all of the input sources for music or messaging on hold applications. 70.7V, 100V, and 8Ω outputs are provided.

The output power of 60 Watts will match nicely with AtlasIED FAP, SM, SD, and GD series speakers. In fact, in an 11’ ceiling application, the AA60G will provide power for up to 200 SD72W speakers tapped at .25 Watts each while providing upwards of 84dB in the direct sound field at ear height

Optional rack mount kit, model AAGRMK2, available.

Features:

  • Four inputs (each with a front panel volume control) and a single output channel
  • Ideal for paging, background music, and music-on-hold applications
  • Balanced mic/line input, Telco Input, Zone 2, and dual RCA stereo music inputs
  • Priority muting by VOX or external switch
  • Bass and Treble controls on master output
  • Secondary Zone 2 Output 1 W at 600 Ω /MOH
  • Universal AC Power Supply for use in any 120V to 240V system
  • 70V, 100V, or 8Ω amplifier output
  • Signal presence LED indicators

More +

Product Specs

FREQUENCY RESPONSE 50Hz - 20kHz
CONNECTOR TYPE Phoenix and RCA
OUTPUT POWER 60 Watts
HEIGHT 3.85" (98mm) Including Feet
WIDTH 8.25" (210mm)
DEPTH 12.25" (311mm) Front of Knobs to Back Panel
SAFETY LISTED UL60065
WEIGHT 9 lbs 7 oz (4.3kg)
VOLTAGE COMPATIBILITY Universal

More +
