AtlasIED AT10-PA 10-Watt 3dB Volume Attenuator
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Deluxe Priority, Plate Mounted 10W Attenuator w/Priority Relay, 3dB Steps. Priority paging feature by-passes the attenuator dial setting to provide full program level to the loudspeakers. Option is available on all AT attenuators. The SPDT relay is operated with 24 VDC at 10mA. Includes protective relay cover to insure lasting trouble-free performance. Terminations to the relay and attenuator are made via a removable terminal block. (All other specifications except for dimensions are the same as selected AT models.
Features:
- Mount into Most 1-Gang E.O. Boxes
- Priority Feature Compatible with Atlas AA120M Amplifiers
- Priority Paging Feature By-Passes the Effect of the Attenuator
- The SPDT Relay is Operated with 24 VDC at 10mA
- UL Listed

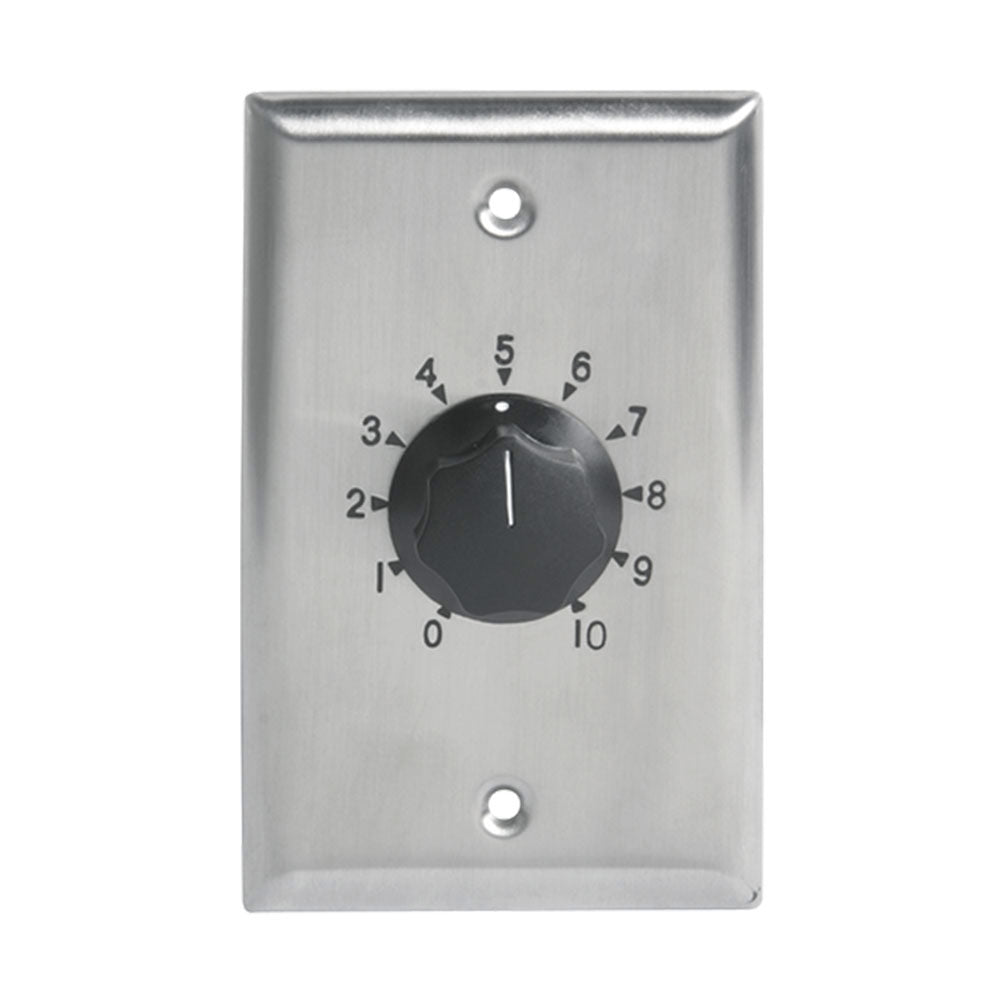

- Wall Plates are Stainless Steel with Stamped and Filled Dial Scale, and a Skirted Black Knob
| Plate Size | 1 gang |
| Plate Type | Stainless Steel |
| Power Rating | 10W |
| Total Attenuation | 33 dB |
| Height | 4 1/2 (11.43 cm) |
| Width | 2 3/4 (6.985 cm) |
| Depth | 2 1/8 (5.3975 cm) |
| Shipping Weight | 1.00 lb (0.45 kgs) |
| UL Listed/Standard | 813, 2043 |
Deluxe Priority, Plate Mounted 10W Attenuator w/Priority Relay, 3dB Steps. Priority paging feature by-passes the attenuator dial setting to provide full program level to the loudspeakers. Option is available on all AT attenuators. The SPDT relay is operated with 24 VDC at 10mA. Includes protective relay cover to insure lasting trouble-free performance. Terminations to the relay and attenuator are made via a removable terminal block. (All other specifications except for dimensions are the same as selected AT models.
Features:
- Mount into Most 1-Gang E.O. Boxes
- Priority Feature Compatible with Atlas AA120M Amplifiers
- Priority Paging Feature By-Passes the Effect of the Attenuator
- The SPDT Relay is Operated with 24 VDC at 10mA
- UL Listed
- Wall Plates are Stainless Steel with Stamped and Filled Dial Scale, and a Skirted Black Knob
| Plate Size | 1 gang |
| Plate Type | Stainless Steel |
| Power Rating | 10W |
| Total Attenuation | 33 dB |
| Height | 4 1/2 (11.43 cm) |
| Width | 2 3/4 (6.985 cm) |
| Depth | 2 1/8 (5.3975 cm) |
| Shipping Weight | 1.00 lb (0.45 kgs) |
| UL Listed/Standard | 813, 2043 |
