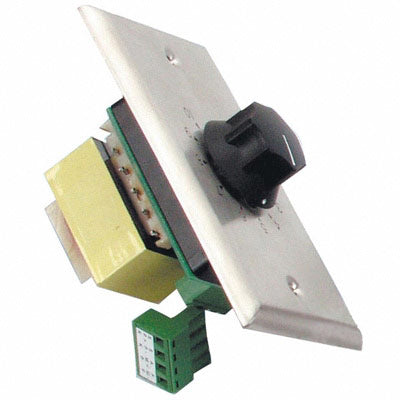

AtlasIED AT10 Wall Plate Mount 10-Watt Attenuator (Stainless Steel)
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
This Volume Control Knob provides excellent frequency response, low insertion loss and reliable performance for volume control application in 25 and 70.7-volt systems. Attenuation is accomplished in ten make-before-break steps plus positive off position. There's no stop between the maximum and off position to prevent switch damage. The AT10's contacts are silver plated for noise-free operation.
| Total Attenuation | 33 dB |
| Height | 4(11.43 cm) |
| Shipping Weight | 1.00 lbs (0.45 kg) |
| Power Rating | 10W |
| Depth | 2 (5.40 cm) |
| Plate Type | Stainless Steel |
| Plate Size | 1 gang |
| Width | 2 (6.99 cm) |
| UL Listed/Standard | 813, 2043 |
This Volume Control Knob provides excellent frequency response, low insertion loss and reliable performance for volume control application in 25 and 70.7-volt systems. Attenuation is accomplished in ten make-before-break steps plus positive off position. There's no stop between the maximum and off position to prevent switch damage. The AT10's contacts are silver plated for noise-free operation.
| Total Attenuation | 33 dB |
| Height | 4(11.43 cm) |
| Shipping Weight | 1.00 lbs (0.45 kg) |
| Power Rating | 10W |
| Depth | 2 (5.40 cm) |
| Plate Type | Stainless Steel |
| Plate Size | 1 gang |
| Width | 2 (6.99 cm) |
| UL Listed/Standard | 813, 2043 |
