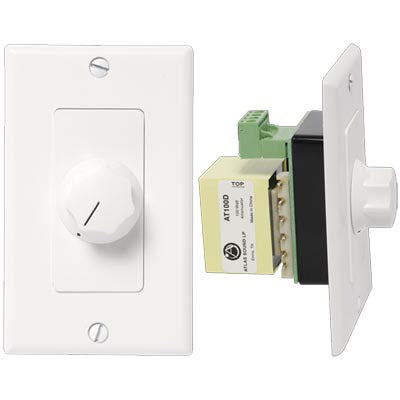

AtlasIED AT100D Deluxe Decora Mount 100-Watt Attenuator
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
Deluxe Decora Plate Mounted 100W Attenuator, 3dB Steps
Decora style High-quality auto transformer series provides the advantages of excellent frequency response, low insertion loss and reliable performance for volume control application in 25 and 70.7-volt systems. Attenuation is accomplished in ten make before break steps plus positive off position. (No stop between maximum and off position to prevent switch damage). Contacts are silver plated for noise-free operation. Features a removable terminal block, and comes complete with white and ivory plastic plates with matching skirted knobs.
Features:
- Attractive alternative to Commercial Series attenuators
- Mount into Most 1-Gang E.O. Boxes.
- UL Listed
- White and Ivory Plastic Plates with Matching Skirted Knobs in Decora Style
| Height | (11.43 cm) |
| Width | (6.99 cm) |
| Depth | (6.35 cm) |
| Shipping Weight | 1.50 lbs (0.68 kg) |
| Plate Color | White - Ivory |
| Plate Size | 1 gang |
| Plate Type | Decora |
| Power Rating | 100W |
| Total Attenuation | 27 dB |
| UL Listed/Standard | 813, 2043 |
Deluxe Decora Plate Mounted 100W Attenuator, 3dB Steps
Decora style High-quality auto transformer series provides the advantages of excellent frequency response, low insertion loss and reliable performance for volume control application in 25 and 70.7-volt systems. Attenuation is accomplished in ten make before break steps plus positive off position. (No stop between maximum and off position to prevent switch damage). Contacts are silver plated for noise-free operation. Features a removable terminal block, and comes complete with white and ivory plastic plates with matching skirted knobs.
Features:
- Attractive alternative to Commercial Series attenuators
- Mount into Most 1-Gang E.O. Boxes.
- UL Listed
- White and Ivory Plastic Plates with Matching Skirted Knobs in Decora Style
| Height | (11.43 cm) |
| Width | (6.99 cm) |
| Depth | (6.35 cm) |
| Shipping Weight | 1.50 lbs (0.68 kg) |
| Plate Color | White - Ivory |
| Plate Size | 1 gang |
| Plate Type | Decora |
| Power Rating | 100W |
| Total Attenuation | 27 dB |
| UL Listed/Standard | 813, 2043 |
