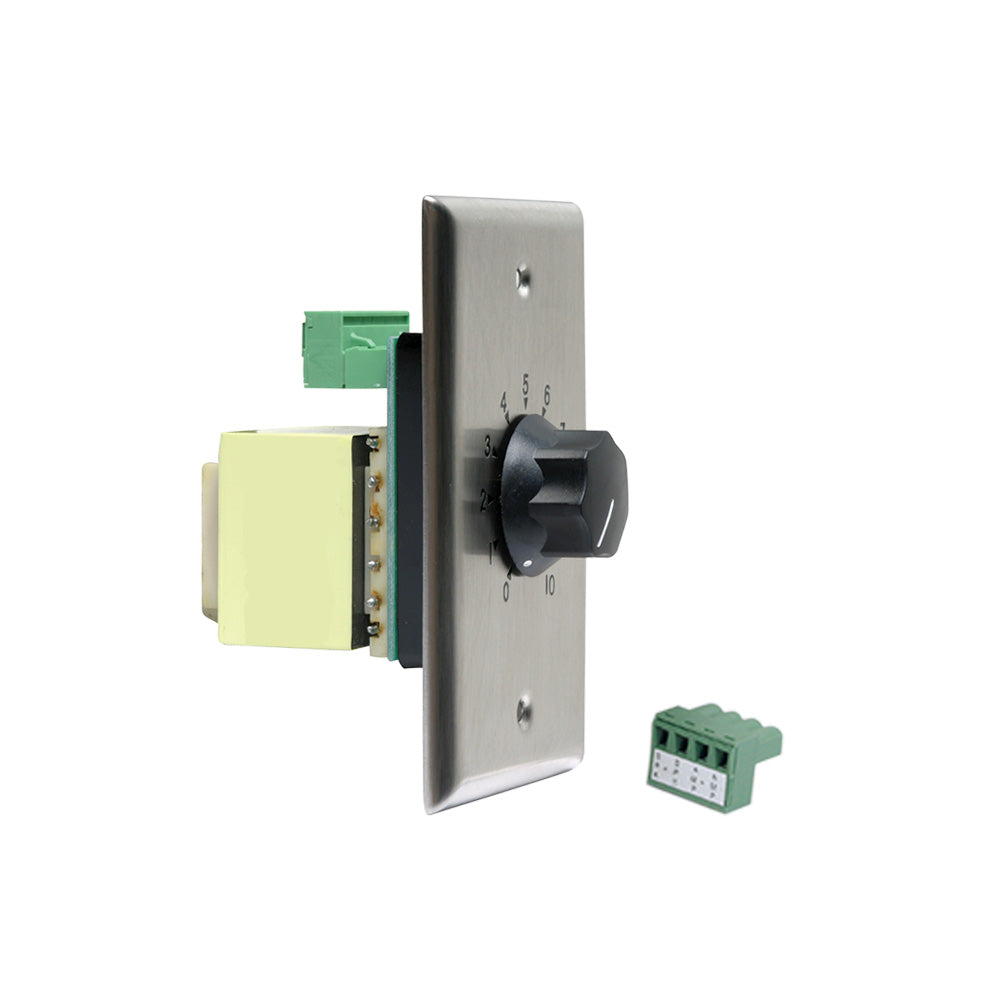

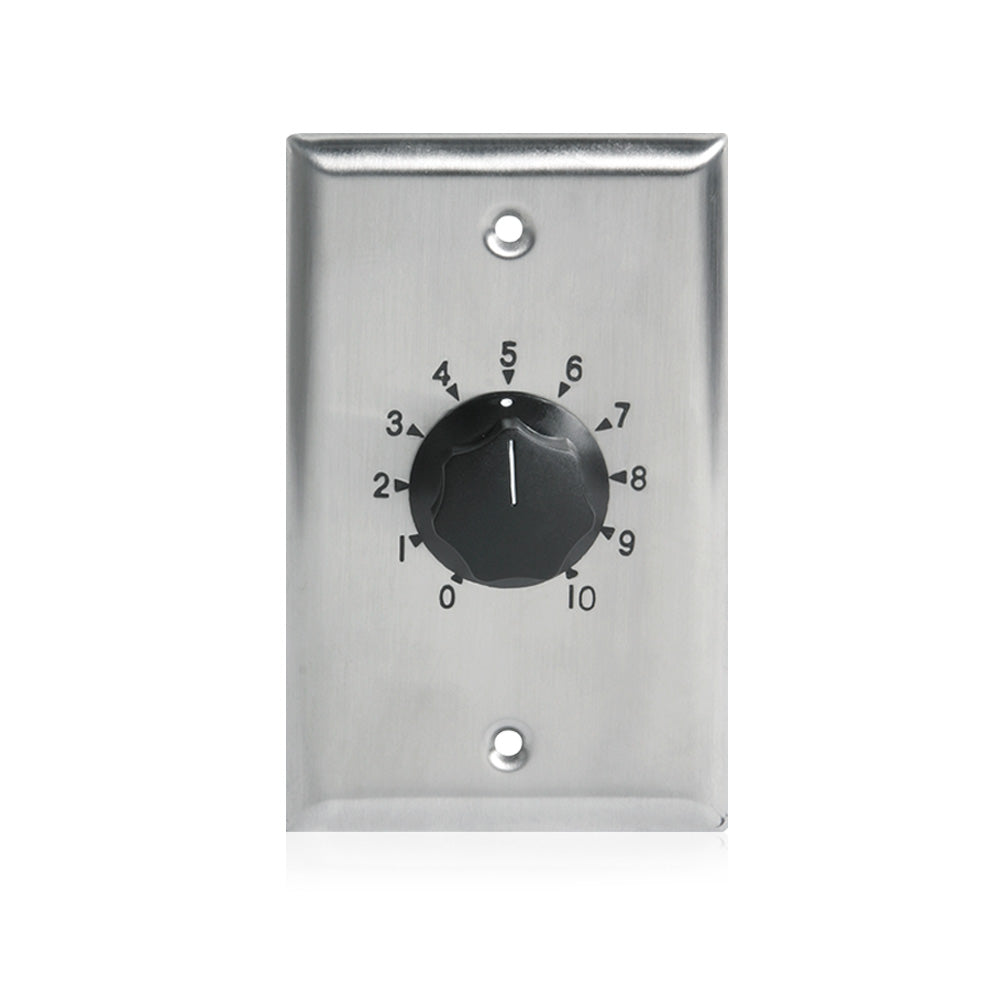

AtlasIED AT35-PA Wall Plate Mount 35-Watt Attenuator (Stainless Steel)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
High-quality auto transformer AT35-PA provides the advantages of excellent frequency response, low insertion loss and reliable performance for volume control application in 25 and 70.7-volt systems. Attenuation is accomplished in ten make before break steps plus positive off position. (No stop between maximum and off position to prevent switch damage). Contacts are silver plated for noise-free operation. Features a removable terminal block. Includes stainless steel plate, with stamped and filled or screen printed dial scale and a skirted black knob.
Features:
- Mount into Most 1-Gang E.O. Boxes
- Priority Paging Feature By-Passes the Effect of the Attenuator
- The SPDT Relay is Operated with 24 VDC at 10mA
- Wall Plates are Stainless Steel with Stamped and Filled Dial Scale, and a Skirted Black Knob
| PLATE SIZE | 1 gang |
| PLATE TYPE | Stainless Steel |
| POWER RATING | 35W |
| TOTAL ATTENUATION | 27dB |
| HEIGHT | 4 1/2" (11.43 cm) |
| WIDTH | 2 3/4" (6.985 cm) |
| DEPTH | 2 1/8" (5.3975 cm) |
| SHIPPING WEIGHT | 1.00 lb (0.45 kgs) |
| SAFETY LISTED | 813, 2043 |
High-quality auto transformer AT35-PA provides the advantages of excellent frequency response, low insertion loss and reliable performance for volume control application in 25 and 70.7-volt systems. Attenuation is accomplished in ten make before break steps plus positive off position. (No stop between maximum and off position to prevent switch damage). Contacts are silver plated for noise-free operation. Features a removable terminal block. Includes stainless steel plate, with stamped and filled or screen printed dial scale and a skirted black knob.
Features:
- Mount into Most 1-Gang E.O. Boxes
- Priority Paging Feature By-Passes the Effect of the Attenuator
- The SPDT Relay is Operated with 24 VDC at 10mA
- Wall Plates are Stainless Steel with Stamped and Filled Dial Scale, and a Skirted Black Knob
| PLATE SIZE | 1 gang |
| PLATE TYPE | Stainless Steel |
| POWER RATING | 35W |
| TOTAL ATTENUATION | 27dB |
| HEIGHT | 4 1/2" (11.43 cm) |
| WIDTH | 2 3/4" (6.985 cm) |
| DEPTH | 2 1/8" (5.3975 cm) |
| SHIPPING WEIGHT | 1.00 lb (0.45 kgs) |
| SAFETY LISTED | 813, 2043 |
