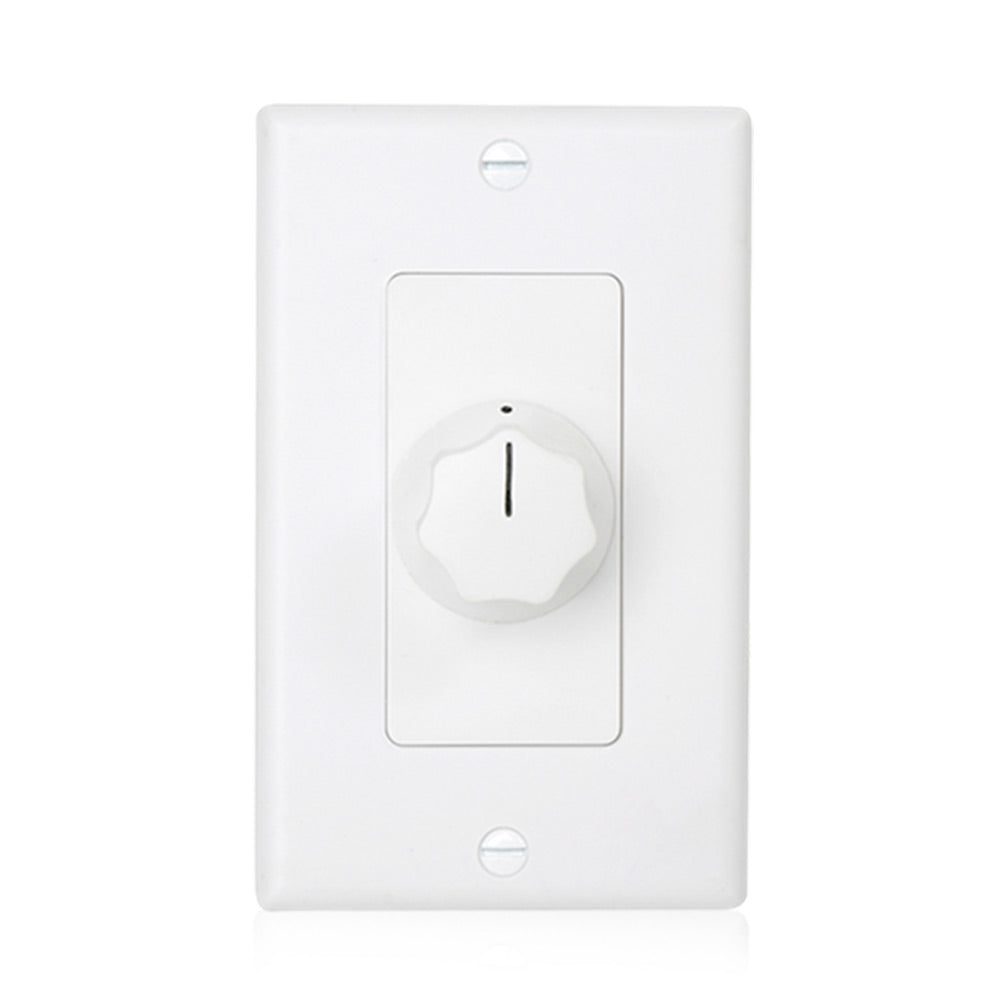

AtlasIED AT35D Deluxe Decora Mount 35-Watt Attenuator (White)
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
AT35D Deluxe Decora Plate Mounted 35W Attenuator, 3dB Steps. Decora style High-quality auto transformer provides the advantages of excellent frequency response, low insertion loss and reliable performance for volume control application in 25 and 70.7-volt systems. Attenuation is accomplished in ten make before break steps plus positive off position. (No stop between maximum and off position to prevent switch damage). Contacts are silver plated for noise-free operation. Features a removable terminal block, and come complete with white and ivory plastic plates with matching skirted knobs.
POWER RATING (WATTS): 35, ATTENUATION PER STEP: 3dB, TOTAL ATTENUATION: 27dB, INSERTION LOSS: .6dB, PLATE STYLE: Decora, 1 Gang, PLATE TYPE: Inc. WHITE & IVORY INSERTS, TRIM RINGS, KNOBS.Features:- Attractive alternative to Commercial Series attenuators
- Mount into Most 1-Gang E.O. Boxes.
- UL Listed
- White and Ivory Plastic Plates with Matching Skirted Knobs in Decora Style
| Height | 4 1/2 (11.43 cm) |
| Width | 2 3/4 (6.985 cm) |
| Depth | 2 1/8 (5.3975 cm) |
| Shipping Weight | 1.20 lbs (0.54 kgs) |
| Plate Color | White - Ivory |
| Plate Size | 1 gang |
| Plate Type | Decora |
| Power Rating | 35W |
| Total Attenuation | 27dB |
| UL Listed/Standard | 813, 2043 |
AT35D Deluxe Decora Plate Mounted 35W Attenuator, 3dB Steps. Decora style High-quality auto transformer provides the advantages of excellent frequency response, low insertion loss and reliable performance for volume control application in 25 and 70.7-volt systems. Attenuation is accomplished in ten make before break steps plus positive off position. (No stop between maximum and off position to prevent switch damage). Contacts are silver plated for noise-free operation. Features a removable terminal block, and come complete with white and ivory plastic plates with matching skirted knobs.
POWER RATING (WATTS): 35, ATTENUATION PER STEP: 3dB, TOTAL ATTENUATION: 27dB, INSERTION LOSS: .6dB, PLATE STYLE: Decora, 1 Gang, PLATE TYPE: Inc. WHITE & IVORY INSERTS, TRIM RINGS, KNOBS.Features:- Attractive alternative to Commercial Series attenuators
- Mount into Most 1-Gang E.O. Boxes.
- UL Listed
- White and Ivory Plastic Plates with Matching Skirted Knobs in Decora Style
| Height | 4 1/2 (11.43 cm) |
| Width | 2 3/4 (6.985 cm) |
| Depth | 2 1/8 (5.3975 cm) |
| Shipping Weight | 1.20 lbs (0.54 kgs) |
| Plate Color | White - Ivory |
| Plate Size | 1 gang |
| Plate Type | Decora |
| Power Rating | 35W |
| Total Attenuation | 27dB |
| UL Listed/Standard | 813, 2043 |
