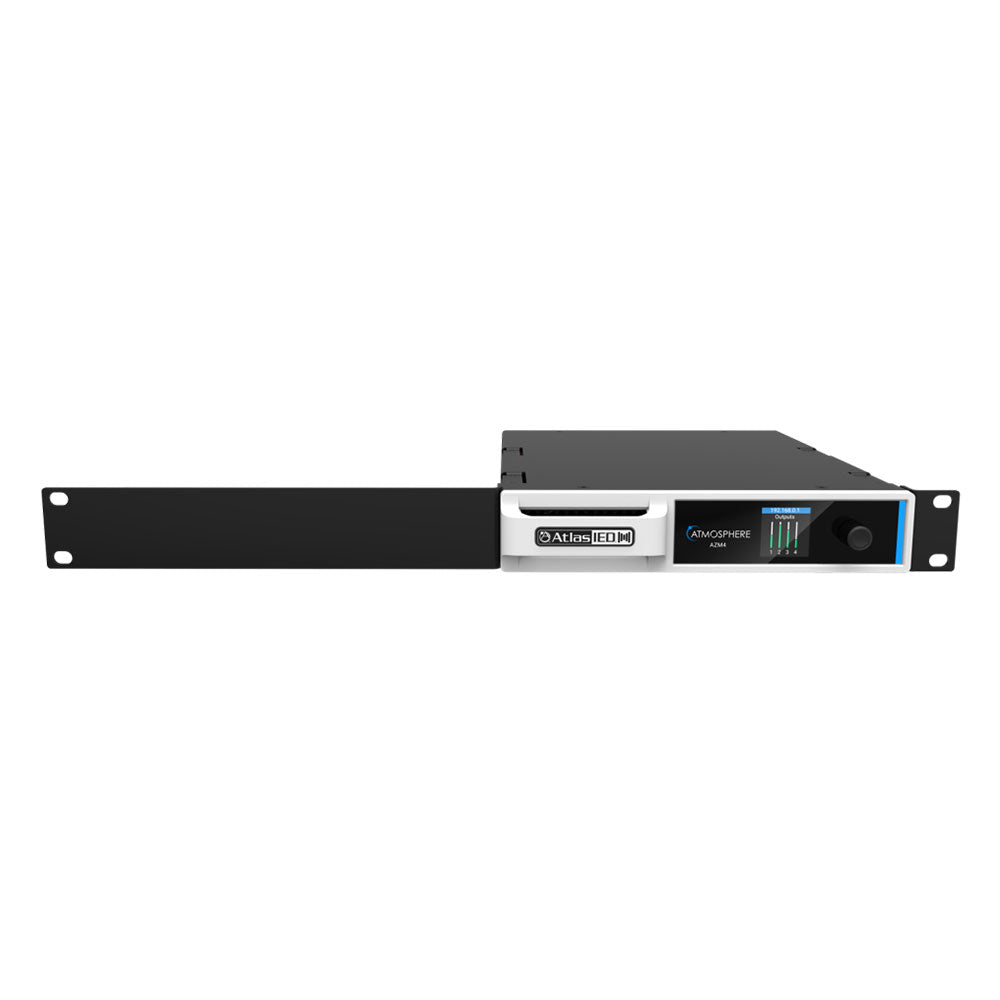

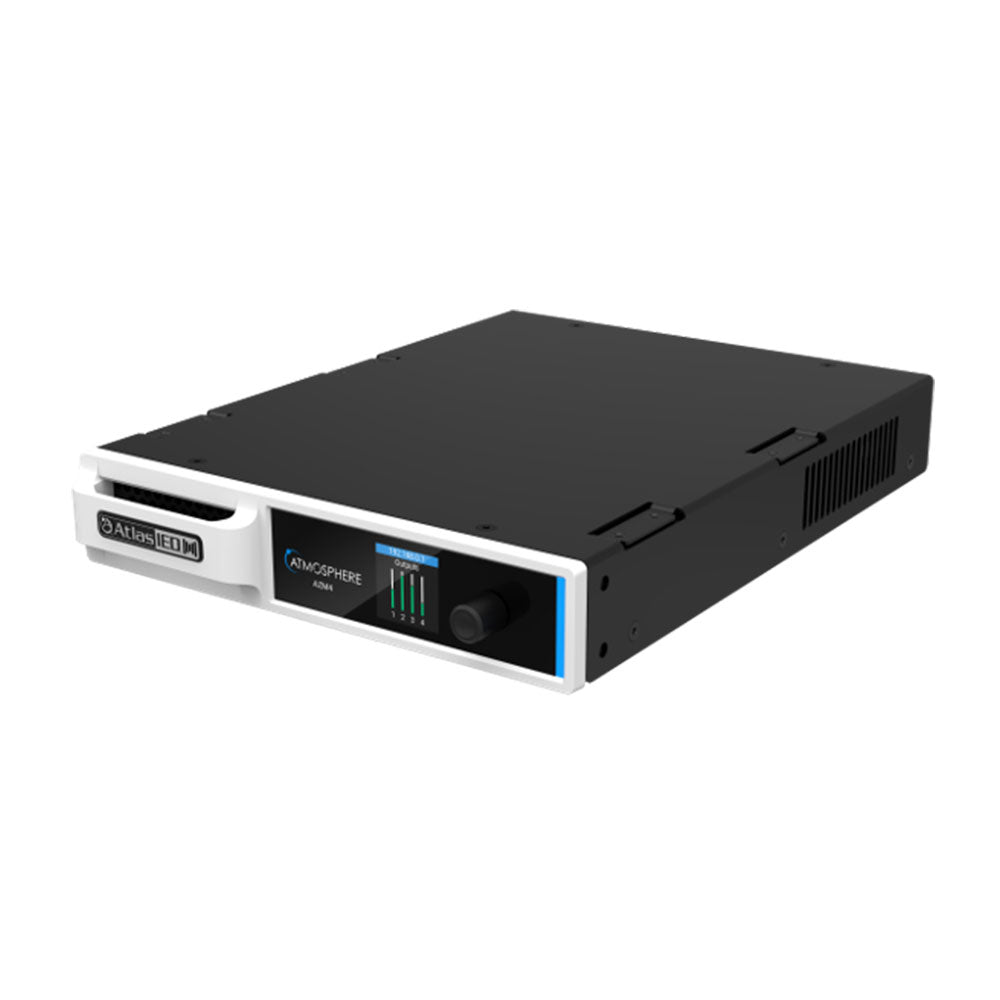

AtlasIED AZM4 - 4-Zone Audio Processor for Atmosphere System
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The Atmosphere AZM4 is a 4-zone audio processor and the heart of an Atmosphere audio control system. Powerful DSP combined with innovative algorithms offer custom solutions for a wide variety of spaces. A built-in message player, virtual wall controllers, learning ambient noise sensing, Tilter Filter™, auto-gain, GPIO, bell scheduler, room combine, and many more features, make the AZM a processing powerhouse for automated audio system control.
The AZM4 is compatible with all six of the Atmosphere accessories for control, remote audio input, and ambient noise sensing. Up to 16 of these plug-and-play Accessories can be connected across 2 accessory ports on the AZM4, with each port designed to work reliably up to 1000ft.
Programming is made simple through a modern on-board web interface, optimized around common use-cases. Built around Progressive Web App technology, the control interface is device agnostic, responsive, and meticulously designed for an ideal user experience without sacrificing design freedom. In addition to Ethernet, built-in Wi-Fi allows for tablets and other controlling devices to connect directly to the AZM4.
Features:
- 2 accessory ports that support up to 8 plug and play accessories each (maximum 16 per AZM4)
- App-less virtual wall controller access via QR code or distributed URL
- Bell Scheduler
- Integrated message player
- Room combine and groups
- Mono, stereo, and subwoofer support
- Auto noise compensation available for all zones
- On board WIFI to use as an access point or connect to existing Wi-Fi network
- Large library of AtlasIED speaker presets
- Accessory self-heal
- High Priority GPI input for integration with alarm system
- Wide selection of audio DSP objects
| System | |
| Type | Signal Processor |

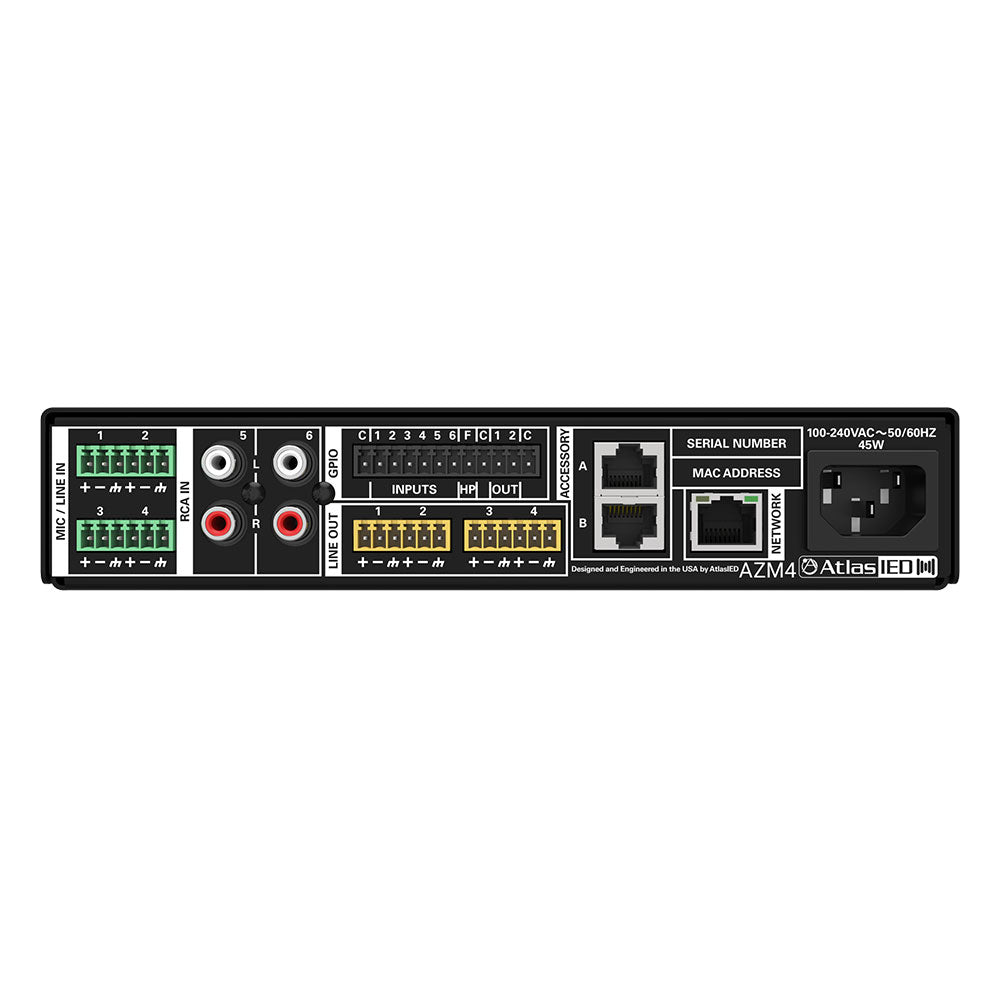

| Connections | |
| Mic / Line Inputs | 4 (Euroblock) |
| RCA | 2 (mono-summed) |
| Line Outputs | 4 (Euroblock) |
| General Purpose Inputs | 6 (Euroblock) |
| High Priority Inputs | 1 (Euroblock) |
| General Purpose Outputs | 2 (Euroblock) |
| Accessory Ports | 2 (RJ45) |
| Network Port | 1 (RJ45) |
| Power Requirements | |
| Main Requirements | 100 - 240 VAC, 50 - 60 Hz (C14 Mains Inlet Connector) |
| Audio Inputs | |
| Balanced Mic / Line Inputs | Connector Type: 3.5mm Pitch Euroblock Color: Green Sensitivity: +4dBu with Gain Set to 0dB Input Gain: 0 - 60dB in 6dB Steps Phantom Power Voltage: +48VDC 10mA Accepts Unbalanced Inputs: Yes Maximum Input Level: +20dBu (7.72 Vrms) with Gain Set to 0dB Input Impedance: 3.9k½ EIN: -125dBu with 150½ Source Impedance and 20kHz BW CMRR: Typically 65dB at 1kHz Maximum Cable Size: 18AWG Minimum Cable Size: 24AWG |
| RCA | Right Channel Color: Red Left Channel Color: White Type: Mono-summed Pairs Sensitivity: -10dBV Maximum Input: 2.4 Vrms (7.6dBV / 9.8dBu) for Both Inputs Driven and 4.78 Vrms (13.6dBV / 15.8dBu) for a Single Input |
| Audio Outputs | |
| Balanced Line Outputs | Connector Type: 3.5mm Pitch Euroblock Color: Orange Maximum Output Level: +20dBu (7.75 Vrms) Maximum Cable Size: 18AWG Minimum Cable Size: 24AWG |
| Audio Performance | |
| THD+N | <0.01% at 0dBu Input / Output with 0dB Gain at 1kHz |
| Frequency Response | ±0.5dB 20Hz - 20kHz |
| Dynamic Range (S/N) | >108dB Unweighted 20Hz - 20kHz,> 110dB "A" Weighted |
| Crosstalk | >-78dB at 1kHz |
| Latency | Euroblock Input or RCA Input to Euroblock Output: 4.9 ms Accessory Input A/C to Euroblock Output: 5.9 ms Accessory Input B/D to Euroblock Output: 6.7 ms |
| Maximum Hardware Gain | 60dB |
| Input Processing | |
| EQ | 24dB/oct HP, PEQ, Low / High Shelf, Notch, LP / HP (BW 6, 12, 24, dB/oct) |
| Dynamics | Gate, De-Esser, Compressor, Auto Gain |
| Other | Gain, Mixer, Priority Router |
| Output Processing | |
| EQ | PEQ, Tilter Filter, Low / High Shelf, Notch, LP / HP (BW 6, 12, 24, 48dB/oct) Speaker Tuning EQ Presets |
| Dynamics | Ambient Noise Compression, Limiter |
| Other | Delay (500 ms), Gain |
| Other Connections | |
| General Purpose Inputs | Contact Closure: Normally Open Capable of Internal Pull-up to 5VDC via User Interface Voltage Input: 0 - 12VDC (1.3VDC Trigger Voltage) |
| High Priority Input | Contact Closure: Normally Open Capable of Internal Pull-up to 5VDC via User Interface Voltage Input: 0 - 12VDC (1.3VDC Trigger Voltage) |
| General Purpose Outputs | Source Current: 10mA at 2VDC Maximum Sink Current: 180mA Maximum Sink Voltage: 24VDC |
| Accessory Ports | Maximum Accessories per Port: 8 Maximum Accessories per AZM: 16 Maximum Bus Length: 1000ft Maximum Audio Wall Plates per Port: 1 |
| Ethernet | 10/100mbps |
| Mechanical | |
| Airflow | Front to Back |
| Operating Ambient Temperature Range | 0¡ - 40¡C |
| Cooling System | Forced Air with Side and Back Panel Venting |
| Energy Consumption | |
| Max | 130 BTU / Hr |
| No Accessories | 75 BTU / Hr |
| Front Panel | |
| Screen | 128 x 128 Color TFT Normally White, 1.45" |
| Encoder | 24 Detent, Push Button |
| Light Bar | RGB (Blue = On, Red = Live Fault) |
| WiFi | Type 802.11 b/g/n 2.4GHz |
| Free Air Range | 60ft |
| Dimensions and Weight | |
| Rack Mount Requirements | 1 RU, 19" |
| Dimensions (with Rack Ears) - Unit | W 19" x H 1.75" x D 11.7" (483mm x 45mm x 297mm) |
| Dimensions - Shipping | W 13.5" x H 4.75" x D 14" (343mm x 121mm x 356mm) |
| Weight - Unit | 4.735 lbs (2.148kg) |
| Weight - Shipping | 7.3 lbs (3.3kg) |
| Agency Approvals | |
| Safety | Conforms to: ANSI / UL 62368-1 Certified to: CAN / CSA C22.2 #62368-1 |
| FCC / ISED | Part 15 (Class B) (US), ICES-003 (Canada) |
