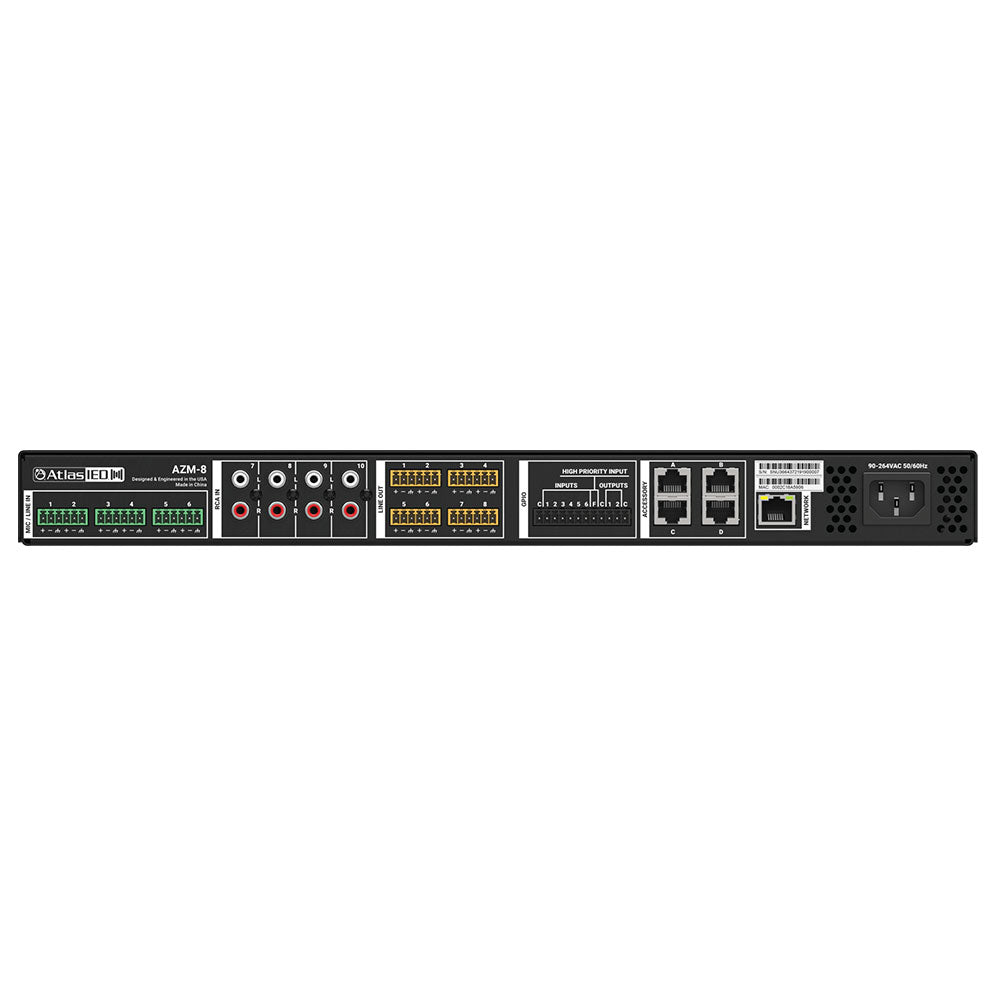

AtlasIED AZM8 - 8-Zone Audio Processor for Atmosphere System
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
The Atmosphere AZM8 is an 8-zone audio processor and the heart of an Atmosphere audio control system. Powerful DSP combined with innovative algorithms offer custom solutions for a wide variety of spaces. A built-in message player, virtual wall controllers, learning ambient noise sensing, Tilter Filter™, auto-gain, GPIO, bell scheduler, room combine, and many more features, make the AZM a processing powerhouse.
The AZM8 is compatible with all six of the Atmosphere accessories for control, remote audio input, and ambient noise sensing. Up to 16 of these plug-and-play Accessories can be connected across 4 accessory ports on the AZM8, with each port designed to work reliably up to 1000ft.
Programming is simple through a modern on-board web interface, optimized around common use-cases. Built around Progressive Web App technology, the control interface is device agnostic, responsive, and meticulously designed for an ideal user experience without sacrificing design freedom. In addition to Ethernet, built-in Wi-Fi allows for tablets and other controlling devices to connect directly to the AZM8.
Features:
- 2 accessory ports that support up to 8 plug and play accessories each (maximum 16 per AZM8)
- App-less virtual wall controller access via QR code or distributed URL
- Bell Scheduler
- Integrated message player
- Room combine and groups
- Mono, stereo, and subwoofer support
- Auto noise compensation available for all zones
- On board WIFI to use as an access point or connect to existing Wi-Fi network
- Large library of AtlasIED speaker presets
- Accessory self-heal
- High Priority GPI input for integration with alarm system
- Wide selection of audio DSP objects
| System | |
| Type | Signal Processor |
| Connections | |
| Mic / Line Inputs | 6 (Euroblock) |
| RCA | 4 (mono-summed) |
| Line Outputs | 8 (Euroblock) |
| General Purpose Inputs | 6 (Euroblock) |
| High Priority Inputs | 1 (Euroblock) |
| General Purpose Outputs | 2 (Euroblock) |
| Accessory Ports | 4 (RJ45) |
| Network Port | 1 (RJ45) |
| Power Requirements | |
| Main Requirements | 100 - 240 VAC, 50 - 60 Hz (C14 Mains Inlet Connector) |
| Audio Inputs | |
| Balanced Mic / Line Inputs | Connector Type: 3.5mm Pitch Euroblock Color: Green Sensitivity: +4dBu with Gain Set to 0dB Input Gain: 0 - 60dB in 6dB Steps Phantom Power Voltage: +48VDC 10mA Accepts Unbalanced Inputs: Yes Maximum Input Level: +20dBu (7.72 Vrms) with Gain Set to 0dB Input Impedance: 3.9k½ EIN: -125dBu with 150½ Source Impedance and 20kHz BW CMRR: Typically 65dB at 1kHz Maximum Cable Size: 18AWG Minimum Cable Size: 24AWG |
| RCA | Right Channel Color: Red Left Channel Color: White Type: Mono-summed Pairs Sensitivity: -10dBV Maximum Input: 2.4 Vrms (7.6dBV / 9.8dBu) for Both Inputs Driven and 4.78 Vrms (13.6dBV / 15.8dBu) for a Single Input |
| Audio Outputs | |
| Balanced Line Outputs | Connector Type: 3.5mm Pitch Euroblock Color: Orange Maximum Output Level: +20dBu (7.75 Vrms) Maximum Cable Size: 18AWG Minimum Cable Size: 24AWG |
| Audio Performance | |
| THD+N | <0.01% at 0dBu Input / Output with 0dB Gain at 1kHz |
| Frequency Response | ±0.5dB 20Hz - 20kHz |
| Dynamic Range (S/N) | >108dB Unweighted 20Hz - 20kHz,> 110dB "A" Weighted |
| Crosstalk | >-78dB at 1kHz |
| Latency | Euroblock Input or RCA Input to Euroblock Output: 4.9 ms Accessory Input A/C to Euroblock Output: 5.9 ms Accessory Input B/D to Euroblock Output: 6.7 ms |
| Maximum Hardware Gain | 60dB |
| Input Processing | |
| EQ | 24dB/oct HP, PEQ, Low / High Shelf, Notch, LP / HP (BW 6, 12, 24, dB/oct) |
| Dynamics | Gate, De-Esser, Compressor, Auto Gain |
| Other | Gain, Mixer, Priority Router |
| Output Processing | |
| EQ | PEQ, Tilter Filter, Low / High Shelf, Notch, LP / HP (BW 6, 12, 24, 48dB/oct) Speaker Tuning EQ Presets |
| Dynamics | Ambient Noise Compression, Limiter |
| Other | Delay (500 ms), Gain |
| Other Connections | |
| General Purpose Inputs | Contact Closure: Normally Open Capable of Internal Pull-up to 5VDC via User Interface Voltage Input: 0 - 12VDC (1.3VDC Trigger Voltage) |
| High Priority Input | Contact Closure: Normally Open Capable of Internal Pull-up to 5VDC via User Interface Voltage Input: 0 - 12VDC (1.3VDC Trigger Voltage) |
| General Purpose Outputs | Source Current: 10mA at 2VDC Maximum Sink Current: 180mA Maximum Sink Voltage: 24VDC |
| Accessory Ports | Maximum Accessories per Port: 8 Maximum Accessories per AZM: 16 Maximum Bus Length: 1000ft Maximum Audio Wall Plates per Port: 1 |
| Ethernet | 10/100mbps |
| Mechanical | |
| Airflow | Front to Back |
| Operating Ambient Temperature Range | 0¡ - 40¡C |
| Cooling System | Forced Air with Side and Back Panel Venting |
| Energy Consumption | |
| Max | 256 BTU / Hr |
| No Accessories | 127 BTU / Hr |
| Front Panel | |
| Screen | 128 x 128 Color TFT Normally White, 1.45" |
| Encoder | 24 Detent, Push Button |
| Light Bar | RGB (Blue = On, Red = Live Fault) |
| WiFi | Type 802.11 b/g/n 2.4GHz |
| Free Air Range | 60ft |
| Dimensions and Weight | |
| Rack Mount Requirements | 1 RU, 19" |
| Dimensions (with Rack Ears) - Unit | W 19" x H 1.75" x D 11.7" (483mm x 45mm x 297mm) |
| Dimensions - Shipping | W 22" x H 4.75" x D 14" (559mm x 121mm x 356mm) |
| Weight - Unit | 8.330 lbs (3.778kg) |
| Weight - Shipping | 10.67 lbs (4.8kg) |
| Agency Approvals | |
| Safety | Conforms to: ANSI / UL 62368-1 Certified to: CAN / CSA C22.2 #62368-1 |
| FCC / ISED | Part 15 (Class B) (US), ICES-003 (Canada) |
