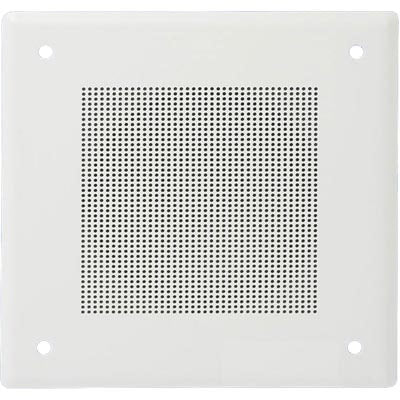

AtlasIED B161-4 4-Inch Loudspeaker with Transformer and Baffle
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Attractive B161-4 loudspeaker assembly combines the sound performance of a full range 4 high compliance loudspeaker with the job site convenience and economy of a factory-assembled loudspeaker, transformer and baffle. Model incorporates the popular Atlas Sound FC104 high performance loudspeaker, recognized for full-range voice and music reproduction. Unit provides wide-angle sound dispersion to achieve desired coverage with fewer loudspeak-ers in distributed systems.
Loudspeaker employs a 10 ounce ceramic magnet and a damped, high-compliance cone to provide excellent low-frequency reproduction with smooth extended response. Package includes factory-mounted, dual-voltage 70.7/25V transformer and a square grille with screw mount. B161-4 packag is shipped assembled and ready for installation. Features- Factory-assembled loudspeaker packages save time and moneyHigh compliance 4 loudspeaker for full-range audio reproduction in background music and paging systems
| Depth | 2-1/4 (5.72 cm) |
| Diameter | 4 (10.16 cm) |
| Shipping Weight | 3.33 lbs (1.51 kg) |
| Frequency Response | 100Hz - 10kHz (+/- 1.5dB) |
| Power Taps | 70.7V/25V |
| Speaker Type | High Compliance |
| Dispersion | 135¡/ -6dB, 2kHz |
| Sensitivity | 94dB (at 1W / 1M) |
Attractive B161-4 loudspeaker assembly combines the sound performance of a full range 4 high compliance loudspeaker with the job site convenience and economy of a factory-assembled loudspeaker, transformer and baffle. Model incorporates the popular Atlas Sound FC104 high performance loudspeaker, recognized for full-range voice and music reproduction. Unit provides wide-angle sound dispersion to achieve desired coverage with fewer loudspeak-ers in distributed systems.
Loudspeaker employs a 10 ounce ceramic magnet and a damped, high-compliance cone to provide excellent low-frequency reproduction with smooth extended response. Package includes factory-mounted, dual-voltage 70.7/25V transformer and a square grille with screw mount. B161-4 packag is shipped assembled and ready for installation. Features- Factory-assembled loudspeaker packages save time and moneyHigh compliance 4 loudspeaker for full-range audio reproduction in background music and paging systems
| Depth | 2-1/4 (5.72 cm) |
| Diameter | 4 (10.16 cm) |
| Shipping Weight | 3.33 lbs (1.51 kg) |
| Frequency Response | 100Hz - 10kHz (+/- 1.5dB) |
| Power Taps | 70.7V/25V |
| Speaker Type | High Compliance |
| Dispersion | 135¡/ -6dB, 2kHz |
| Sensitivity | 94dB (at 1W / 1M) |
