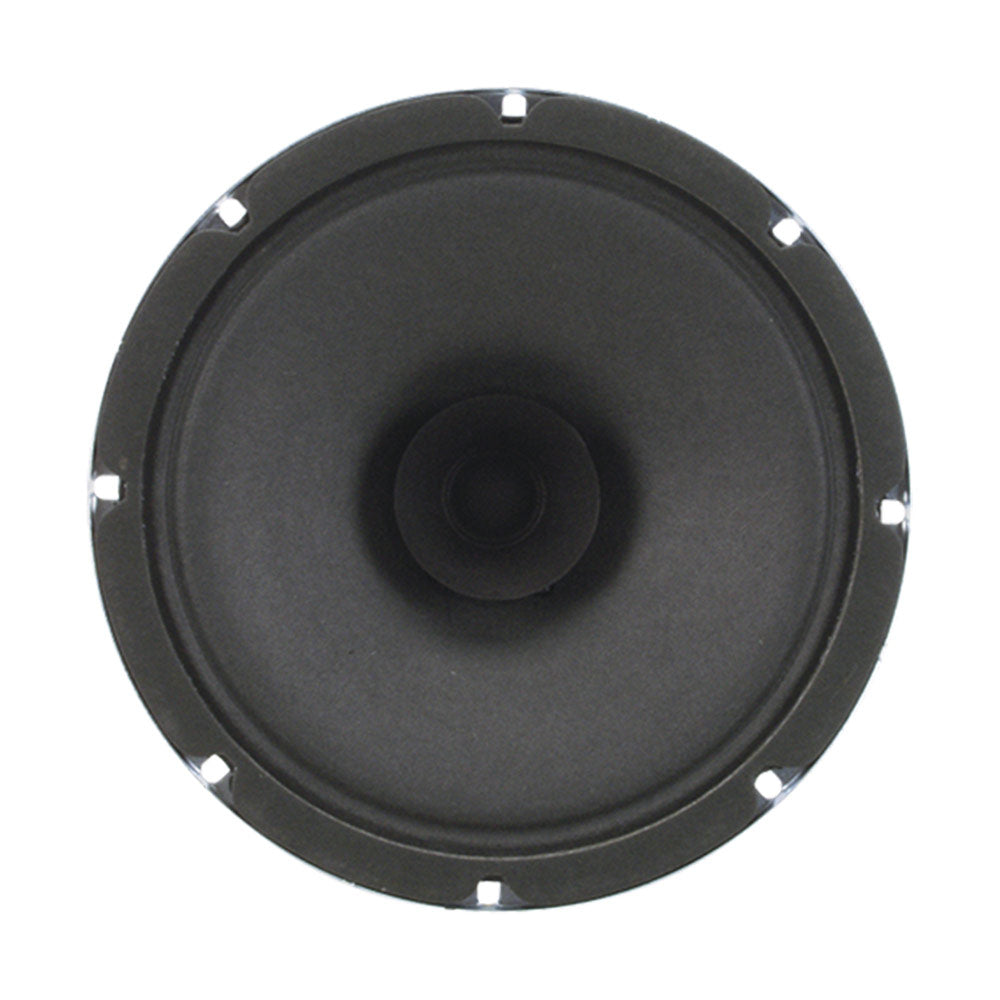

AtlasIED C5AT25 8-Inch Dual Cone Speaker (with 25V-5W Transformer)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Model C5AT25 is a reliable, economically priced 15-watt loudspeaker with a pre-mounted 25V 5W transformer that offers many features found in speakers costing considerably more. It includes a curvelinear, treated-paper cone for lower harmonic distortion. It is also equipped with a full 1 diameter copper voice coil with a black-anodized aluminum former for better power dissipation. Model C5A operates within a frequency response range of 50Hz - 18kHz with a sensitivity of 96dB and a dispersion angle of 105°. It mounts a wide variety of Atlas Sound round and square baffles and enclosures to meet functional and aesthetic application requirements.
Features:
- Ideal for Multi-Purpose Commercial, Industrial and Institutional Use
- Industry Standard Value Loudspeaker with Proven Performance
- Mounts a Wide Selection of Atlas Sound Baffles
- With Factory-Installed LT-25 Line-Matching Transformer
| Speaker Type | Treated Paper |
| Frequency Response | 100Hz - 10kHz |
| Power Taps | .5, 1, 2, / 5 Watts |
| Sensitivity | 96dB Peak, 93dB Average |
| Dispersion | 105¡ |
| Depth | 2 5/8 (6.6675 cm) |
| Diameter | 8 (20.32 cm) |
| Shipping Weight | 2.17 lbs (0.98 kgs) |
Model C5AT25 is a reliable, economically priced 15-watt loudspeaker with a pre-mounted 25V 5W transformer that offers many features found in speakers costing considerably more. It includes a curvelinear, treated-paper cone for lower harmonic distortion. It is also equipped with a full 1 diameter copper voice coil with a black-anodized aluminum former for better power dissipation. Model C5A operates within a frequency response range of 50Hz - 18kHz with a sensitivity of 96dB and a dispersion angle of 105°. It mounts a wide variety of Atlas Sound round and square baffles and enclosures to meet functional and aesthetic application requirements.
Features:
- Ideal for Multi-Purpose Commercial, Industrial and Institutional Use
- Industry Standard Value Loudspeaker with Proven Performance
- Mounts a Wide Selection of Atlas Sound Baffles
- With Factory-Installed LT-25 Line-Matching Transformer
| Speaker Type | Treated Paper |
| Frequency Response | 100Hz - 10kHz |
| Power Taps | .5, 1, 2, / 5 Watts |
| Sensitivity | 96dB Peak, 93dB Average |
| Dispersion | 105¡ |
| Depth | 2 5/8 (6.6675 cm) |
| Diameter | 8 (20.32 cm) |
| Shipping Weight | 2.17 lbs (0.98 kgs) |
