DALE SKU # ATLA-CP700

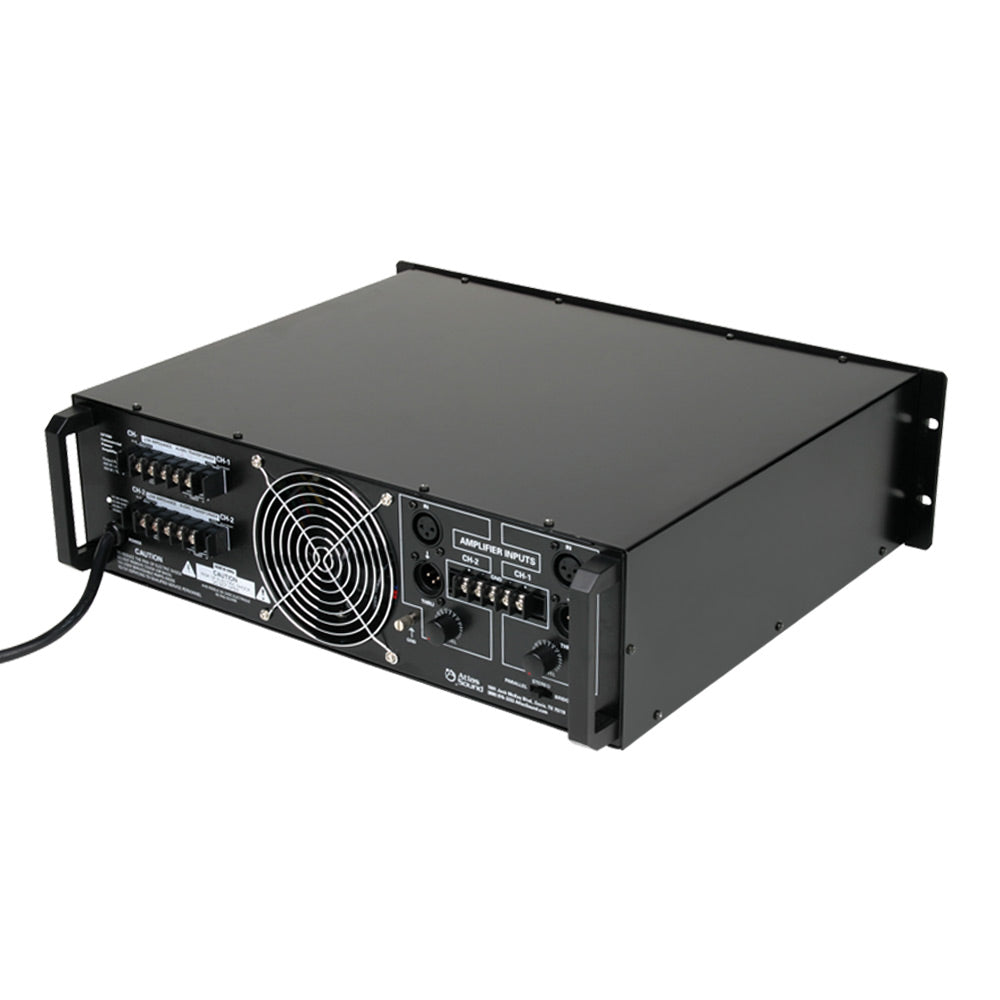

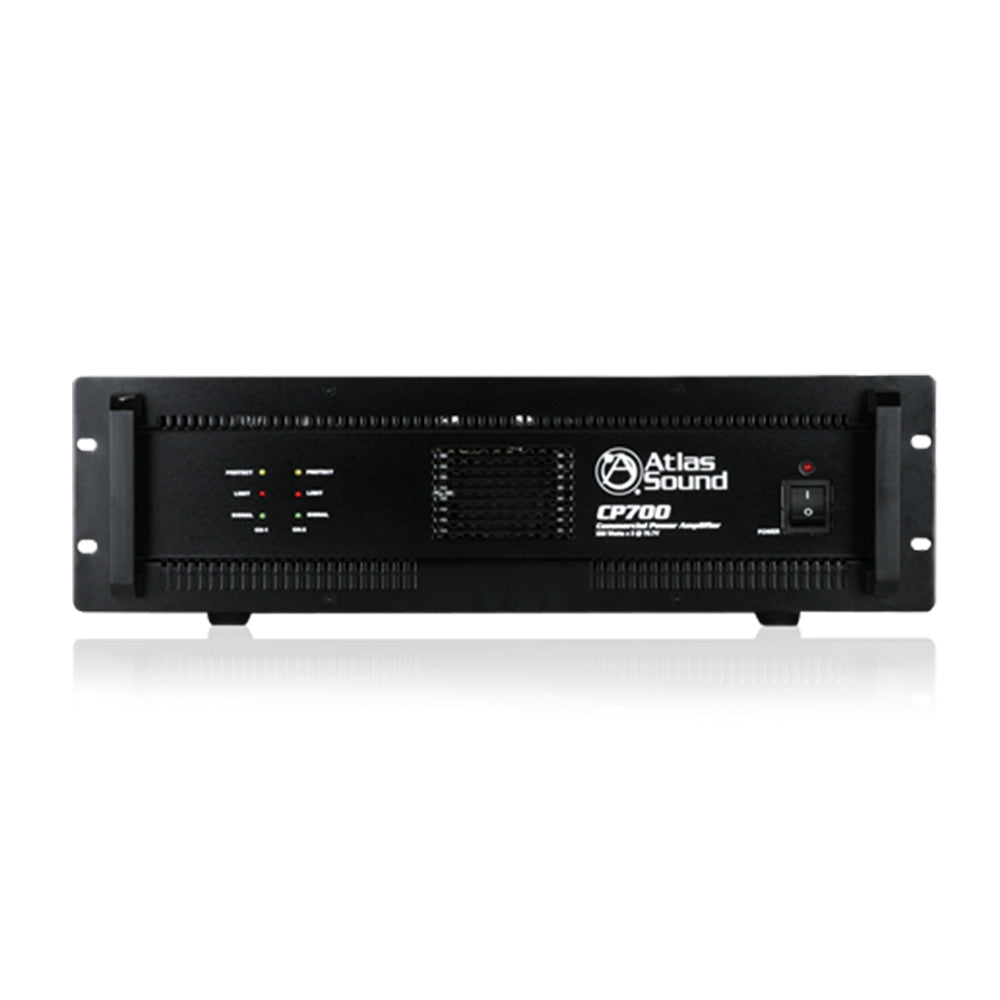

AtlasIED CP700 2-Channel 350-Watt 25/70/100V Amplifier

Sale price$1,396.99 Regular price$1,741.99
Save $345.00
  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

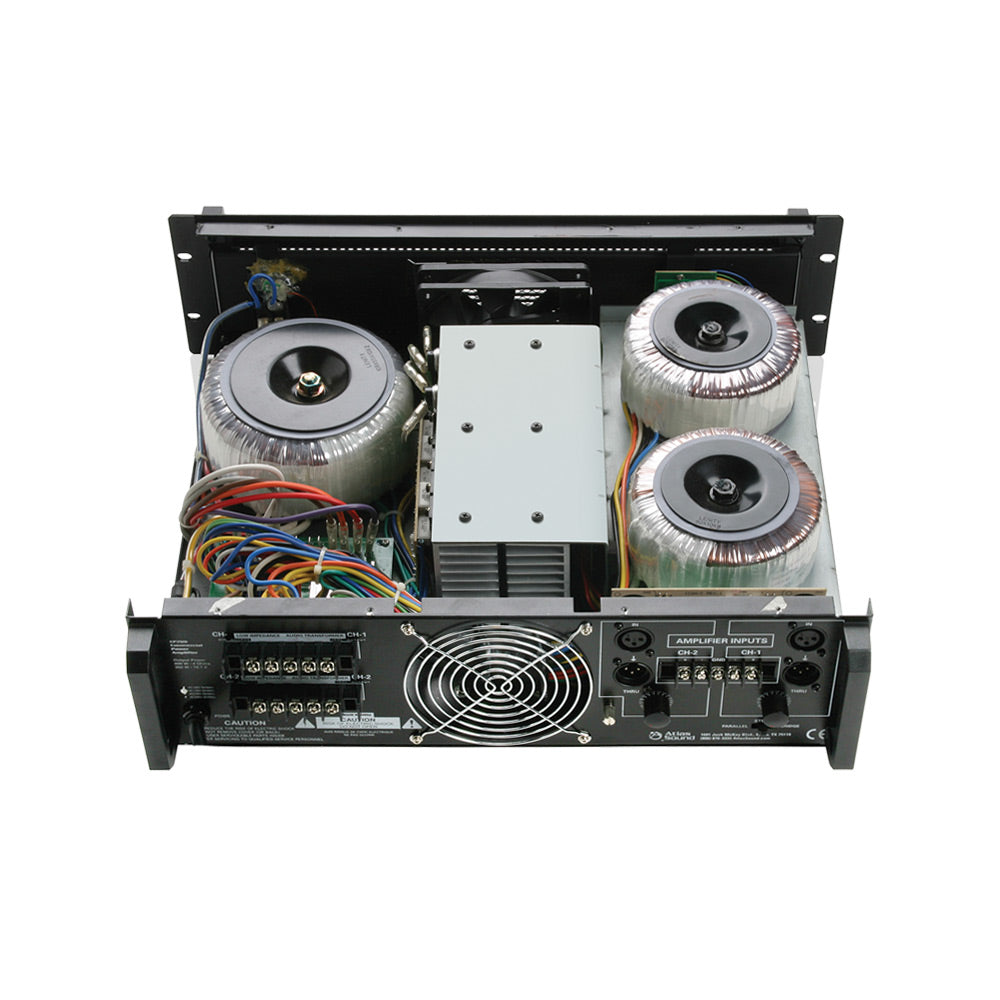

    A professional grade A/B type audio power amplifier specifically designed for demanding contractor applications, the CP700 features esoteric grade toroidal power supply and output transformers. These transformers were chosen for their outstanding reliability as well as extended frequency response (-3dB @ 30Hz - 16kHz output through transformer) Now you can have the peace of mind that systems specified with the CP700 will have true transformer output isolation, a feature that previously may have not been affordable due to the cost of quality external transformers. CP700's two independent channels ensure maximum channel separation and ultra low distortion figures while providing years of faithful service.

    Whether your application is a large distributed constant voltage sound system or a high SPL sound reinforcement system, the AtlasIED CP700 is the perfect answer for high power/low cost amplification needs.

    Features:

    • 25V, 70.7V, 100V, and Direct Coupled (2,4, and 8 Ohm) Outputs Mounted on Barrier Strips with Covers for Safety
    • Balanced Inputs on Barrier Strip and XLR Connectors
    • Dual-Speed, High Efficiency Fan Cooling
    • Loop Through Feature on Male XLRs, One per Channel Input
    • Power-Up Muting
    • Short-Circuit, Temperature, and DC Offset Protection
    • Soft Clip Limiter Protection
    • Stepped Attenuators Mounted on the Rear for Security
    • Stereo, Bridge, or Parallel Operating Modes Selectable via Rear Mounted Switch
    • Toroidal Output Transformers Provide Full Electrical Isolation and Meet Worldwide Safety Agency Approval
    • UL Listed - UL60065
    FREQUENCY RESPONSE 30Hz - 50kHz
    CHANNELS Two
    CONNECTOR TYPE Terminal Block / XLR
    FINISH Black
    NUMBER OF FANS 1 - Variable Speed
    OUTPUT POWER 350 Watts/Channel @ 70.7V, 700 Watts 140V/200V Bridge Mono, 400 Watts/Channel @ 4½
    RACK UNITS 3 RU
    HEIGHT 5 3/16" (13 cm)

    A professional grade A/B type audio power amplifier specifically designed for demanding contractor applications, the CP700 features esoteric grade toroidal power supply and output transformers. These transformers were chosen for their outstanding reliability as well as extended frequency response (-3dB @ 30Hz - 16kHz output through transformer) Now you can have the peace of mind that systems specified with the CP700 will have true transformer output isolation, a feature that previously may have not been affordable due to the cost of quality external transformers. CP700's two independent channels ensure maximum channel separation and ultra low distortion figures while providing years of faithful service.

    Whether your application is a large distributed constant voltage sound system or a high SPL sound reinforcement system, the AtlasIED CP700 is the perfect answer for high power/low cost amplification needs.

    Features:

    • 25V, 70.7V, 100V, and Direct Coupled (2,4, and 8 Ohm) Outputs Mounted on Barrier Strips with Covers for Safety
    • Balanced Inputs on Barrier Strip and XLR Connectors
    • Dual-Speed, High Efficiency Fan Cooling
    • Loop Through Feature on Male XLRs, One per Channel Input
    • Power-Up Muting
    • Short-Circuit, Temperature, and DC Offset Protection
    • Soft Clip Limiter Protection
    • Stepped Attenuators Mounted on the Rear for Security
    • Stereo, Bridge, or Parallel Operating Modes Selectable via Rear Mounted Switch
    • Toroidal Output Transformers Provide Full Electrical Isolation and Meet Worldwide Safety Agency Approval
    • UL Listed - UL60065
    FREQUENCY RESPONSE 30Hz - 50kHz
    CHANNELS Two
    CONNECTOR TYPE Terminal Block / XLR
    FINISH Black
    NUMBER OF FANS 1 - Variable Speed
    OUTPUT POWER 350 Watts/Channel @ 70.7V, 700 Watts 140V/200V Bridge Mono, 400 Watts/Channel @ 4½
    RACK UNITS 3 RU
    HEIGHT 5 3/16" (13 cm)
