AtlasIED DPA-DAC4 - Dante Accessory Card for DPA Series
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

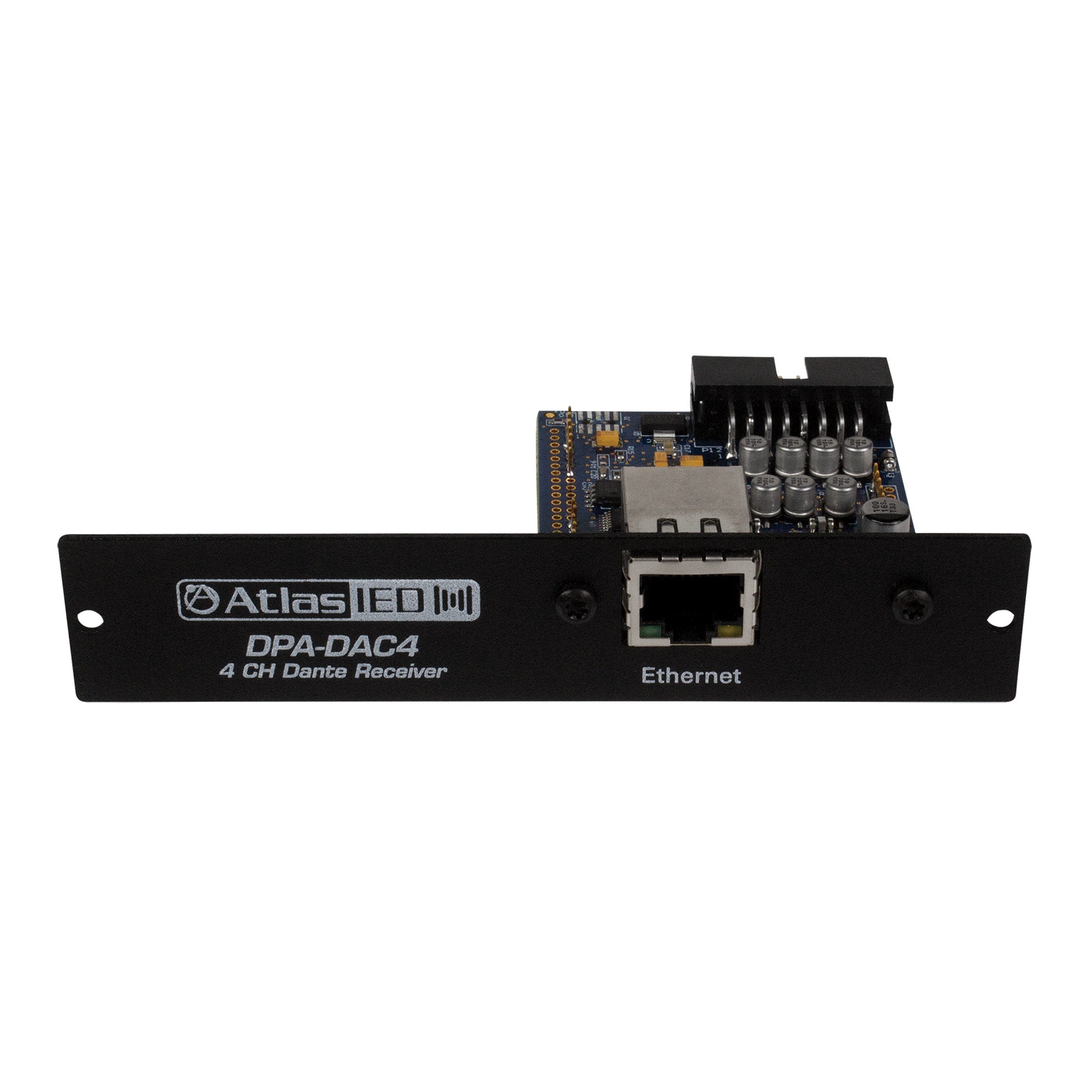

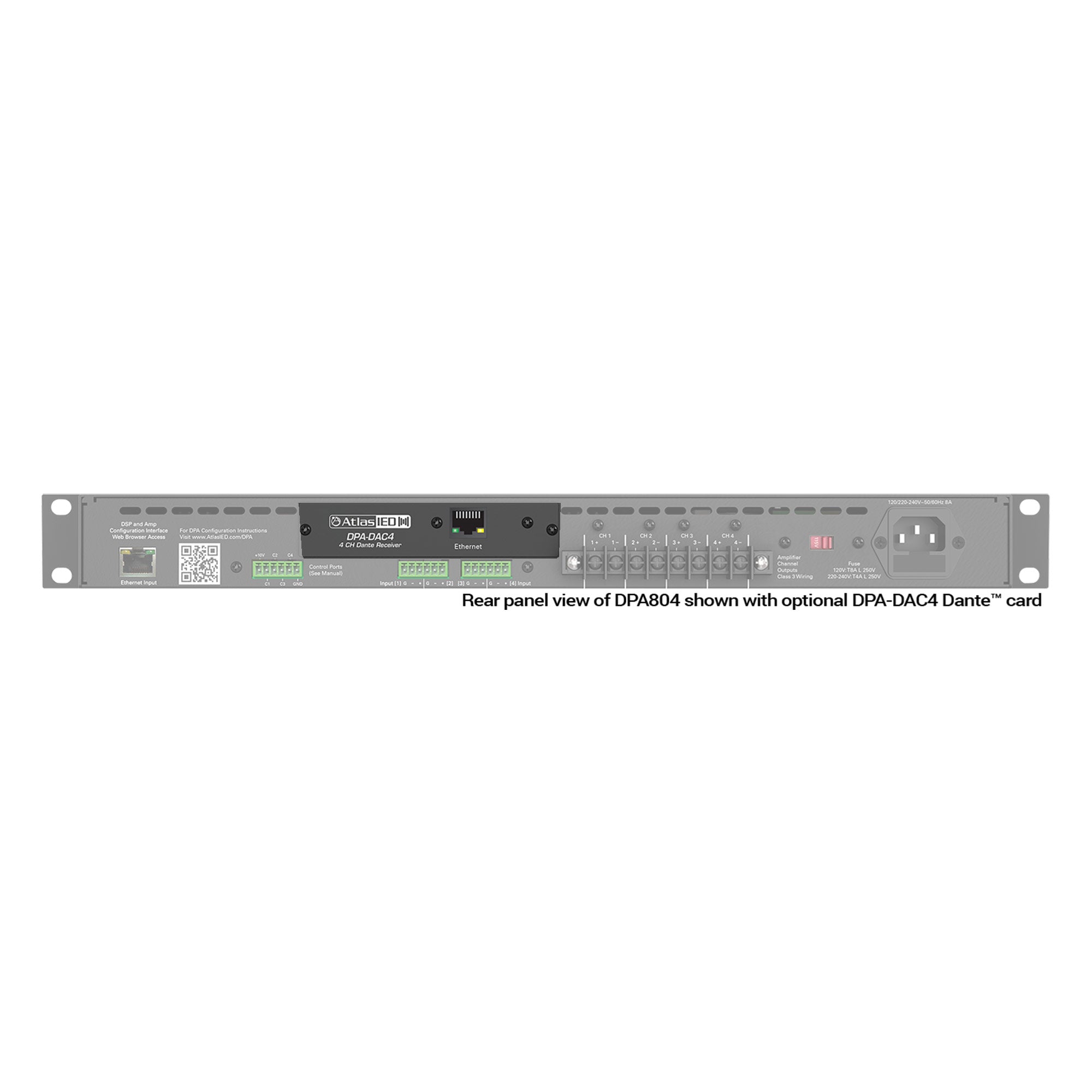

The DPA-DAC4 accessory card is designed to work in conjunction with DPA Series amplifiers. The DPA-DAC4 is a 4-input Dante™ receiver that features digital audio transportation over standard IP networks. The DPA Series 4-channel amplifiers come standard with four balanced line inputs and an accessory card slot to add an additional 4-inputs, giving the amplifiers a total of 8-inputs.
All inputs can be mixed and routed to any of the four amplifier channels. All four amplifier channels have an assortment of DSP tools including level controls, EQ’s, limiters, high and low pass filters, and delay to provide flexibility for a range of applications.
Features:
- Dante™ Network Audio Enabled
- 4-Channel Receiver
- Integrates with 4-Channel DPA Series Amplifiers
| CONNECTOR TYPE | RJ-45 |
| GAIN CONTROLS | 0dBFS = 20dBu / 0dBFS = 10dBu PCB shunt selectable |
| FREQUENCY RESPONSE | 20Hz - 20KHz +/- 1dB |
| THD | .06% @ 1KHz |
| MAXIMUM OUTPUT LEVEL | 7dBu |
| HEIGHT | 0.97" (2.46cm) |
| WIDTH | 4.70" (11.94cm) |
| DEPTH | 2.5" (6.3cm) |
| WEIGHT | 2.6oz (0.07kg) |
The DPA-DAC4 accessory card is designed to work in conjunction with DPA Series amplifiers. The DPA-DAC4 is a 4-input Dante™ receiver that features digital audio transportation over standard IP networks. The DPA Series 4-channel amplifiers come standard with four balanced line inputs and an accessory card slot to add an additional 4-inputs, giving the amplifiers a total of 8-inputs.
All inputs can be mixed and routed to any of the four amplifier channels. All four amplifier channels have an assortment of DSP tools including level controls, EQ’s, limiters, high and low pass filters, and delay to provide flexibility for a range of applications.
Features:
- Dante™ Network Audio Enabled
- 4-Channel Receiver
- Integrates with 4-Channel DPA Series Amplifiers
| CONNECTOR TYPE | RJ-45 |
| GAIN CONTROLS | 0dBFS = 20dBu / 0dBFS = 10dBu PCB shunt selectable |
| FREQUENCY RESPONSE | 20Hz - 20KHz +/- 1dB |
| THD | .06% @ 1KHz |
| MAXIMUM OUTPUT LEVEL | 7dBu |
| HEIGHT | 0.97" (2.46cm) |
| WIDTH | 4.70" (11.94cm) |
| DEPTH | 2.5" (6.3cm) |
| WEIGHT | 2.6oz (0.07kg) |
