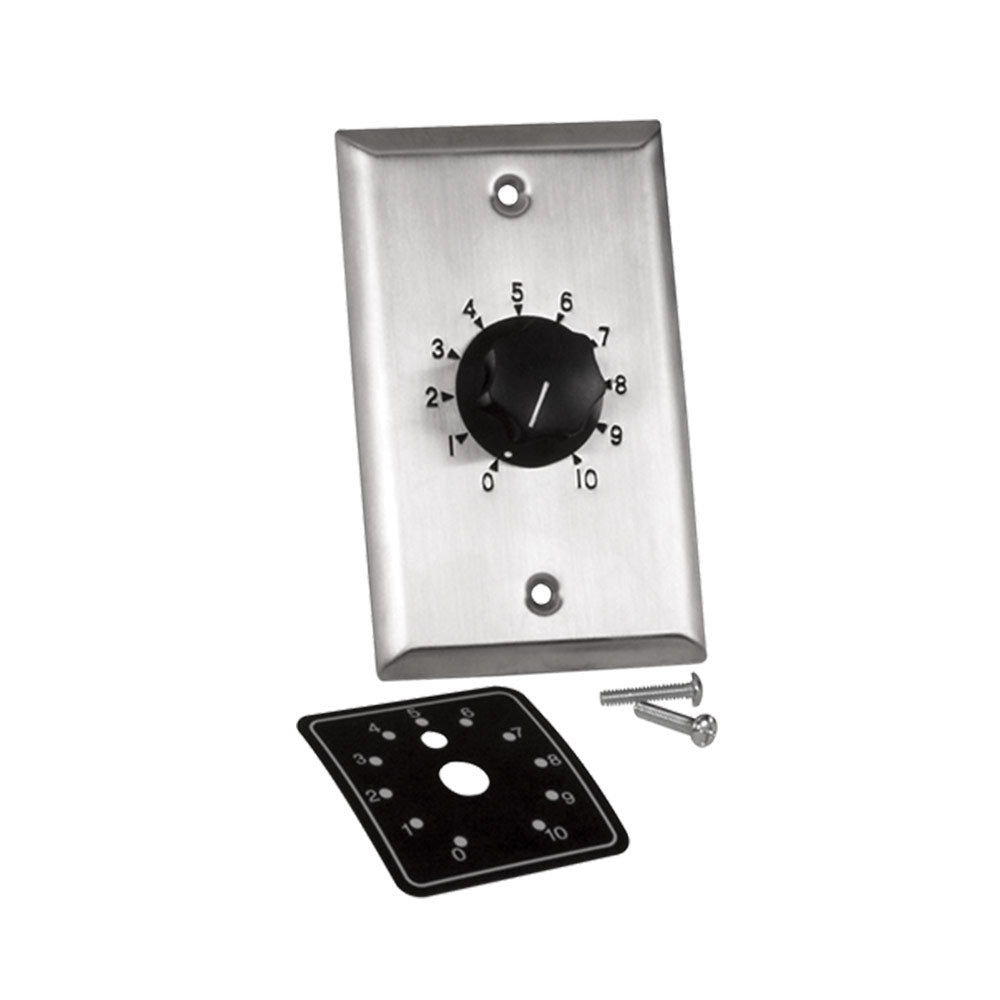

AtlasIED E408-100 Precision Plate Mounted 100W Attenuator
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Specially designed for attenuation in masking and sound reinforcement systems where fine tuning of level control is required. Employs a ten-position, non-shorting rotary switch without stop. Attenuation rate is 1.5dB per step. (All other specifications are the same as the AT Series including the UL listing.)
Features:
- 1.5 dB Steps for Sound Masking and Other Precision Applications
- 100 Watt Power Handling
- Rack or Plate Mounting
| Plate Size | 1 gang |
| Plate Type | Stainless Steel |
| Power Rating | 100W |
| Total Attenuation | 15dB |
| Height | 4 1/2" (11.43 cm) |
| Width | 2 3/4" (6.985 cm) |
| Depth | 2 5/8" (6.6675 cm) |
| Shipping Weight | 1.00 lb (0.45 kgs) |
| Safety Listed | 813, 2043 |
Specially designed for attenuation in masking and sound reinforcement systems where fine tuning of level control is required. Employs a ten-position, non-shorting rotary switch without stop. Attenuation rate is 1.5dB per step. (All other specifications are the same as the AT Series including the UL listing.)
Features:
- 1.5 dB Steps for Sound Masking and Other Precision Applications
- 100 Watt Power Handling
- Rack or Plate Mounting
| Plate Size | 1 gang |
| Plate Type | Stainless Steel |
| Power Rating | 100W |
| Total Attenuation | 15dB |
| Height | 4 1/2" (11.43 cm) |
| Width | 2 3/4" (6.985 cm) |
| Depth | 2 5/8" (6.6675 cm) |
| Shipping Weight | 1.00 lb (0.45 kgs) |
| Safety Listed | 813, 2043 |
