AtlasIED FA-TR6 - New Construction Ring for 6-Inch Strategy Series
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

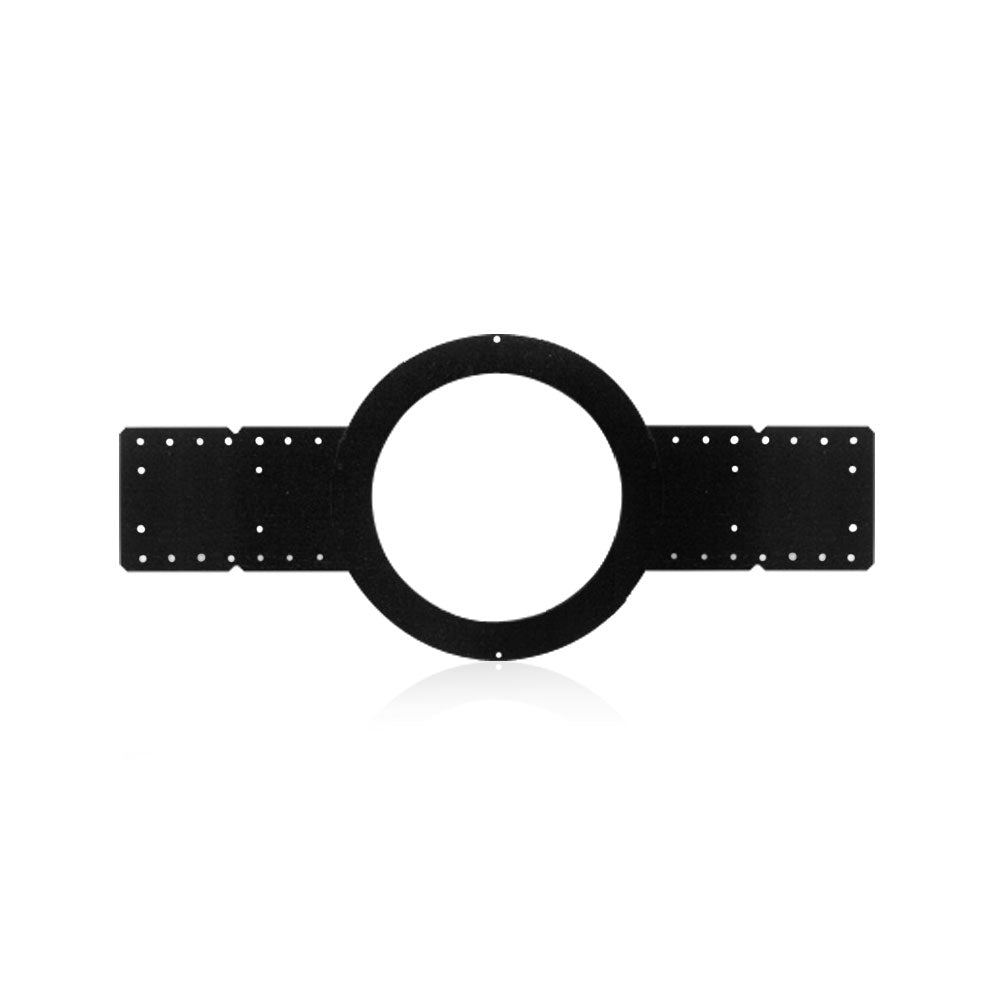

The Strategy Series FA-TR6 trim ring/rough-in bracket, for wall or ceiling-mount applications, installs prior to the drywall and serves as a pattern cut-out for the drywall contractor to finishout the wall leaving the proper opening for a FA97-6 or FA95-6 enclosure or FAPR-6 plaster ring. This step identifies pre-wire location, expediting sound system installation.
Trim ring measures 25 5/8" L and will accommodate 3/8" to 1 1/4" drywall. Mounting holes are provided to match both 16" and 24" center studs. FA-TR6 is construced of 20-gauge galvanized steel.
NOTE: Trim ring alone will not allow installation of Strategy Series Grilles. Enclosures or FAPR Plaster Ring are required for grille installation.
Features:
- Accommodates from 3/8" to 1-1/4" Drywall Thickness
- Constructed of 20-Gauge Steel
- Installs Prior to Drywall and Serves as a Pattern Cutout for the Drywall Installer
- Mounts on Either 16" Centered or 24" Centered Joists or Studs
| HEIGHT | 25 5/8" (65.0875 cm) |
| DIAMETER | 8 3/8" (21.2725 cm) |
| SHIPPING WEIGHT | 1.63 lbs (0.74 kgs) |
| SAFETY LISTED | 1480 |
The Strategy Series FA-TR6 trim ring/rough-in bracket, for wall or ceiling-mount applications, installs prior to the drywall and serves as a pattern cut-out for the drywall contractor to finishout the wall leaving the proper opening for a FA97-6 or FA95-6 enclosure or FAPR-6 plaster ring. This step identifies pre-wire location, expediting sound system installation.
Trim ring measures 25 5/8" L and will accommodate 3/8" to 1 1/4" drywall. Mounting holes are provided to match both 16" and 24" center studs. FA-TR6 is construced of 20-gauge galvanized steel.
NOTE: Trim ring alone will not allow installation of Strategy Series Grilles. Enclosures or FAPR Plaster Ring are required for grille installation.
Features:
- Accommodates from 3/8" to 1-1/4" Drywall Thickness
- Constructed of 20-Gauge Steel
- Installs Prior to Drywall and Serves as a Pattern Cutout for the Drywall Installer
- Mounts on Either 16" Centered or 24" Centered Joists or Studs
| HEIGHT | 25 5/8" (65.0875 cm) |
| DIAMETER | 8 3/8" (21.2725 cm) |
| SHIPPING WEIGHT | 1.63 lbs (0.74 kgs) |
| SAFETY LISTED | 1480 |
